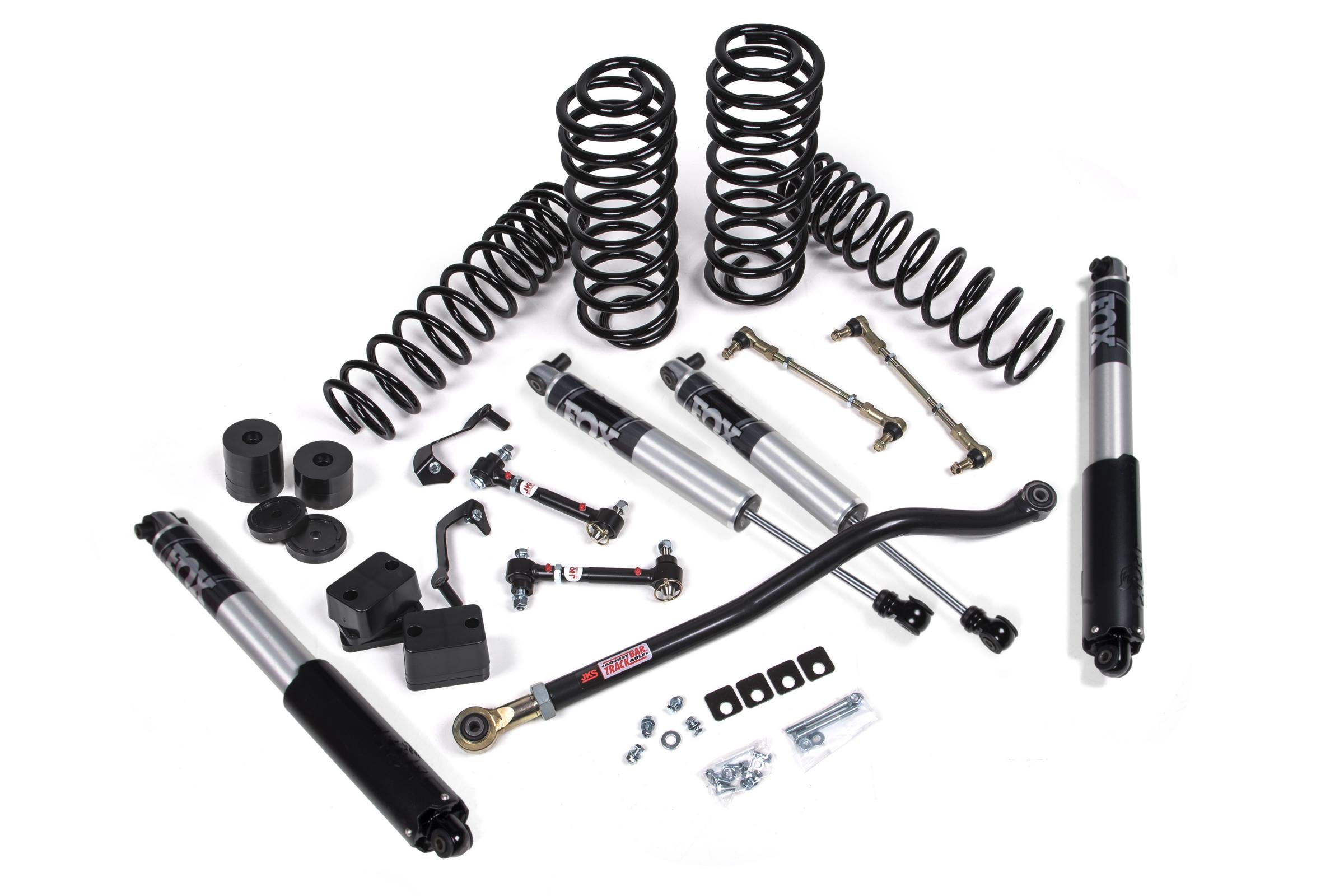

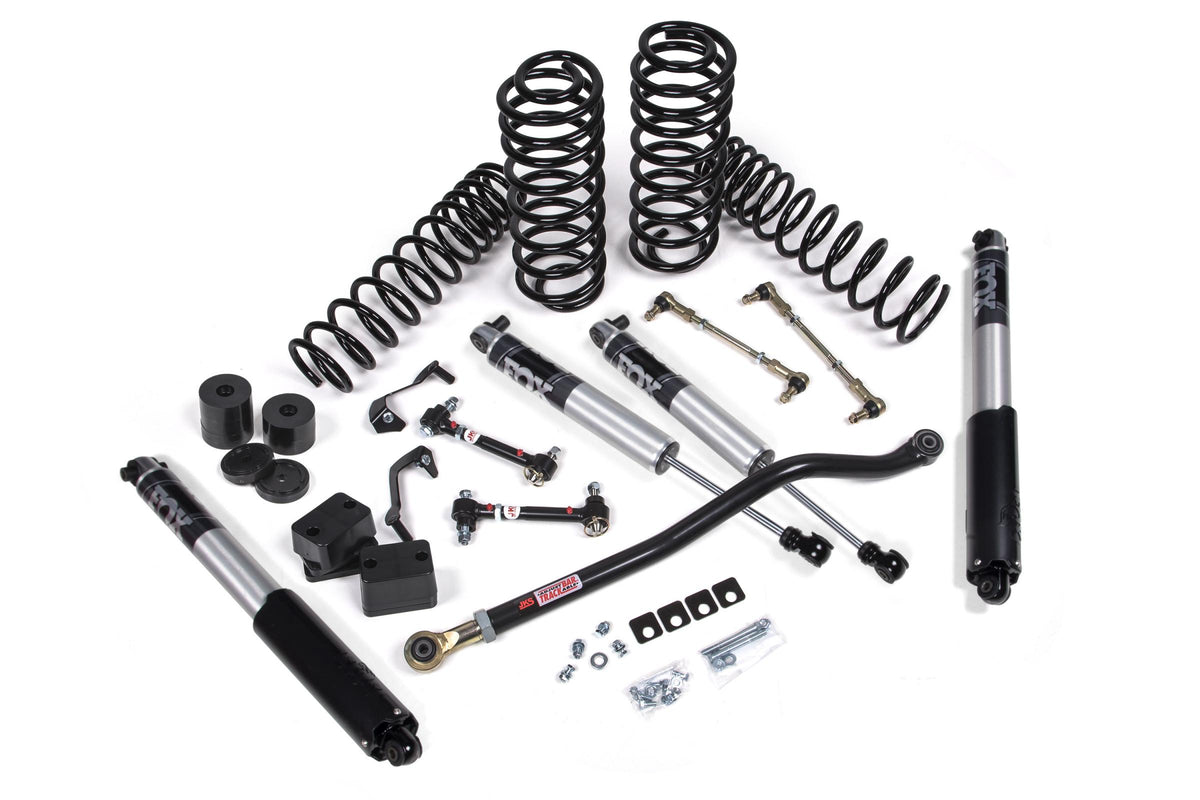

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're running a stock-weight JL 4-Door Unlimited — no heavy steel bumpers, no winch — and you want 3.5" of lift with a short-arm system that maximizes trail compliance and delivers Fox reservoir damping without the complexity of a long-arm conversion. The JSPEC119PS pairs JKS geometry-corrected short-arm control arms with Fox 2.5 Performance Series reservoir shocks and standard-rate coil springs. It's the trail-focused, stock-weight configuration of the J-Venture 3.5" lineup.

The Result

3.5" of lift with JKS geometry-corrected short-arm control arms. Standard-rate coils deliver a softer initial spring feel and greater droop travel compared to HD coils — maximizing articulation for stock-weight builds. Fox 2.5 reservoir shocks provide consistent damping and heat dissipation on extended trail runs. No differential drop required. Adjustable control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models, Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack

System Specifications

• Lift Height: 3.5"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door builds
• Control Arms: JKS geometry-corrected short-arm control arms
• SKU: JSPEC119PS

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates during install. No cutting or welding required for standard JL 4-Door gas applications. If adding front accessories post-install, consult OFAS for HD coil upgrade compatibility.

Wheel & Tire Fitment

Optimized for 35"–37" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Standard-rate coils may exhibit sag under heavy accessory loads — confirm with OFAS if adding front-end weight after install.

Engineering Question

Running the J-Venture 3.5" std-rate with Fox 2.5 on a stock-weight JL 4-Door and planning to add a front bumper later — at what point does the standard-rate coil start sagging under the added load? A mid-weight steel bumper (60–80 lbs) can compress std-rate coils 0.25"–0.5" under static load. Add a winch and that number climbs. Contact OFAS before you bolt on accessories and we'll tell you whether an HD coil swap is warranted for your specific bumper and winch combination.
