JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 Elite | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 Elite | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

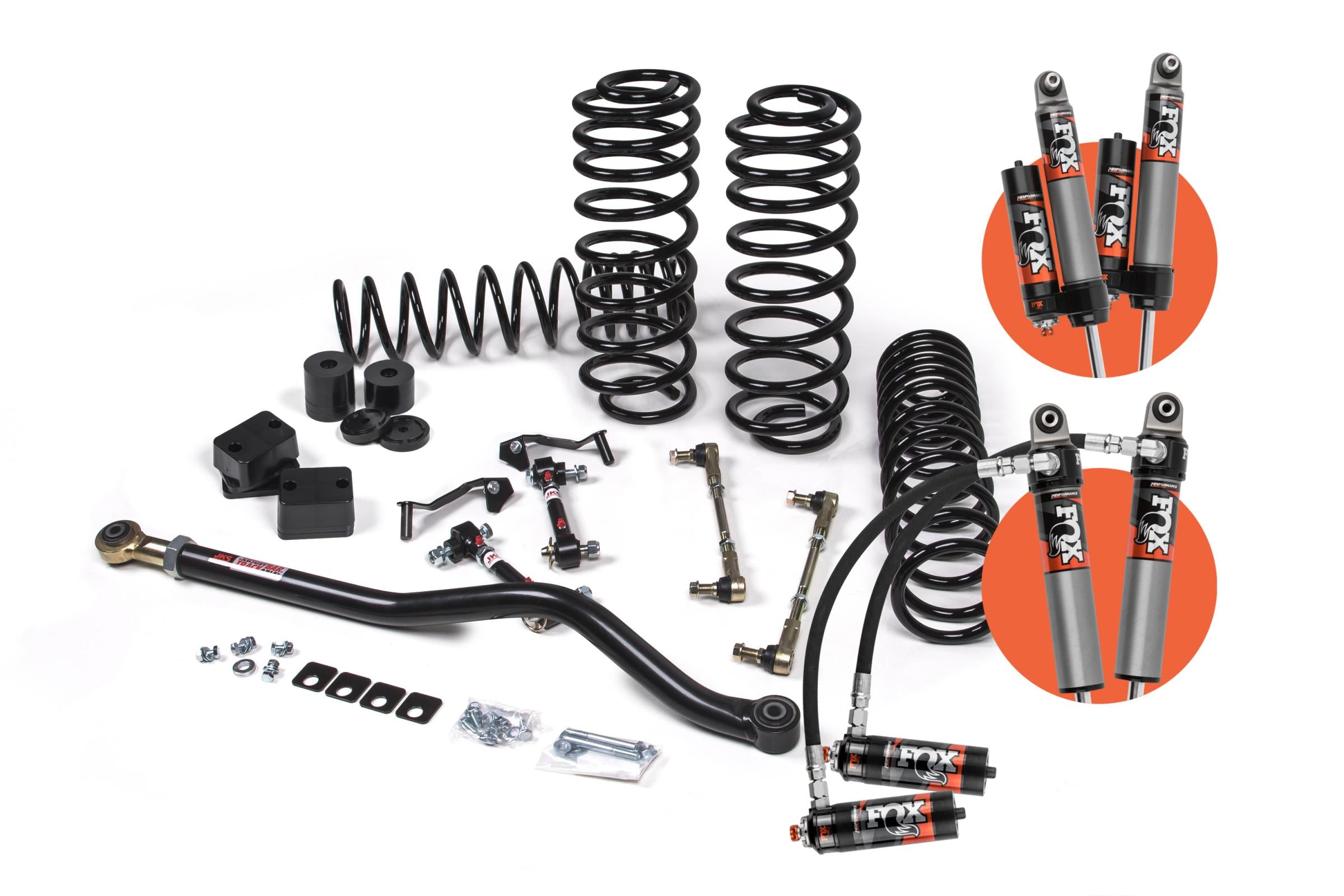

You're building a fully accessorized JL 4-Door Unlimited — steel bumpers, winch, heavy spare — and you want the top-spec Fox shock in the J-Venture 2.5" HD lineup without the complexity of a long-arm conversion. The JSPEC118PES delivers JKS short-arm geometry with Fox 2.5 Elite DSC reservoir shocks and HD coil springs. Driver-adjustable compression lets you tune the ride on the fly between trail and highway. This is the highest-performing shock configuration in the J-Venture 2.5" HD lineup.

The Result

2.5" of lift with JKS geometry-corrected short-arm control arms. HD coils handle the weight of a fully built rig without sagging. Fox 2.5 Elite DSC shocks give you real-time compression adjustment — open it up for trail compliance, firm it up for towing or highway stability. No differential drop required. The combination delivers a trail-capable, street-composed JL 4-Door that handles the weight of a fully built rig.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT

System Specifications

• Lift Height: 2.5"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: HD — tuned for accessorized JL 4-Door builds with steel bumpers or winch
• Control Arms: JKS geometry-corrected short-arm control arms
• SKU: JSPEC118PES

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and rock rails. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 35" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Pairing Fox 2.5 Elite DSC with HD coils at 2.5" of lift on a fully loaded JL 4-Door — does the DSC adjustment range give you meaningful differentiation between a slow rock crawl setting and a highway tow setting? Yes — but the range of useful adjustment narrows when HD coils are already doing significant work under a heavy front end. The low-speed circuit controls body pitch on slow terrain; the high-speed circuit manages impact harshness on fast terrain. Contact OFAS with your total front-end weight and primary use case and we'll give you a DSC starting position that's dialed for your specific build.
