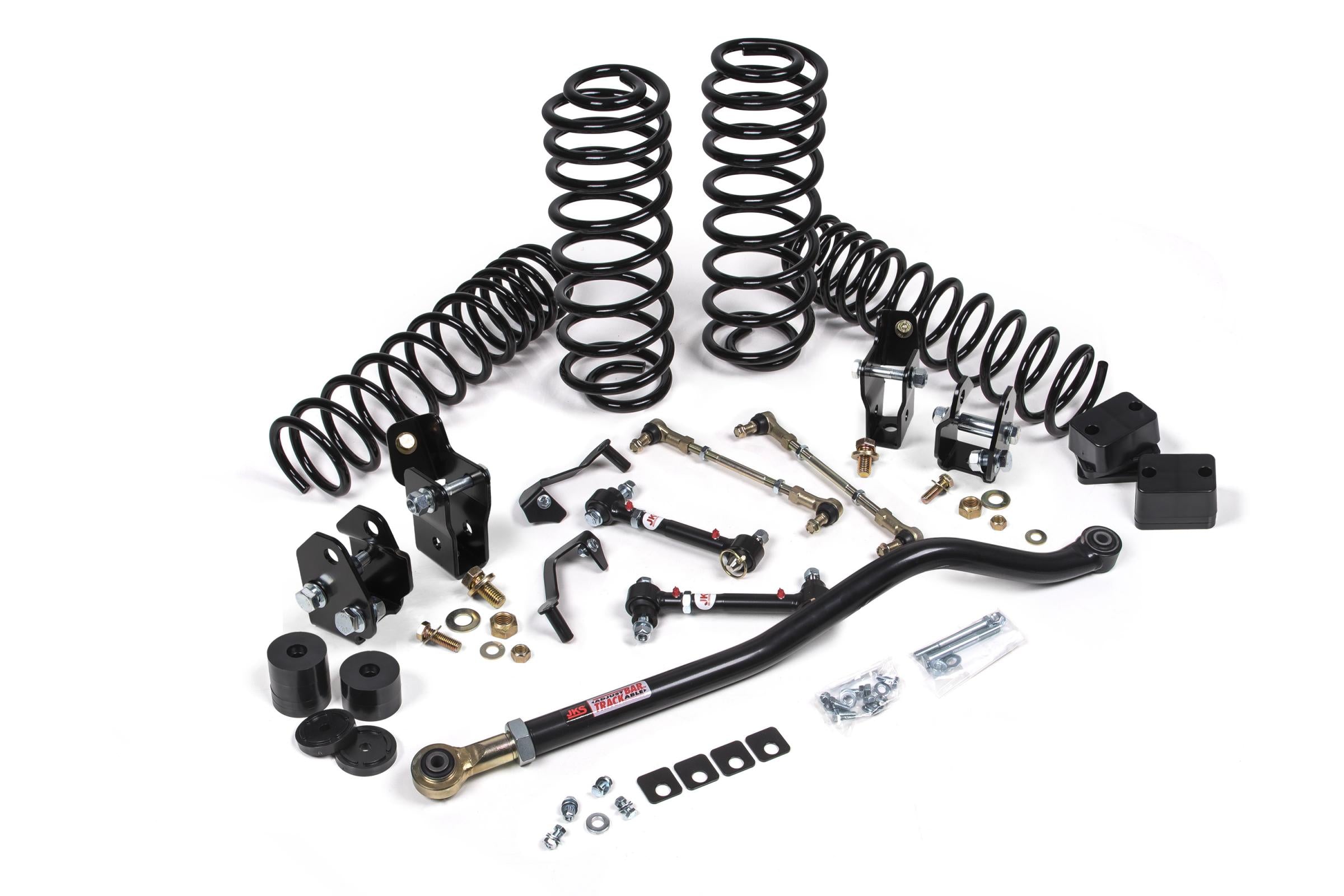

JKS J-Venture 2.5" Lift Kit w/ Shock Extensions | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Venture 2.5" Lift Kit w/ Shock Extensions | HD Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You already have quality shocks on your accessorized JL 4-Door Unlimited and you want the J-Venture short-arm geometry upgrade without replacing them. The JSPEC118KNS delivers the full J-Venture 2.5" HD system with shock extension brackets, allowing you to retain and reuse your existing shock absorbers. HD coils handle the weight of a built rig with steel bumpers and winch. This is the bring-your-own-shocks configuration of the J-Venture 2.5" HD lineup.

The Result

2.5" of lift with JKS geometry-corrected short-arm control arms. HD coils maintain ride height under accessory loads. Shock extension brackets adapt your existing shocks to the new lift geometry without requiring replacement. No differential drop required. Adjustable control arms allow precise alignment post-install. You get the full J-Venture platform upgrade while protecting your existing shock investment.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT
• Shock Note: Shock extensions are designed to work with specific shock eye-to-eye lengths — confirm your existing shock compatibility with OFAS before ordering

System Specifications

• Lift Height: 2.5"
• System: J-Venture Short-Arm
• Shock: Extension Brackets (customer-supplied shocks)
• Coil Rate: HD — tuned for accessorized JL 4-Door builds with steel bumpers or winch
• Control Arms: JKS geometry-corrected short-arm control arms
• SKU: JSPEC118KNS

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Verify existing shock eye-to-eye length and body diameter compatibility with JKS extension brackets before install. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Engineered for 35" tires on an accessorized build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Carrying over a set of Fox 2.5 Performance or Bilstein 5100 shocks into this J-Venture 2.5" HD short-arm build on an accessorized JL 4-Door — will the extension brackets maintain correct shock travel at full droop under HD coil load? The extension bracket geometry is designed for specific collapsed and extended shock lengths. A shock that clears at stock ride height may bind or over-extend at 2.5" with HD coils if the travel range isn't matched. Send OFAS your shock model, current eye-to-eye measurement, and front-end accessory weight before ordering — we'll confirm drop-in fitment before the kit ships.
