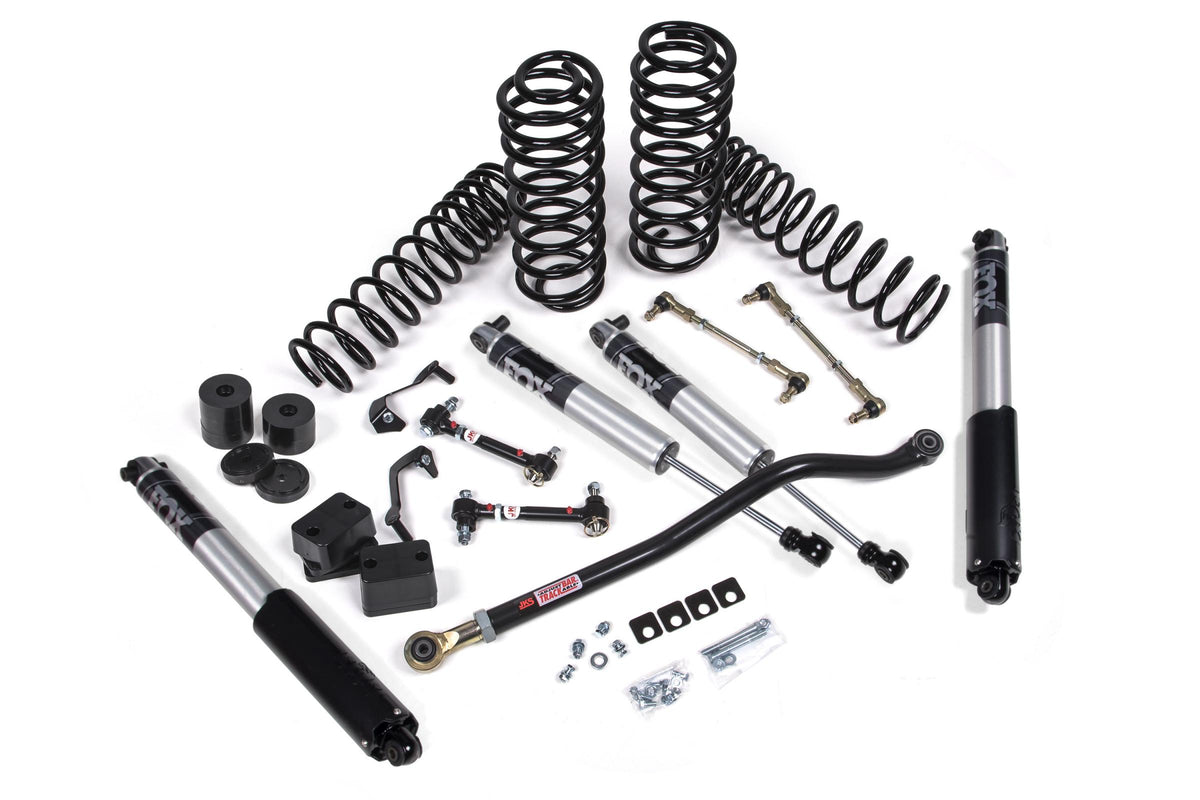

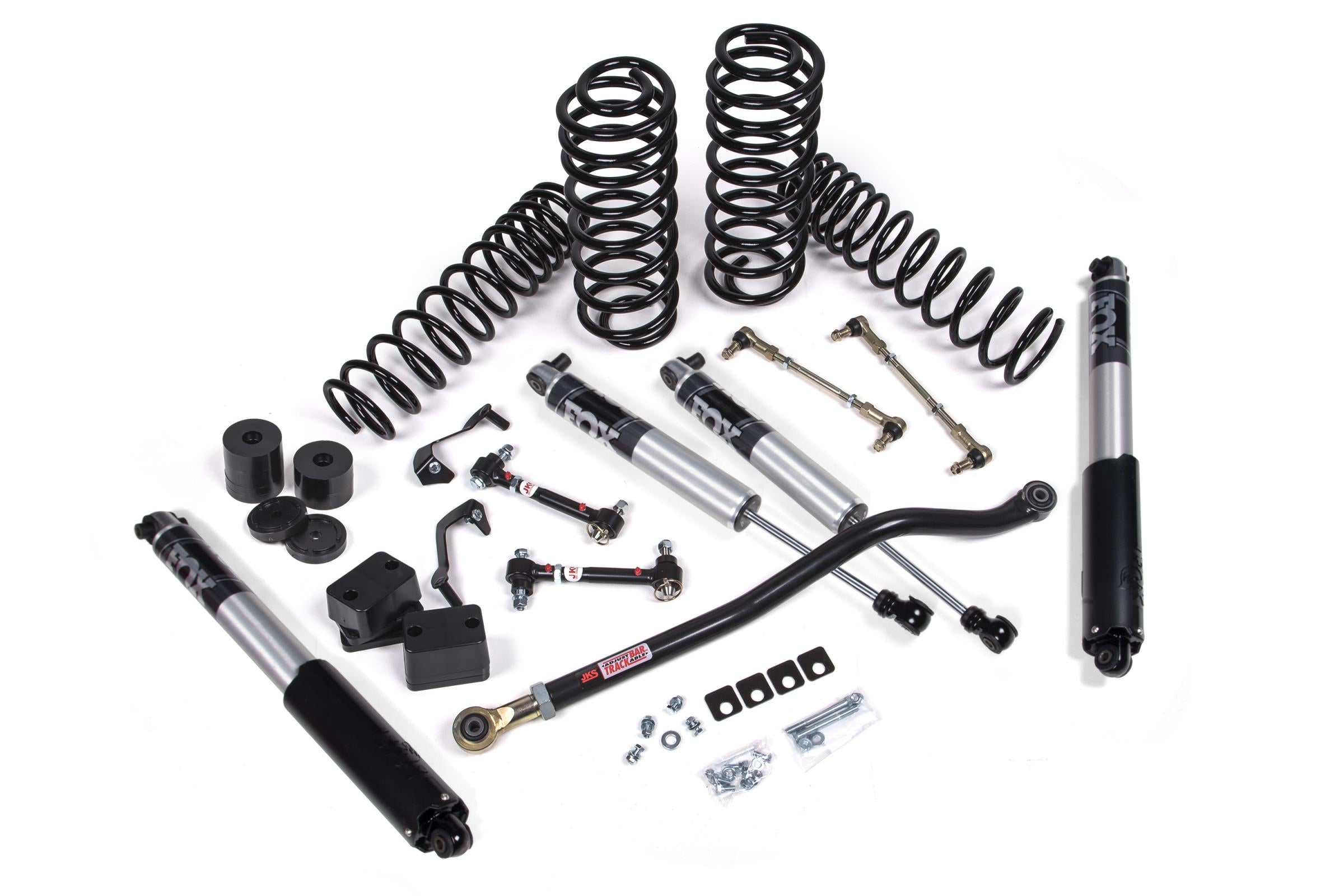

JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're running a stock-weight JL 4-Door Unlimited — no heavy steel bumpers, no winch — and you want a moderate 2.5" lift with a short-arm system that maximizes trail compliance and delivers Fox reservoir damping without the complexity of a long-arm conversion. The JSPEC117PS pairs JKS geometry-corrected short-arm control arms with Fox 2.5 Performance Series reservoir shocks and standard-rate coil springs. It's the trail-focused, stock-weight configuration of the J-Venture 2.5" lineup.

The Result

2.5" of lift with JKS geometry-corrected short-arm control arms. Standard-rate coils deliver a softer initial spring feel and greater droop travel compared to HD coils — maximizing articulation for stock-weight builds. Fox 2.5 reservoir shocks provide consistent damping and heat dissipation on extended trail runs. No differential drop required. Adjustable control arms allow precise alignment post-install.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models, Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack

System Specifications

• Lift Height: 2.5"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Performance Series w/ Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door builds
• Control Arms: JKS geometry-corrected short-arm control arms
• SKU: JSPEC117PS

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm Fox 2.5 reservoir clearance against skid plates during install. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift with standard-rate coils, fender clearance with 35s is workable on a stock-weight rig — confirm tire brand and tread width before finalizing wheel selection.

Engineering Question

Comparing the J-Venture 2.5" std-rate short-arm against the J-Konnect 2.5" std-rate long-arm for a stock-weight JL 4-Door — both run Fox 2.5 reservoir shocks, so what's the real-world difference? The J-Venture installs faster and skips the differential drop, but the J-Konnect's long-arm geometry delivers superior caster correction and articulation at the same lift height. If install simplicity is the priority, the J-Venture is the right call. If you want the best geometry at 2.5", step up to the J-Konnect. Contact OFAS with your build priorities and we'll confirm which platform fits your use case.
