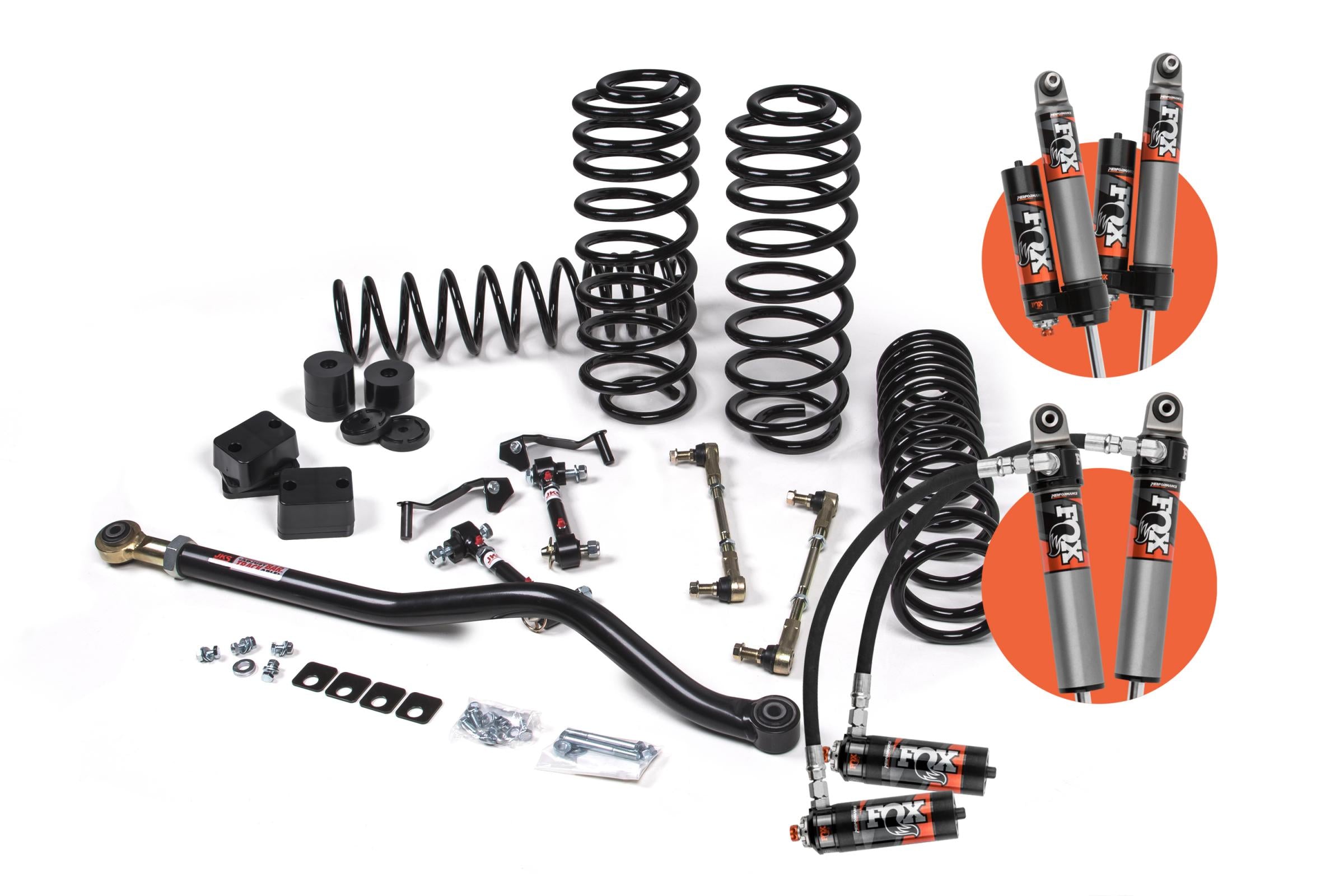

JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 Elite | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

JKS J-Venture 2.5" Lift Kit w/ Fox 2.5 Elite | Standard-Rate Coils | 2018–2026 Jeep Wrangler JL 4-Door

Is This for You?

You're building a stock-weight JL 4-Door Unlimited and you want the top-spec Fox shock in the J-Venture 2.5" standard-rate lineup — driver-adjustable compression, reservoir damping, and a coil rate tuned for maximum trail compliance — without the complexity of a long-arm conversion. The JSPEC117PES delivers JKS short-arm geometry with Fox 2.5 Elite DSC reservoir shocks and standard-rate coil springs. This is the highest-performing shock option in the stock-weight J-Venture 2.5" configuration.

The Result

2.5" of lift with JKS geometry-corrected short-arm control arms. Standard-rate coils maximize droop travel and trail compliance for stock-weight builds. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment — open it up for maximum articulation on the trail, firm it up for highway stability. No differential drop required. The combination delivers a refined, responsive ride that outperforms any budget short-arm alternative at this lift height.

Verified Fitment (OFAS Standard)

• Fits: 2018–2026 Jeep Wrangler JL 4-Door (Unlimited) — Gas Models, Stock-Weight Configuration
• Does NOT fit: JL 2-Door | JL Diesel (EcoDiesel) | JL 4xe Hybrid | JK (2007–2018) | Gladiator JT
• Coil Note: Standard-Rate — NOT recommended for builds with steel bumpers, winch, or heavy roof rack

System Specifications

• Lift Height: 2.5"
• System: J-Venture Short-Arm
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Standard-Rate — optimized for stock-weight JL 4-Door builds
• Control Arms: JKS geometry-corrected short-arm control arms
• SKU: JSPEC117PES

Installation & Fabrication Notes

Short-arm system does not require differential drop or relocation. Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. No cutting or welding required for standard JL 4-Door gas applications.

Wheel & Tire Fitment

Optimized for 35" tires on a stock-weight build. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Standard-rate coils are not recommended for tire sizes exceeding 37" without load confirmation from OFAS.

Engineering Question

Running Fox 2.5 Elite DSC on a J-Venture 2.5" std-rate short-arm build — is there a meaningful difference in DSC low-speed adjustment feel between a short-arm and long-arm platform at the same lift height and coil rate? Yes — the short-arm geometry produces slightly different chassis pitch behavior under compression than a long-arm setup, which means the DSC low-speed baseline that works on a J-Konnect may not be optimal on a J-Venture. Contact OFAS with your terrain type and we'll give you a DSC starting position calibrated specifically for the J-Venture 2.5" std-rate geometry.
