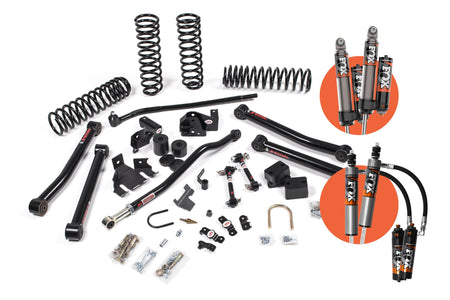

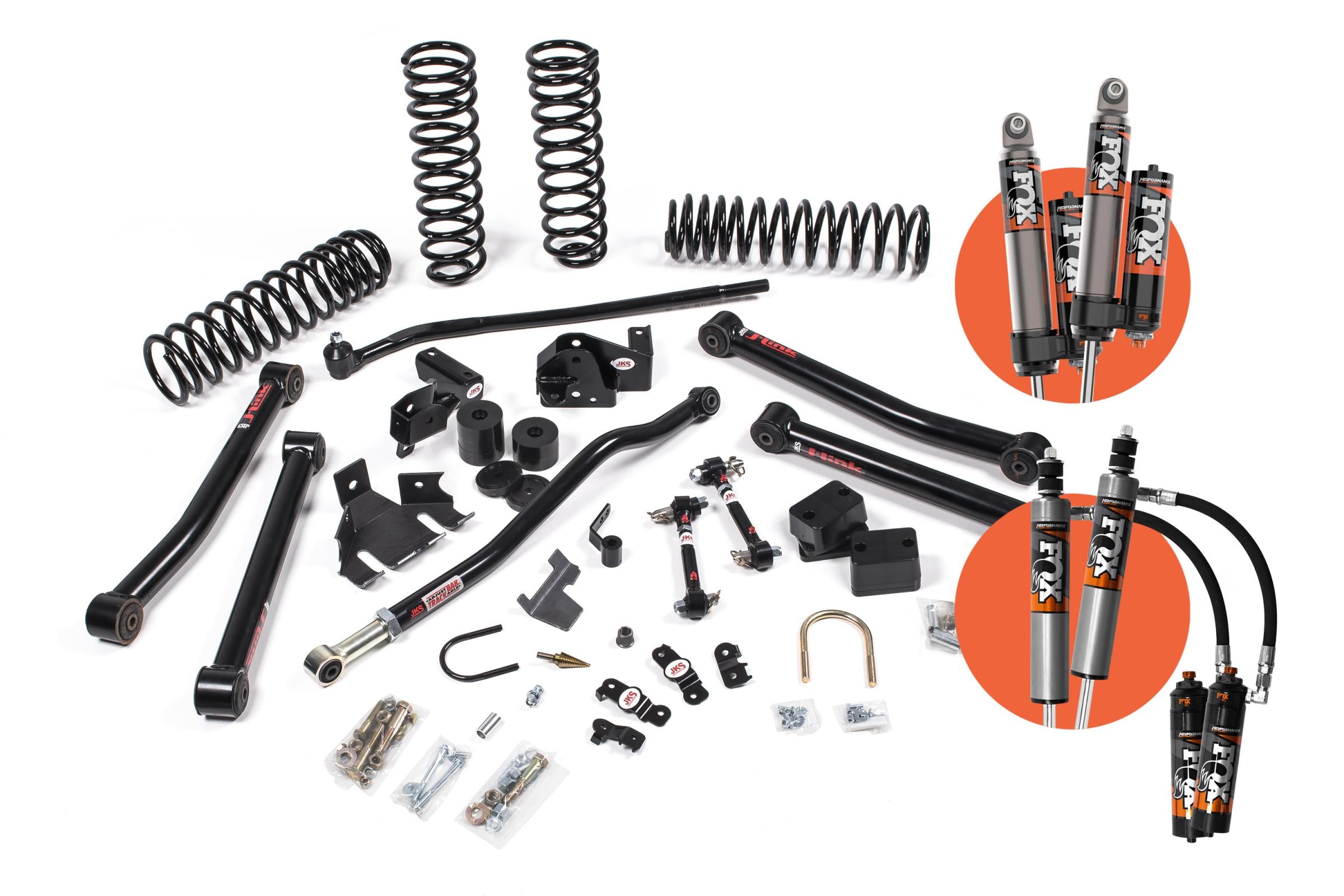

JKS J-Konnect 3.5" Lift Kit w/ Fox 2.5 Elite | 2007–2018 Jeep Wrangler JK 4-Door

JKS J-Konnect 3.5" Lift Kit w/ Fox 2.5 Elite | 2007–2018 Jeep Wrangler JK 4-Door

Is This for You?

You're building a JK 4-Door Unlimited and you want the top-spec Fox shock in the J-Konnect 3.5" long-arm lineup. The JSPEC113PES delivers JKS long-arm geometry with Fox 2.5 Elite DSC reservoir shocks — driver-adjustable compression, superior heat dissipation, and a refined trail feel that the JK Unlimited platform is fully capable of exploiting. If you're running 35s or 37s on a 4-Door JK and want the best shock in the J-Konnect lineup, this is it.

The Result

3.5" of lift with JKS long-arm caster and pinion correction. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment — open it up for trail compliance, firm it up for highway stability. Adjustable upper and lower control arms allow precise alignment post-install. Axle wrap is eliminated and the JK 4-Door's longer wheelbase delivers a composed, planted ride at highway speeds with this geometry correction in place.

Verified Fitment (OFAS Standard)

• Fits: 2007–2018 Jeep Wrangler JK 4-Door Unlimited (Sport, Sahara, Rubicon)
• Does NOT fit: JK 2-Door | JL Wrangler (2018–2026) | Gladiator JT | Any JL variant
• Platform Note: JK production ended 2018. This kit does NOT apply to any 2019+ Wrangler.

System Specifications

• Lift Height: 3.5"
• System: J-Konnect Long-Arm
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Tuned for JK 4-Door platform
• Control Arms: JKS adjustable upper and lower long-arm (front and rear)
• SKU: JSPEC113PES

Installation & Fabrication Notes

Long-arm geometry requires a front differential drop or relocation bracket (included or specified in kit). Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. No cutting or welding required for standard JK 4-Door applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. Confirm fender clearance with specific tire brand and tread width before finalizing wheel selection.

Engineering Question

Comparing Fox 2.5 Elite DSC tuning on a J-Konnect 3.5" JK 4-Door versus a JK 2-Door — does the 4-Door's longer wheelbase and heavier curb weight require a different DSC baseline setting? Yes — the 4-Door's additional mass and longer wheelbase produce slower chassis pitch cycles but higher sustained shock loads, particularly at the rear. The DSC low-speed circuit baseline that works on a 2-Door will typically be too soft for a loaded 4-Door on the same terrain. Contact OFAS with your JK 4-Door's accessory weight and primary terrain and we'll give you a DSC starting position calibrated for the Unlimited's specific dynamics at 3.5" of lift.
