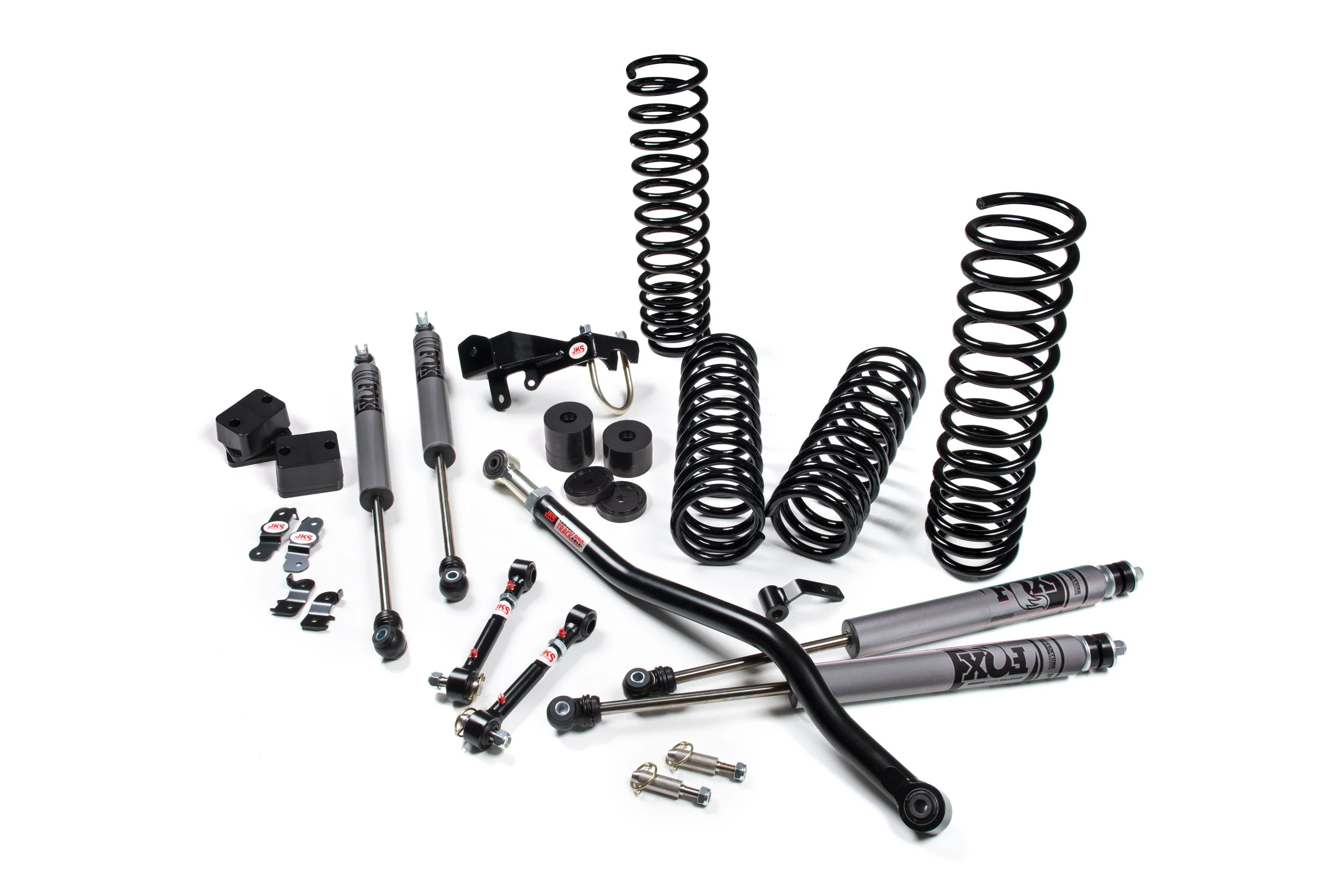

JKS J-Venture 3.5" Lift Kit w/ Fox Remote Reservoir | 2007–2018 Jeep Wrangler JK 2-Door (RHD)

JKS J-Venture 3.5" Lift Kit w/ Fox Remote Reservoir | 2007–2018 Jeep Wrangler JK 2-Door (RHD)

Is This for You?

You're running a Right-Hand Drive JK 2-Door and you need 3.5" of lift with a kit engineered specifically for the RHD platform. The JSPEC105KFR delivers JKS J-Venture geometry-corrected control arms with Fox remote reservoir shocks, purpose-built for the JK 2-Door RHD's unique steering and suspension geometry. At 3.5" of lift, this kit provides the clearance for 35"–37" tires while maintaining the geometry correction the RHD platform requires. This is a dedicated RHD fitment.

The Result

3.5" of lift with JKS J-Venture geometry correction calibrated for the RHD JK 2-Door platform. Fox remote reservoir shocks maintain consistent damping performance across extended use cycles. Adjustable control arms allow precise alignment post-install. The RHD JK 2-Door's unique steering rack position and suspension geometry are fully accounted for in this kit's design.

Verified Fitment (OFAS Standard)

• Fits: 2007–2018 Jeep Wrangler JK 2-Door — Right-Hand Drive (RHD) ONLY
• Does NOT fit: JK 2-Door Left-Hand Drive (LHD) | JK 4-Door (any configuration) | JL Wrangler (2018–2026) | Gladiator JT
• Platform Note: JK production ended 2018. This kit does NOT apply to any 2019+ Wrangler.

System Specifications

• Lift Height: 3.5"
• System: J-Venture (RHD-specific)
• Shock: Fox Remote Reservoir (remote canister, extended oil volume, nitrogen charged)
• Coil Rate: Tuned for JK 2-Door RHD platform
• Control Arms: JKS J-Venture geometry-corrected control arms (RHD fitment)
• SKU: JSPEC105KFR

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation using RHD-specific alignment specs. Torque all control arm hardware to JKS specification after a 500-mile break-in. Remote reservoir canister routing must account for RHD steering rack and column placement at 3.5" of lift — confirm clearance before finalizing mount locations. No cutting or welding required for standard JK 2-Door RHD applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JK 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3.5" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

At 3.5" of lift on a RHD JK 2-Door, does the increased lift height create additional steering geometry challenges specific to the RHD rack position that don't exist on the LHD version at the same lift height? Yes — the RHD steering rack's position relative to the front axle centerline means that caster correction and bump steer characteristics behave differently than on the LHD platform at 3.5" of lift. This is why a dedicated RHD kit is required rather than adapting an LHD kit. Contact OFAS before your install and we'll walk you through the alignment specs and any additional geometry considerations specific to your RHD JK 2-Door at 3.5" of lift.
