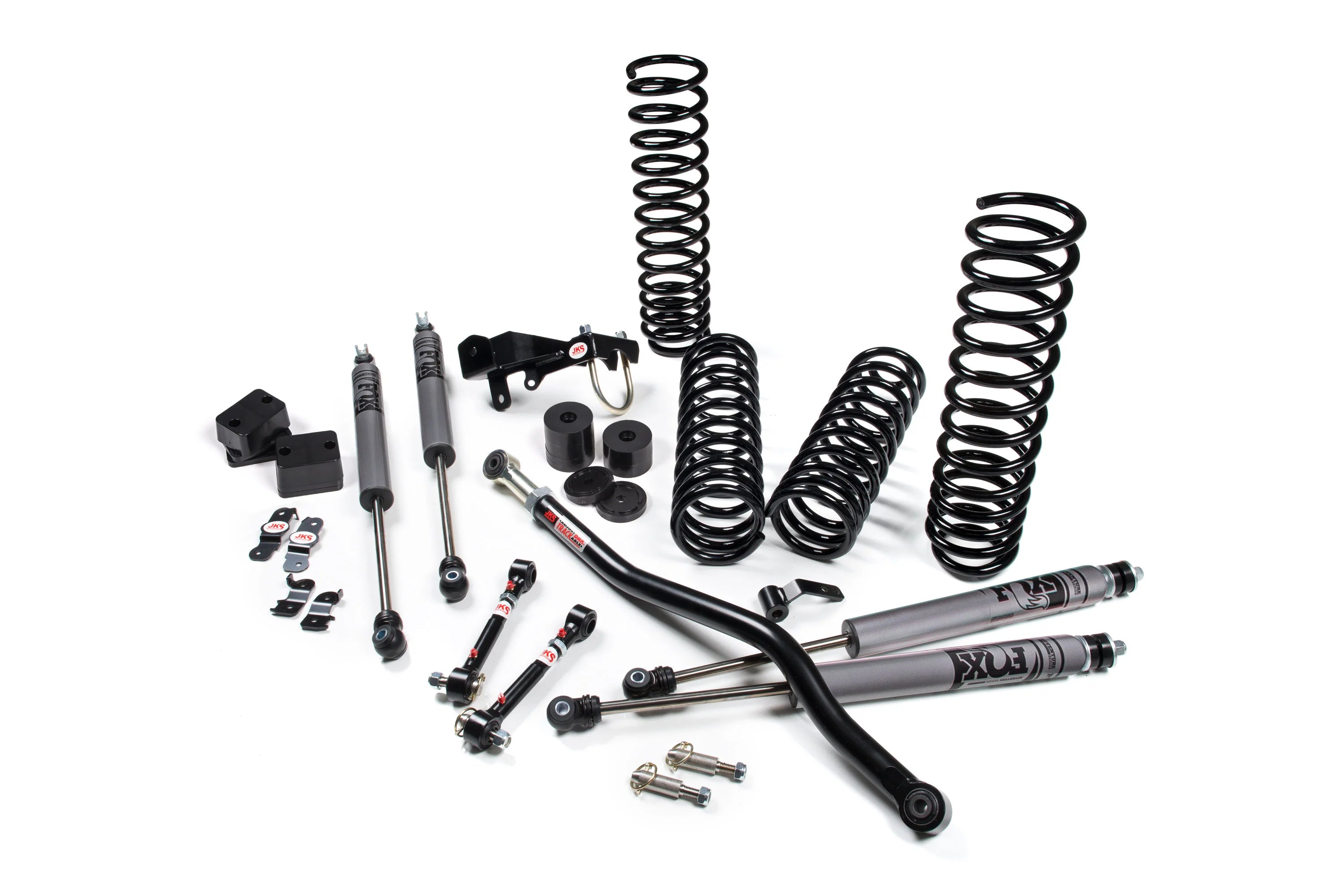

JKS J-Venture 2.5" Lift Kit w/ Fox Remote Reservoir | 2007–2018 Jeep Wrangler JK 2-Door

JKS J-Venture 2.5" Lift Kit w/ Fox Remote Reservoir | 2007–2018 Jeep Wrangler JK 2-Door

Is This for You?

You're building a JK 2-Door and you want 2.5" of lift with the thermal capacity and damping performance of a Fox remote reservoir shock on the J-Venture platform. The JSPEC103KFR delivers JKS J-Venture geometry-corrected control arms with Fox remote reservoir shocks — the remote canister separates the oil and nitrogen charge from the shock body, dramatically improving heat dissipation on sustained technical terrain. If your JK 2-Door sees long, aggressive trail days and you want remote reservoir performance at a moderate lift height, this is your kit.

The Result

2.5" of lift with JKS J-Venture geometry correction. Fox remote reservoir shocks maintain consistent damping performance across extended trail runs where body-mounted reservoir shocks begin to fade. Adjustable control arms allow precise alignment post-install. The JK 2-Door's lighter weight and shorter wheelbase make it an ideal platform for the remote reservoir's performance advantages on technical terrain.

Verified Fitment (OFAS Standard)

• Fits: 2007–2018 Jeep Wrangler JK 2-Door — Left-Hand Drive (LHD)
• Does NOT fit: JK 2-Door Right-Hand Drive (RHD) | JK 4-Door (any configuration) | JL Wrangler (2018–2026) | Gladiator JT
• Platform Note: JK production ended 2018. This kit does NOT apply to any 2019+ Wrangler.

System Specifications

• Lift Height: 2.5"
• System: J-Venture
• Shock: Fox Remote Reservoir (remote canister, extended oil volume, nitrogen charged)
• Coil Rate: Tuned for JK 2-Door platform
• Control Arms: JKS J-Venture geometry-corrected control arms
• SKU: JSPEC103KFR

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Remote reservoir canister routing must be planned during install — confirm clearance against frame, skid plates, and body panels before finalizing mount locations. No cutting or welding required for standard JK 2-Door LHD applications.

Wheel & Tire Fitment

Engineered for 35" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. At 2.5" of lift, fender clearance with 35s is tight on the JK 2-Door — confirm tire brand and tread width before finalizing wheel selection. 37" tires are not recommended at this lift height without fender modification.

Engineering Question

Choosing between the J-Venture 2.5" and J-Venture 3.5" with Fox remote reservoir shocks on a JK 2-Door — if the shock spec is identical, what's the practical difference in trail performance between the two lift heights on the JK 2-Door platform? At 2.5", you get a more street-friendly stance and slightly less driveline stress, but fender clearance with 35s is tighter and 37" tires are off the table without fender work. At 3.5", you gain meaningful tire clearance and improved approach angle. The remote reservoir's performance advantage is the same at both lift heights — the decision is about tire size and stance. Contact OFAS with your tire plan and we'll confirm which lift height is the right call for your JK 2-Door build.
