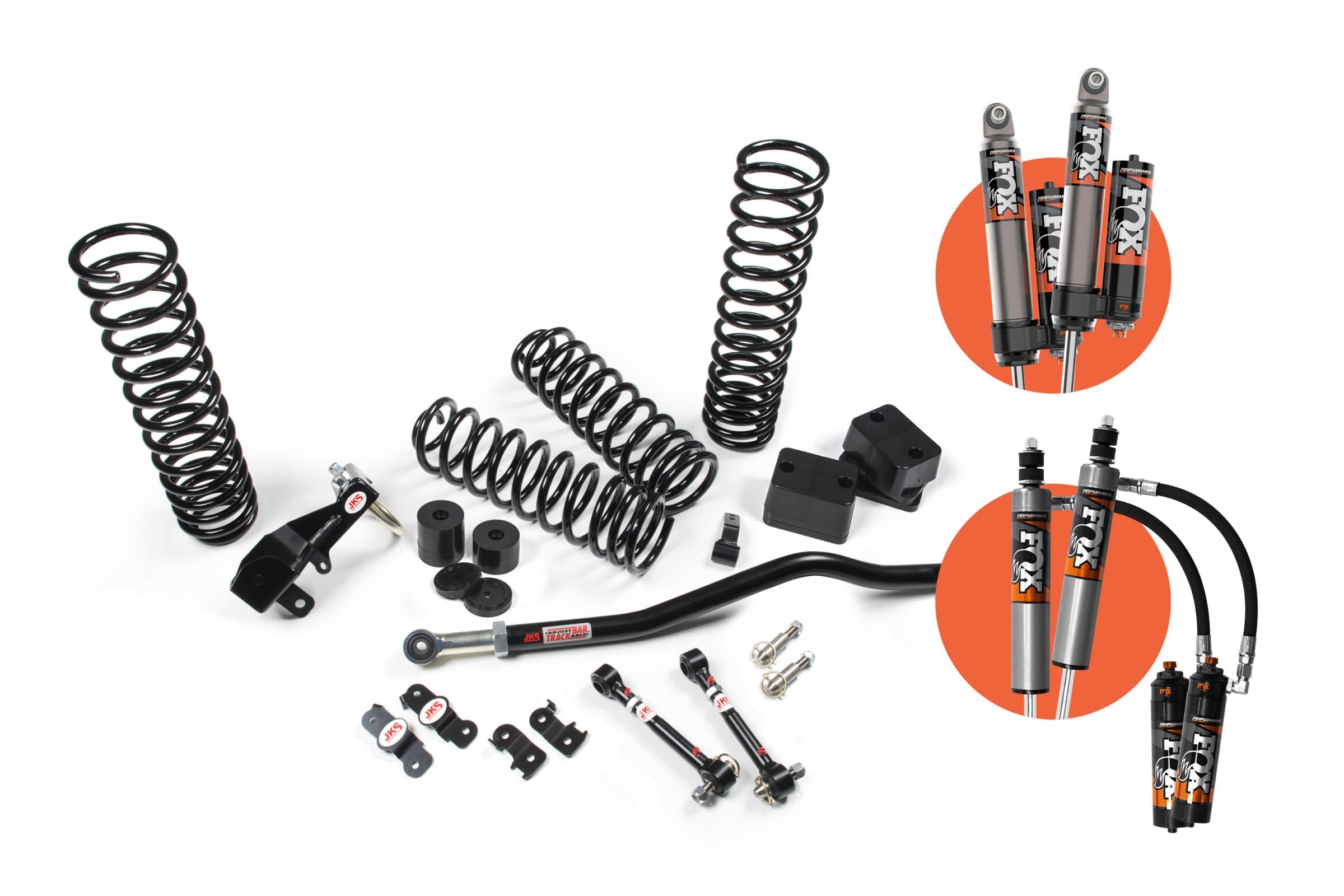

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 Elite | 2007–2018 Jeep Wrangler JK 2-Door

JKS J-Venture 3.5" Lift Kit w/ Fox 2.5 Elite | 2007–2018 Jeep Wrangler JK 2-Door

Is This for You?

You're building a JK 2-Door and you want 3.5" of lift with the top-spec Fox shock in the J-Venture lineup. The JSPEC101PES delivers JKS J-Venture geometry-corrected control arms with Fox 2.5 Elite DSC reservoir shocks — driver-adjustable compression, superior heat dissipation, and a refined trail feel on the JK 2-Door platform. If you're running 35s or 37s on a JK 2-Door and want the best shock in the J-Venture 3.5" lineup, this is it.

The Result

3.5" of lift with JKS J-Venture geometry correction. Fox 2.5 Elite DSC shocks give you on-the-fly compression adjustment — open it up for trail compliance, firm it up for highway stability. Adjustable control arms allow precise alignment post-install. The JK 2-Door's lighter weight and shorter wheelbase respond well to the DSC's ability to manage both slow-speed body pitch and high-speed impact harshness independently.

Verified Fitment (OFAS Standard)

• Fits: 2007–2018 Jeep Wrangler JK 2-Door — Left-Hand Drive (LHD)
• Does NOT fit: JK 2-Door Right-Hand Drive (RHD) | JK 4-Door (any configuration) | JL Wrangler (2018–2026) | Gladiator JT
• Platform Note: JK production ended 2018. This kit does NOT apply to any 2019+ Wrangler.

System Specifications

• Lift Height: 3.5"
• System: J-Venture
• Shock: Fox 2.5 Elite w/ DSC (Dual Speed Compression) Reservoir
• Coil Rate: Tuned for JK 2-Door platform
• Control Arms: JKS J-Venture geometry-corrected control arms
• SKU: JSPEC101PES

Installation & Fabrication Notes

Professional 4-wheel alignment required post-installation. Torque all control arm hardware to JKS specification after a 500-mile break-in. Confirm DSC adjuster knob placement for driver accessibility during install. Verify Fox 2.5 reservoir clearance against skid plates and body panels. No cutting or welding required for standard JK 2-Door LHD applications.

Wheel & Tire Fitment

Engineered for 35"–37" tires. Recommended backspacing: 4.5"–4.75" on a 17"×9" or 18"×9" wheel. The JK 2-Door's shorter wheelbase makes fender clearance more sensitive to tire width at 3.5" of lift — confirm tread width and brand before finalizing wheel selection.

Engineering Question

Running Fox 2.5 Elite DSC on a J-Venture 3.5" JK 2-Door build with 37" tires — how does the JK 2-Door's shorter wheelbase and lighter platform affect the optimal DSC low-speed compression setting compared to a heavier JK 4-Door running the same shock and tire size at the same lift height? The JK 2-Door's shorter wheelbase produces faster chassis pitch cycles per trail obstacle, which means the DSC low-speed circuit is more active per mile of trail than on the 4-Door. A DSC setting that controls body pitch well on the 4-Door may feel too stiff on the lighter, shorter 2-Door. Contact OFAS with your tire size and primary terrain and we'll give you a DSC baseline starting position calibrated specifically for the JK 2-Door's dynamics at 3.5" of lift.
