Fox Factory

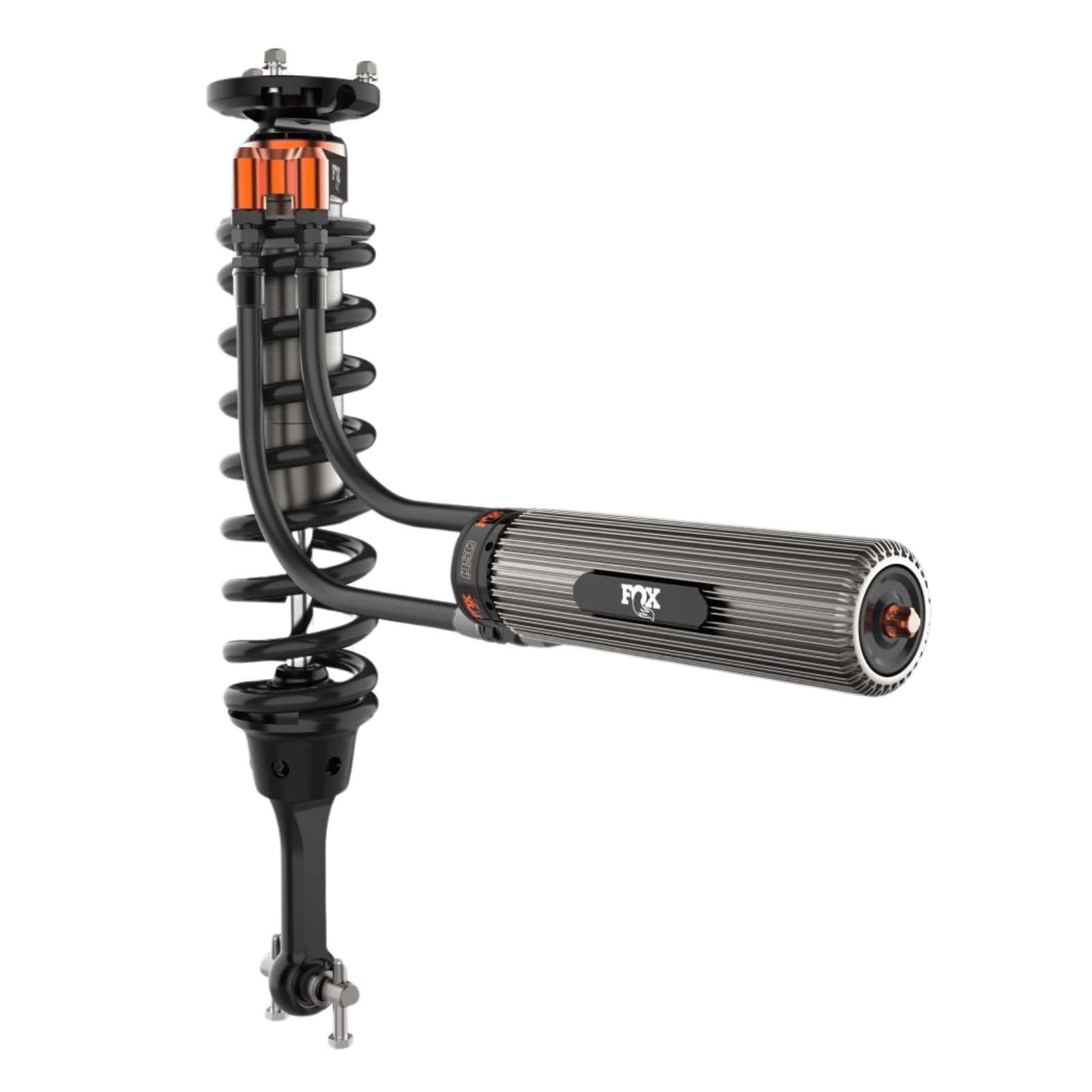

FOX 3.0 DSC Front Coilovers | 2021–2024 Ford F-150 4WD | 2.5" Lift

SKU: 883-06-191
(0)
In stock
Available to order — same-day processing before 12 PM CST
$3,879.95
Confirm Fitment With Confidence

Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.

Shipping & Delivery

Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.

Fitment, Shipping & Product Support

Chat Email 469-407-7538

FOX 3.0 DSC Front Coilovers | 2021–2024 Ford F-150 4WD | 2.5" Lift | SKU: 883-06-191

Is This for You?

This is for the 2021–2024 Ford F-150 4WD owner who wants FOX 3.0 Factory Race front coilovers with recirculating remote reservoir, internal bypass damping, and DSC adjusters — 2.5 inches of front lift. If you have a Raptor, stop here — see the Raptor-specific listings. If you have a 2015–2020 F-150, stop here — see the FOX 2.5 DSC coilover listing. Pair with the FOX 3.0 DSC Rear Shocks (SKU 883-26-121) for a complete 3.0 system.

The Result

FOX 3.0 Factory Race front coilovers with recirculating remote reservoir, internal bypass damping, and DSC adjusters — 2.5 inches of front lift on the 2021–2024 F-150 4WD platform.

Verified Fitment (OFAS Standard)

  • Ford F-150 4WD: 2021–2024 — front coilovers — confirm trim via contact form

Does NOT fit: F-150 Raptor — see Raptor listings. Does NOT fit 2020 or earlier F-150. Does NOT fit 2WD F-150. Confirm year and drivetrain before ordering.

System Specifications

  • SKU: 883-06-191
  • Brand: FOX Factory
  • Series: 3.0 Factory Race
  • Position: Front
  • Type: Coilover
  • Reservoir: Recirculating remote reservoir
  • Damping: Internal bypass + DSC adjusters
  • Lift: 2.5 inches
  • Application: 2021–2024 Ford F-150 4WD

Installation & Fabrication Notes

  • Professional installation required.
  • Alignment: Full front alignment required after installation.
  • Torque specs: Follow FOX installation manual torque specifications.
  • Break-in period: Allow 500–1,000 miles for coilovers to settle before final alignment check.

Wheel & Tire Fitment

2.5-inch lift opens fitment for larger tire sizes on the F-150 platform. Confirm wheel backspacing and tire diameter with your installer. Submit your setup via the contact form for a fitment recommendation.

Is your F-150 a 2021–2024 4WD? What trim are you running? Submit via the contact form and we’ll confirm fitment before it ships.
