Fox 2.5 Performance Series IFP HTO Front Shock | Single | 0-1.5" Lift | 2017-2026 Ford F-250/F-350 Super Duty | SKU 987-24-000
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

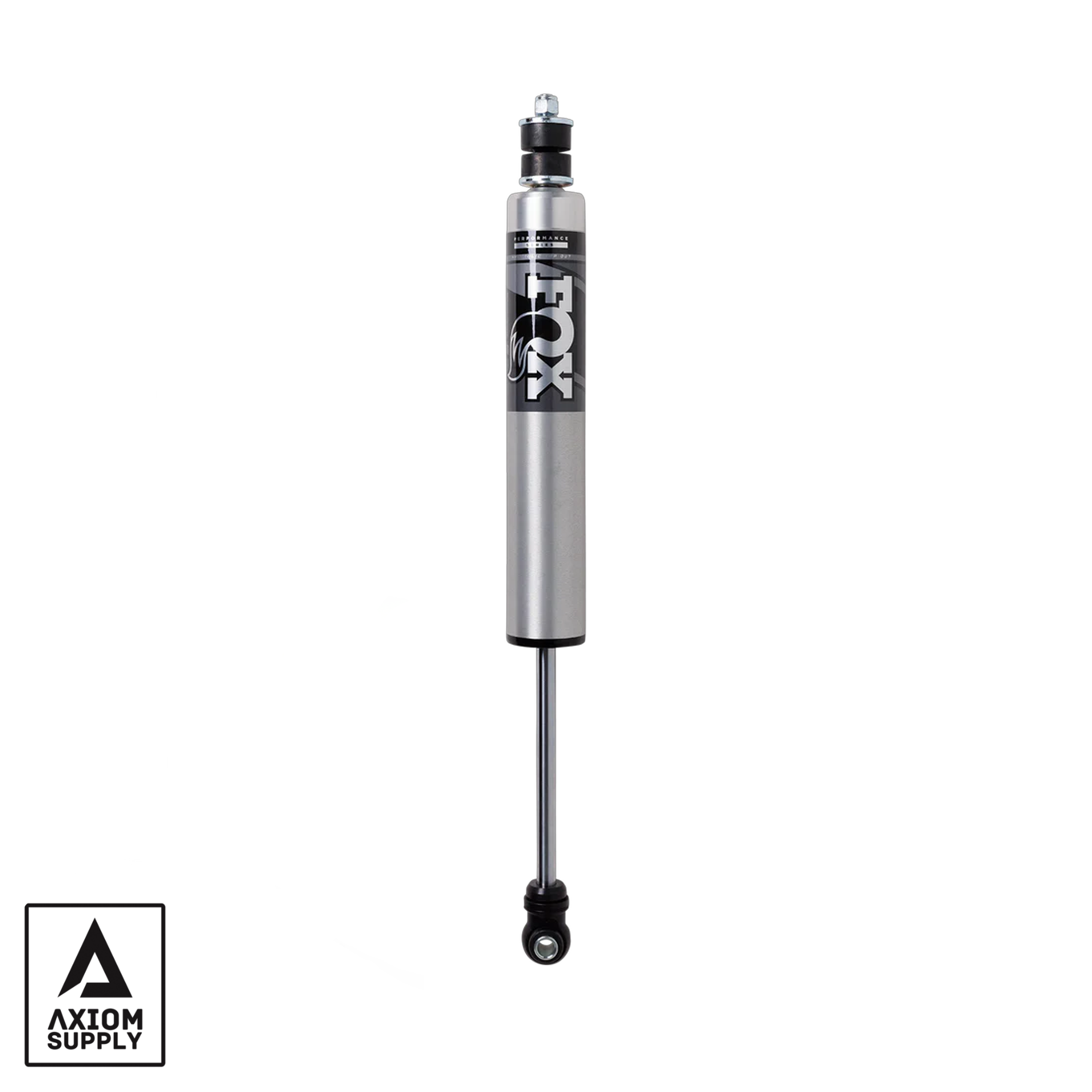

The Fox 2.5 Performance Series IFP HTO Front Shock (SKU 987-24-000) is a step-up heavy-duty front shock for the 2017–2026 Ford F-250 and F-350 Super Duty, running stock height to 1.5" of front lift. The larger 2.5" Type II anodized aluminum body increases oil volume for superior heat dissipation and corrosion resistance versus the standard 2.0" Fox shock. Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen for optimized, consistent damping. Hydraulic Top Out (HTO) technology uses a secondary shim stack to provide position-sensitive rebound damping control, reducing harsh top-outs — particularly beneficial after installing heavier, more aggressive tires or on applications lifted higher than OEM spec. Vehicle-specific valving and larger pistons, fully rebuildable and re-tunable. Hardware included — washers, bushings, and nuts. 1-year Fox limited warranty. Sold as a single front shock.
Component Specifications
| Spec | Detail |
|---|---|
| SKU / Part Number | 987-24-000 |
| Brand | Fox |
| Series | 2.5 Performance Series |
| Position | Front |
| Quantity | Single shock — order 2 for a complete front pair |
| Body | 2.5" Type II anodized aluminum |
| Damping | IFP (Internal Floating Piston) + HTO (Hydraulic Top Out) |
| HTO Function | Secondary shim stack provides position-sensitive rebound damping, reduces harsh top-outs |
| Lift Range | 0–1.5" front lift |
| Rebuildable | Yes — fully rebuildable and re-tunable |
| Hardware Included | Washers, bushings, nuts |
| Warranty | 1-year Fox limited warranty |
| Application | Towing, hauling, heavier/aggressive tire setups, sustained heavy-duty use |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x front shock | ✓ |
| Washers, bushings, nuts | ✓ |
| Second front shock | ✗ NOT included — order quantity 2 for a pair |
| Rear shocks | ✗ NOT included — sold separately (e.g., 987-24-001 for matching 0-1.5" rear) |
Fox 2.5 HTO Super Duty Front Shock Family — Confirm Your Platform Generation and Lift Range
| SKU | Years | Lift Range |
|---|---|---|
| 987-24-000 (this listing) | 2017–2026 | 0–1.5" |
| 987-24-002 | 2017–2025 | 2–3.5" |
| 987-24-022 | 2005–2025 | 6–8" |
A separate Fox part number covers the pre-2017 Super Duty at this same 0–1.5" front lift range — confirm with us if your truck is a 2005–2016 model.
Verified Fitment
| Vehicle | Years | Lift Range | Status |
|---|---|---|---|
| Ford F-250 Super Duty | 2017–2026 | 0–1.5" | ✓ |
| Ford F-350 Super Duty | 2017–2026 | 0–1.5" | ✓ |
| Ford F-250/F-350 Super Duty | 2005–2016 | Any | ✗ Different chassis generation — different Fox part number required, confirm with us |
| Ford F-450/F-550 | Any | Any | ✗ Different front suspension geometry |
| Ford F-150 | Any | Any | ✗ Different platform |
Critical Compatibility
| Configuration | Notes |
|---|---|
| 2005–2016 Super Duty | Does not fit — confirm the correct pre-redesign Fox part number with us |
| Front lift exceeding 1.5" | Requires a different Fox 2.5 HTO part number — e.g., 987-24-002 for 2-3.5" |
| Long-travel or coilover conversion suspension | Not compatible |
| Mismatched left/right shocks | Replace in pairs for handling balance |
Common Questions
Does this fit my 2015 F-350?
No. This part number is for the 2017+ redesigned Super Duty chassis. A 2005-2016 truck needs a different Fox HTO part number — contact us to confirm the correct one.
What does HTO actually do?
HTO stands for Hydraulic Top Out. A secondary shim stack inside the shock provides position-sensitive rebound damping control, slowing the shock shaft as it nears full extension. This reduces harsh top-out feel — especially noticeable after installing heavier tires or on a lifted truck.
Do I need one or two?
This listing is for a single shock. Order quantity 2 for a complete front pair, and replace both sides together for handling balance.
The Obsidian Take
The 987-24-000 is for the 2017-2026 F-250/F-350 Super Duty owner running at or near stock height who tows or hauls frequently, or runs heavier/more aggressive tires, and wants the larger 2.5" body and Hydraulic Top Out control over the standard Fox 2.0 shock.
The check that matters most: confirm your truck is 2017 or newer. The pre-2017 generation requires a different Fox HTO part number entirely.
Non-Returnable Notice: Once installed, this unit is non-returnable. Confirm model year and front lift height before ordering.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Specifications sourced from Fox and authorized distributor documentation. Obsidian Forged Auto Supply is an authorized Fox dealer. Manufacturer specifications are subject to change without notice.
