Factor 55 Extreme Duty Soft Shackle | 1-1/8" x 24" | HMPE | GVW 35,000–55,000 lbs | Mining/Ag/Military

Factor 55 Extreme Duty Soft Shackle | 1-1/8" x 24" | HMPE | GVW 35,000–55,000 lbs | Mining/Ag/Military | SKU: 00572

Is This for You?

This is for the heavy equipment operator with a vehicle or equipment GVW between 35,000 and 55,000 lbs — mining, agriculture, military, or heavy commercial applications. This is not a light truck or UTV product. If your GVW is under 35,000 lb, see the 7/8-inch option (SKU 00571) or smaller. Confirm your equipment’s GVW and recovery point ratings before ordering.

The Result

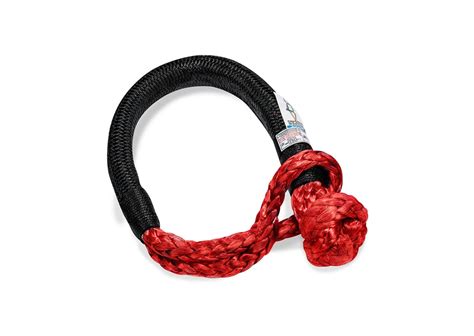

1-1/8-inch x 24-inch HMPE soft shackle rated to 294,000 lb MBS with 37,000 lb WLL — engineered for heavy equipment recovery in mining, agricultural, and military applications. No sharp edges, no projectile risk if it fails. USA made.

System Specifications

• SKU: 00572
• Brand: Factor 55
• Product: Extreme Duty Soft Shackle
• Diameter: 1-1/8 inch
• Length: 24 inches
• MBS: 294,000 lb
• WLL: 37,000 lb
• GVW Rating: 35,000–55,000 lbs
• Material: HMPE Plasma fiber
• Application: Mining, agriculture, military, heavy commercial
• Country of Origin: USA

Compatibility & Use Notes

• Heavy equipment only: Rated for GVW 35,000–55,000 lbs. Not for light trucks or UTVs.
• Recovery point rating: Confirm your equipment’s recovery point WLL matches or exceeds the shackle WLL before use.
• Lighter option: 7/8-inch x 24-inch available for GVW 20,000–35,000 lbs — SKU 00571.
• Inspect before each use: Check for cuts, abrasion, or UV damage before every recovery.

What is your equipment’s GVW and application? Submit via the contact form and we’ll confirm the right shackle size before it ships.
