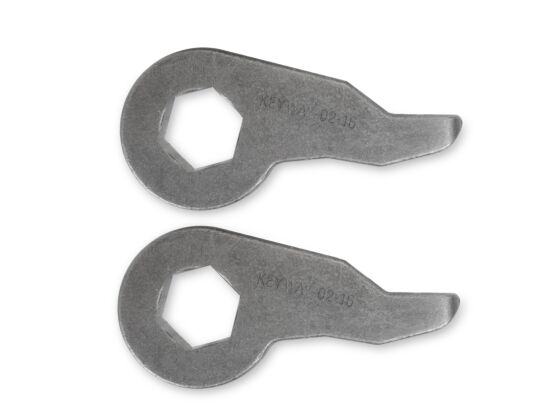

Cognito Torsion Bar Keys | 2001-2013 Silverado/Sierra 2500HD/3500HD & Suburban/Yukon 2500

The Obsidian Vision

On the GMT800 and GMT900 GM heavy-duty platform, the torsion bar front suspension gives the owner a direct mechanical lever to set ride height — and the Cognito forged steel torsion bar adjuster keys are the precision component that unlocks the full leveling and lift height range of that system without the geometry compromise and droop travel loss that result from cranking factory keys beyond their designed adjustment range. Used in leveling kit applications and in lifted builds where the upper end of a lift kit's height range is desired — such as taking a 4-inch Cognito lift kit to its 6-inch setting — these forged steel keys provide the mechanical advantage required to achieve the target ride height while preserving the minimum droop travel that determines front suspension ride quality and component longevity. Setting height appropriately is not a preference; it is an engineering requirement, and these keys are the correct tool for doing it precisely on 2001–2013 GM 2500HD/3500HD trucks and SUVs.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Increases front ride height adjustment range on torsion bar-equipped 2001–2013 GM 2500HD/3500HD trucks and SUVs, enabling the full leveling or upper lift height setting of a Cognito lift kit to be achieved without over-cranking factory adjuster keys beyond their designed mechanical range.
• Corrects the torsion bar adjuster geometry to maintain adequate front suspension droop travel at the target ride height — preserving the minimum droop threshold required for consistent tire contact, controlled rebound, and long-term front suspension component integrity.
• Eliminates the ride quality degradation and premature ball joint, CV axle, and shock wear that result from insufficient droop travel caused by improperly set or over-cranked factory torsion bar adjuster keys at leveled or lifted ride heights.

The torsion bar front suspension on the GMT800 and GMT900 GM 2500HD/3500HD platform uses a rotating torsion bar anchored at the lower control arm and indexed at the rear by an adjuster key and bolt assembly — turning the adjuster bolt increases preload on the torsion bar, raising the front ride height. GM produced these trucks with several different torsion bar spring rates depending on model, trim, and installed options; trucks with higher factory spring rates may achieve the maximum recommended ride height using factory adjuster keys without requiring aftermarket keys, while trucks with lower spring rates will reach the limit of factory key adjustment before achieving the target height. Cognito's forged steel adjuster keys are manufactured from forged steel in a raw finish, providing the structural integrity required to sustain the torsion bar preload loads generated at leveled and lifted ride heights without the deformation or fatigue that affects cast or stamped adjuster key designs. These keys are used exclusively in leveling and lifted applications — they are not a stock replacement component and are not required on trucks running factory ride height.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 2500HD:
2001–2005 Chevrolet Silverado 2500HD 2WD/4WD
2001–2010 Chevrolet Silverado 2500HD LT 2WD/4WD
2001–2006 Chevrolet Silverado 2500HD LS 2WD/4WD
2003–2010 Chevrolet Silverado 2500HD WT 2WD/4WD
2007–2010 Chevrolet Silverado 2500HD LTZ 2WD/4WD

✅ CONFIRMED — Chevrolet Silverado 3500HD:
2007–2010 Chevrolet Silverado 3500HD LT, LTZ, WT 2WD/4WD

✅ CONFIRMED — GMC Sierra 2500HD:
2001–2005 GMC Sierra 2500HD 2WD/4WD
2001–2010 GMC Sierra 2500HD SLE, SLT 2WD/4WD
2001–2006 GMC Sierra 2500HD SL 2WD/4WD
2002–2005 GMC Sierra 2500HD Base 2WD/4WD
2003–2010 GMC Sierra 2500HD WT 2WD/4WD

✅ CONFIRMED — GMC Sierra 3500HD:
2001–2010 GMC Sierra 3500HD SLE, SLT 2WD/4WD
2001–2006 GMC Sierra 3500HD SL 2WD/4WD
2002–2005 GMC Sierra 3500HD Base 2WD/4WD
2004–2010 GMC Sierra 3500HD WT 2WD/4WD

✅ CONFIRMED — Full-Size HD SUVs:
2001–2012 Chevrolet Suburban 2500 Base, LS, LT 2WD/4WD
2007 Chevrolet Suburban 2500 LTZ 2WD/4WD
2001–2013 Chevrolet Suburban 2500 LT 2WD/4WD
2001–2013 GMC Yukon XL 2500 SLE, SLT 2WD/4WD

❌ REQUIREMENTS:
For leveling and lifted applications only — these keys are not a stock replacement component and are not required on trucks running factory ride height.
Verify factory torsion bar spring rate before ordering — trucks with higher OEM spring rates may achieve the maximum recommended ride height using factory adjuster keys without requiring aftermarket keys. If your truck reaches the target height before the factory key reaches its adjustment limit, aftermarket keys are not needed.
Requires front alignment immediately after ride height adjustment to reset caster and camber to specification.
Requires droop travel verification after height adjustment — do not set ride height so high that front suspension droop travel is reduced below the minimum threshold required for adequate ride quality and component longevity.

Installation & Technical Notes

Estimated Install Time: Under 1 hour per side with basic hand tools and a floor jack
Alignment Required: Yes — front caster and camber must be reset after any torsion bar ride height adjustment. Do not drive the vehicle at highway speed before alignment is completed.
Torque Specifications: Refer to Cognito's included instruction sheet for adjuster bolt torque values — do not over-torque the adjuster bolt, as excessive preload reduces droop travel and accelerates torsion bar fatigue.
Spring Rate Note: GM used multiple torsion bar spring rates across this platform. If your truck has a higher factory spring rate, measure actual ride height change per adjuster bolt turn before assuming aftermarket keys are required — you may reach the target height with factory keys.
Droop Travel: After setting ride height, verify that the front suspension has adequate droop travel remaining. Insufficient droop travel will cause harsh rebound, premature shock wear, and loss of tire contact on uneven surfaces.

Wheel & Tire Fitment

Torsion bar adjuster keys set front ride height only — wheel and tire fitment is determined by the total front lift height achieved and the upper control arm geometry in use. After setting ride height with these keys, verify tire clearance to the inner fender, CV axle boot, and sway bar end links at full compression before finalizing wheel and tire selection. For lifted applications, an upper control arm kit with corrected ball joint geometry is strongly recommended to restore proper suspension geometry at the new ride height.

Our team is standing by to verify your specific torsion bar spring rate, target ride height, and lift kit configuration before we ship. Purchase with confidence; we review every build.
