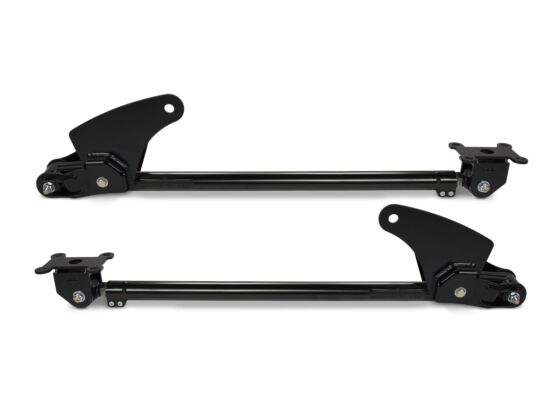

Cognito SM Series LDG Traction Bar Kit | 2017-2025 Ford F-250/F-350 Super Duty 4WD

The Obsidian Vision

On a lifted 2017–2025 Ford F-250 or F-350 Super Duty 4WD, rear axle wrap is a torque management problem that the factory leaf spring pack was never engineered to solve at elevated ride heights — and the consequences manifest as wheel hop under hard acceleration, driveline vibration under tow load, and the progressive degradation of u-joint and driveshaft integrity that follows. The Cognito SM Series Limited Dynamic Geometry (LDG) Traction Bar Kit resolves that problem with a USA-made, heavy-duty boxed sheet-metal traction bar system engineered to resist axle wrap across 0–4.5 inches of rear lift without restricting suspension travel through the full droop and compression arc. Precision adjustability through the LDG design allows the owner to set traction bar preload quickly and accurately for any lift height within the operating range, delivering a system that holds driveline geometry under the sustained torque loads of a Power Stroke diesel or Godzilla V8 towing at maximum capacity — with the Cognito signature design and semi-gloss black powder coat finish that set it apart from every bracket-and-rod solution on the market.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Eliminates rear axle wrap and driveline torque steer on lifted 2017–2025 F-250/F-350 Super Duty 4WD SRW applications by transferring axle torque reaction loads into the frame through a rigid boxed sheet-metal bar geometry, preventing the axle rotation that causes wheel hop under hard acceleration and towing.
• Maintains full, unrestricted suspension travel across 0–4.5 inches of rear lift via the Limited Dynamic Geometry design, which allows the traction bar to articulate with the axle through its complete droop and compression arc without binding or limiting shock absorber travel.
• Provides precise, tool-accessible preload adjustability, enabling quick and accurate traction bar setup for any lift height within the 0–4.5 inch operating range without disassembling the system — critical for Super Duty owners who vary payload and tow configurations regularly.

Cognito's SM Series construction uses heavy-duty boxed sheet-metal stampings — the same fabrication approach applied across Cognito's Super Duty suspension lineup — providing the torsional rigidity required to resist the high torque reaction loads generated by 6.7L Power Stroke diesel and 7.3L Godzilla V8 powertrains under maximum tow rating and hard acceleration without the flex or fatigue that affects lighter tubular or stamped bracket designs. The LDG pivot geometry allows the bar to follow the axle's natural arc through the full suspension travel range without inducing bind, maintaining the anti-wrap function at every point in the travel arc rather than only at static ride height — a critical distinction on a heavy-duty platform where suspension compliance under load directly affects towing stability, tire contact patch, and long-term driveline component integrity. All components are powder coated semi-gloss black and manufactured in the USA. At 91 lbs, this kit ships via LTL freight carrier with residential delivery included. Limited Lifetime Warranty.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Ford F-250 Super Duty 4WD SRW:
2017–2025 Ford F-250 Super Duty XL, XLT, Lariat, King Ranch, Platinum 4WD
2018–2025 Ford F-250 Super Duty Limited 4WD
2020–2025 Ford F-250 Super Duty XLT Tremor, Lariat Tremor, King Ranch Tremor, Platinum Tremor 4WD

✅ CONFIRMED — Ford F-350 Super Duty 4WD SRW:
2017–2025 Ford F-350 Super Duty XL, XLT, Lariat, King Ranch, Platinum 4WD SRW
2018–2025 Ford F-350 Super Duty Limited 4WD SRW
2020–2022 Ford F-350 Super Duty XL Plus 4WD SRW
2020–2025 Ford F-350 Super Duty XLT Tremor, Lariat Tremor, King Ranch Tremor, Platinum Tremor 4WD SRW

❌ REQUIREMENTS:
⚠️ F-350 Dually (DRW) Not Compatible: This kit is designed for Single Rear Wheel (SRW) configurations only. F-350 Dual Rear Wheel (Dually/DRW) models have a different rear axle housing width and mounting geometry and require a separate application-specific kit.
Requires 4WD drivetrain — 2WD F-250/F-350 Super Duty models have a different rear suspension geometry and are not compatible with this kit.
Designed for 0–4.5 inches of rear lift — verify rear lift height is within this range before ordering.
Requires rear pinion angle check post-installation to confirm driveline u-joint operating angles are within Ford's specification for the installed lift height.

Installation & Technical Notes

Estimated Install Time: 3-Hour DIY Install (with basic lift equipment, hand tools, and torque wrench)
Alignment Required: Pinion angle check required post-installation — verify driveline u-joint operating angles are within Ford's specification for the installed rear lift height to prevent vibration and accelerated u-joint and driveshaft wear under tow load.
Torque Specifications: Refer to Cognito's included instruction sheet for all mounting hardware torque values — torque all fasteners with the suspension at ride height under load.
Adjuster Setup: Set traction bar preload with the vehicle at ride height and the rear suspension loaded to approximate operating weight (including any added ballast or payload). Adjust until light preload is achieved, then verify full suspension travel is unrestricted before final torque.
Towing Note: For Super Duty owners who regularly vary between loaded and unloaded configurations, verify traction bar preload is set for the most common operating load condition. Significant payload changes may warrant a preload re-check.
Shipping Notice: At 91 lbs, this kit ships via LTL freight carrier. Residential delivery is included. A delivery appointment will be scheduled by the carrier — ensure someone is available to receive the shipment.

Wheel & Tire Fitment

Traction bar fitment is independent of wheel and tire selection on the 2017–2025 F-250/F-350 Super Duty SRW platform. This kit supports rear lift heights of 0–4.5 inches — verify that your wheel backspacing and tire diameter are compatible with your specific rear lift height and any fender modifications already completed on your build. Per OFAS fitment protocol, 8x170mm bolt pattern (F-250/F-350 SRW) is confirmed; 8x200mm (F-350 DRW) is not compatible with this kit.

Our team is standing by to verify your specific drivetrain configuration (SRW vs. DRW), rear lift height, and towing setup before we ship. Purchase with confidence; we review every build.
