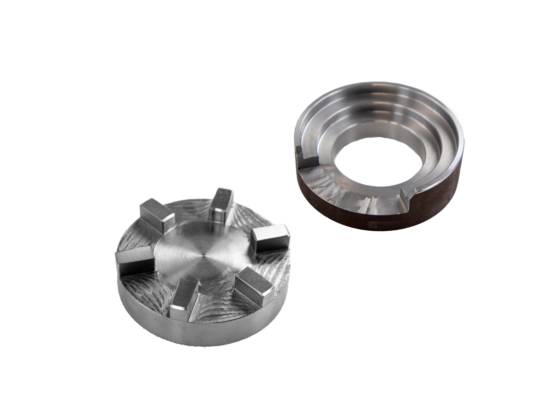

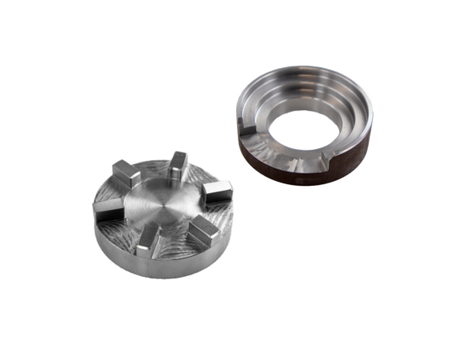

Cognito Pivot Bushing Pressing Tool for SM Series Upper Control Arm Builders Kit
0Low stock
0In stock, ready to ship
Fast Shipping
Financing Available
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
The Obsidian Vision
The Cognito SM Series Upper Control Arm Builders Kit ships with maintenance-free pivot bushings that must be pressed into the pivot tubes of the control arms by the builder — a precision operation that requires the correct tooling to seat the bushings squarely and fully without damaging the bushing material or the pivot tube bore. The Cognito Pivot Bushing Pressing Tool is the purpose-built solution for that operation: machined in the USA to the exact dimensions required to drive the pivot bushings into the SM Series UCA pivot tubes correctly, ensuring the bushings are fully seated, properly aligned, and ready for service before the control arms are installed on the vehicle. Without this tool, pressing the bushings risks cocking them in the bore, under-seating them, or damaging the bushing material — any of which compromises the pivot bushing's service life and the control arm's performance. With it, the operation is straightforward and repeatable.
Concierge Fitment Guarantee
Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.
Engineering Breakdown
- Seats the maintenance-free pivot bushings into the pivot tubes of the Cognito SM Series Upper Control Arm Builders Kit with the correct geometry and force distribution to ensure full, square bushing seating without cocking, under-seating, or bushing material damage — the precision that a correctly machined pressing tool provides over improvised alternatives.
- Protects the pivot tube bore and bushing outer surface during installation by distributing the pressing force evenly across the bushing face rather than concentrating it at a single point — preventing the bore damage and bushing deformation that result from using incorrect tooling or improvised pressing methods.
- Enables the builder to complete the SM Series UCA Builders Kit installation correctly without requiring access to a hydraulic press shop or fabricating a custom pressing fixture — a purpose-built tool that makes the builders kit a true DIY-completable assembly.
The Cognito SM Series Upper Control Arm Builders Kit is designed for builders who want to assemble their own SM Series UCAs with fresh maintenance-free pivot bushings — a configuration that requires the bushings to be pressed into the pivot tubes before the arms are installed. The pivot tube bore diameter and bushing outer diameter are machined to a press-fit tolerance that requires controlled force and correct tooling to achieve proper seating. The Cognito Pivot Bushing Pressing Tool is machined to the exact dimensions of the SM Series pivot tube bore, ensuring the pressing force is applied squarely and evenly across the bushing face through the full seating depth. Made in the USA.
Audit Table
| Part Number | Configuration | Materials | Weight | Compatible With |
|---|---|---|---|---|
| 599-91157 | Pivot Bushing Pressing Tool — SM Series UCA Builders Kit | Machined steel; USA-manufactured | 6 lbs | Cognito SM Series Upper Control Arm Builders Kit pivot bushing installation |
Verified Fitment (OFAS Standard)
✅ CONFIRMED:
Required for use with the Cognito SM Series Upper Control Arm Builders Kit — compatible with all SM Series UCA Builders Kit applications across all supported vehicle platforms.
❌ REQUIREMENTS:
This tool is required for the Cognito SM Series Upper Control Arm Builders Kit pivot bushing installation — it is not a general-purpose bushing pressing tool and is not designed for use with other bushing sizes or control arm designs.
A bench vise or hydraulic press is required to apply the pressing force through this tool — the tool positions and guides the bushing correctly but does not generate the pressing force independently.
Verify the pivot tube bore is clean and free of debris before pressing — contamination in the bore will prevent full bushing seating and may damage the bushing outer surface during installation.
Installation & Technical Notes
Pressing Procedure: Position the pivot bushing at the entrance of the pivot tube bore with the bushing face square to the bore axis. Place the Cognito Pivot Bushing Pressing Tool against the bushing face and apply steady, controlled force through a bench vise or hydraulic press until the bushing is fully seated — the tool will bottom out against the pivot tube face when the bushing reaches full seating depth. Do not use impact tools to drive the bushing.
Bore Preparation: Clean the pivot tube bore with a lint-free cloth before pressing. A light film of clean assembly lubricant on the bushing outer diameter will reduce pressing force and prevent galling during installation — do not use grease or lubricants that are incompatible with the bushing material.
Seating Verification: After pressing, verify the bushing is flush with or slightly below the pivot tube face on both ends before assembling the pivot hardware. An under-seated bushing will shift under load and accelerate wear.
Made in the USA.
Wheel & Tire Fitment
This is a precision installation tool — wheel and tire fitment is determined by the SM Series Upper Control Arm Builders Kit and the lift system installed on the vehicle. Refer to the UCA kit's fitment documentation for tire size, wheel backspacing, and offset specifications applicable to your platform and lift height.
Our team is standing by to confirm compatibility with your specific SM Series UCA Builders Kit application. Purchase with confidence; we review every build.
