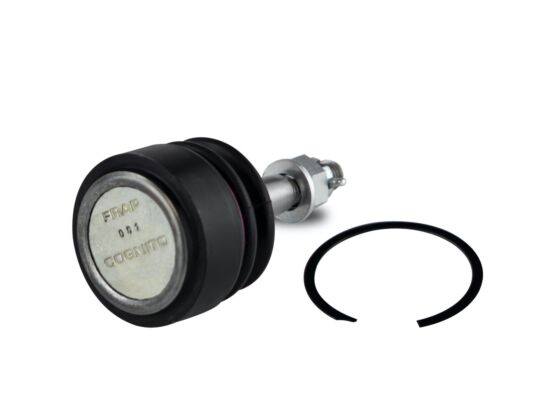

Cognito HD Series Upper Press-In Ball Joint | 2019-2026 Silverado/Sierra 1500

⚠️ SAFETY WARNING: This ball joint is not to be used as a droop limiter and was never designed to support suspension components hanging from the ball joint during operation. Using it as a droop limiter will void any warranty and is an extreme safety risk. Do not operate the vehicle with suspension components hanging unsupported from this ball joint.

The Obsidian Vision

Ball joints are a wear item — on any vehicle, in any application, under any load. On Cognito ball joint style Upper Control Arms installed on the 2019–2026 T1 Silverado and Sierra 1500, the replacement ball joint is the Cognito HD Series Upper Press-In Ball Joint: a hardened alloy steel, precision CNC machined, spring-loaded, maintenance-free press-in joint manufactured in Italy to Cognito's HD Series specification. Spring-loaded design takes up minor wear automatically, extending service life without requiring adjustment. Castle nut, cotter pin, boot, and all mounting hardware included. When it's time to replace, this is the correct part.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Replaces the worn ball joint in Cognito ball joint style Upper Control Arms on the 2019–2026 T1 Silverado/Sierra 1500 — a direct press-in replacement that installs into the Cognito UCA ball joint bore without modification, restoring the correct ball joint angle, articulation range, and load capacity that the Cognito UCA geometry requires to maintain corrected suspension geometry at lifted and leveled ride heights.
• Eliminates ball joint wear-induced play through a spring-loaded internal design that automatically takes up minor wear as it occurs — maintaining consistent joint preload and eliminating the looseness, clunking, and steering wander that a worn ball joint produces before the joint reaches the end of its service life, extending the effective service interval between replacements.
• Delivers hardened alloy steel construction with precision CNC machining and a maintenance-free design — no grease fittings, no periodic lubrication required — with a sealed boot protecting the joint from contamination and a castle nut and cotter pin securing the joint stud to the spindle at the correct torque specification.

The Cognito HD Series Upper Press-In Ball Joint is compatible exclusively with Cognito ball joint style Upper Control Arms — it is not a universal ball joint and is not designed for OEM upper control arms or other aftermarket UCA brands. The press-in design requires a hydraulic or arbor press for installation and removal — do not attempt to drive the joint in or out with a hammer. The spring-loaded internal mechanism compensates for minor wear automatically, but the joint should be inspected at each service interval for boot integrity and stud play. Made in Italy. At 4 lbs, this ships standard parcel.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 1500 (T1, 2019–2026):
2019–2026 Chevrolet Silverado 1500 Base, Custom, Custom Trail Boss, RST, LT, LT Trail Boss, LTZ, High Country, WT
2022–2026 Chevrolet Silverado 1500 ZR2

✅ CONFIRMED — GMC Sierra 1500 (T1, 2019–2026):
2019–2026 GMC Sierra 1500 Base, SLE, SLT, Elevation, Denali, AT4
2022–2026 GMC Sierra 1500 Pro, AT4X, Denali Ultimate

❌ REQUIREMENTS & CRITICAL NOTICES:
⚠️ COGNITO BALL JOINT STYLE UCAs ONLY: This ball joint is compatible only with Cognito ball joint style Upper Control Arms. It is not compatible with OEM upper control arms or other aftermarket UCA brands. Confirm your UCAs are Cognito ball joint style before ordering.
⚠️ NOT A DROOP LIMITER: This ball joint must not be used as a droop limiter. It was not designed to support suspension components hanging from the ball joint during operation. Doing so voids the warranty and creates an extreme safety risk.
⚠️ PRESS REQUIRED FOR INSTALLATION: A hydraulic or arbor press is required to install and remove this press-in ball joint. Do not use a hammer or impact tool to drive the joint in or out of the UCA bore.
⚠️ T1 GENERATION ONLY (2019–2026): Engineered for the T1 generation Silverado/Sierra 1500 Cognito UCA applications only. Not compatible with K2 generation (2014–2018) Cognito UCA applications — verify your UCA part number before ordering.
Front alignment check recommended after ball joint replacement — verify caster and camber are within GM specification after reinstalling the UCA.

Installation & Technical Notes

Scope: Press-in ball joint replacement in Cognito ball joint style UCAs — requires UCA removal from the vehicle to press out the worn joint and press in the replacement.
Press Required: A hydraulic or arbor press is required. Do not attempt to drive the ball joint in or out with a hammer — this will damage the UCA ball joint bore and the joint itself.
Torque Specification: Torque the castle nut to GM specification for the ball joint stud diameter. Install the cotter pin through the castle nut and stud after reaching the correct torque — do not back off the nut to align the cotter pin hole.
Boot Inspection: Inspect the boot for tears or contamination at each service interval. A torn boot allows dirt and moisture into the joint, accelerating wear and reducing service life.
Alignment Check: A front alignment check is recommended after ball joint replacement to verify caster and camber are within GM specification.
Re-Torque Interval: Re-torque the castle nut after the first 500 miles post-installation.

Wheel & Tire Fitment

This is a ball joint replacement part and does not alter suspension lift height, wheel offset requirements, or tire clearance. Wheel and tire fitment is determined by your installed lift kit and UCA configuration.

Our team is standing by to verify your specific Cognito UCA part number and confirm this is the correct replacement ball joint for your arms before you order. Purchase with confidence; we review every build.
