Cognito CV Front Driveline Kit with 1330 Yoke | 2024-2025 GM 2500HD/3500HD Diesel 10-Speed Allison

The Obsidian Vision

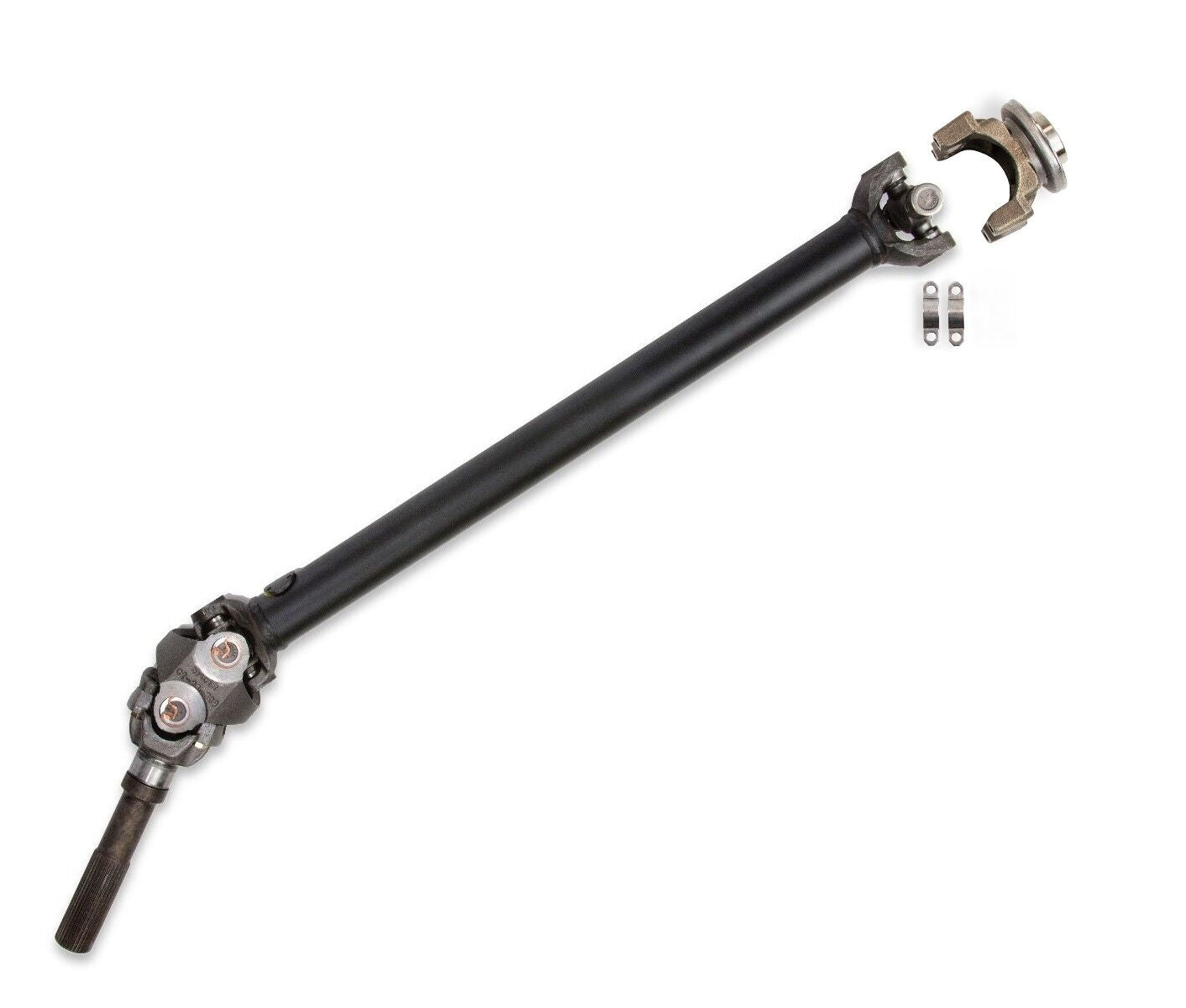

In 2024, GM upsized the front driveline u-joint on the 2500HD and 3500HD to an industrial-sized joint that is not typically used in automotive applications — and for which no weld yoke is currently available in the proper size for custom driveline tubing. That engineering decision created a problem for every 2024–2025 GM HD owner running a lifted suspension that requires a CV front driveline: there is no direct-fit CV driveline solution for the 2024+ joint size. The Cognito CV Front Driveline Kit solves that problem with the only available approach: replacing the front differential yoke with the 1330 series yoke that came OEM on 2019–2023 trucks, then installing a proven CV driveline on the now-compatible 1330 series interface. The kit includes the double cardan CV driveline, the 1330 series front differential yoke, and two retaining clamps — a complete solution for 2024–2025 GM 2500HD/3500HD diesel trucks equipped with the 10-speed Allison transmission running 4-inch, 7-inch, or 10-inch Cognito lift systems, including AT4X and ZR2 models.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Resolves the 2024+ GM HD front driveline CV upgrade problem by replacing the factory oversized industrial u-joint interface at the front differential with a 1330 series yoke — the same yoke series that GM used OEM on 2019–2023 2500HD/3500HD trucks — creating a compatible interface for the proven CV driveline that is required for safe 4WD operation above 20mph at lifted ride heights.
• Eliminates the CV joint angle stress and driveline vibration that result from operating the factory front driveline at the u-joint angles generated by 4-inch, 7-inch, and 10-inch front lift heights in 4WD — the double cardan (CV) joint design cancels the velocity variation that a single u-joint produces at high operating angles, preventing the vibration, accelerated wear, and eventual u-joint failure that the factory driveline experiences at these lift heights.
• Enables safe 4WD operation above 20mph at lifted ride heights on 2024–2025 GM 2500HD/3500HD diesel trucks equipped with the 10-speed Allison transmission — including AT4X and ZR2 models — where the factory front driveline's u-joint operating angle at 4 or more inches of front lift exceeds the safe continuous operating range for the factory joint design.

The double cardan (CV) joint design uses two u-joints in series with a centering socket between them, which cancels the velocity variation that a single u-joint produces at high operating angles. This cancellation eliminates the vibration and torque pulse that a single u-joint generates when operating at the angles produced by 4 or more inches of front lift — the engineering reason that a CV driveline is required for lifted 4WD operation, not optional. The 1330 series front differential yoke replacement is required because the 2024+ GM HD front differential uses an oversized industrial u-joint interface for which no weld yoke is currently available in the proper size for custom driveline tubing — the yoke swap to the 1330 series (OEM on 2019–2023) is the only available solution that allows a CV driveline to be installed on the 2024–2025 platform. Two retaining clamps are included. Compatible with 4-inch, 7-inch, and 10-inch Cognito lift systems on the 2024–2025 GM 2500HD/3500HD diesel/Allison platform.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 2500HD (Diesel, 10-Speed Allison):
2024–2025 Chevrolet Silverado 2500HD Custom, WT, LT, LTZ, High Country, ZR2 4WD

✅ CONFIRMED — Chevrolet Silverado 3500HD (Diesel, 10-Speed Allison):
2024–2025 Chevrolet Silverado 3500HD Base, WT, LT, LTZ, High Country 4WD SRW & DRW

✅ CONFIRMED — GMC Sierra 2500HD (Diesel, 10-Speed Allison):
2024–2025 GMC Sierra 2500HD SLE, SLT, AT4, AT4X, Denali, Pro 4WD

✅ CONFIRMED — GMC Sierra 3500HD (Diesel, 10-Speed Allison):
2024–2025 GMC Sierra 3500HD SLE, SLT, AT4, Denali, Pro 4WD SRW & DRW

❌ REQUIREMENTS:
⚠️ DIESEL / 10-SPEED ALLISON TRANSMISSION ONLY: This kit is specific to 2024–2025 GM 2500HD/3500HD trucks equipped with the Duramax diesel engine and 10-speed Allison transmission. Verify your powertrain configuration before ordering.
⚠️ 2024–2025 PLATFORM ONLY: This kit is not compatible with 2019–2023 GM 2500HD/3500HD trucks. Those model years use the 1330 series u-joint OEM and require a different CV driveline kit without the yoke conversion.
Requires professional installation — front differential yoke replacement requires draining the front differential, removing the factory yoke, and installing the 1330 series yoke with correct torque and seal integrity before installing the CV driveline.
Requires front differential fluid level verification and refill after yoke installation before operating the vehicle in 4WD.
Required for all 4WD operation above 20mph at 4 or more inches of front lift — do not operate the vehicle in 4WD above 20mph with a lifted suspension and the factory front driveline installed.

Installation & Technical Notes

Estimated Install Time: Professional installation recommended — front differential yoke replacement requires differential fluid drain, yoke removal, seal inspection, new yoke installation with correct torque, fluid refill, and CV driveline installation and phasing verification.
Yoke Installation: Drain the front differential before removing the factory yoke. Inspect the differential output shaft seal before installing the 1330 series yoke — replace the seal if any wear or damage is present. Torque the yoke retaining nut to specification and verify the seal is properly seated before refilling the differential.
Differential Fluid: Refill the front differential to the correct fluid level with GM-specified differential fluid after yoke installation. Verify the fill plug is torqued to specification before operating in 4WD.
CV Driveline Phasing: Verify the CV driveline is correctly phased (slip yoke and front yoke in alignment) before final installation. Incorrect phasing will cause driveline vibration at all speeds.
Torque Specifications: Refer to Cognito's included instruction sheet for all yoke and driveline hardware torque values.

Wheel & Tire Fitment

This is a drivetrain component — wheel and tire fitment is determined by the Cognito lift system installed on the vehicle. This CV driveline kit is compatible with 4-inch, 7-inch, and 10-inch Cognito lift systems on the 2024–2025 GM 2500HD/3500HD diesel/Allison platform. Refer to the lift kit's fitment documentation for tire size, wheel backspacing, and offset specifications applicable to your platform and lift height.

Our team is standing by to verify your specific powertrain configuration (diesel/Allison), lift height, and confirm 210-91301 is the correct CV driveline kit for your 2024–2025 build. Purchase with confidence; we review every build.
