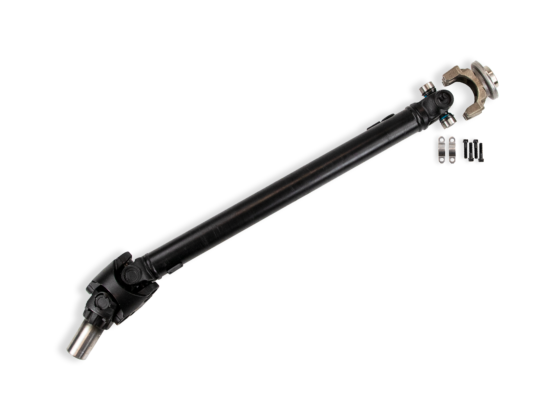

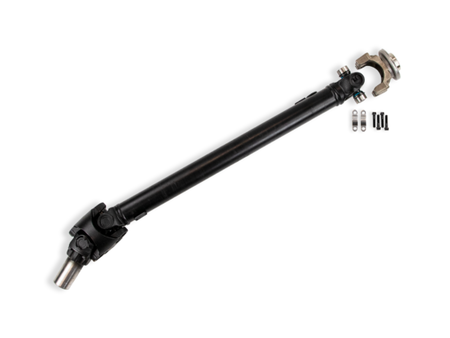

Cognito CV Front Driveline for 7-9" Lift | 2019-2026 Silverado/Sierra 1500 4WD

⚠️ Required Supporting Modification: A CV front driveline is required on 4WD models running 7–9 inches of front lift if operating in 4WD above 20 mph. The factory front driveline U-joint operating angles exceed safe limits at this lift height in 4WD engagement above 20 mph. This is not optional — it is a required supporting modification for Cognito 7–9-inch lift kits on the T1 Silverado/Sierra 1500 4WD platform. Note: If your lift is 4–6 inches, order SKU 210-90862 instead.

The Obsidian Vision

At 7 to 9 inches of front lift on the 2019–2026 T1 Silverado and Sierra 1500 4WD, the factory front driveline U-joint operating angles are well beyond the safe threshold for any 4WD operation above 20 mph — producing severe vibration, rapid U-joint failure, and potential driveline separation under normal use. The Cognito CV Front Driveline for 7–9-inch applications is the direct bolt-in solution engineered for this lift range: a 1310 series double cardan CV joint at the transfer case end eliminates the operating angle problem by centering the driveline's working angle at the CV, and a 1330 to 3R combo U-joint at the differential end handles the remaining angle change. Complete bolt-in replacement, made in the USA, engineered specifically for 7–9-inch Cognito lift applications on the T1 platform.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Eliminates the severe U-joint operating angle overload generated by 7–9 inches of front lift on the T1 Silverado/Sierra 1500 4WD platform — at this lift height, the factory straight U-joint front driveline cannot operate in 4WD above 20 mph without producing vibration, accelerated joint destruction, and risk of driveline separation. This is the purpose-built replacement engineered for the 7–9-inch lift angle range.
• Corrects the transfer case end driveline angle through a 1310 series double cardan CV joint — a constant velocity joint design that splits the operating angle equally across two U-joints phased 180 degrees apart, canceling the velocity variation that a single U-joint produces at high operating angles and delivering smooth, vibration-free power transfer at the elevated 7–9-inch front lift height.
• Delivers a complete bolt-in driveline replacement with a 1330 to 3R combo U-joint at the differential end — handling the differential-side angle change with a heavy-duty U-joint combination that matches the factory mounting interface for a direct, no-modification installation on the 2019–2026 T1 Silverado/Sierra 1500 4WD transfer case and front differential.

This driveline is engineered specifically for the 7–9-inch lift angle range on the T1 Silverado/Sierra 1500 platform. It is not interchangeable with the 4–6-inch version (SKU 210-90862) — the driveline length and CV joint geometry are optimized for the greater operating angles present at 7–9 inches of front lift. Using the wrong driveline for your lift height will result in incorrect driveline length, improper phasing, and potential vibration or failure. If your lift is 4–6 inches, order SKU 210-90862. The 1310 series double cardan CV joint at the transfer case end is the critical component that allows smooth 4WD operation at 7–9-inch lift angles. Made in the USA. At 22 lbs, this ships standard parcel.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 1500 (T1, 2019–2026) 4WD:
2019–2026 Chevrolet Silverado 1500 Base, Custom, Custom Trail Boss, RST, LT, LT Trail Boss, LTZ, High Country, WT 4WD
2022–2026 Chevrolet Silverado 1500 ZR2 4WD

✅ CONFIRMED — GMC Sierra 1500 (T1, 2019–2026) 4WD:
2019–2026 GMC Sierra 1500 Base, SLE, SLT, Elevation, Denali, AT4 4WD
2022–2026 GMC Sierra 1500 Pro, AT4X, Denali Ultimate 4WD

❌ REQUIREMENTS & CRITICAL NOTICES:
⚠️ 4WD MODELS ONLY: This driveline is for 4WD models only. 2WD Silverado/Sierra 1500 do not have a front driveline and do not require this part.
⚠️ 7–9-INCH COGNITO LIFT APPLICATIONS ONLY: This driveline is engineered for 7–9-inch Cognito lift kits on the T1 platform. It is not interchangeable with the 4–6-inch version (SKU 210-90862). If your lift is 4–6 inches, order SKU 210-90862 instead. Contact the OFAS team to confirm the correct driveline for your specific lift height before ordering.
⚠️ T1 GENERATION ONLY (2019–2026): Engineered for the T1 generation Silverado/Sierra 1500 only. Not compatible with the previous K2 generation (2014–2018).
Install before operating the vehicle in 4WD above 20 mph after lift kit installation. Do not operate in 4WD above 20 mph with the factory driveline installed at 7–9 inches of front lift.

Installation & Technical Notes

Scope: Direct bolt-in replacement for the factory front driveline — remove the factory front driveline and install the Cognito CV driveline at the factory transfer case and front differential mounting points.
Install Sequence: Install the CV front driveline as part of the lift kit installation, before operating the vehicle in 4WD above 20 mph. Do not drive in 4WD above 20 mph with the factory driveline at 7–9 inches of front lift.
SKU Verification: Confirm you have ordered SKU 210-90863 (7–9-inch) and not SKU 210-90862 (4–6-inch) before installation. The two drivelines are not interchangeable.
Driveline Phasing: Verify driveline phasing is correct after installation — incorrect phasing will produce vibration at speed. Refer to Cognito's included instruction sheet for phasing verification procedure.
Torque Specifications: Torque all driveline mounting fasteners to GM specification. Refer to Cognito's included instruction sheet for all torque values.
Re-Torque Interval: Re-torque all driveline fasteners after the first 500 miles of driving post-installation.

Wheel & Tire Fitment

This is a driveline component and does not affect wheel offset, tire clearance, or suspension lift height. Wheel and tire fitment is determined by your installed Cognito lift kit configuration. Contact the OFAS team to confirm your complete 4WD supporting modification list for your specific lift height and truck configuration.

Our team is standing by to verify your specific Cognito lift height, 4WD configuration, and correct driveline SKU — 210-90863 for 7–9-inch lifts, 210-90862 for 4–6-inch lifts. Purchase with confidence; we review every build.
