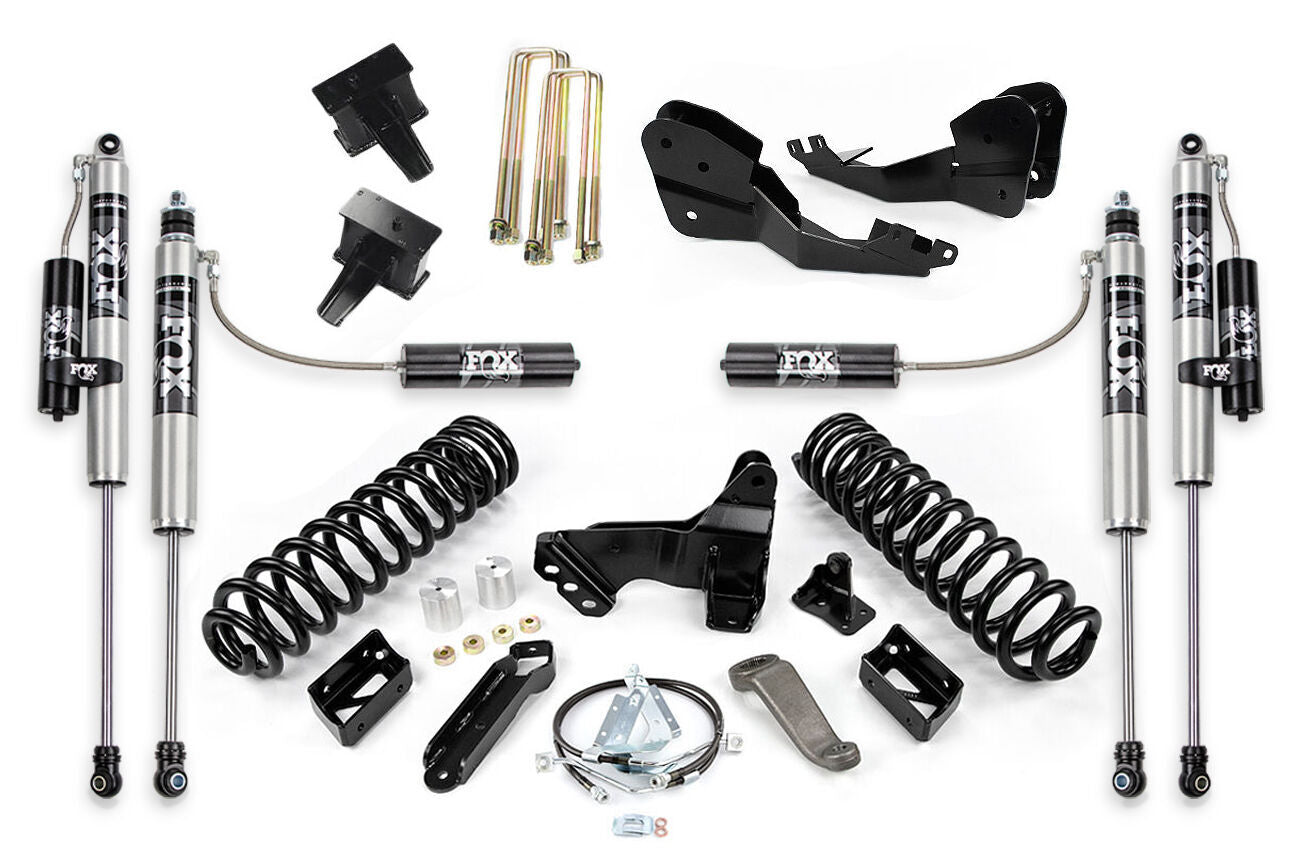

Cognito 5" Standard Lift Kit with Fox 2.0 PSRR | 2023-2025 Ford F-250/F-350 Super Duty

The Obsidian Vision

Five inches of front lift and three inches of rear lift on a 2023–2025 Ford F-250 or F-350 Super Duty levels the truck's stance, clears 37x12.5-inch tires on a 10-inch wide wheel, and corrects the steering and suspension geometry that the factory suspension was not designed to maintain at elevated ride heights — all in a complete, no-guesswork system engineered, manufactured, and assembled in the USA. The Cognito 5-Inch Standard Lift Kit delivers that result with the Fox 2.0 Performance Series PSRR shocks: an aluminum-bodied, clear-anodized remote reservoir shock that dissipates heat faster than a conventional steel body design and delivers Fox's industry-leading damping performance in an affordable, bolt-on package. Before ordering, two requirements must be confirmed: this kit is designed for non-Tremor models, and trucks equipped with the Onboard Scales or Smart Hitch system will experience interference with those systems after installation due to the ride height and spring rate changes this kit introduces.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Lifts the front of the 2023–2025 F-250/F-350 Super Duty 5 inches on non-Tremor models by correcting steering and suspension geometry at the elevated ride height — maintaining adequate droop travel for superior ride quality and the corrected front suspension geometry required to run 37-inch tires without accelerating front-end component wear.
• Delivers Fox 2.0 Performance Series PSRR damping through an impact-extruded, clear-anodized aluminum shock body that dissipates heat faster than a conventional steel body design — the remote reservoir maintains a constant oil supply to the piston, preventing cavitation and aeration that cause fade during sustained off-road or high-speed use, in an affordable bolt-on package that requires no modification to install.
• Levels the truck's stance front to rear with 3 inches of rear lift on non-Tremor models, achieving a level front-to-rear appearance and the rear ride height required to maintain proper driveline geometry and tire clearance at the 5-inch front lift increment.

The Fox 2.0 Performance Series PSRR shocks use a 2.0-inch aluminum shock body with a remote reservoir — the remote reservoir increases oil volume relative to a non-reservoir 2.0-inch shock, maintaining consistent damping force as oil temperature rises during sustained use. The clear-anodized aluminum body provides corrosion resistance and heat dissipation superior to conventional steel body shocks. The Cognito front lift components are engineered to correct the steering and suspension geometry changes introduced by 5 inches of front lift on the 2023–2025 Super Duty platform, ensuring the front suspension operates within its designed geometry range at the elevated ride height. All Cognito components are engineered, manufactured, and assembled in the USA. At 266 lbs, this kit ships via LTL freight carrier with residential delivery included.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Ford F-250 Super Duty (Non-Tremor):
2023–2025 Ford F-250 Super Duty XL, XLT, Lariat, King Ranch, Platinum, Limited 4WD

✅ CONFIRMED — Ford F-350 Super Duty (Non-Tremor):
2023–2025 Ford F-350 Super Duty XL, XLT, Lariat, King Ranch, Platinum, Limited 4WD SRW & DRW
2024–2025 Ford F-350 Super Duty XL Plus 4WD

❌ REQUIREMENTS & CRITICAL NOTICES:
⚠️ NON-TREMOR MODELS ONLY: The stated 5-inch front and 3-inch rear lift heights apply to non-Tremor model year trucks. Tremor models have a different factory suspension configuration — verify your specific trim before ordering to confirm lift height expectations.
⚠️ ONBOARD SCALES / SMART HITCH INCOMPATIBILITY: This kit is not compatible with trucks equipped with the Ford Onboard Scales or Smart Hitch system. Modifying the ride height or spring rate will interfere with these systems' performance and accuracy. If your truck is equipped with Onboard Scales or Smart Hitch, these systems will not function correctly after installation.
Requires front alignment immediately post-installation — at 5 inches of front lift, caster and camber correction is critical before any driving.
Requires ADAS recalibration if equipped with adaptive cruise control, forward collision warning, lane-keep assist, or BlueCruise.
Requires rear driveline angle verification post-installation to confirm u-joint operating angles are within Ford's specification before towing at rated capacity.
Shock Comparison: If race-proven reservoir damping with a 2.5-inch shock body is a priority, consider the Cognito 5-Inch Premier Lift Kit with Fox 2.5 Factory Race Series Reservoir Shocks (220-P1240) — the Fox 2.0 PSRR delivers excellent performance at a lower price point without the larger body diameter and race-series valving of the 2.5 Factory Race Series.
Shipping Notice: At 266 lbs, this kit ships via LTL freight carrier. Residential delivery is included.

Installation & Technical Notes

Estimated Install Time: 9-Hour DIY Install — with a 2-post lift, comprehensive hand tools, torque wrench, and an alignment appointment scheduled immediately after installation.
Tremor Verification: Confirm your truck is a non-Tremor model before installation. Tremor models have factory-lifted suspension geometry that changes the lift height outcome of this kit.
Onboard Scales / Smart Hitch: If your truck is equipped with Onboard Scales or Smart Hitch, be aware these systems will not perform accurately after installation due to the ride height and spring rate changes introduced by this kit.
Alignment Required: Yes — professional front alignment is mandatory immediately after installation. At 5 inches of front lift, caster and camber deviation from Ford's factory specification must be corrected before any driving.
ADAS Recalibration: Models equipped with adaptive cruise, forward collision warning, lane-keep assist, or BlueCruise require front camera and radar recalibration after installation.
Torque Specifications: Refer to Cognito's included instruction sheet for all component torque values — torque all fasteners with the suspension at ride height under load.
Shipping Notice: At 266 lbs, this kit ships via LTL freight carrier. Residential delivery is included. A delivery appointment will be scheduled by the carrier.

Wheel & Tire Fitment

Maximum Confirmed Tire Size: 37x12.5" on a 10-inch wide wheel with 5-inch backspacing — verified clearance with this kit at 5 inches of front lift and 3 inches of rear lift on the 2023–2025 F-250/F-350 Super Duty platform (non-Tremor).
Wheel Width: 10 inches recommended for maximum tire size
Maximum Backspacing: 5 inches with 37x12.5" tires
Contact the OFAS team to verify inner fender clearance and offset requirements for your specific cab, bed, and fender configuration before finalizing wheel and tire selection.

Our team is standing by to verify your specific trim (non-Tremor), Onboard Scales/Smart Hitch configuration, and 37-inch tire and wheel setup for your F-250 or F-350. Purchase with confidence; we review every build.
