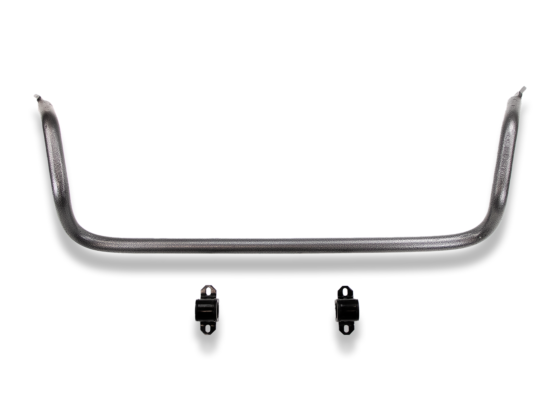

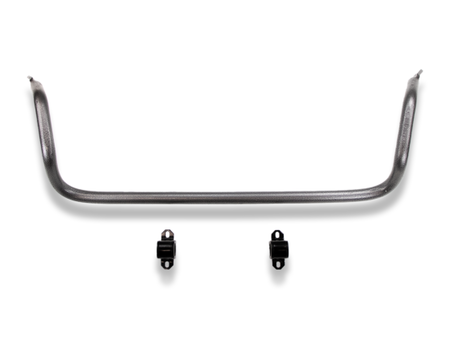

Cognito 1.5" 4140 Chromoly Front Sway Bar | 2020-2025 Silverado/Sierra 2500HD/3500HD

The Obsidian Vision

At 7 inches of front lift and above on the 2020–2025 Silverado and Sierra 2500HD/3500HD, the factory front sway bar is operating at a geometry and leverage disadvantage that allows body roll to increase beyond what the stock bar was designed to control at elevated ride heights — and the result is a truck that feels less planted in corners, less stable under load, and less precise in the steering response that a heavy-duty platform should deliver. The Cognito 1.5-Inch 4140 Chromoly Front Sway Bar is the direct solution: heat-treated and hot-formed 4140 chromoly steel, 1.5 inches in diameter, with high-tech polyurethane bushings and larger sway bar clamps, finished in a powder-coated hammertone finish and manufactured in the USA. Thirty minutes to install. Recommended for trucks lifted 7 inches and taller.

Concierge Fitment Guarantee

Every order is manually reviewed by our technicians to ensure 100% compatibility with your build before we ship.

Engineering Breakdown

• Reduces body roll on the 2020–2025 Silverado/Sierra 2500HD/3500HD at 7 inches of front lift and above by increasing the front sway bar's torsional stiffness through the 1.5-inch diameter 4140 chromoly steel construction — a larger bar diameter increases the bar's polar moment of inertia, which directly increases the torsional resistance that opposes body roll during cornering, lane changes, and load shifts.
• Distributes weight more evenly across the front axle during cornering and load transfer events by increasing the lateral load transfer resistance of the front suspension — improving traction at the front wheels during cornering by keeping both front tires in more consistent contact with the road surface under the body roll forces that a lifted heavy-duty truck generates.
• Installs in 30 minutes using the included larger sway bar clamps and polyurethane bushings, which provide the bushing compliance required for smooth sway bar operation while eliminating the deflection and noise associated with worn or undersized rubber bushings at elevated ride heights.

The 4140 chromoly steel construction provides the tensile strength and fatigue resistance required for a sway bar operating at the elevated torsional loads generated by a 7-inch or taller lifted heavy-duty truck — 4140 chromoly has a significantly higher tensile strength than mild steel, allowing the bar to be sized for the required torsional stiffness without the weight penalty of a mild steel bar of equivalent stiffness. Heat treatment and hot forming optimize the bar's grain structure for maximum fatigue resistance under the cyclic torsional loading that a sway bar experiences in normal driving. The polyurethane bushings provide a stiffer bushing interface than the factory rubber bushings, reducing the bushing deflection that allows the sway bar to move in its clamps before the torsional resistance engages — improving the bar's response to initial body roll inputs. Hammertone powder coat finish. Made in the USA.

Audit Table

Verified Fitment (OFAS Standard)

✅ CONFIRMED — Chevrolet Silverado 2500HD:
2020–2024 Chevrolet Silverado 2500HD Custom 2WD/4WD
2020–2025 Chevrolet Silverado 2500HD WT, LT, LTZ, High Country 2WD/4WD

✅ CONFIRMED — Chevrolet Silverado 3500HD:
2020–2023 Chevrolet Silverado 3500HD Base 2WD/4WD SRW & DRW
2020–2025 Chevrolet Silverado 3500HD WT, LT, LTZ, High Country 2WD/4WD SRW & DRW

✅ CONFIRMED — GMC Sierra 2500HD:
2020–2022 GMC Sierra 2500HD Base 2WD/4WD
2020–2024 GMC Sierra 2500HD AT4 2WD/4WD
2020–2025 GMC Sierra 2500HD SLE, SLT, Denali 2WD/4WD
2023–2024 GMC Sierra 2500HD Pro 2WD/4WD
2024–2025 GMC Sierra 2500HD Denali Ultimate 2WD/4WD

✅ CONFIRMED — GMC Sierra 3500HD:
2020–2022 GMC Sierra 3500HD Base 2WD/4WD SRW & DRW
2020–2024 GMC Sierra 3500HD AT4 2WD/4WD SRW & DRW
2020–2025 GMC Sierra 3500HD SLE, SLT, Denali 2WD/4WD SRW & DRW
2023–2024 GMC Sierra 3500HD Pro 2WD/4WD SRW & DRW
2024–2025 GMC Sierra 3500HD Denali Ultimate 2WD/4WD SRW & DRW

❌ REQUIREMENTS:
⚠️ RECOMMENDED FOR 7-INCH AND TALLER LIFTS: This sway bar is engineered for the body roll control requirements of trucks lifted 7 inches and taller. At lift heights below 7 inches, the factory sway bar may be adequate — contact the OFAS team to confirm whether this upgrade is appropriate for your specific lift height.
Requires sway bar end link verification after installation — at 7 or more inches of front lift, factory sway bar end links may be at or beyond their designed operating angle. Verify end link geometry and replace with extended end links if required before driving.

Installation & Technical Notes

Estimated Install Time: 30-Minute DIY Install (with basic hand tools and a torque wrench — no lift required for most configurations)
End Link Check: After installation, verify the sway bar end links are operating within their designed angular range at the installed lift height. At 7 or more inches of front lift, factory end links may be at or beyond their designed operating angle — extended end links may be required for correct geometry.
Bushing Installation: Install the polyurethane bushings in the included larger sway bar clamps. Apply the included bushing lubricant to the bushing inner bore before installation to prevent squeaking under load cycling.
Torque Specifications: Refer to Cognito's included instruction sheet for all sway bar clamp and end link mounting hardware torque values.

Wheel & Tire Fitment

This is a front suspension body roll control component — wheel and tire fitment is not affected by this installation. The Cognito 1.5-Inch 4140 Chromoly Front Sway Bar is compatible with all wheel and tire configurations on the 2020–2025 Silverado/Sierra 2500HD/3500HD platform at 7 inches of front lift and above.

Our team is standing by to verify your specific lift height and confirm 210-91047 is the correct front sway bar for your GM HD build. Purchase with confidence; we review every build.
