Clayton Off Road Upper Control Arm GIIRO Bushing Housing for 2007-2026 Jeep Wrangler JK/JL and 2020-2026 Gladiator JT
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Is This for You?
- You're building or rebuilding a Clayton upper control arm on your JK, JL, or Gladiator JT and need the correct axle-side housing — the JK/JL/JT platform uses a 2.50" OD housing, not the 2.25" spec found on older TJ/ZJ builds.
- You're pressing a Clayton GIIRO bushing into a custom or reinforced factory axle bridge — this housing is dimensioned specifically for GIIRO press-fit installation on JK/JL/JT axle bracket geometry.
- Your existing axle-side housing is worn, out-of-round, or damaged from trail impact — restoring correct bore geometry is required before pressing a new bushing; a worn housing will not retain the bushing under load.
The Result
- 2.500" OD / 2.125" ID / 1.750" width — correct press-fit spec for the front upper control arm axle-side mount on JK, JL, and JT platforms.
- Steel construction resists deformation under the clamp loads and lateral forces of lifted JK/JL/JT builds running 3"–6" of lift.
- Designed specifically for Clayton GIIRO bushing press-fit installation — bore and shoulder dimensions match GIIRO outer diameter and housing width requirements.

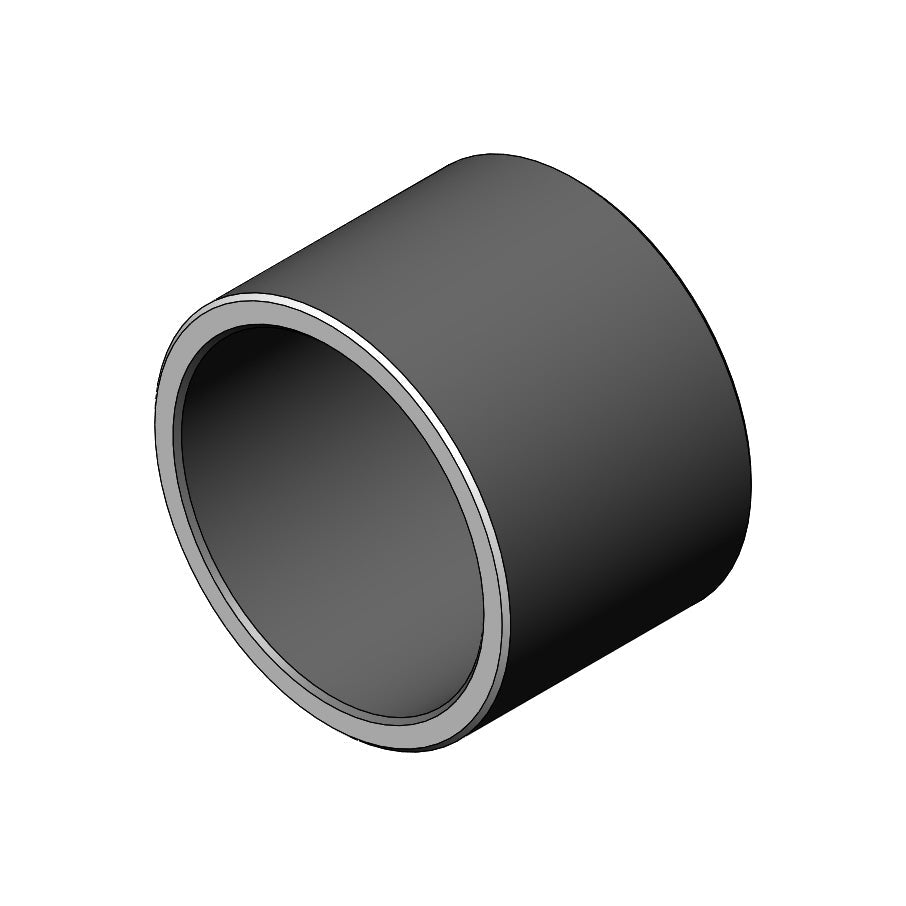

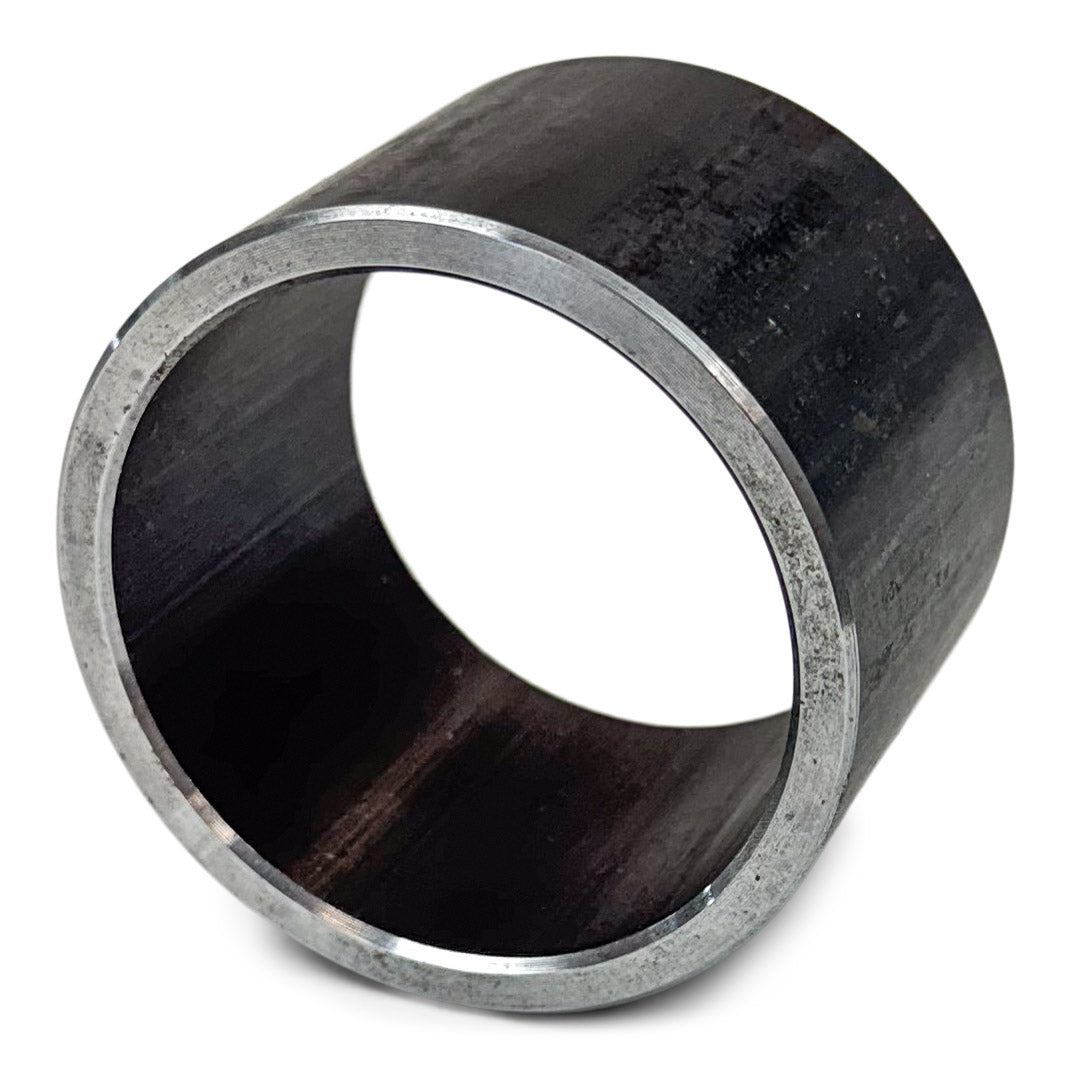

The COR-2300108 is a steel upper control arm bushing housing machined to the front axle-side specification for Jeep Wrangler JK (2007–2018), JL (2018–2026), and Gladiator JT (2020–2026) platforms. The 2.500" outer diameter and 2.125" inner diameter provide the correct press-fit bore for Clayton's GIIRO dual-durometer bushing — a maintenance-free, self-centering design rated for up to 30° of misalignment without binding. The 1.750" width matches the axle bracket ear spacing on JK/JL/JT front upper control arm mounts, ensuring full shoulder contact and eliminating lateral float under articulation load. This housing is dimensionally distinct from the 2.250" OD version used on TJ/ZJ platforms (COR-2300109) — do not interchange. Steel construction is appropriate for the higher clamp loads and axle wrap forces common on lifted JK/JL/JT builds. Sold as a single housing.
Audit Table
| Spec | Detail |
|---|---|
| Part Number | COR-2300108 |
| Position | Front Upper Control Arm, Axle Side |
| Material | Steel |
| Outer Diameter (OD) | 2.500" |
| Inner Diameter (ID) | 2.125" |
| Width | 1.750" |
| Bushing Compatibility | Clayton GIIRO Dual-Durometer (Press-Fit) |
| Quantity | 1 Housing |
| Shipping Weight | 1 lb |
| Shipping Dimensions | 4" x 4" x 4" |
Verified Fitment (OFAS Standard)
✅ Fits 2007–2018 Jeep Wrangler JK (2-Door & Unlimited 4-Door) — Front Upper Control Arm, Axle Side
✅ Fits 2018–2026 Jeep Wrangler JL (2-Door & Unlimited 4-Door) — Front Upper Control Arm, Axle Side
✅ Fits 2020–2026 Jeep Gladiator JT — Front Upper Control Arm, Axle Side
❌ Does NOT fit Jeep Wrangler TJ (1997–2006) — requires 2.250" OD housing (COR-2300109)
❌ Does NOT fit Jeep Grand Cherokee ZJ (1993–1998) — requires 2.250" OD housing (COR-2300109)
❌ Does NOT fit rear control arm positions — axle-side front upper mount only
❌ Do NOT interchange with COR-2300109 — OD, ID, and width are different
Installation & Fabrication Notes
- Housing requires press-fit bushing installation — use a proper bushing press or C-clamp press tool. Do not hammer bushing in without a press.
- Verify axle bracket ear width matches 1.750" housing width before installation — shimming may be required on modified or aftermarket axle housings.
- Inspect housing bore for ovality or scoring before pressing in a new bushing — a worn or out-of-round bore will not retain the bushing under load.
- When installing a GIIRO bushing: ensure the dual-durometer outer layer seats fully flush with the housing shoulder on both faces before torquing the UCA bolt.
- Torque axle-side UCA bolt to your specific Clayton arm specification — verify with Clayton's torque spec sheet for your kit.
- On JL and JT models with ADAS: recalibrate front sensors after any suspension geometry change per Jeep service procedure.
Wheel & Tire Fitment
Bushing housing component — no direct wheel or tire fitment restriction. Compatible with standard JK/JL/JT wheel and tire combinations up to 37" tires on 3"–6" lift. Larger tire fitment may require additional suspension geometry correction.
Engineering Question: Are you replacing a housing on a TJ or ZJ platform? If yes, this is not the correct housing — TJ/ZJ requires the 2.250" OD version (COR-2300109). Confirm your platform and axle bracket ear spacing is 1.750" before ordering to ensure correct press-fit retention.
