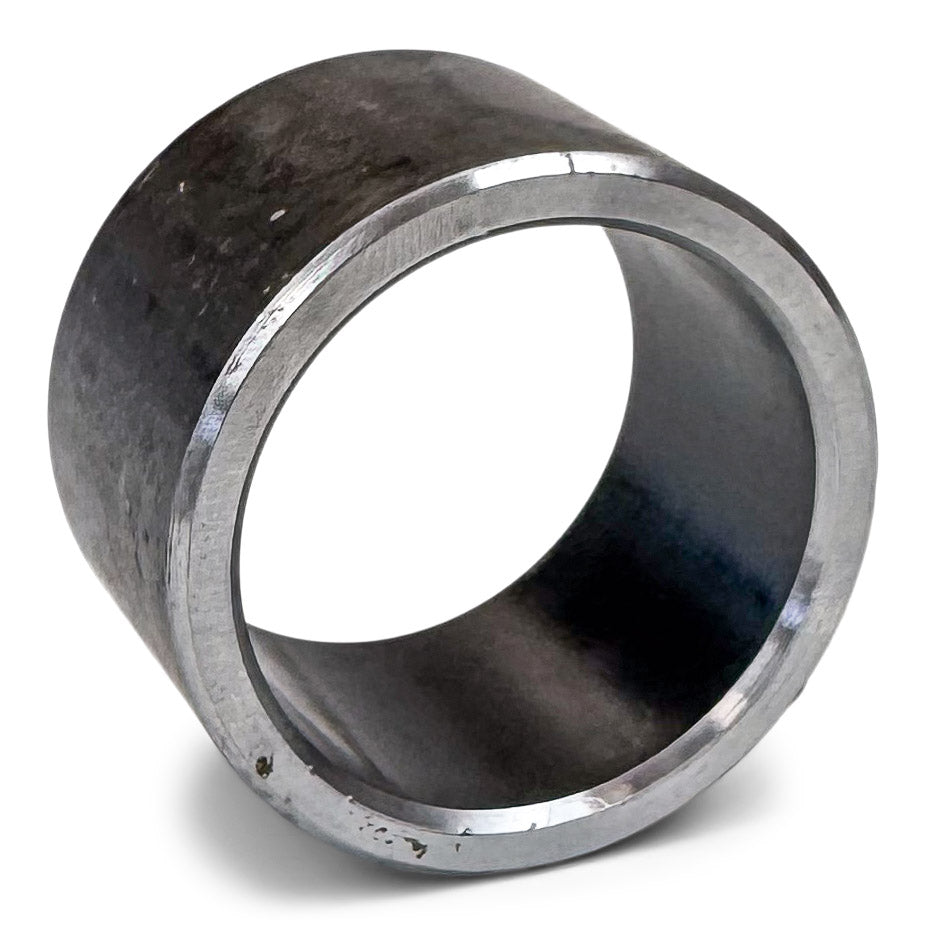

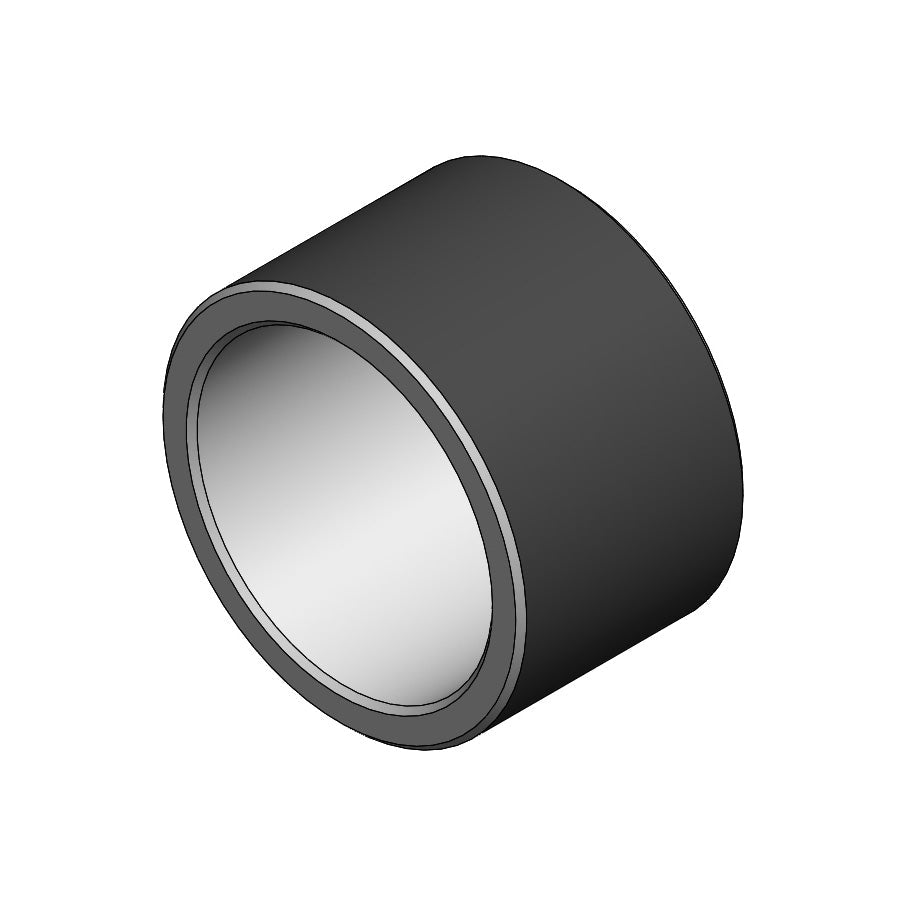

Clayton Off Road Steel Track Bar GIIRO Bushing Housing 2.000 OD x 1.625 ID x 1.250 Wide

Is This for You?

• You're building or repairing a Clayton Off Road track bar that uses a GIIRO bushing and need a replacement or additional steel housing to press the bushing into. This is the steel outer housing that the GIIRO bushing seats inside at the track bar mounting position — not the bushing itself.
• You need the housing to match the GIIRO bushing OD of 1.625" and fit into a track bar end or bracket with a 2.000" bore. Confirm your track bar housing bore and bushing OD before ordering — dimensional fit is the only compatibility check for this component.
• You're fabricating a custom track bar to Clayton Off Road's GIIRO bushing system dimensions. This housing gives you the correct steel shell to build around the GIIRO dual-durometer bushing at the track bar end position.

The Result

• Steel construction — machined steel outer housing provides the structural shell for the GIIRO bushing at the track bar mounting position; resists deformation under the lateral loads that the track bar manages during suspension travel and cornering.
• Precision dimensions: 2.000" OD / 1.625" ID / 1.250" width — machined to accept the GIIRO bushing at the ID and press or weld into the track bar end or bracket at the OD. Smaller profile than the lower control arm housing (COR-2300107) — sized for the track bar application specifically.
• Designed for the GIIRO dual-durometer bushing system — the 1.625" ID is sized to accept the GIIRO bushing used in Clayton Off Road's track bar lineup; self-lubricating, self-centering, maintenance-free bushing operation once assembled.

The COR-2300106 is Clayton Off Road's steel track bar housing for the GIIRO bushing system. The GIIRO bushing is a dual-durometer design — a harder outer ring for structural load transfer and a softer inner element for vibration isolation and articulation compliance. This steel housing is the outer shell that the GIIRO bushing presses into; the housing is then pressed or welded into the track bar end or bracket at the track bar mounting position. The track bar housing (COR-2300106) is dimensionally distinct from the lower control arm housing (COR-2300107) — the track bar housing is smaller (2.000" OD vs 2.750" OD) to match the track bar end bore. Dimensional specs: 2.000" OD (housing outer diameter, interfaces with track bar bore), 1.625" ID (bushing seat, accepts GIIRO bushing OD), 1.250" width (housing depth). Verify all three dimensions against your track bar design before ordering. This is a replacement and fabrication component; it is not a complete bushing assembly.

Audit Table

Verified Fitment (OFAS Standard)

Compatible With:

• ✅ Clayton Off Road track bars using GIIRO bushing system with 2.000" housing bore
• ✅ Custom fabricated track bars designed to accept a 2.000" OD housing and 1.625" ID GIIRO bushing
• ✅ Replacement housing for worn or damaged track bar GIIRO bushing housings matching these dimensions

Does NOT Fit:

• ❌ Lower control arm GIIRO bushing position — different housing dimensions (2.750" OD); see COR-2300107
• ❌ Track bar bores other than 2.000" — housing OD must match the bore it presses or welds into
• ❌ Non-GIIRO bushing systems — the 1.625" ID is sized for the GIIRO bushing OD specifically

Installation & Fabrication Notes

• Verify all three dimensions (2.000" OD, 1.625" ID, 1.250" width) match your track bar design before pressing or welding the housing in place.
• Press housing into track bar bore using a hydraulic press — ensure housing is square to the bore axis before pressing fully seated.
• If welding the housing into a fabricated track bar end, verify square alignment before tacking, then fully weld after confirming position.
• Press GIIRO bushing into housing ID after housing is installed and any welds have cooled — heat distortion from welding can affect the 1.625" ID dimension.
• Do not use a hammer directly on the housing face during installation — use a press plate or driver sized to the housing OD to avoid deforming the housing.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

Wheel & Tire Fitment

Not applicable — this is a fabrication and replacement component. Fitment is determined by dimensional compatibility with your track bar design, not vehicle wheel or tire selection.

Engineering Question: What are the housing bore dimensions on your track bar end, and are you using the GIIRO bushing system? Confirm the track bar bore accepts a 2.000" OD housing and that your GIIRO bushing OD is 1.625" before ordering. This is the housing only — the GIIRO bushing is sold separately. If you need the lower control arm housing, see COR-2300107 (2.750" OD).
