Clayton Off Road Standard CNC Tube Insert 1"x14 RH for 1.5" .156 Wall DOM Round Tubing

Is This for You?

• You're building or repairing a control arm or suspension link using 1.5" .156 wall DOM round tubing and need a 1"x14 right-hand threaded insert. This is the Standard tier insert machined for DOM round tube — not square tubing. Confirm your tube type before ordering.
• You need right-hand thread and understand that left-hand thread is not available in this Standard series. LH thread is not offered for this DOM tube size — if you need LH thread in 1"x14, see the Premium square tube series (COR-2300222 LH, 1.5" square tubing).
• You want a cost-effective CNC-machined insert with Grade 8 Hi-nut construction for a structural suspension fabrication application. The Standard series uses Grade 8 Hi-nuts machined to spec — a step below the Premium series but built for structural use.

The Result

• CNC-machined for precise press fit into 1.5" .156 wall DOM round tubing — machined to the ID of this specific tube size; no filing or gap-filling required before pressing in.
• 1"x14 right-hand thread, Grade 8 Hi-nut construction — machined from Grade 8 Hi-nuts for structural thread strength; matches standard 1"x14 RH rod ends and adjusters.
• Press-fit installation, weld to finish — press in with a hydraulic ram or 5 lb sledge, verify square alignment, then fully weld the insert to the tube for a permanent, structural connection.

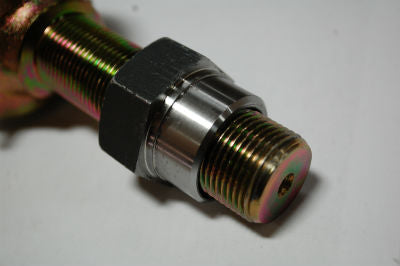

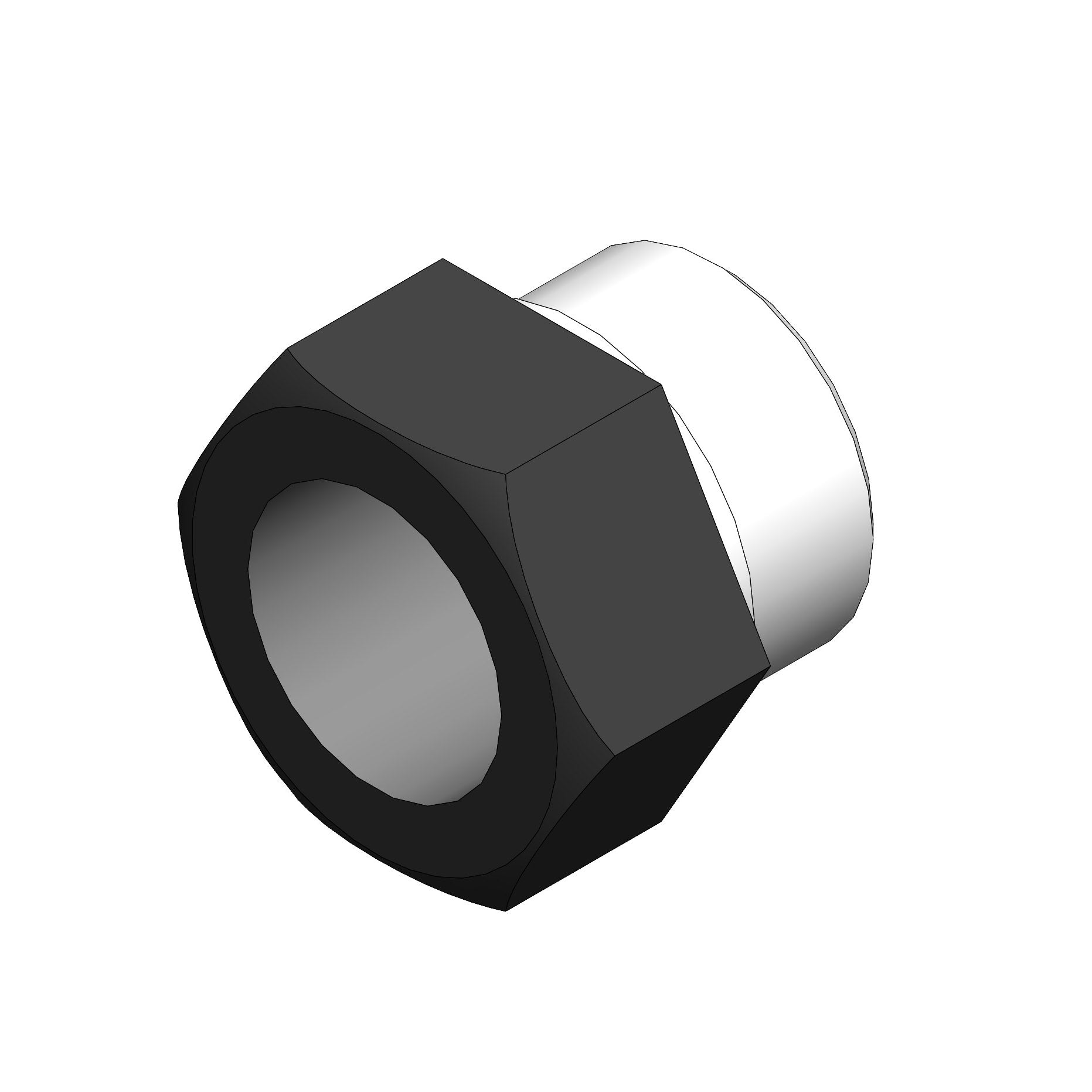

The COR-2300201 is Clayton Off Road's Standard CNC-machined tube insert for 1.5" .156 wall DOM round tubing, threaded 1"x14 right-hand. This is the Standard tier in Clayton's tube insert lineup — machined from Grade 8 Hi-nuts for structural thread strength, CNC-machined for a precise press fit into the DOM tube ID. Left-hand thread is not available in this Standard DOM series — RH only. If you need LH thread in 1"x14, the Premium series offers both LH (COR-2300222) and RH (COR-2300212) in 1.5"x1.5" 1/8" wall square tubing. Note that the Premium series is for square tubing and this Standard insert is for round DOM tubing — the tube geometry is different and the inserts are not interchangeable. The CNC machining ensures a precise press fit into the DOM tube ID. Press in with a hydraulic ram or 5 lb sledge, verify square, then fully weld.

Audit Table

Verified Fitment (OFAS Standard)

Compatible With:

• ✅ 1.5" DOM round tubing — .156" wall thickness only

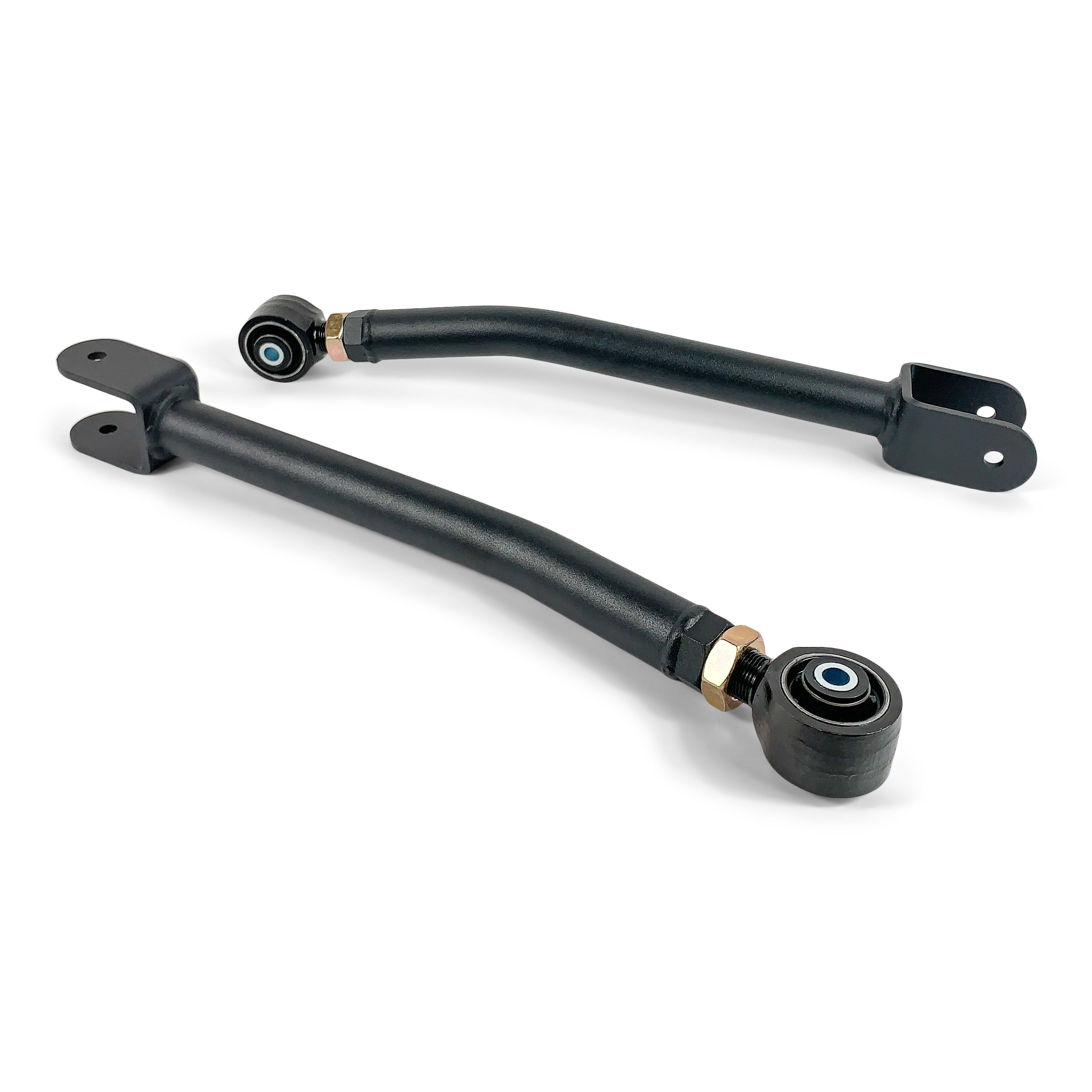

• ✅ Any control arm or suspension link fabricated from 1.5" .156 wall DOM round tube

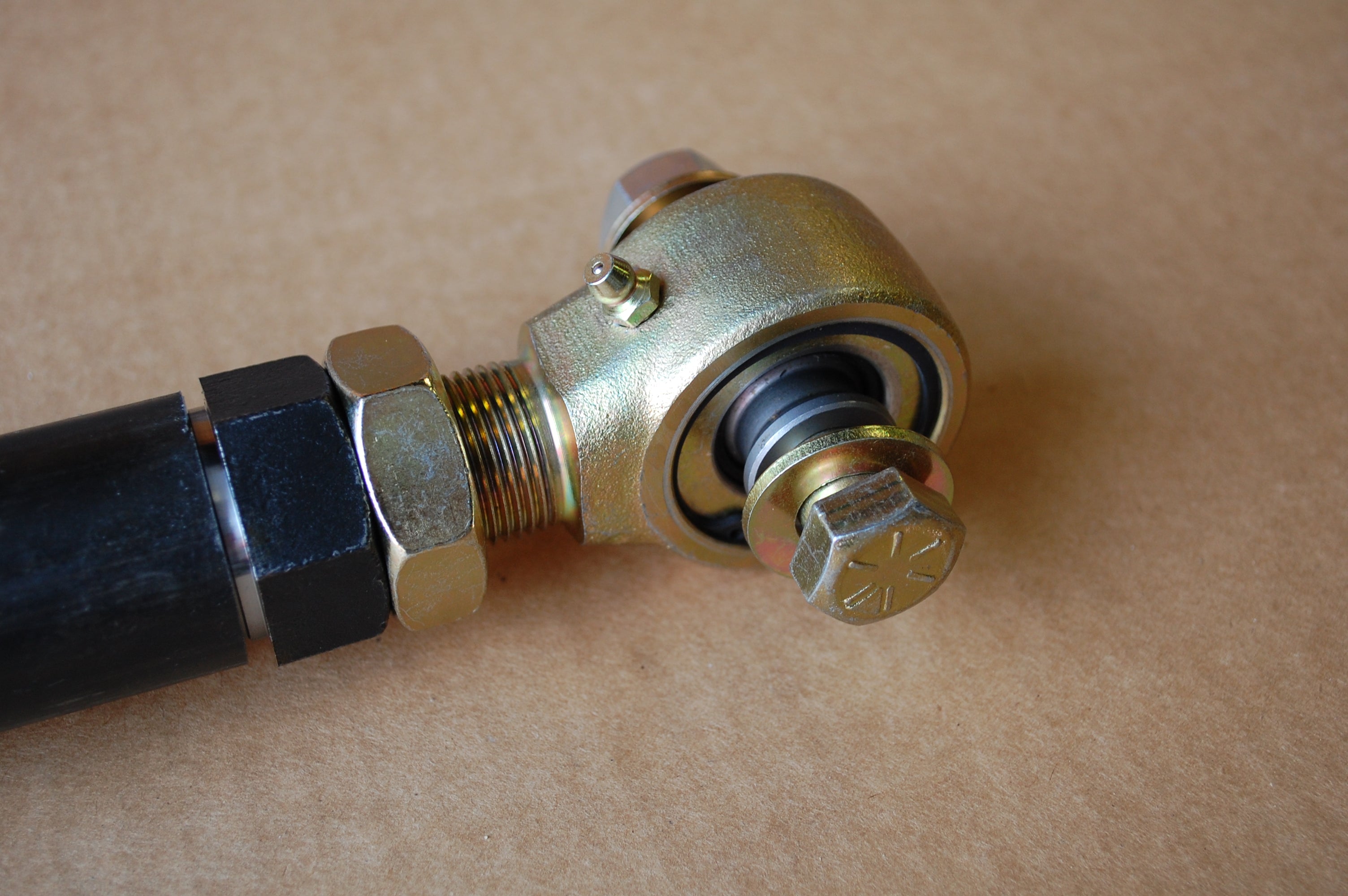

• ✅ 1"x14 right-hand threaded rod ends and adjusters

Does NOT Fit:

• ❌ 1.5"x1.5" square tubing — different tube ID geometry; see COR-2300212 (RH) or COR-2300222 (LH) for square tube
• ❌ 1.5" DOM tubing with wall thickness other than .156" — tube ID will differ and press fit will not be correct
• ❌ 1"x14 left-hand (LH) applications — LH is not available in this Standard DOM series
• ❌ 2" DOM or square tubing — different tube ID; see COR-2300213 for 2" square tube RH insert

Installation & Fabrication Notes

• Confirm tube type and wall thickness before pressing — this insert is machined for 1.5" .156 wall DOM round tubing specifically. It will not fit square tubing of the same nominal size.
• Press insert into tube using a hydraulic ram or 5 lb sledge hammer — drive evenly to avoid cocking the insert during installation.
• Verify the insert is square to the tube axis before welding — use a square or straight edge to confirm alignment. A cocked insert will cause thread misalignment and binding at the rod end under load.
• Fully weld the insert to the tube after confirming square — do not rely on press fit alone for structural use.
• Allow weld to cool fully before threading in rod end or adjuster — heat distortion can affect thread engagement.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

Wheel & Tire Fitment

Not applicable — this is a fabrication component. Fitment is determined by tube size, tube type, and thread spec, not vehicle wheel or tire selection.

Engineering Question: Are you working with 1.5" .156 wall DOM round tubing, and do you need right-hand thread? Left-hand thread is not available in this Standard DOM series — if you need LH thread in 1"x14, see the Premium square tube series (COR-2300222). Also confirm your wall thickness is .156" — a different wall thickness will change the tube ID and the press fit will not be correct.
