Clayton Off Road Premium CNC Tube Insert 1.25"x12 RH for 2"x2" 1/4" Wall Square Tubing

Is This for You?

• You're building or repairing a control arm, link, or fabricated suspension component using 2"x2" 1/4" wall square tubing and need a threaded insert for a 1.25"x12 right-hand thread rod end or adjuster. This insert is CNC machined for a press fit into that specific tube size — not a universal weld bung.
• You need right-hand thread specifically — this SKU is RH only. If you need left-hand thread for the adjuster end of the same arm, that is a separate SKU. Confirm your thread hand before ordering.
• You're building to Clayton Off Road's heavy-duty control arm tube standards using 2"x2" 1/4" wall square tubing. Clayton offers these inserts for both 1.5"x1.5" 1/8" wall (COR-2300222) and 2"x2" 1/4" wall — this SKU is the 2" heavy-wall version with 1.25"x12 RH thread.

The Result

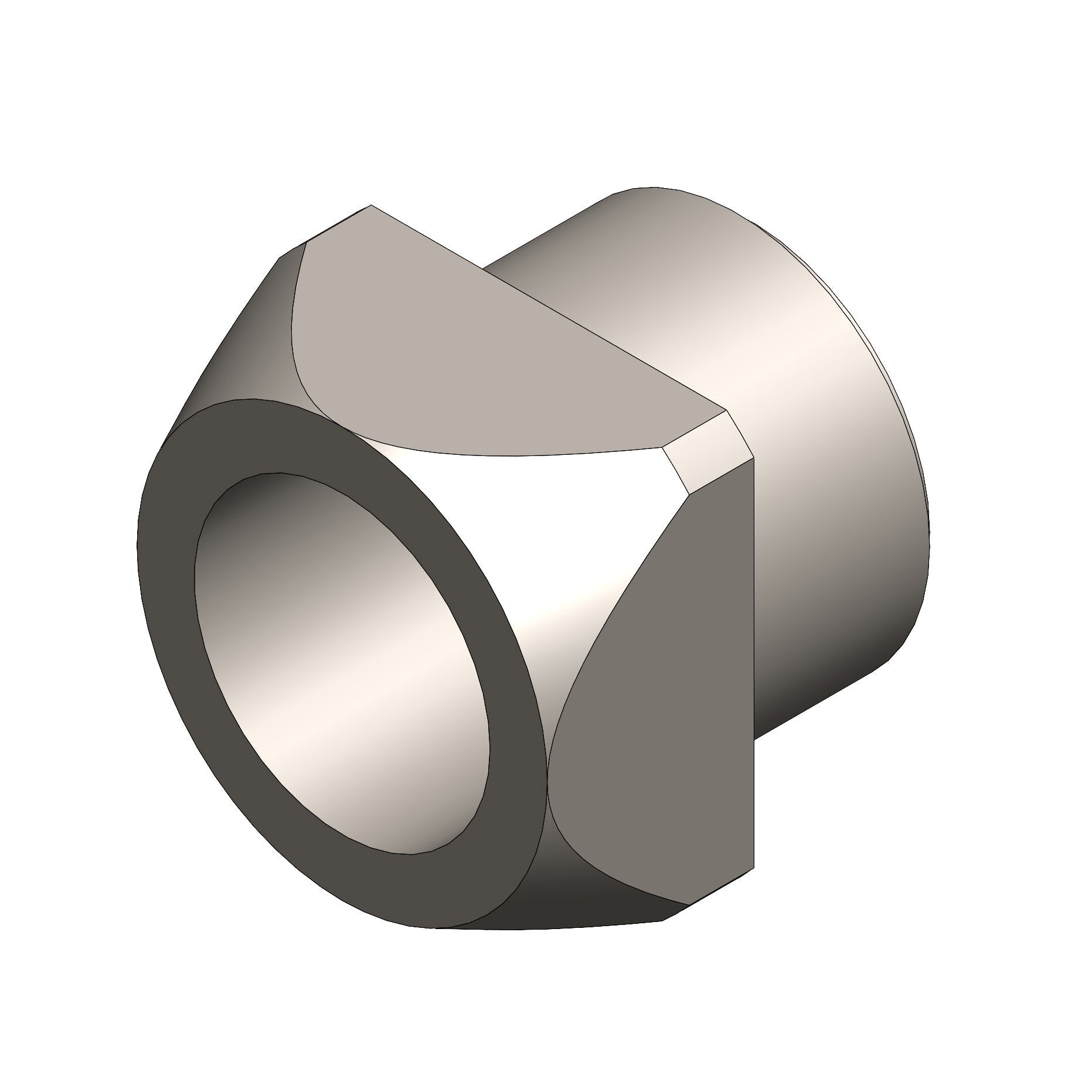

• CNC-machined for precise press fit — machined to the ID of 2"x2" 1/4" wall square tubing; no filing, grinding, or gap-filling required before pressing in.

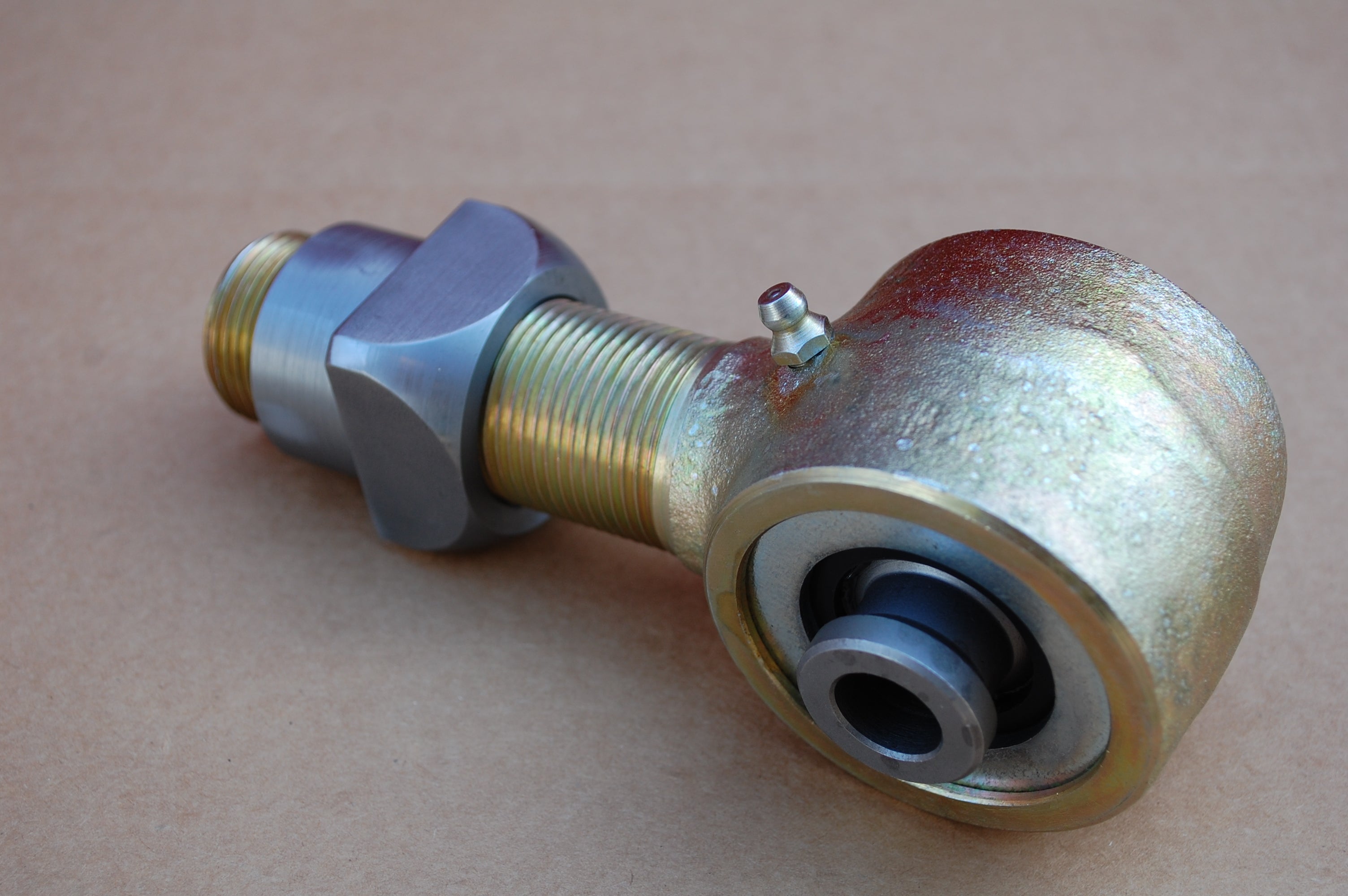

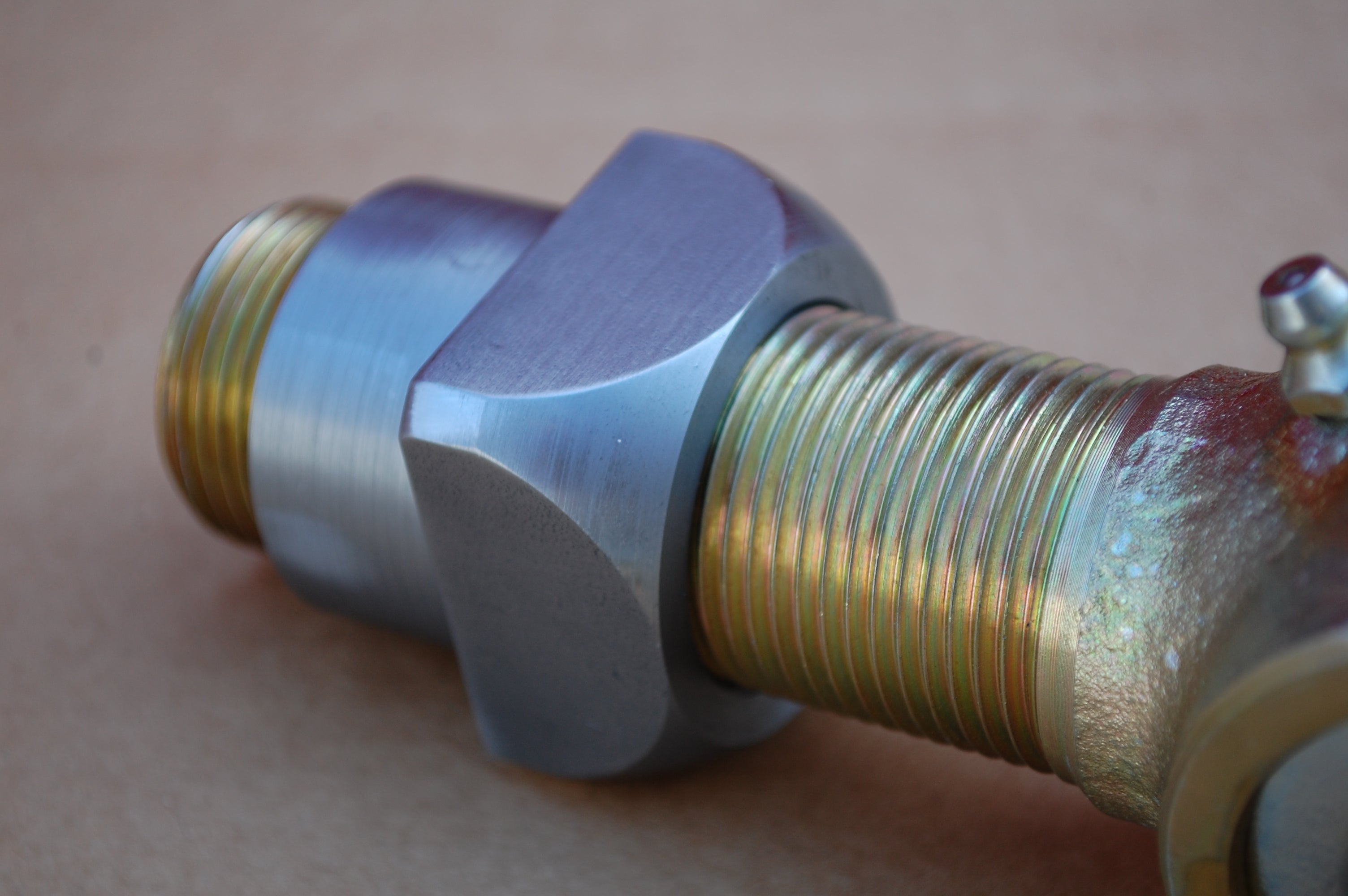

• 1.25"x12 right-hand thread — matches standard right-hand threaded rod ends used in heavy-duty adjustable control arm fabrication; right-hand thread is standard for the fixed or chassis-side end of an adjustable arm.
• Press-fit installation, weld to finish — press in with a hydraulic ram or 5 lb sledge, verify square alignment, then fully weld the insert to the tube for a permanent, structural connection.

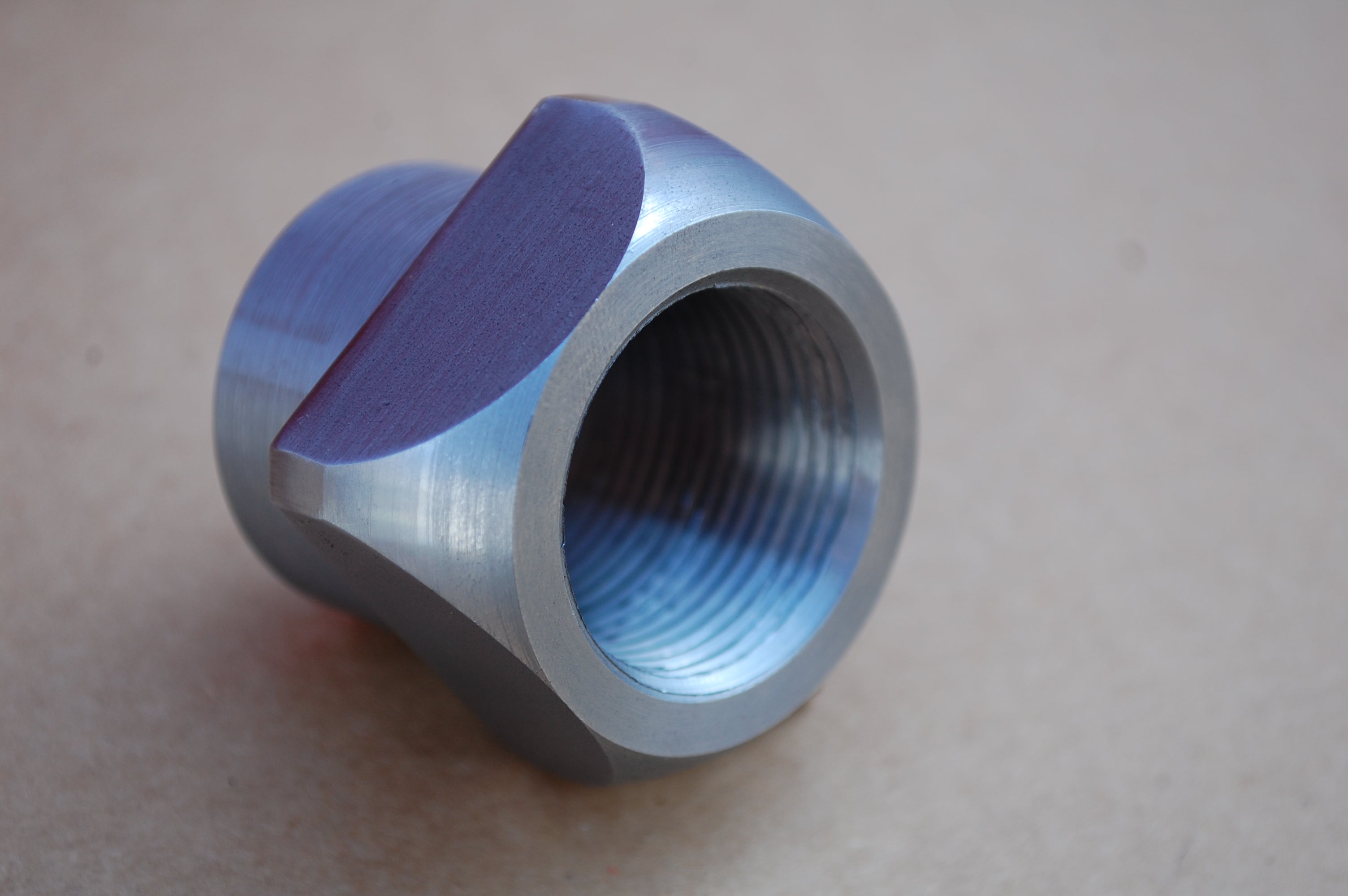

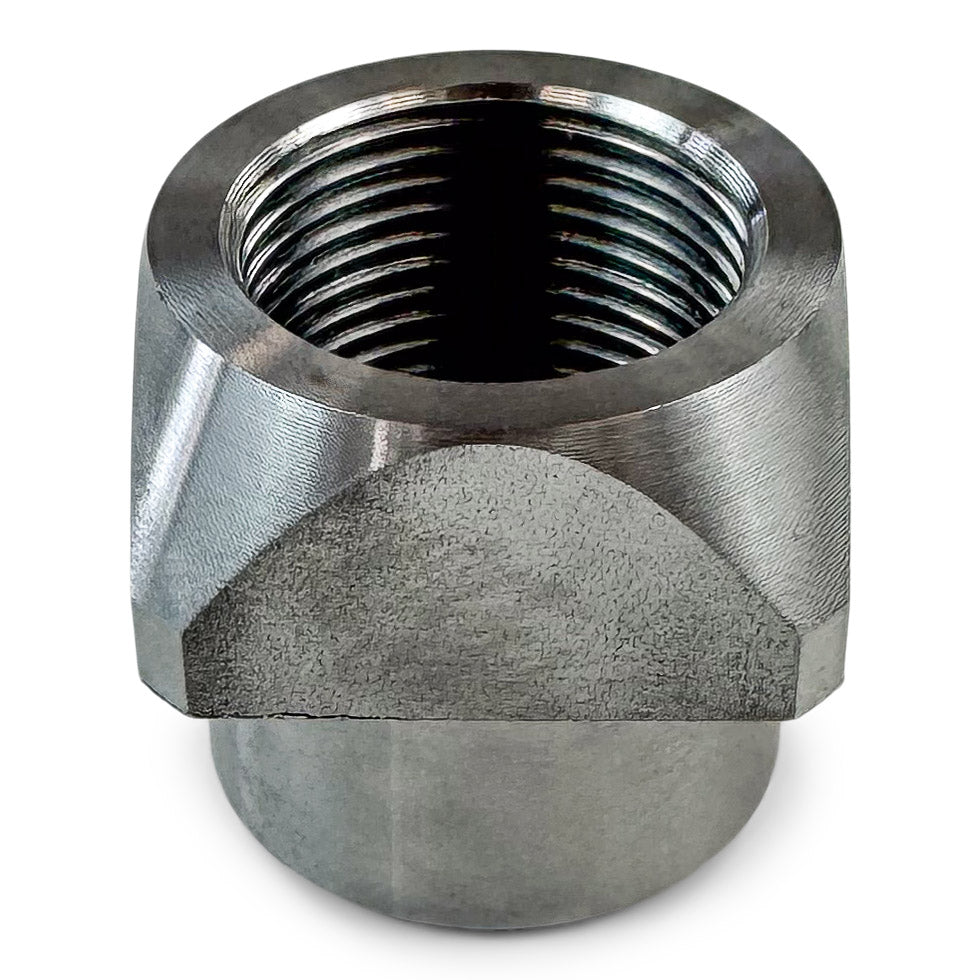

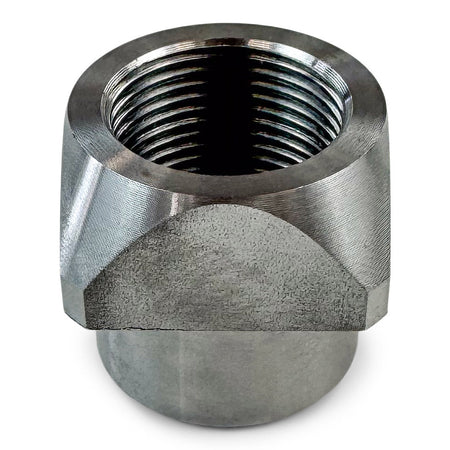

The COR-2300213 is Clayton Off Road's premium CNC-machined tube insert for 2"x2" 1/4" wall square tubing, threaded 1.25"x12 right-hand. These inserts are used in the fabrication and repair of heavy-duty adjustable control arms and suspension links where a threaded rod end needs to be installed into a larger, heavier-wall square tube. The 2"x2" 1/4" wall tube is a heavier construction than the 1.5"x1.5" 1/8" wall tube — used in applications requiring greater structural strength, such as long arm lower control arms or high-stress link positions. The CNC machining ensures a precise press fit into the tube ID. Clayton presses these in with a hydraulic ram in production; a 5 lb sledge hammer is sufficient for field or shop installation. After pressing, verify the insert is square to the tube axis before welding — a cocked insert will cause thread misalignment and binding at the rod end. Fully weld the insert after confirming square. This SKU is right-hand thread only — if you need left-hand thread for the adjuster end of the same arm, order the appropriate LH SKU separately.

Audit Table

Verified Fitment (OFAS Standard)

Compatible With:

• ✅ 2"x2" square tubing — 1/4" wall thickness only
• ✅ Any adjustable control arm or suspension link fabricated to this tube spec
• ✅ 1.25"x12 right-hand threaded rod ends and adjusters

Does NOT Fit:

• ❌ 1.5"x1.5" 1/8" wall square tubing — different tube ID; see COR-2300222 (1"x14 LH, 1.5" tube)
• ❌ Round DOM tubing — this insert is machined for square tube ID geometry only
• ❌ 1.25"x12 left-hand (LH) applications — this is a right-hand thread insert only; verify thread hand before ordering
• ❌ 2" square tubing with wall thickness other than 1/4" — tube ID will differ and press fit will not be correct

Installation & Fabrication Notes

• Confirm tube ID matches the insert OD before pressing — this insert is machined for 2"x2" 1/4" wall square tubing specifically.
• Press insert into tube using a hydraulic ram or 5 lb sledge hammer — drive evenly to avoid cocking the insert during installation.
• Verify the insert is square to the tube axis before welding — use a square or straight edge to confirm alignment. A cocked insert will cause thread misalignment and binding at the rod end under load.
• Fully weld the insert to the tube after confirming square — do not rely on press fit alone for structural use.
• Allow weld to cool fully before threading in rod end or adjuster — heat distortion can affect thread engagement.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

Wheel & Tire Fitment

Not applicable — this is a fabrication component. Fitment is determined by tube size and thread spec, not vehicle wheel or tire selection.

Engineering Question: Are you working with 2"x2" 1/4" wall square tubing, and do you need right-hand thread at this position? Confirm your tube wall thickness (1/4" vs 1/8") and thread hand (RH vs LH) before ordering — both affect which insert SKU you need. If you need LH thread for the adjuster end of the same arm, order COR-2300222 (1.5" tube) or the appropriate 2" LH SKU separately.
