Clayton Off Road Premium 3.5 Inch Short Arm Suspension Lift Kit for 2007-2018 Jeep Wrangler JK 2-Door and 4-Door

Is This for You?

• You're running a 2007–2018 Jeep Wrangler JK — 2-door or 4-door — and want Clayton's highest-spec short arm system at 3.5" of lift to fit 35–36" tires with full geometry control at all eight arms. The Premium tier combines GIIRO joints and forged Johnny Joint adjusters at every control arm — above the Overland+ in Clayton's JK lineup.
• You want maximum alignment adjustability and articulation ceiling from a short arm kit at 3.5" of lift. Eight fully adjustable arms give you caster, pinion angle, and axle centering precision that partial-arm kits can't match.
• You want rebuildable hardware that can be serviced rather than replaced. Forged Johnny Joint adjusters are greaseable and rebuildable — long-term serviceability is built into every arm.

The Result

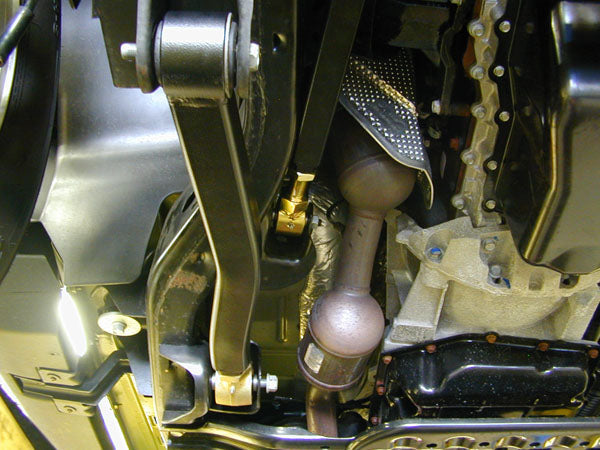

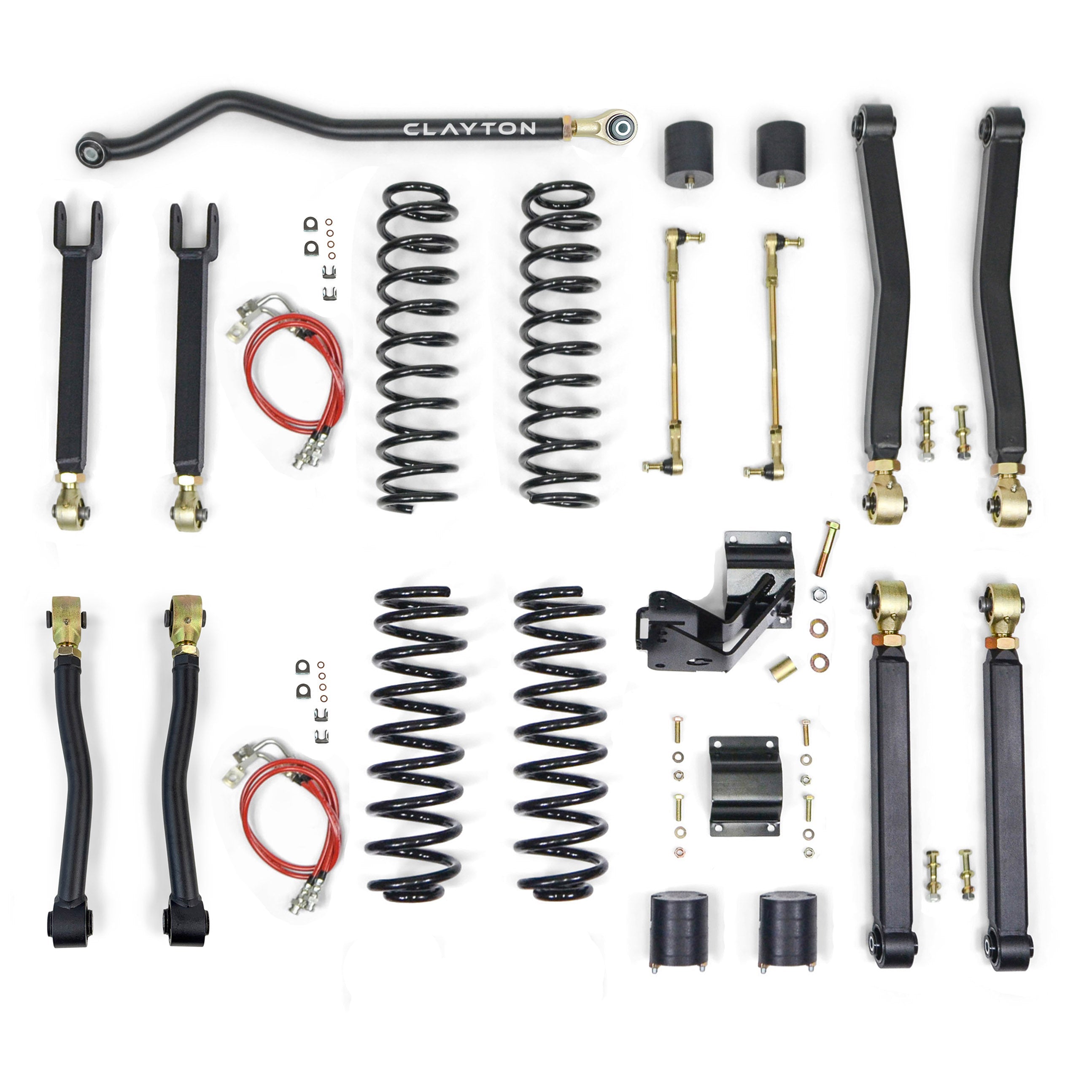

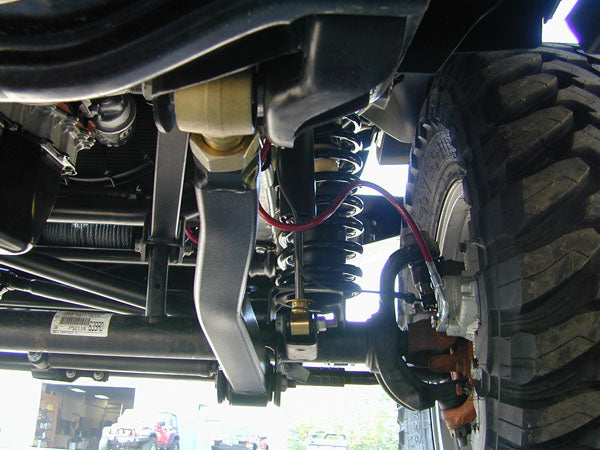

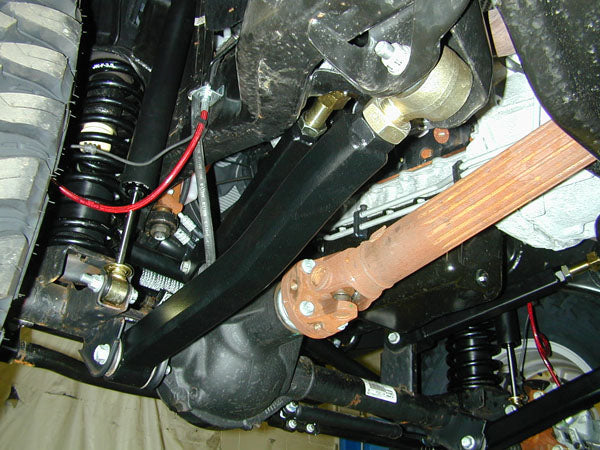

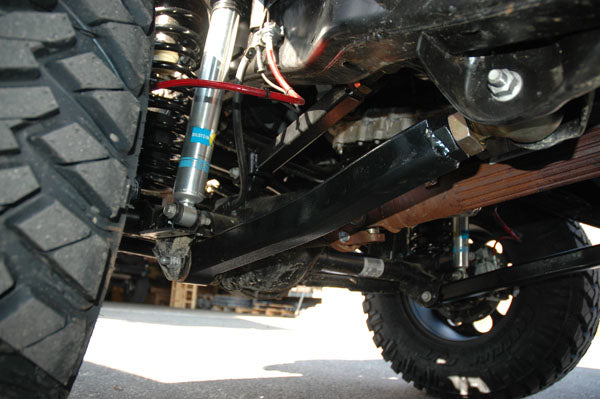

• 8 fully adjustable control arms with dual-durometer GIIRO bushings AND forged Johnny Joint adjusters — GIIRO joints isolate road noise and vibration; forged Johnny Joints are greaseable, rebuildable, and capable of up to 40° of misalignment for extreme articulation. Self-lubricating GIIRO side, serviceable Johnny Joint side.

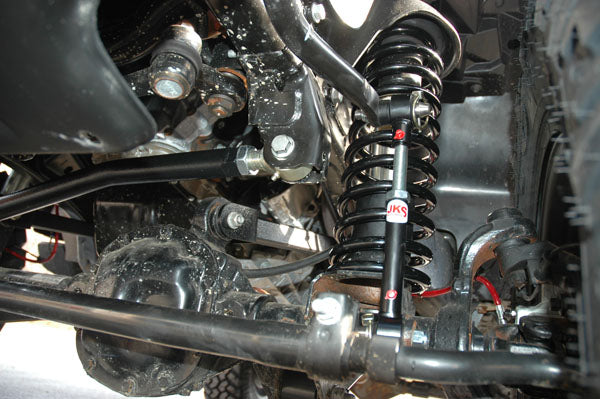

• 1-3/8" x 5/16" DOM tubing front and rear track bars — adjustable for proper axle centering after lift installation; paired with adjustable front and rear sway bar links to restore proper geometry at ride height.
• SealKor zinc-rich powder-coated coil springs — corrosion-resistant finish rated for the 3.5" lift height; engineered to work with the full 8-arm geometry of the Premium system.

The COR-2908035 is Clayton Off Road's Premium short arm suspension lift kit for the JK platform in both 2-door and 4-door configurations, set at the 3.5" lift height. The Premium tier is Clayton's highest-spec short arm system — it combines GIIRO dual-durometer bushing joints (road noise isolation, maintenance-free) with forged Johnny Joint adjusters (greaseable, rebuildable, 40° misalignment capability) at all eight control arm positions. At 3.5", this kit is optimized for 35–36" tire fitment and is the most capable short arm configuration for JK builds that need full geometry control and long-term serviceability without stepping into a long arm system. A front CV-style driveshaft is highly recommended at this lift height to manage driveshaft angle and reduce vibration. 2012–2018 JK models require an exhaust spacer due to exhaust routing changes — available in the related items tab. Critical 2-door note: 2-door JK models will see approximately 1" more lift than the advertised 3.5" due to lighter vehicle weight — net lift on a 2-door is approximately 4.5". Ships at 145 lbs. Made in the USA, backed by a Lifetime Warranty.

Audit Table

Verified Fitment (OFAS Standard)

Fits — 4-Door (Unlimited):

• ✅ 2007–2010 Jeep Wrangler Unlimited X (JK)
• ✅ 2007–2018 Jeep Wrangler Unlimited Rubicon (JK)
• ✅ 2007–2018 Jeep Wrangler Unlimited Sahara (JK)
• ✅ 2010–2018 Jeep Wrangler Unlimited Sport (JK)
• ✅ 2011 Jeep Wrangler Unlimited 70th Anniversary (JK)
• ✅ 2016 Jeep Wrangler Unlimited 75th Anniversary (JK)
• ✅ 2016–2018 Jeep Wrangler Unlimited Sport S (JK)

Fits — 2-Door:

• ✅ 2007–2010 Jeep Wrangler X (JK)
• ✅ 2007–2018 Jeep Wrangler Rubicon (JK)
• ✅ 2007–2018 Jeep Wrangler Sahara (JK)
• ✅ 2010–2018 Jeep Wrangler Sport (JK)
• ✅ 2011 Jeep Wrangler 70th Anniversary (JK)
• ✅ 2016 Jeep Wrangler 75th Anniversary (JK)
• ✅ 2016–2018 Jeep Wrangler Sport S (JK)
• ✅ 2018 Jeep Wrangler JK Rubicon, Sahara, Sport, Sport S

Does NOT Fit:

• ❌ 2019–2026 Jeep Wrangler JL — different platform entirely
• ❌ Jeep Gladiator JT — different wheelbase and suspension geometry

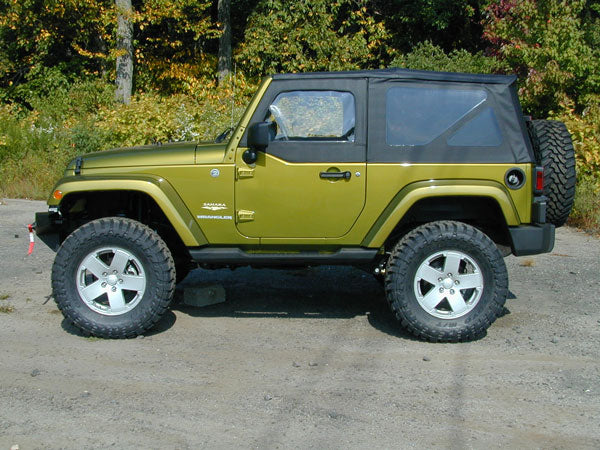

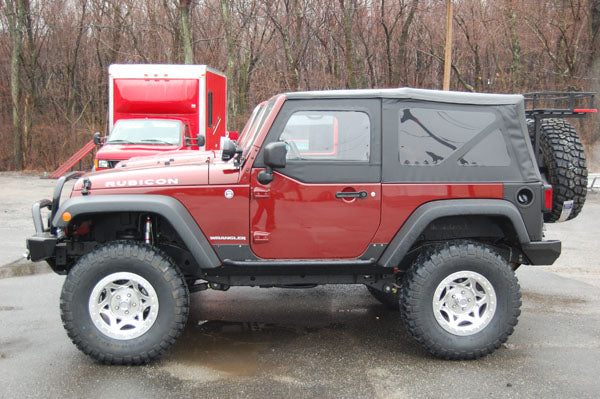

2-Door Net Lift Note: 2-door JK models will see approximately 1" more lift than the advertised 3.5" due to lighter vehicle weight — net lift is approximately 4.5" on a 2-door. Plan wheel and tire clearance accordingly.

Installation & Fabrication Notes

• Align all 8 control arms, front and rear track bars after installation — all arms and bars are adjustable for caster, pinion angle, and axle centering.
• Grease Johnny Joint adjusters at initial installation and periodically thereafter — grease fittings are accessible with standard grease gun equipment.

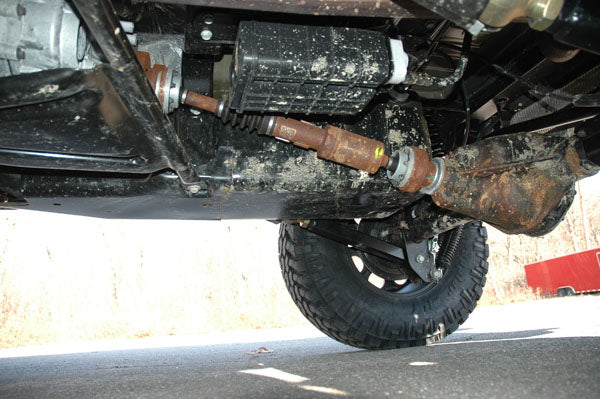

• Front CV-style driveshaft is highly recommended at 3.5" of lift to manage driveshaft angle and reduce vibration — source separately before installation.
• 2012–2018 JK models require an exhaust spacer — available in the related items tab. Do not install without the spacer on applicable model years.

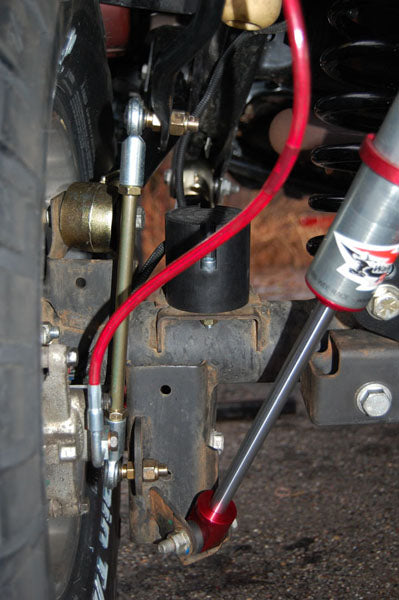

• Adjust sway bar links after lift to restore proper sway bar geometry and on-road handling.
• Full 4-wheel alignment required after installation — use a shop familiar with lifted JK geometry and multi-arm adjustability.
• California Prop 65 Warning: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. See P65Warnings.ca.gov.

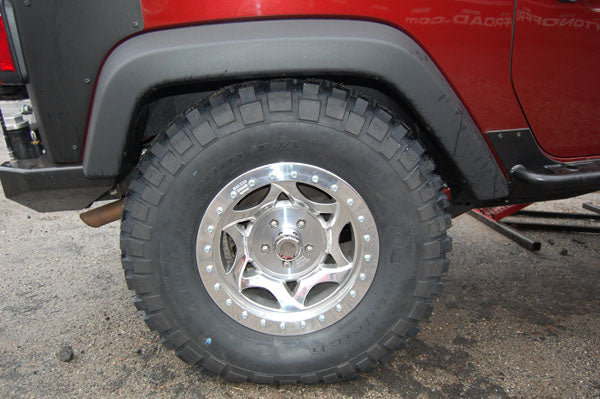

Wheel & Tire Fitment

• 3.5" lift (4-door): Up to 35–36" tires
• 3.5" lift (2-door): Net ~4.5" — verify clearance for 35–36" tires with your specific wheel offset and backspacing
• 4.5" lift: Up to 37" tires — see COR-2908045
• 2.5" lift: Up to 33–35" tires
• 1.5" lift: Up to 31–33" tires
• Backspacing and offset affect final clearance — verify with your specific wheel spec before ordering tires.

Engineering Question: Are you running a 2-door JK or a 4-door JK Unlimited, and what model year? 2-door models net approximately 1" more lift than advertised. 2012–2018 models require an exhaust spacer — confirm your year before ordering. Also confirm whether you have or plan to source a front CV-style driveshaft before installation at 3.5" of lift.
