Clayton Off Road Transfer Case Skid Plate Hardware Kit | Flange Tab + Grade 8 Fasteners | Replacement for COR-4108112 / COR-4108114 Transfer Case Skid | 2007–2018 Jeep Wrangler JK (2-Door and 4-Door) | SKU: COR-4108113
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
| Year Range | Make | Model | Configuration | Application |
|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door — All Trims | Hardware for COR-4108112 or COR-4108114 transfer case skid |
| 2007–2018 | Jeep | Wrangler Unlimited JK | 4-Door — All Trims | Hardware for COR-4108112 or COR-4108114 transfer case skid |
Does NOT fit:
- Engine skid plate (COR-4108912/COR-4108914) — that skid uses separate hardware (COR-4108913)
- Gas tank skid plate (COR-4108201/COR-4108202/COR-4108204/COR-4108205) — that skid uses separate hardware (COR-4108203)
- Jeep Wrangler JL (2018–2026) — different skid system
- Any non-Clayton transfer case skid plate — verify thread and flange tab specs before using with third-party plates
This hardware kit is specific to the Clayton JK transfer case skid plate. Each of the three Clayton JK skid plates uses a dedicated hardware SKU — do not mix hardware between skid plate positions.
Component Specifications
| Specification | Detail |
|---|---|
| Part Number | COR-4108113 |
| Application | Hardware kit — Clayton JK transfer case skid plates (COR-4108112 complete kit / COR-4108114 plate only) |

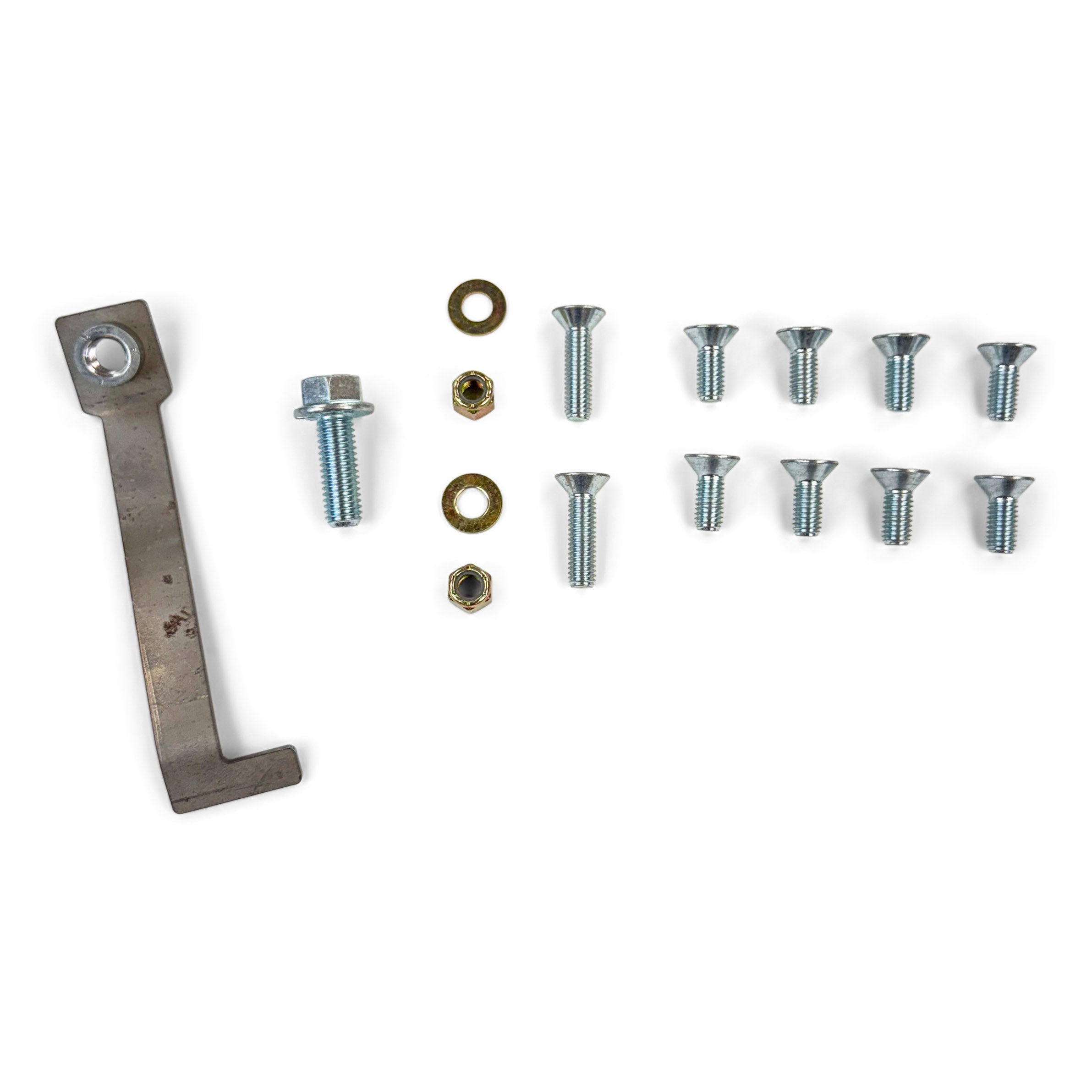

| Contents | Flange tab + mounting fasteners for transfer case skid plate installation including passenger-side 1/2" hole attachment |
| Compatible Skid Plates | COR-4108112 (complete kit) / COR-4108114 (plate only) |
| Drilling Required | Yes — the flange tab in this kit requires one 1/2" hole drilled on the passenger side |
| Country of Origin | USA |
Flange tab distinction: Unlike the engine and gas tank skid hardware kits, the transfer case skid hardware includes a flange tab that secures the passenger-side edge of the skid plate. This flange tab requires drilling one 1/2" hole on the passenger side of the JK. This is the only hardware kit in the Clayton JK skid system that includes a structural tab requiring drilling. It is also the reason this hardware kit cannot be interchanged with engine or gas tank skid hardware.
What Is and Is NOT Included
| Included | NOT Included |
|---|---|
| Flange tab for passenger-side mounting | Transfer case skid plate (COR-4108112 or COR-4108114 — sold separately) |
| Mounting fasteners — full hardware set for transfer case skid installation | Drill and 1/2" bit for the required passenger-side hole |
| Engine skid plate hardware (COR-4108913 — sold separately) | |
| Gas tank skid plate hardware (COR-4108203 — sold separately) |
Critical Compatibility
The flange tab is what distinguishes this hardware kit from the others in the Clayton JK skid family. The engine skid hardware (COR-4108913) and gas tank skid hardware (COR-4108203) are standard fastener sets. The transfer case skid hardware includes the flange tab that attaches to the passenger-side 1/2" drilled hole — a structural mounting point that the other skid positions do not require. This kit is not interchangeable with engine or gas tank hardware.
| Scenario | Result |
|---|---|
| COR-4108112 (TC skid complete kit) — hardware replacement | Confirmed application |
| COR-4108114 (TC skid plate only) — hardware complement | Confirmed application |
| Engine skid hardware replacement | Does NOT apply — order COR-4108913 |
| Gas tank skid hardware replacement | Does NOT apply — order COR-4108203 |
| JL Wrangler or JT Gladiator | Does NOT apply |
Installation Notes
Skill level: Beginner for hardware replacement. The flange tab installation requires a drill and 1/2" bit — confirm drilling capability before ordering.
Tools required: Socket set, torque wrench, drill with 1/2" bit (for passenger-side flange tab hole if not already drilled).
Drilling note: If replacing hardware on an existing installation where the 1/2" passenger-side hole has already been drilled, the flange tab installs directly into the existing hole. If the hole has not yet been drilled — such as when installing the plate-only COR-4108114 for the first time — drilling the hole is a required step before the flange tab can be installed.
Torque all fasteners to Clayton's specified values per the transfer case skid plate installation instructions.
Common Questions
Does this hardware kit include the flange tab?
Yes — Clayton's product page for the complete transfer case skid kit (COR-4108112) explicitly states "a new flange tab with hardware is included." This hardware kit (COR-4108113) includes the flange tab and all mounting fasteners.
Why does this hardware kit require drilling when the engine and gas tank skid hardware don't?
The transfer case skid plate uses a three-point mounting interface — the Clayton crossmember, the OEM gas tank mount, and stock frame mounting points — including a passenger-side flange tab that requires one 1/2" hole for attachment. The engine and gas tank skid plates use existing mounting points only. The flange tab and the 1/2" hole requirement are specific to the transfer case skid position.
Can I use this hardware for my engine or gas tank skid?
No. Each Clayton JK skid plate position uses a dedicated hardware SKU. Engine skid hardware is COR-4108913. Gas tank skid hardware is COR-4108203. This kit (COR-4108113) is for the transfer case skid plate only.
When would I need this separately?
The most common reasons are lost or stripped fasteners during installation, or purchasing the plate-only SKU (COR-4108114) without realizing hardware needs to be ordered separately. The complete kit (COR-4108112) includes this hardware — order COR-4108113 only if you have the plate without hardware.
The Obsidian Take
The COR-4108113 is a service part with one purpose: supplying the correct fasteners and flange tab for the Clayton JK transfer case skid plate when they aren't already on hand. If you purchased COR-4108112 (complete kit), this hardware is already in the box. If you purchased COR-4108114 (plate only) and the flange tab and hardware weren't included, this is the correct companion order.
The flange tab inclusion is what makes this hardware kit worth calling out separately from the engine and gas tank hardware SKUs. The passenger-side 1/2" hole requirement means you need a drill — and the flange tab is what fills that hole structurally. Don't skip ordering it if you're building a plate-only installation.
This SKU is for: Owners of the COR-4108112 or COR-4108114 Clayton JK transfer case skid plate who need replacement hardware and the flange tab for a new or rebuilt installation.
This SKU is NOT for: Anyone purchasing a new COR-4108112 complete kit (hardware already included), anyone needing engine or gas tank skid hardware (different SKUs), or JL/JT owners.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road manufacturer documentation and verified third-party technical references current at the time of publication. Verify skid plate part number before ordering hardware. OFAS is not responsible for incompatibility resulting from incorrect skid plate identification or hardware mismatch.
