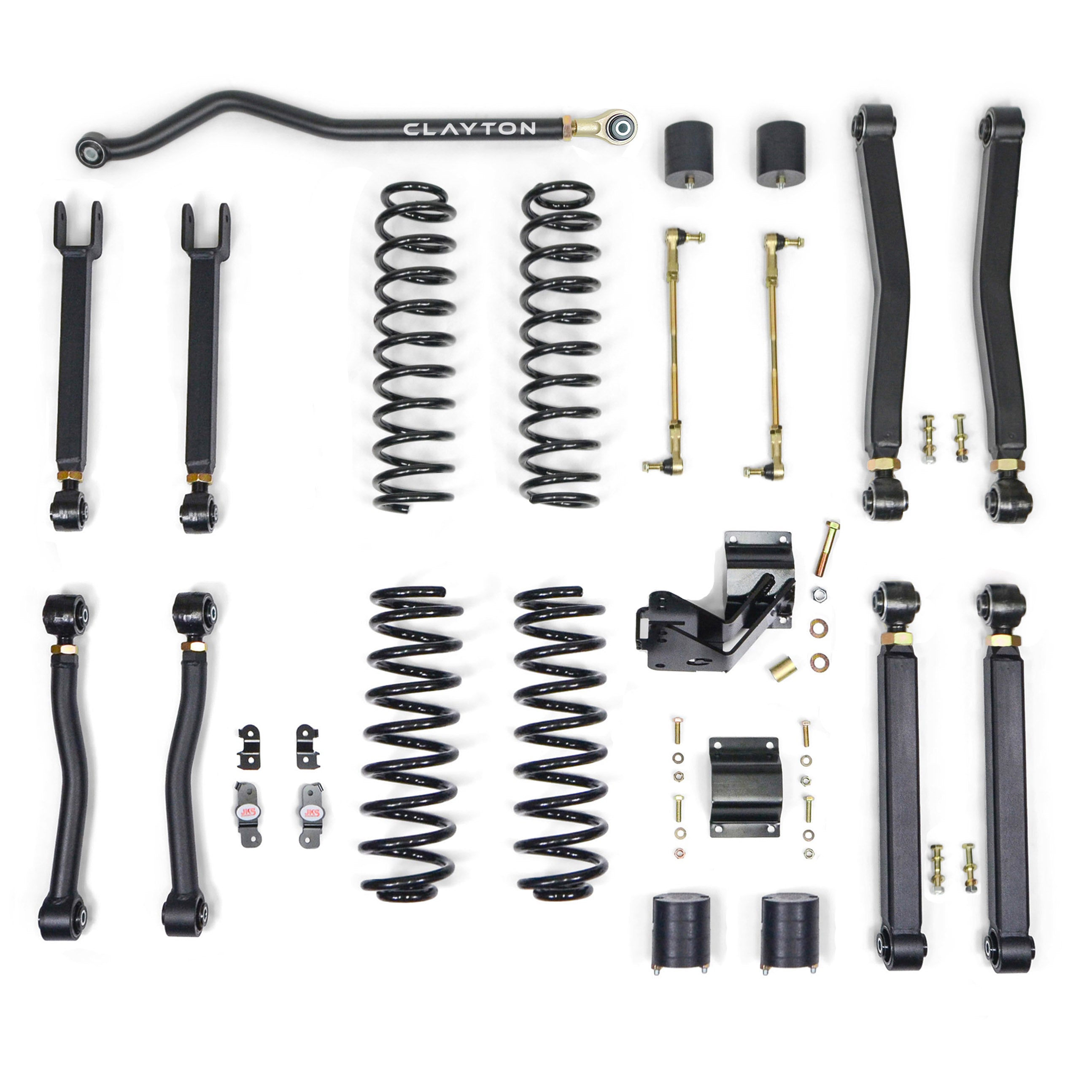

Clayton Off Road Overland+ Short Arm Suspension Lift Kit | 4.5 Inches | 8 Fully Adjustable GIIRO Arms | Front & Rear Track Bars | SealKor Coil Springs | 37" Tire Fitment | 2007–2018 Jeep Wrangler JK (2-Door & 4-Door) | SKU: COR-3008045

⚠️ IMPORTANT NOTES:

• 2-door JK nets approximately 5.5" of actual lift due to lighter vehicle weight
• 2012–2018 JK models require an exhaust spacer — available in related items
• Front CV-style driveshaft highly recommended at 4.5"

Verified Fitment

4-Door (Wrangler Unlimited JK):

2-Door (Wrangler JK):

Does NOT fit:

• 2019–2026 Jeep Wrangler JL — different platform; see the JL Overland+ kit
• Jeep Gladiator JT — different wheelbase and suspension geometry
• Jeep Wrangler TJ / LJ — different suspension architecture

2-Door net lift note: 2-door JK models will see approximately 1 inch more lift than the advertised 4.5" due to lighter vehicle weight — net lift on a 2-door is approximately 5.5". At this net height, fender clearance and bump stop geometry must be verified carefully with your specific tire size and wheel offset before ordering rubber.

2012–2018 exhaust spacer note: 2012 and newer JK models require an exhaust spacer — available in the related items tab. Do not install this kit on a 2012–2018 JK without it.

Component Specifications

What Is and Is NOT Included

Critical Compatibility

The 4.5" lift on a 2-door JK demands careful tire and clearance planning. At approximately 5.5" of actual net lift on a 2-door, you are at the upper boundary of what a short arm kit will manage cleanly without fender trimming and additional geometry correction. Know your net lift, know your wheel offset, and verify fender clearance at full articulation before ordering tires.

At 4.5", the front CV driveshaft argument is stronger than at 3.5". At this height, stock driveshaft vibration and u-joint wear become more pronounced. Budget for the front CV driveshaft as part of this build.

2012–2018 exhaust spacer is a hard requirement. The exhaust routing change that affected 2012+ JKs applies at 4.5" the same as at 3.5". Spacer is required — available in related items.

Installation Notes

Skill level: Intermediate to advanced — 8 adjustable arms requiring post-installation alignment across all four corners. Professional alignment strongly recommended.

Before beginning:

• Shocks sourced and on hand
• Front CV-style driveshaft sourced (highly recommended)
• Exhaust spacer on hand if 2012–2018
• Alignment shop appointment scheduled
• 2-door net lift (~5.5") factored into tire/fender clearance plan

Installation sequence:

1. Install coil springs — front and rear

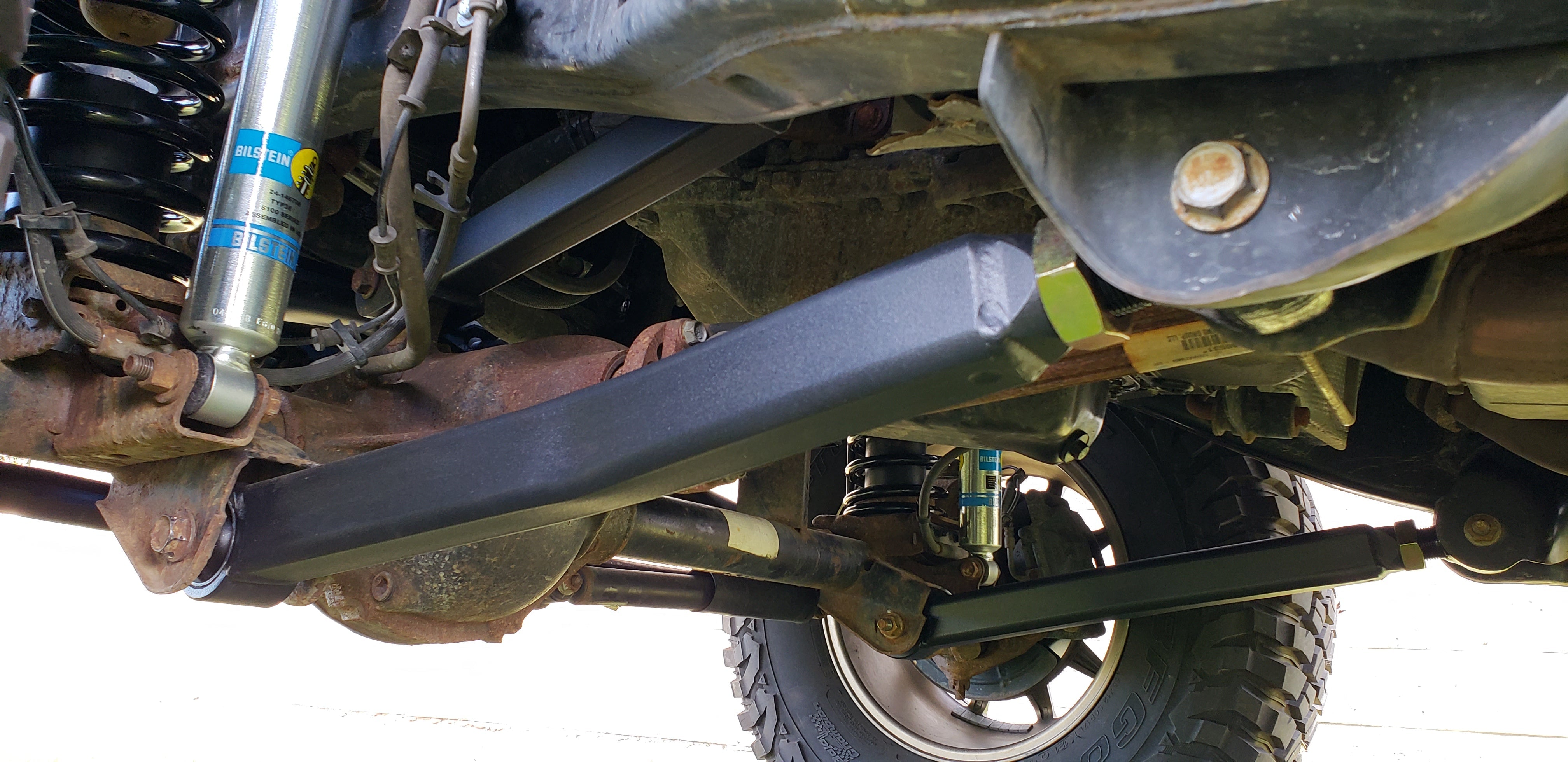

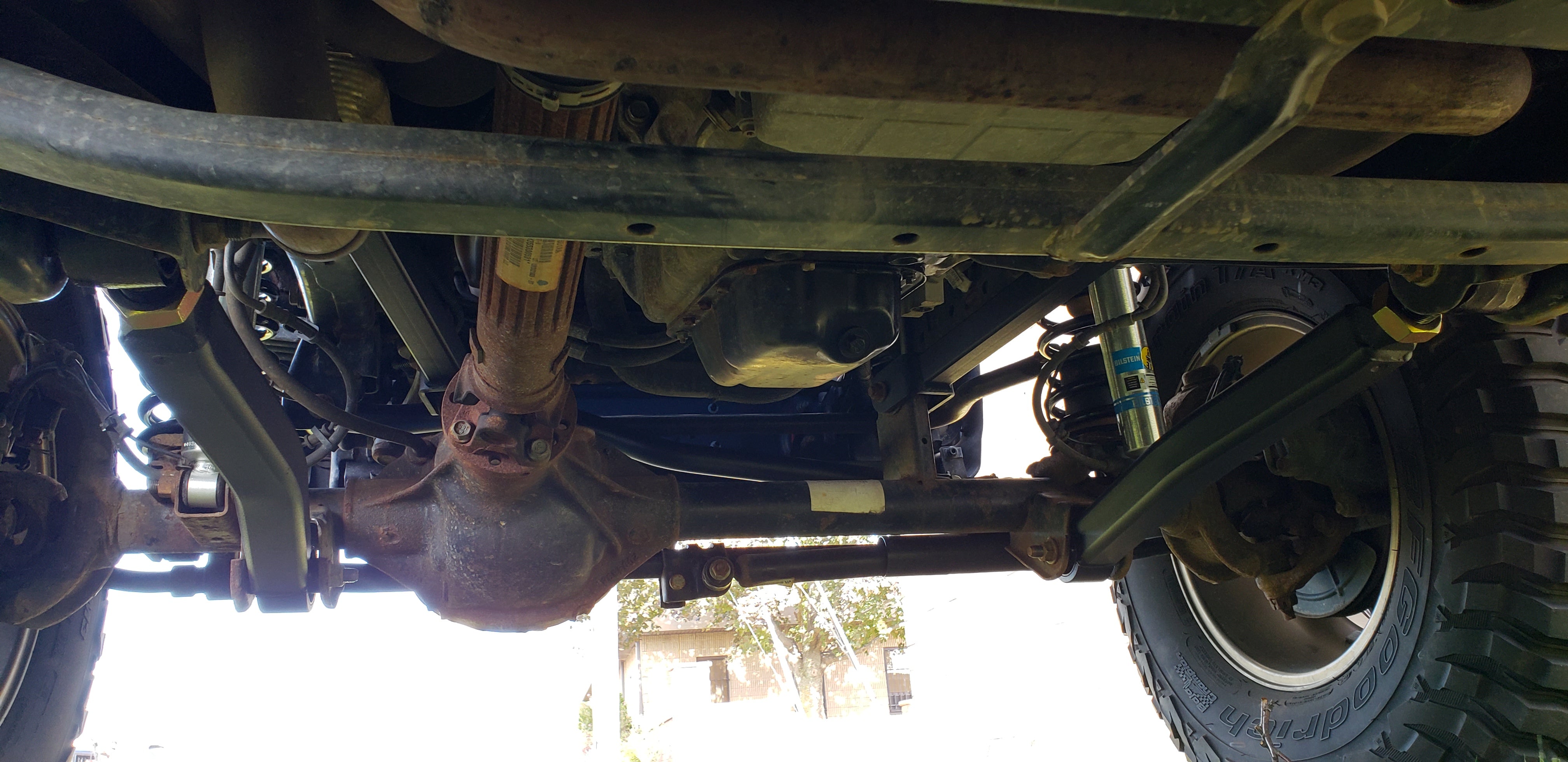

2. Install all 8 control arms — initial length at factory spec, fine-tuned during alignment

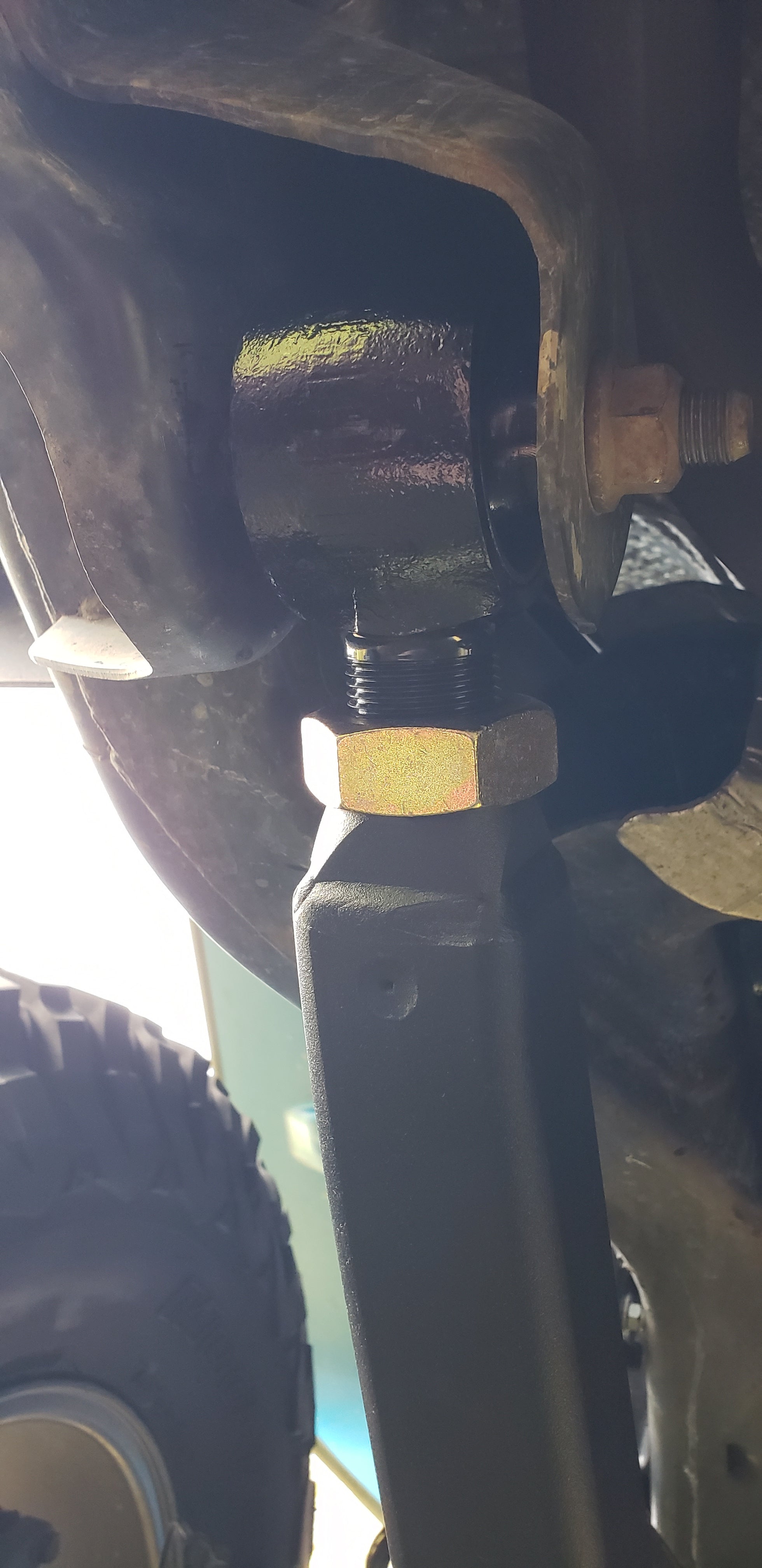

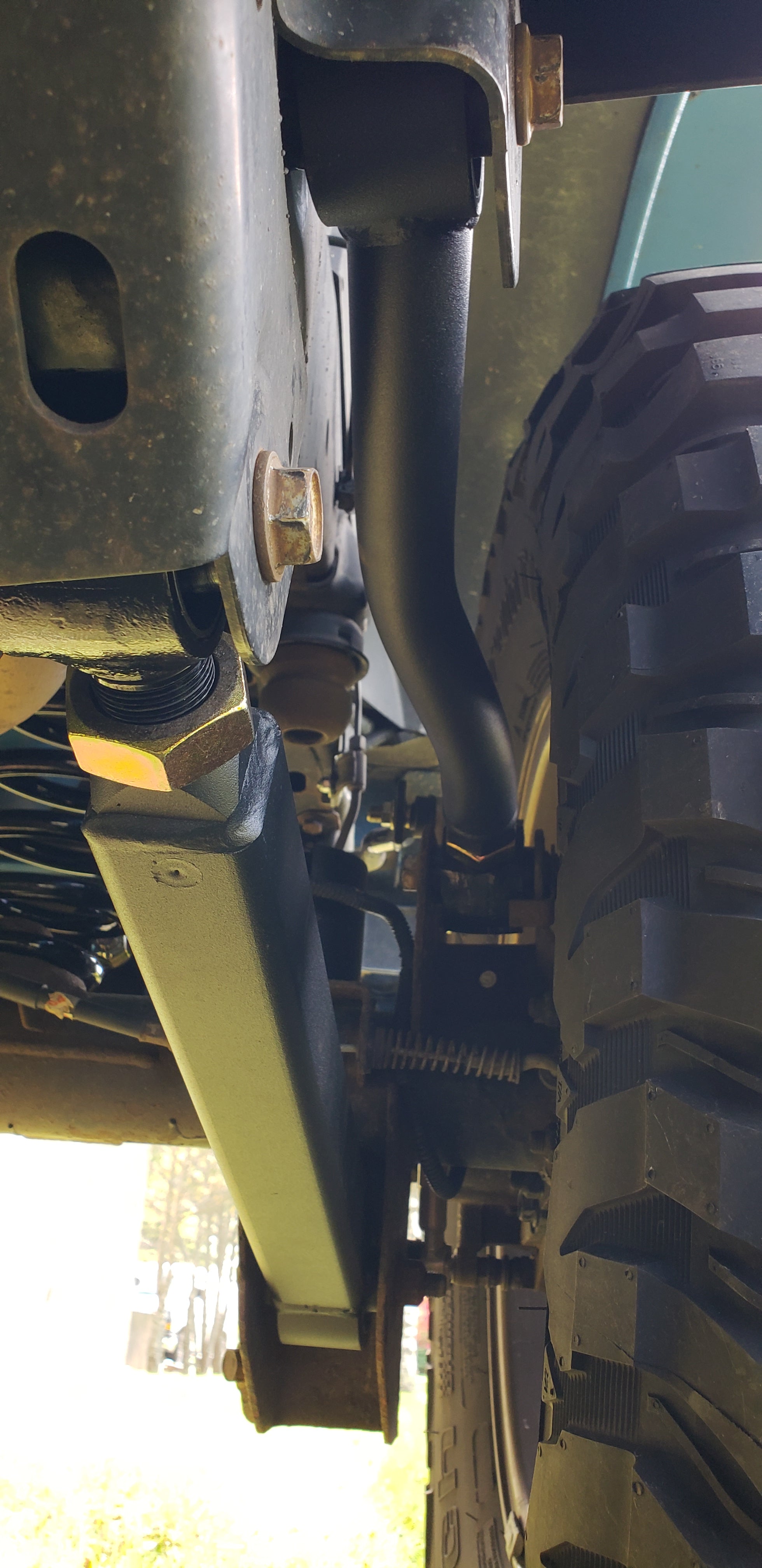

3. Install adjustable front and rear track bars — center axles
4. Install adjustable sway bar links
5. Install bump stops
6. Connect brake line extensions
7. Install shocks
8. Install front CV-style driveshaft if sourced
9. Install exhaust spacer if 2012–2018
10. Full 4-wheel alignment — lifted JK experience required
11. Re-torque all fasteners after 100–200 miles break-in

Common Questions

What's the difference between this and the 3.5" Overland+ (COR-3008035)?
Lift height and spring rate. COR-3008045 uses 4.5" springs targeting 37" tires; COR-3008035 uses 3.5" springs targeting 35–36" tires. The 2-door net lift at 4.5" is approximately 5.5" vs. approximately 4.5" on the 3.5" kit. All other components are identical.

My 2-door JK will net approximately 5.5" — is that too much for a short arm kit?
It's at the upper limit. At approximately 5.5", you're approaching the point where a long arm system is more appropriate for full geometry correction. The Overland+ will work — but verify fender clearance with your specific tire and offset before committing.

Is the front CV driveshaft required or just recommended?
Clayton says "highly recommended." Practically, at 4.5" the driveshaft angle is significant enough that running stock will generate vibration and accelerate u-joint wear. Budget for it.

Are shocks included?
No. Bilstein 5100, Fox 2.0, Fox 2.5, and Falcon SP2 3.1 are commonly paired with this kit.

Does the 2012–2018 exhaust spacer apply at 4.5" too?
Yes — same exhaust routing change applies at all lift heights for 2012–2018 JKs. Available in the related items tab.

The Obsidian Take

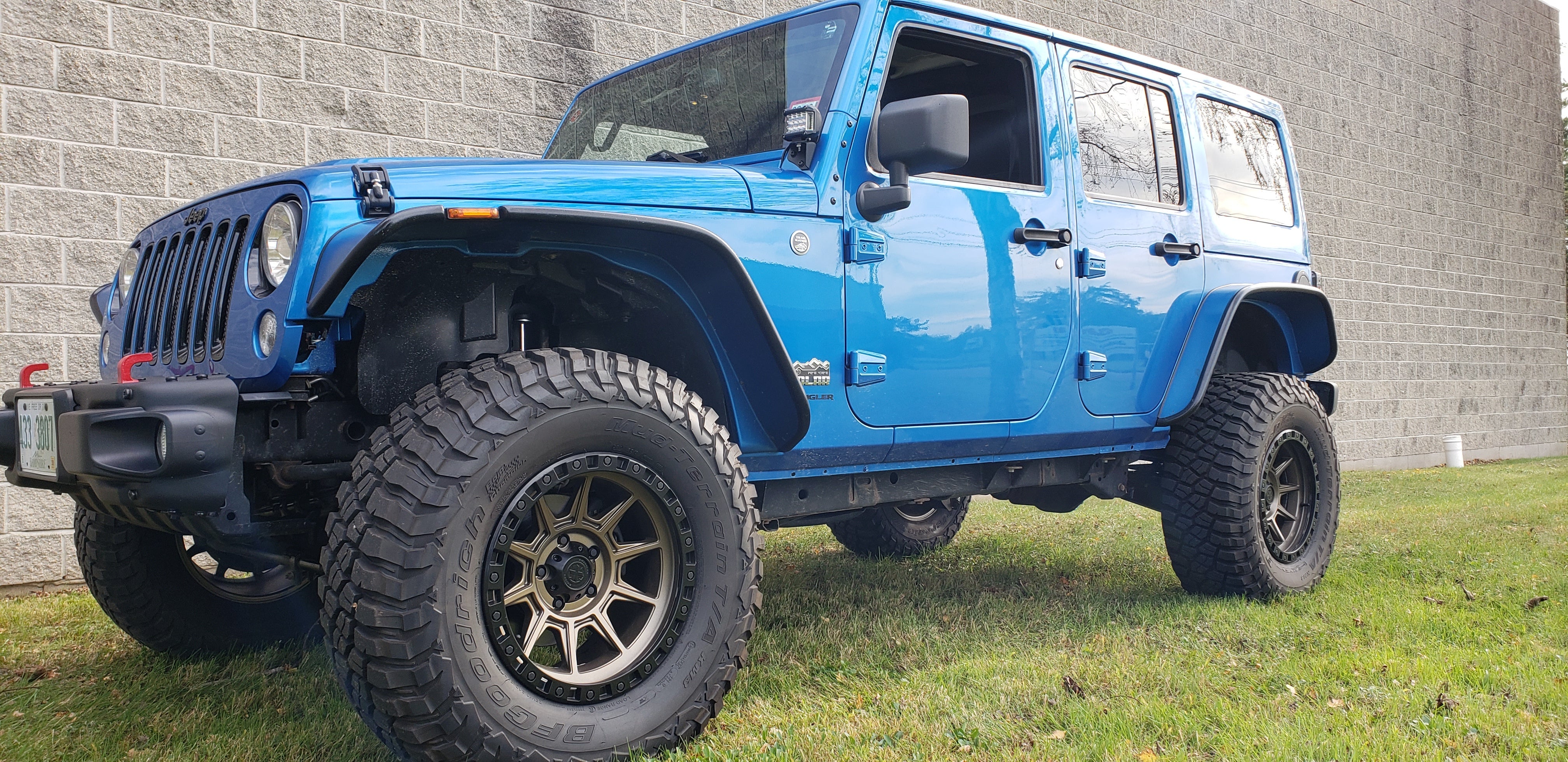

The COR-3008045 is the maximum short arm lift height in the JK Overland+ lineup. At 4.5" and 37" tire fitment, you're running a truck. The geometry at this height demands every bit of the 8-arm adjustability the Overland+ provides — caster correction, pinion angle, and axle centering all matter for daily-driven performance at this height.

The GIIRO joint selection delivers on both road and trail without maintenance. The comparison to a long arm kit is worth acknowledging: the Overland+ at 4.5" is the maximum of a short arm configuration. If you're at 4.5" on a JK and planning for 37"+ tires with frequent technical trail use, the long arm conversation is worth having before committing.

This SKU is for: 2007–2018 JK owners (2-door and 4-door) targeting 4.5" of lift and up to 37" tires, wanting full 8-arm geometry adjustability, who have sourced or planned for a front CV driveshaft, shocks, and (if 2012–2018) the exhaust spacer.

This SKU is NOT for: JL Wrangler owners (different platform), JT Gladiator owners (different platform), 2-door JK owners who haven't accounted for approximately 5.5" of actual net lift, anyone who hasn't sourced shocks before installation, or JK owners who are at this lift height and tire size and would be better served by a long arm system.

Manufacturer Data Disclaimer
Product specifications, fitment data, and tire fitment guidelines are sourced from Clayton Off Road manufacturer documentation and verified third-party technical references current at the time of publication. Lift height gains can vary based on vehicle weight, accessories, and individual build factors. Confirm exhaust spacer requirement, 2-door net lift, and shock/driveshaft sourcing before ordering. OFAS is not responsible for incompatibility resulting from non-disclosed vehicle modifications, fender clearance issues at net lift heights, or incorrect platform identification.

Prop 65 Warning
⚠ WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Non-Returnable Notice
This item is non-returnable once installed. Verify platform, model year exhaust spacer requirement, and 2-door net lift before ordering. Questions before ordering? Text (469) 407-7538.
