Clayton Off Road GIIRO Joint Adjuster | 12mm Thru-Bolt | Axle-End Replacement | COR-4500210 Rear Track Bar | 1997–2006 Jeep Wrangler TJ / LJ Unlimited | SKU: COR-4500002

Verified Fitment

Does NOT fit:

• Front track bar applications — the front track bar (COR-4500200) uses a different GIIRO bushing specification at the axle end; verify specs before ordering
• Jeep Wrangler JK (2007–2018) — different rear track bar system; Clayton offers a separate GIIRO adjuster for JK applications
• Jeep Wrangler JL (2018–2026) — different rear track bar system
• Any Clayton rear track bar other than the COR-4500210 — verify your track bar part number before ordering this replacement joint
• Any non-Clayton track bar application — joint specifications are proprietary to Clayton's COR-4500210 design

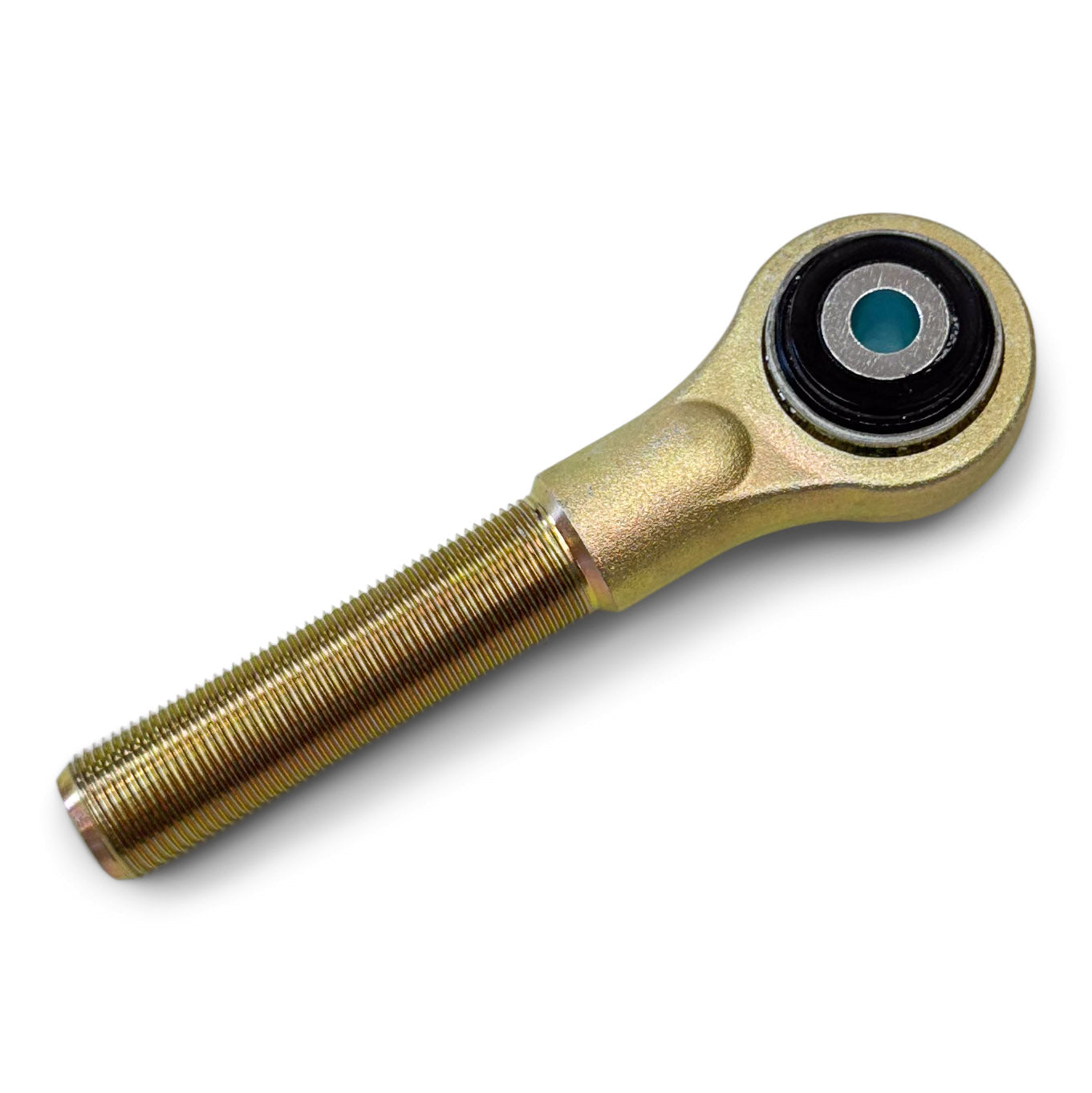

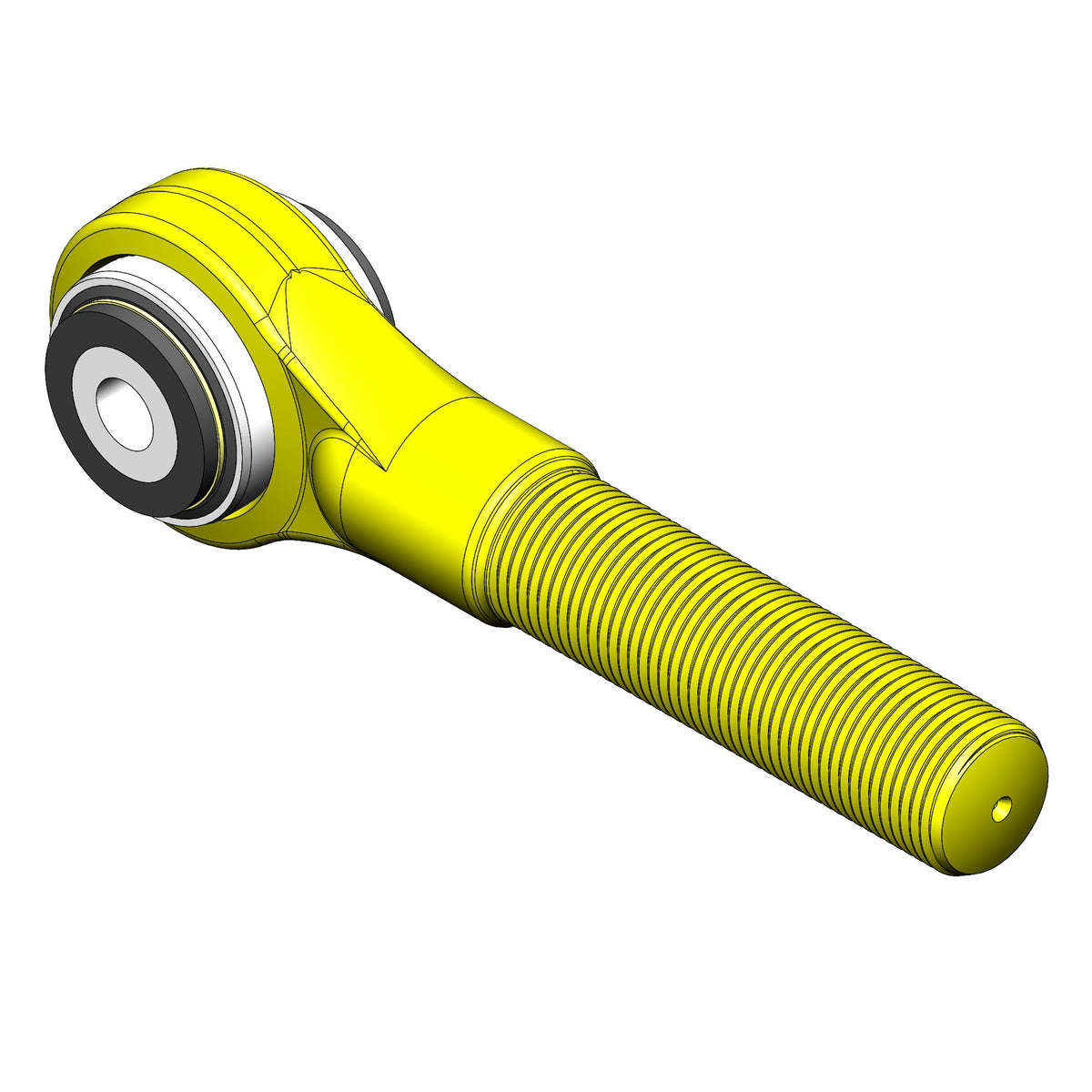

Spec verification requirement: Before ordering, confirm your existing axle-end joint matches: 1" x 14 shank / 12mm thru-hole / 1.6" outside bushing diameter. If your existing joint does not match these specs, this adjuster is not the correct replacement.

Component Specifications

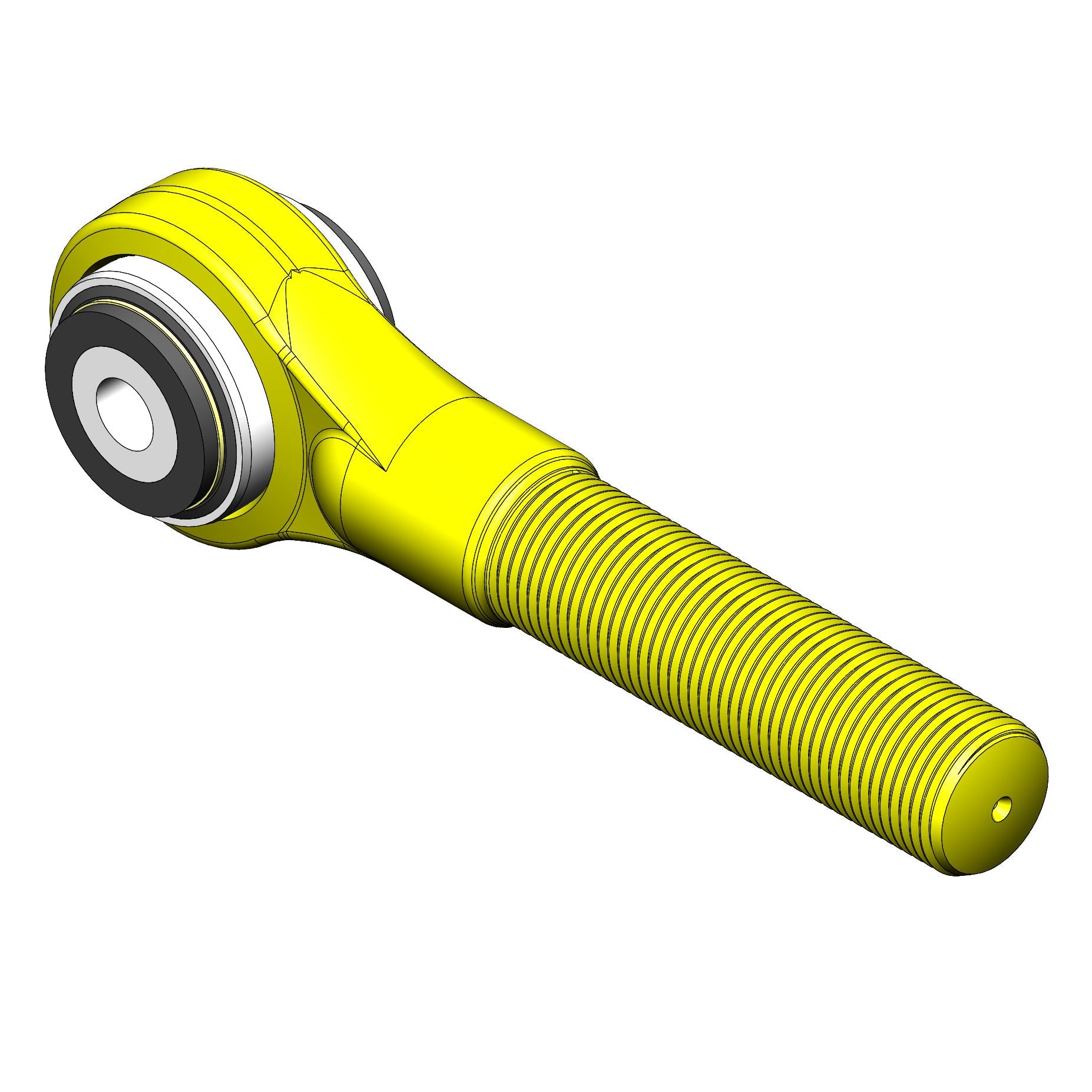

GIIRO dual-durometer design: The GIIRO bushing uses two durometer layers. The softer outer layer absorbs road noise and minor compliance loads — this is the NVH isolation function. The stiffer inner core handles the lateral loads generated at the axle track bar mount. The dual-durometer construction delivers on-road comfort without sacrificing the lateral stiffness the rear axle requires. Unlike rubber bushings, the GIIRO self-centers and maintains geometry over time without maintenance.

What Is and Is NOT Included

Critical Compatibility

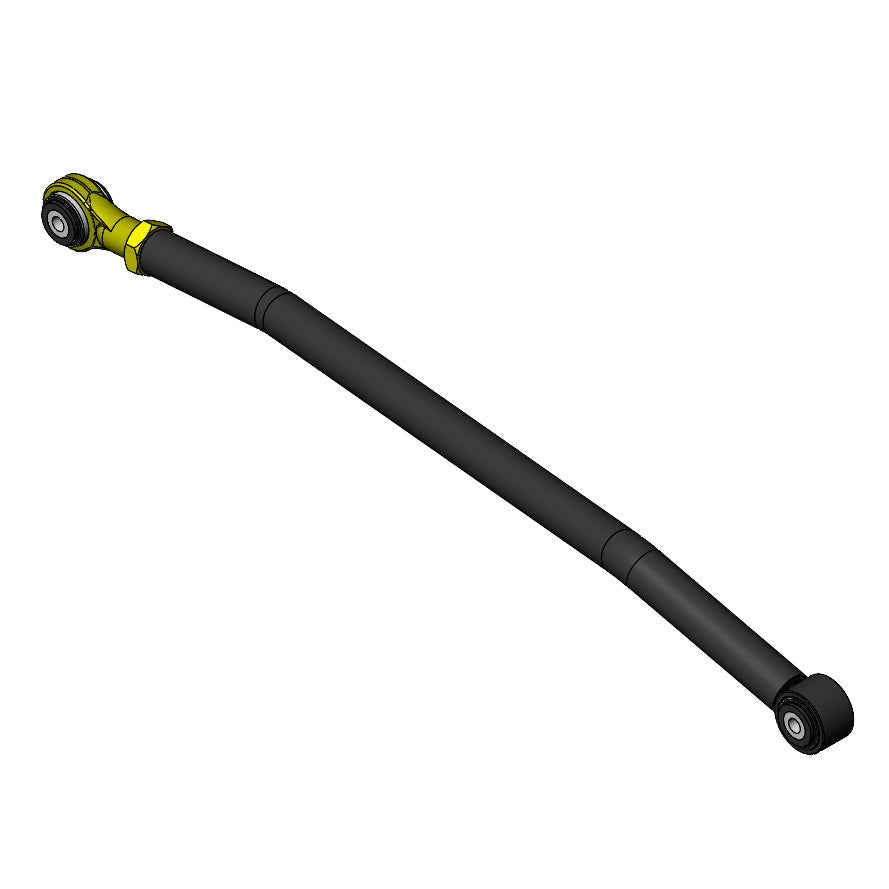

This is a service part with a single, specific application: the axle end of the COR-4500210 Clayton adjustable rear track bar on 1997–2006 Jeep Wrangler TJ and LJ Unlimited. There are no alternative fitments, no cross-platform applications, and no substitution guidance. The three spec points — 1" x 14 shank, 12mm thru-hole, 1.6" outside bushing diameter — are the complete confirmation criteria.

The front track bar uses different specs at the axle end. The front track bar (COR-4500200) has a 9/16" Grade 8 thru-bolt at the axle end — not a 12mm thru-hole. Do not order this adjuster for a front track bar rebuild.

Other Clayton rear track bar systems use different joint specifications. The JK rear track bar (COR-4500300 and related), JL rear track bar, and XJ/ZJ rear track bar systems are different products. The COR-4500002 is specific to the TJ/LJ COR-4500210 application.

Installation Notes

Skill level: Intermediate — requires suspension removal and torqueing at ride height.

Tools required: Torque wrench, basic hand tools, jack and jack stands for suspension at ride height.

Replacement sequence:

1. Support the vehicle with the suspension at ride height — do not remove the joint at full droop or full compression.
2. Remove the axle-end bolt from the existing GIIRO joint adjuster.
3. Unthread the worn GIIRO joint adjuster from the track bar tube — note the jam nut position for reference on reinstallation thread depth.
4. Thread the COR-4500002 replacement adjuster onto the track bar tube — confirm 1" x 14 threads fully engage.
5. Set track bar length to the previously established centering position before reinstalling at the axle mount.

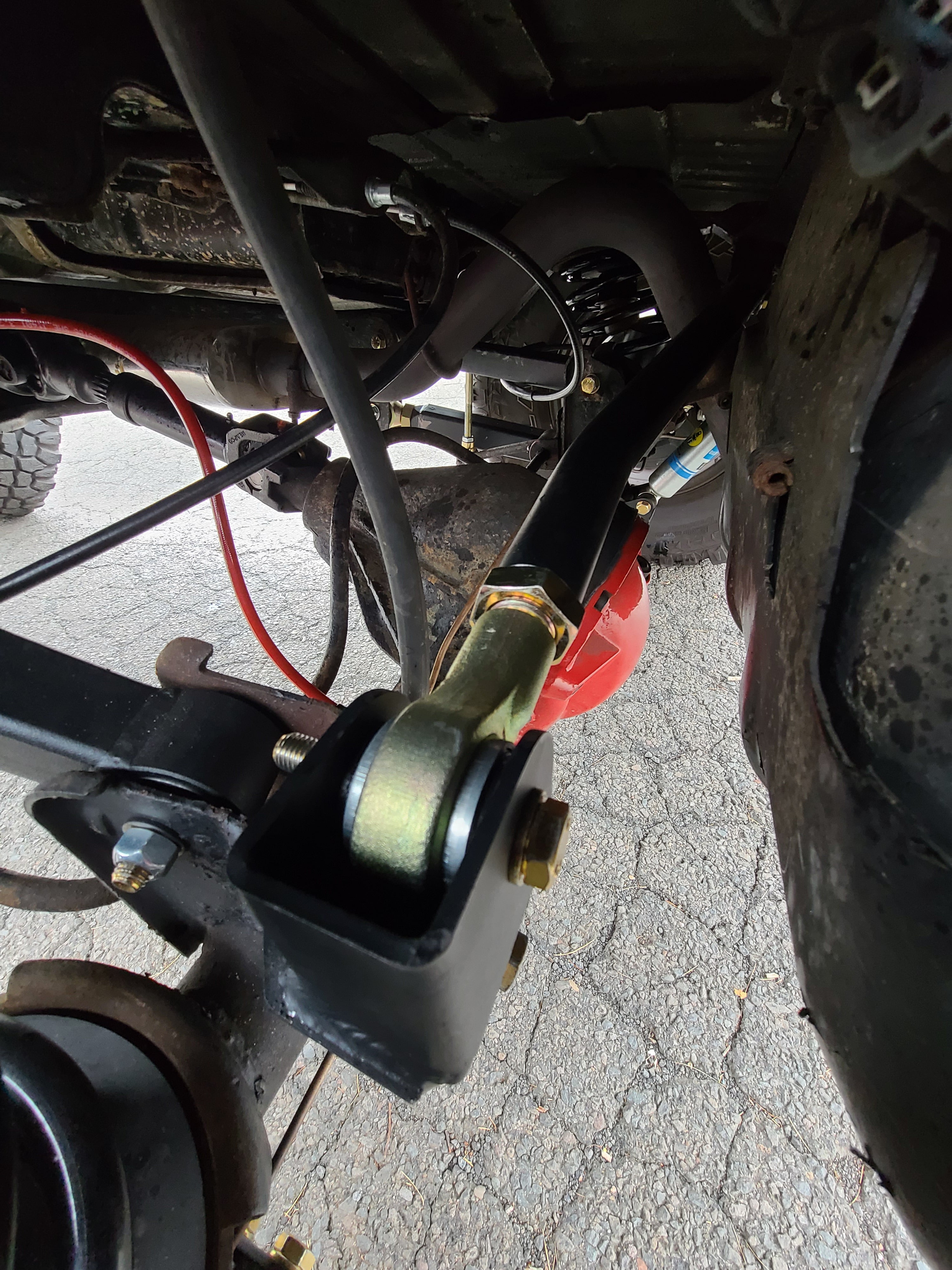

6. Install the 12mm thru-bolt through the axle mount and the new GIIRO bushing.
7. Torque the axle-end bolt to specification at ride height.
8. Verify rear axle centering — measure equal distance from tire sidewall to fender on both sides at ride height.
9. Tighten the jam nut against the track bar tube end once centering is confirmed.

GIIRO bushing service note: The COR-4500002 is maintenance-free at the axle end — no grease fitting, no service interval after installation.

Common Questions

How do I know if I need the COR-4500002 or a different GIIRO adjuster?
Confirm your track bar part number is COR-4500210 and check your existing axle-end joint against these specs: 1" x 14 shank, 12mm thru-hole, 1.6" outside bushing diameter. If all three match, the COR-4500002 is the correct replacement. If any spec differs, text (469) 407-7538 before ordering.

Can I use this on my front track bar?
No. The front track bar (COR-4500200) uses a 9/16" Grade 8 thru-bolt at the axle end — a fundamentally different attachment spec. The COR-4500002 with its 12mm thru-hole is specific to the COR-4500210 rear track bar axle-end application.

Does this fit my JK?
No. The JK Wrangler uses a different rear track bar system with different joint specifications. Clayton offers separate GIIRO adjuster parts for the JK platform.

Is this maintenance-free after installation?
Yes. The GIIRO dual-durometer bushing requires no grease fitting and has no service interval. Install it, torque to spec, and it performs maintenance-free for the life of the bar.

Do I need to re-center my axle after replacing this joint?
Verify axle centering after any track bar joint replacement. If the replacement adjuster is threaded to the same position as the worn joint, centering should be maintained — but always confirm equal fender-to-tire distance on both sides at ride height after reinstallation.

 The Obsidian Take

The COR-4500002 is a single-application service part. It exists for one reason: restoring the axle-end joint on the COR-4500210 rear track bar to original specification when the GIIRO bushing is worn or damaged. There is no fitment decision complexity here — you either have the COR-4500210 and need this adjuster, or you don't.

The case for replacing the joint rather than the entire track bar is straightforward: the COR-4500210 DOM tube and frame-end hardware don't wear out. The axle-end GIIRO bushing is the highest-wear element in the system because it sees constant articulation at the axle mount across every suspension cycle. When the bushing degrades — noticeable as increased lateral play, clunking under load, or reduced steering precision — replacing the joint adjuster restores full performance at a fraction of the cost of a new bar.

This SKU is for: COR-4500210 rear track bar owners on 1997–2006 TJ or LJ platforms who need to replace a worn or damaged axle-end GIIRO joint adjuster and have confirmed the spec match: 1" x 14 shank, 12mm thru-hole, 1.6" outside bushing diameter.

This SKU is NOT for: Front track bar rebuilds, any other Clayton rear track bar platform, JK or JL owners, or anyone who hasn't confirmed the COR-4500210 as their specific track bar part number.
