Clayton Off Road Gas Tank Skid Plate | 3/16" Steel | Plate Only | Interlocks with Clayton Skid System | 2-Door Only | 2007–2018 Jeep Wrangler JK | SKU: COR-4108201
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
| Year Range | Make | Model | Configuration | Note |
|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door — All Trims | Plate only — hardware sold separately |
Does NOT fit:
- Jeep Wrangler Unlimited JK (4-Door) — different wheelbase and gas tank skid dimensions; order COR-4108205 (plate only) or COR-4108204 (complete kit) for the 4-door
- Jeep Wrangler JL (2018–2026) — different underbody architecture
- Jeep Gladiator JT — different platform
- Early-version Clayton transfer case skid plates — verify your transfer case skid version before ordering
Source doc fitment list correction: The source doc fitment entries include 4-door Unlimited rows — those entries are incorrect for this SKU. COR-4108201 is 2-Door only. Unlimited (4-door) owners must order COR-4108204 (complete kit) or COR-4108205 (plate only).
Component Specifications
| Specification | Detail |
|---|---|
| Part Number | COR-4108201 |
| Kit Contents | Gas tank skid plate only — no hardware |

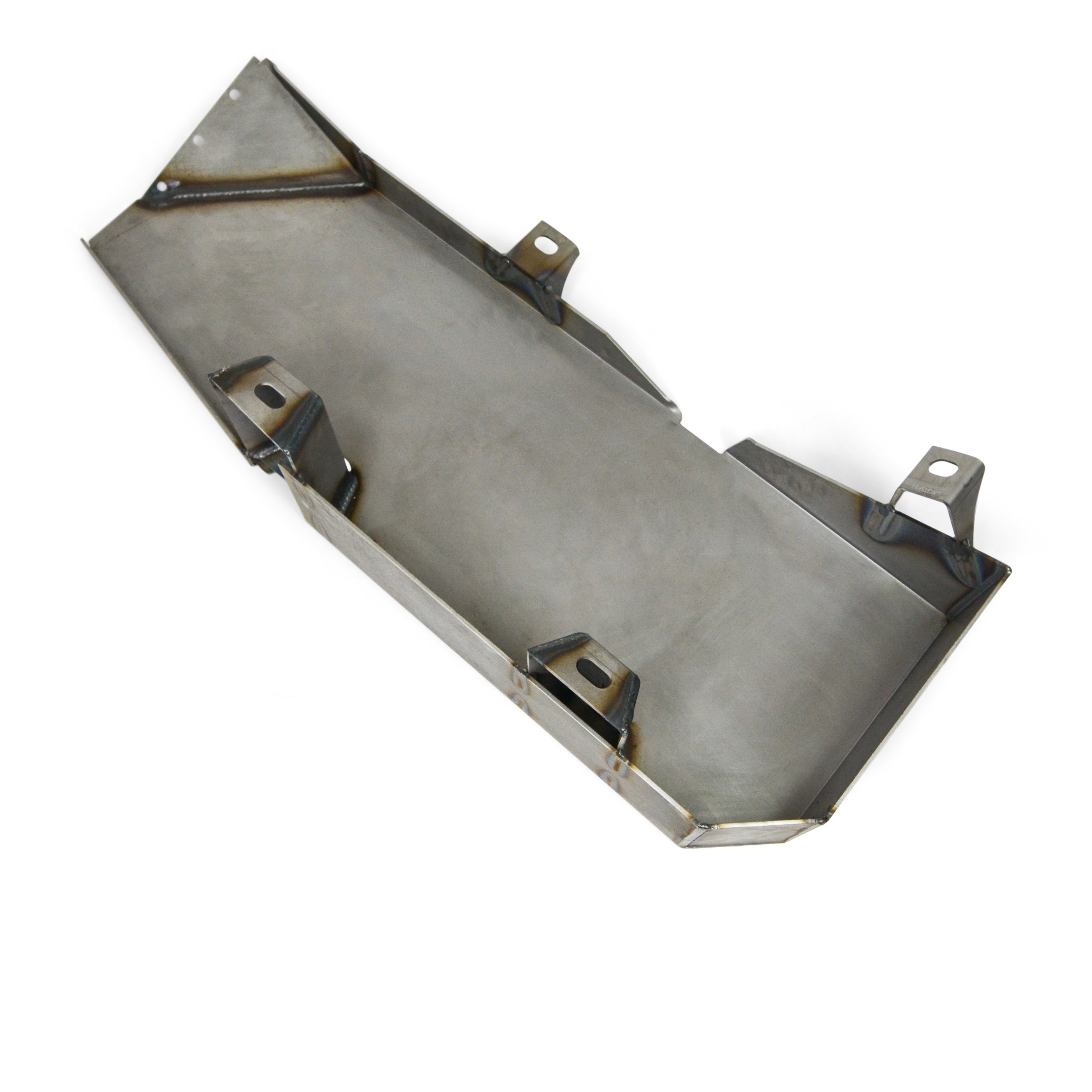

| Application | Gas tank skid plate — 2007–2018 JK Wrangler (2-door) |
| Material | 3/16" steel |
| Design Process | 3D SolidWorks CAD — CNC laser-cut and CNC bent |
| System Integration | Interlocks with Clayton transfer case skid and engine skid plate (COR-4108912) |
| Crossmember Compatibility | Clayton 3-piece long arm crossmember (COR-2108112) or HD crossmember (COR-2108212) |
| Long Arm Installation | Cutting required — one mount must be removed per Clayton installation instructions |
| OEM Replacement Path | Add COR-4108200 bracket (sold separately, $29.00) to connect to stock JK crossmember |
| Early Model Transfer Case Skid | Not compatible — verify transfer case skid version before ordering |
| Finish | Ships bare metal — apply primer, paint, or preferred coating after installation |
| Country of Origin | Made in the USA |
| Lead Time | 3–4 weeks for production and shipping depending on demand |
| Shipping Weight | 65 lb (Offroad Elements confirmed — source doc 25 lb is incorrect) |
| Shipping Dimensions | 44"W x 16"H x 10"D (Offroad Elements confirmed) |
Plate only — no hardware included. If you need the plate and hardware together for a new installation, order COR-4108202 ($549.00 — complete kit). The COR-4108201 is for owners who already have hardware or are replacing a worn or damaged plate on an existing installation.
What Is and Is NOT Included
| Included | NOT Included |
|---|---|
| Gas tank skid plate — 3/16" bare metal steel (2-door configuration) | Hardware kit (COR-4108203 — sold separately) |
| Clayton transfer case skid plate (required for full system integration — sold separately) | |
| Engine / oil pan skid plate (COR-4108912 — sold separately) | |
| COR-4108200 OEM bracket (required for stock crossmember use — sold separately, $29.00) | |
| Primer, paint, or coating for bare metal surface treatment |
Hardware note: No hardware is included with COR-4108201. If you need hardware, order COR-4108203 (hardware only, $20.00) separately, or order COR-4108202 for the complete plate + hardware kit.
Critical Compatibility
Identical compatibility requirements to COR-4108202 (complete kit) — same plate, same fitment constraints, same installation requirements. The only difference is that hardware is not included.
2-door only. The 2-door and 4-door gas tank skid plates are different physical components. The 2-door plate is shorter due to the JK's wheelbase vs. the Unlimited. COR-4108201 will not fit a 4-door JK Unlimited.
Cutting required for long arm installations. One mount must be removed before the plate will seat with Clayton's long arm geometry. Same requirement as the complete kit.
Early model transfer case skid incompatibility. Confirm your Clayton transfer case skid version before ordering.
| Scenario | Result |
|---|---|
| 2007–2018 JK Wrangler 2-Door — with Clayton long arm or HD crossmember | Confirmed fit — cutting required |
| 2007–2018 JK Wrangler 2-Door — OEM replacement with COR-4108200 bracket | Confirmed fit — bracket required; sold separately |
| 2007–2018 JK Wrangler Unlimited 4-Door | Does NOT fit — order COR-4108204 or COR-4108205 |
| Early-version Clayton transfer case skid | Not compatible — verify version first |
| Hardware needed for installation | Order COR-4108203 separately or order COR-4108202 complete kit |
| Near-term build deadline | Confirm current lead time before ordering |
Installation Notes
Identical to COR-4108202 — same plate, same installation sequence. The only procedural difference is that hardware must be sourced separately (COR-4108203) before installation begins.
Skill level: Intermediate. Cutting required for long arm system installations.
Tools required: Socket set, torque wrench. For long arm installation: angle grinder for mount removal. Primer and paint for bare metal surface treatment.
Bare metal surface prep: Wire brush shipping rust, prime, and coat all bare steel before installation.
Long arm system: Remove the specified mount per Clayton's installation instructions using an angle grinder before attempting to seat the plate. Fit after engine skid and transfer case skid are torqued — confirm the interlocking seam is flush before final torque.
OEM replacement (stock crossmember): Install COR-4108200 bracket first, then connect the gas tank skid plate per Clayton's instructions.
Common Questions
What's the difference between COR-4108201 and COR-4108202?
Hardware. COR-4108202 includes the plate and the hardware kit. COR-4108201 is the plate only. For a new installation, order COR-4108202. Order COR-4108201 only if you already have hardware from an existing installation or are replacing a plate only.
I have a 4-Door JK Unlimited — does this fit?
No. The 2-door and 4-door gas tank skid plates are different parts. Order COR-4108205 (plate only) or COR-4108204 (complete kit) for the JK Unlimited.
Where do I get the hardware for COR-4108201?
Order COR-4108203 ($20.00) — the gas tank skid plate hardware kit, which covers both 2-door and 4-door configurations.
Does this require cutting?
Only when installing with the Clayton long arm system — one mount must be removed. No cutting required for the OEM replacement path using the COR-4108200 bracket.
How long until it ships?
Allow 3–4 weeks from order placement depending on current production demand. Confirm lead time before ordering if your build has a deadline.
The Obsidian Take
The COR-4108201 is for one specific buyer: someone who already has a COR-4108202 installation and needs to replace the plate, or someone who has hardware on hand from a previous installation and doesn't want to pay for hardware they don't need. For everyone else building from scratch, the COR-4108202 complete kit is the correct purchase — the $20.00 hardware cost difference doesn't justify two separate orders and the risk of a parts arrival gap that extends the build.
If you're here because the complete kit (COR-4108202) was out of stock — order the plate (COR-4108201) and the hardware (COR-4108203) separately. The system is the same; you're just sourcing the components individually.
This SKU is for: 2-door JK owners replacing an existing plate on a COR-4108202 installation, and 2-door JK owners who have confirmed hardware availability separately.
This SKU is NOT for: 4-door JK Unlimited owners (order COR-4108205), anyone doing a new installation without confirmed hardware on hand (order COR-4108202 instead), owners with early-model Clayton transfer case skids (verify compatibility first), or anyone expecting a drop-in installation without cutting if running a long arm system.
Manufacturer Data Disclaimer
Product specifications, fitment data, and feature details are sourced from Clayton Off Road manufacturer documentation and verified third-party technical references current at the time of publication. Clayton Off Road reserves the right to modify product specifications without notice. Confirm cab configuration (2-door only), transfer case skid version, and hardware availability before ordering. OFAS is not responsible for incompatibility resulting from cab configuration ordering errors or missing hardware.
Prop 65 Warning
⚠ WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Non-Returnable Notice
This item is non-returnable once installed. Bare metal cosmetic marks from shipping are not defects per Clayton Off Road's stated policy. Verify cab configuration and compatibility before ordering. Questions before ordering? Text (469) 407-7538.
