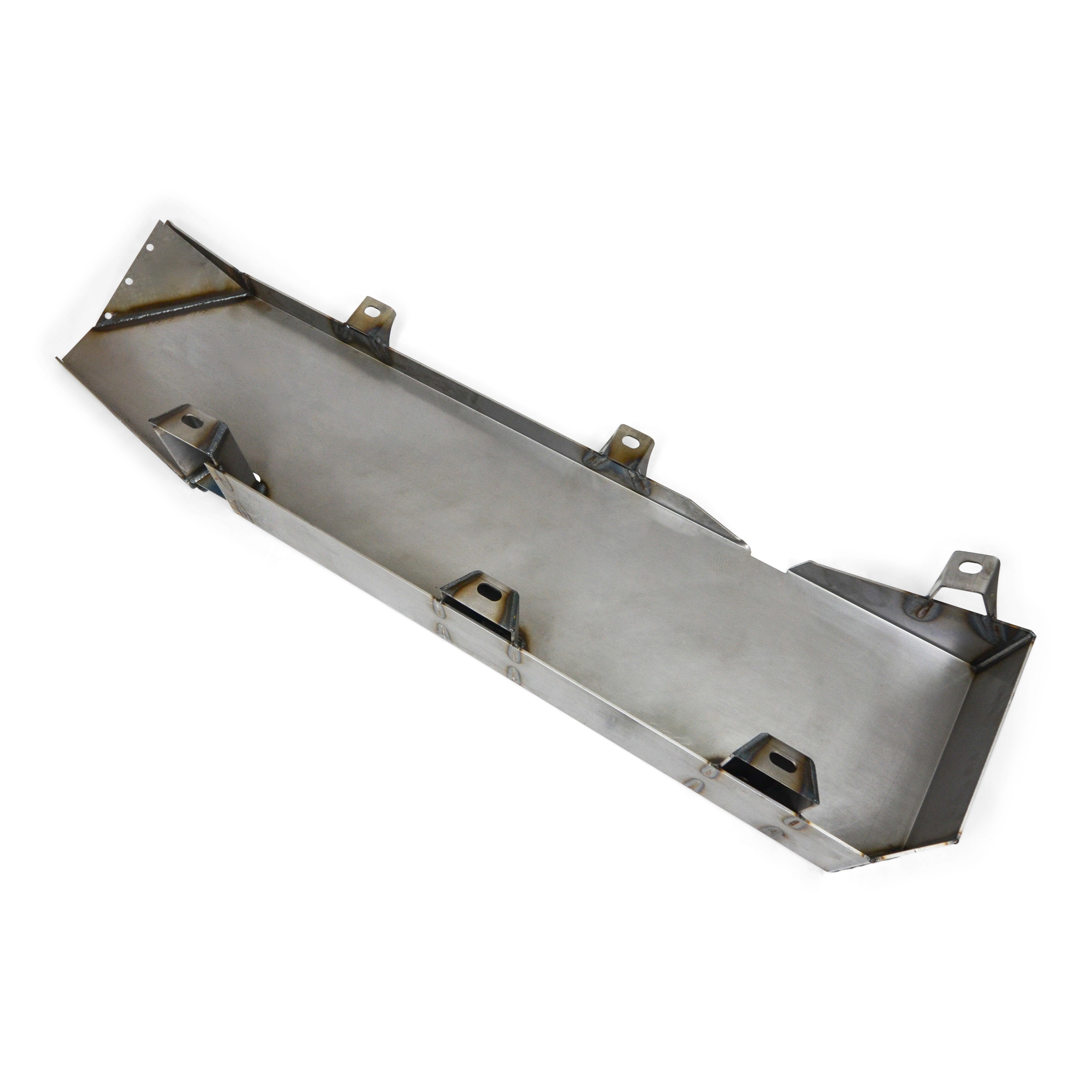

Clayton Off Road Gas Tank Skid Plate | 3/16" Steel | Plate Only | Interlocks with Clayton Skid System | 4-Door Unlimited Only | 2007–2018 Jeep Wrangler Unlimited JK | SKU: COR-4108205
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
⚠️ SHIPS BARE METAL: Surface rust and cosmetic scratches during shipping are normal and not eligible for return, replacement, or compensation.
Verified Fitment
| Year Range | Make | Model | Configuration | Note |
|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler Unlimited JK | 4-Door — All Trims | Plate only — hardware sold separately |
Does NOT fit:
- Jeep Wrangler JK 2-Door — different gas tank position and skid dimensions; order COR-4108201 (plate only) or COR-4108202 (complete kit) for the 2-door
- Jeep Wrangler JL (2018–2026) — different platform
- Jeep Gladiator JT — different platform
- Early model Clayton transfer case skid plates — verify your transfer case skid version before ordering; this gas tank skid does not work with early-version Clayton transfer case skids
4-door only — this is the most common ordering error on this SKU. The JK Wrangler (2-door) and JK Wrangler Unlimited (4-door) have different wheelbases and different gas tank positions. The gas tank skid plates are not interchangeable between configurations. If you have a 2-door JK, stop here and order the 2-door version.
Component Specifications
| Specification | Detail |
|---|---|
| Part Number | COR-4108205 |
| Kit Contents | Gas tank skid plate only — no hardware |
| Application | Gas tank skid plate — 2007–2018 JK Wrangler Unlimited (4-door) |
| Material | 3/16" steel |
| Design Process | CNC laser-cut and bent — interlocks with Clayton engine and transfer case skids |

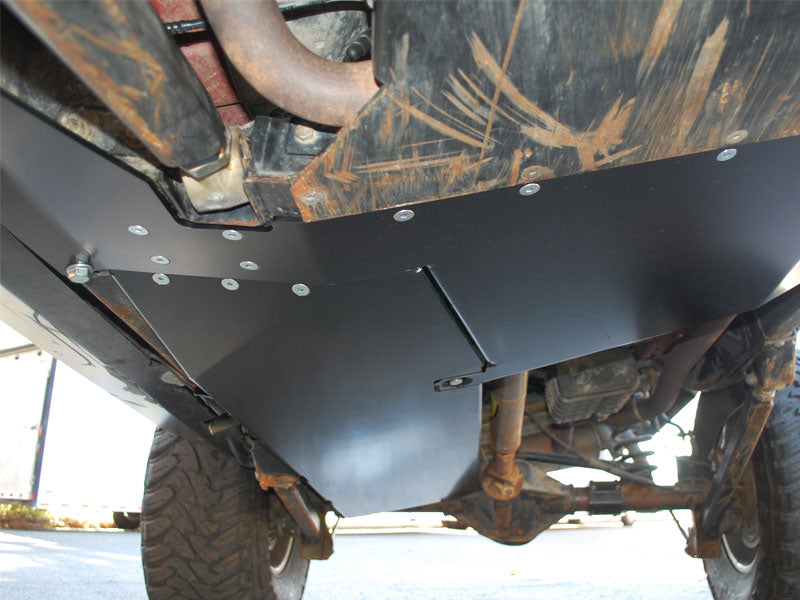

| System Integration | Designed to lock together with Clayton transfer case skid plate and engine skid plate for seamless underbody surface |
| Crossmember Compatibility | Clayton 3-piece long arm crossmember (COR-2108112) or HD crossmember (COR-2108212) |
| Long Arm Installation Note | If installing with the Clayton long arm system, cutting of the skid plate is required — one mount must be removed |
| OEM Replacement Path | COR-4108200 bracket allows connection to stock crossmember without Clayton transfer case skid |
| Finish | Ships bare metal — apply primer, paint, or preferred coating after installation |
| Country of Origin | Made in the USA |
Material distinction: The gas tank skid is 3/16" steel — one wall thickness lighter than the engine and transfer case skids (1/4"). The gas tank skid does not bear the same direct rock strike exposure as the components forward of it — 3/16" provides the appropriate protection at reduced weight for this position in the system.
Complete kit option: If you need the plate and hardware together, order COR-4108204. Hardware only is available separately as COR-4108203.
What Is and Is NOT Included
| Included | NOT Included |
|---|---|
| COR-4108205 gas tank skid plate — 3/16" bare metal steel (4-door) | Hardware kit (COR-4108203 — sold separately) |
| Clayton transfer case skid plate (required for full system integration — sold separately) | |
| Engine / oil pan skid plate (COR-4108912 or COR-4108914 — sold separately) | |
| Clayton 3-piece long arm crossmember (COR-2108112 — sold separately) | |
| Clayton HD crossmember (COR-2108212 — sold separately) | |
| COR-4108200 OEM bracket (if using with stock crossmember — sold separately) | |
| Primer, paint, or coating for bare metal surface treatment |
Hardware: The COR-4108205 is plate only. If you need hardware, order COR-4108203 separately, or order COR-4108204 for the complete kit (plate + hardware together).
OEM replacement path (without full skid system): If you need gas tank protection but are not installing the Clayton transfer case skid or Clayton crossmember, add COR-4108200 — a bracket that connects this gas tank skid plate to the stock JK crossmember. This allows the gas tank skid to function as an OEM replacement without requiring the full Clayton underbody system.
Critical Compatibility
4-door vs. 2-door is the primary return-generating mistake on this SKU. The JK and JK Unlimited have different wheelbases — the 4-door's gas tank is positioned differently, and the skid plate geometry reflects that. Ordering the 4-door plate for a 2-door JK will result in a plate that does not fit. Confirm your cab configuration before ordering.
Long arm cutting requirement. If installing the gas tank skid alongside a Clayton long arm system, one mount must be cut off the plate for fitment. This is documented by Clayton on the product page. This is not a defect — it is a known installation step when combining the gas tank skid with the long arm geometry. If you are running the Clayton HD crossmember without a full long arm conversion, cutting may or may not be required — verify with Clayton's installation instructions for your specific configuration.
Early model transfer case skid incompatibility. Clayton updated the transfer case skid plate design at some point during the JK's production run. The current COR-4108205 gas tank skid plate is not compatible with early-version Clayton transfer case skids. If you have an older Clayton transfer case skid, confirm your version before ordering this gas tank plate.
| Scenario | Result |
|---|---|
| 2007–2018 JK Wrangler Unlimited 4-Door — with Clayton long arm or HD crossmember system | Confirmed fit — cutting required if running long arm |
| 2007–2018 JK Wrangler Unlimited 4-Door — OEM replacement with COR-4108200 bracket | Confirmed fit — bracket required; sold separately |
| 2007–2018 JK Wrangler 2-Door | Does NOT fit — order COR-4108201 or COR-4108202 |
| Early-version Clayton transfer case skid | Not compatible — verify your transfer case skid version |
| JL Wrangler, JT Gladiator | Does NOT fit |
| Bare metal arrives with surface rust | Normal — not a defect; prime and paint before installation |
Installation Notes
Skill level: Intermediate. Cutting may be required if installing with the Clayton long arm system.
Tools required: Socket set, torque wrench. If installing with the long arm system: angle grinder or cutting tool for mount removal. Primer and paint for bare metal surface treatment.
Bare metal surface prep — required before installation:
Wire brush any surface rust from shipping. Apply primer and preferred paint, powder coat, or undercoating to all bare metal surfaces before installation.

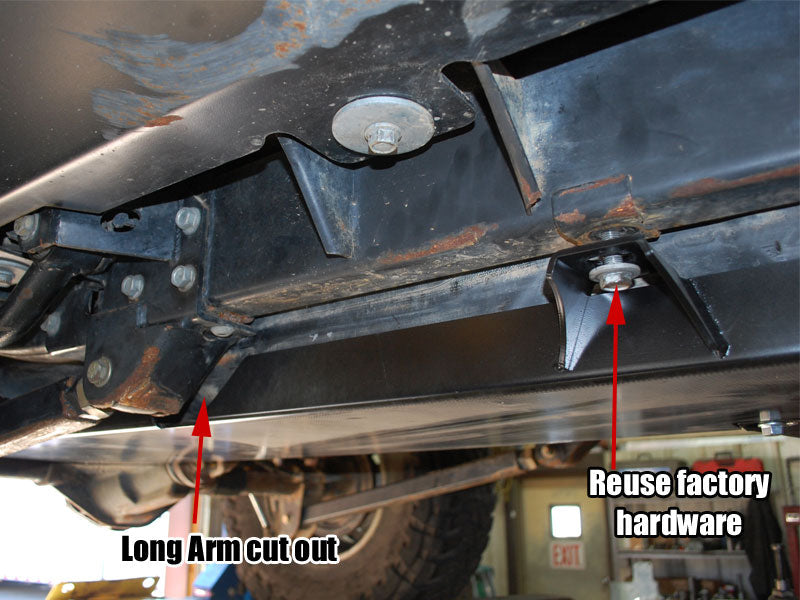

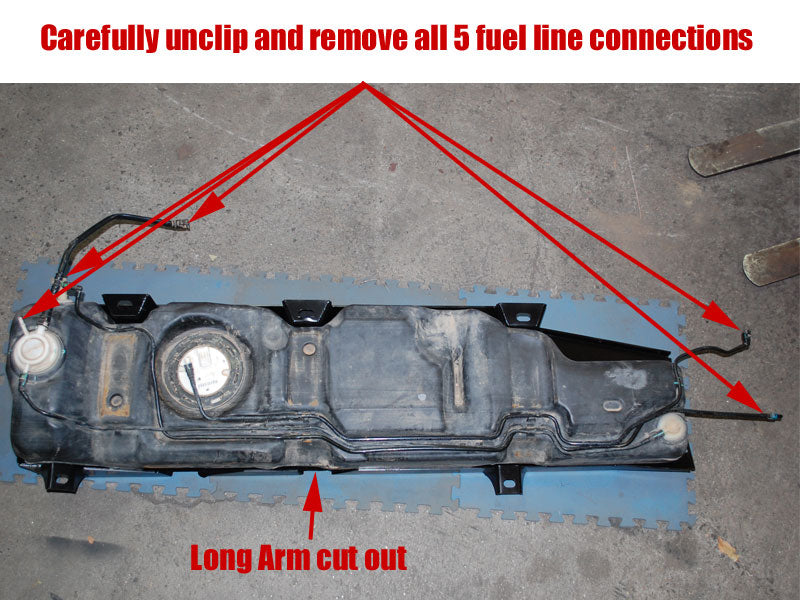

Long arm system cutting note: If installing in conjunction with Clayton's long arm system, one mount on the gas tank skid plate must be removed. Use an angle grinder and follow Clayton's installation instructions for the specific cut location. Do not skip this step — the uncut mount will create interference with the long arm geometry.
Installation sequence in the context of the full skid system:
- Install the engine skid plate (COR-4108914) first, torque to spec.
- Install the transfer case skid plate, torque to spec.
- Fit the gas tank skid plate last — confirm the interlocking seam between the gas tank skid and transfer case skid is flush before final torque.
- If the pieces do not seat flush, do not force them — confirm all upstream components are correctly positioned before proceeding.
Freight pallet option: Contact OFAS before ordering if cosmetic shipping condition matters. Clayton offers freight pallet shipping as an alternative to standard bare metal box shipping.
Common Questions
I have a 2007 JK Wrangler 2-Door — does this fit?
No. This SKU (COR-4108205) is 4-door Unlimited only. For the 2-door JK, order COR-4108201 (plate only) or COR-4108202 (complete kit with hardware).
Do I need to cut the plate for installation?
If you are installing in conjunction with the Clayton long arm system, yes — one mount must be removed from the plate. If you are installing with the Clayton HD crossmember as a standalone upgrade (without a full long arm conversion), confirm the cutting requirement for your specific configuration with Clayton's installation instructions.
What's the difference between COR-4108205 and COR-4108204?
COR-4108204 is the complete kit — gas tank skid plate plus hardware. COR-4108205 is the plate only, without hardware. If you need the plate and hardware together for a new installation, order COR-4108204. COR-4108205 is for builders who already have the hardware or are replacing a plate only.
Can I use this as an OEM gas tank skid replacement without the Clayton skid system?
Yes — but you also need to order COR-4108200, a bracket that connects this gas tank skid plate to the stock JK crossmember. Without either the COR-4108200 bracket or the Clayton transfer case skid plate, this plate has no mounting interface.
Do I need the transfer case skid plate to use this?
For full system integration, yes. However, if you only need gas tank protection and don't want the full Clayton skid system, use the COR-4108200 bracket to connect to the stock crossmember instead. Either path works — the full system path provides interlocked, seamless underbody coverage; the bracket path provides gas tank protection only.
The Obsidian Take

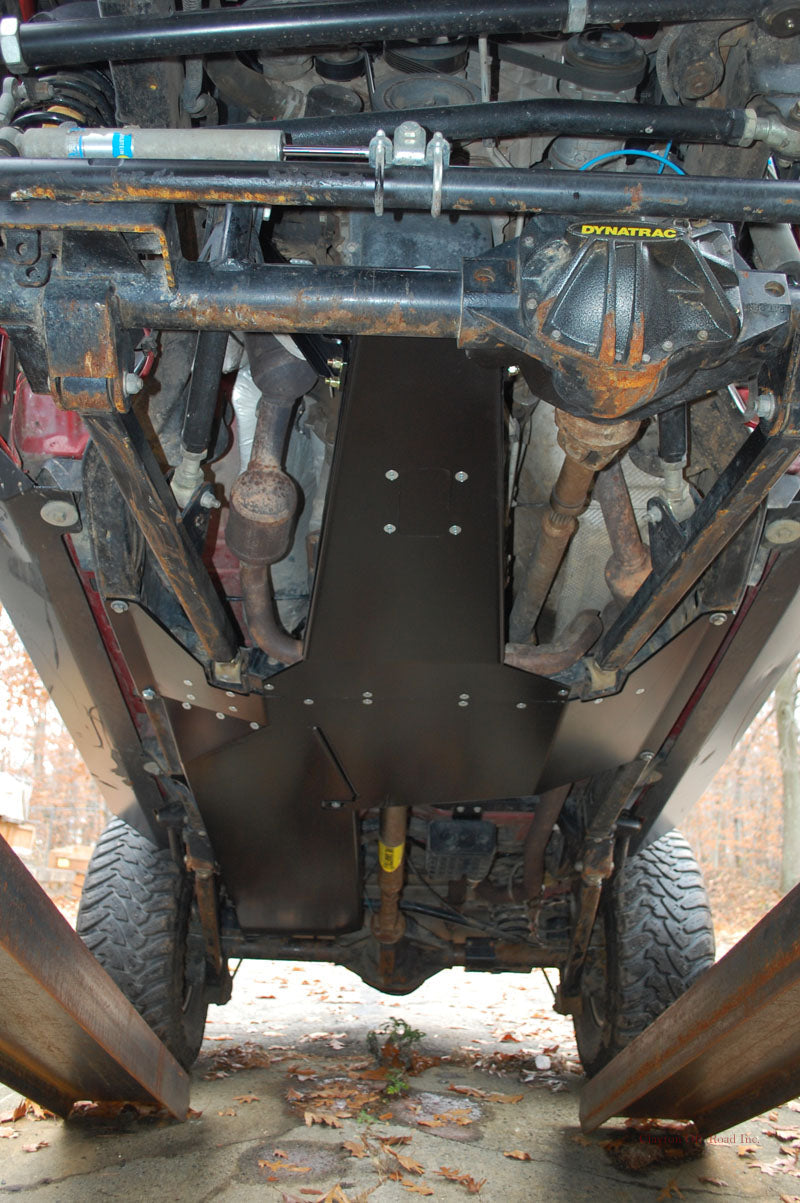

The COR-4108205 is the rearmost component of Clayton's JK three-piece underbody protection system — and the one that most directly determines whether the system looks and functions like an integrated unit or like three separate pieces that happen to be near each other. When the engine skid, transfer case skid, and gas tank skid all interlock correctly, the resulting undercarriage is essentially a single smooth steel surface that slides over obstacles rather than catching on them. The gas tank skid plate is what closes that surface from the transfer case rearward.
At 3/16" versus 1/4" on the forward pieces, the material thickness reflects the load environment. The gas tank position is further rearward and lower in the chassis — direct rock strike exposure is lower than at the engine or transfer case locations. The 3/16" construction provides appropriate protection at reduced weight for that position.
For 4-door Unlimited owners building a complete protection package: buy all three skid plates together if you can. The interlocking installation is easier when all pieces are on hand, and you'll finesse the fit between components more cleanly before committing any of them to final torque.
This SKU is for: 2007–2018 Jeep Wrangler Unlimited (4-Door) owners running the Clayton long arm or HD crossmember system who need the gas tank skid plate only (no hardware), and 4-door owners using this as an OEM replacement via the COR-4108200 bracket.
This SKU is NOT for: JK Wrangler 2-door owners (order COR-4108201 or COR-4108202), owners with early-model Clayton transfer case skid plates (verify compatibility first), JL or JT owners, anyone who needs hardware with the plate (order COR-4108204 for the complete kit), or anyone who receives bare metal with cosmetic marks and considers that a defect.
