Clayton Off Road Front Lower Control Arm Bracket Mini Skid Plates | Pair | 1/4" CNC Cut & Bent Steel | Weld-On | 2018–2026 Jeep Wrangler JL / 2020–2026 Jeep Gladiator JT | SKU: COR-4109020

Verified Fitment

Does NOT fit:

• Jeep Wrangler JK (2007–2018) — different front lower control arm bracket geometry
• Jeep Wrangler TJ / LJ — different front suspension architecture
• Any platform other than JL and JT

Hard stop — welding required: These are not bolt-on skid plates. Welding is required for installation. If welding capability is not available, this is not the correct product. For bolt-on rear protection on the JL, see COR-4109030. For bolt-on rear protection on the JT, see COR-4110010.

Component Specifications

Weld-on vs. bolt-on — why it matters: A bolt-on skid plate adds a protective barrier in front of the OEM bracket but does not integrate with the bracket structure. A weld-on plate fuses with the bracket, making the OEM steel and the skid plate act as a single unit. The result is structural reinforcement, not just protection — the bracket itself becomes stronger after installation. This is the engineering rationale for the weld-on design, and it's why Clayton uses this approach for the front lower control arm brackets on the JL and JT despite the additional installation requirement.

What Is and Is NOT Included

No hardware is included because none is required — the skid plates weld directly to the OEM bracket faces. All fasteners at the brackets remain OEM unless upgraded separately.

Critical Compatibility

Welding is the primary compatibility gate on this SKU. Every other aspect of fitment is straightforward — JL or JT, all trims, 2018+ and 2020+ respectively. The weld-on requirement means this product is appropriate only for builders with access to welding equipment, whether shop-performed or owner-performed. It is the only component in Clayton's standard JL and JT suspension packages that requires welding — explicitly noted in Clayton's own package instructions: "COR-4109020 — Front lower control arm skids require welding!"

Front vs. rear distinction: This SKU covers the front lower control arm brackets only. The rear shock bracket and control arm protection on the JL (COR-4109030) and rear lower control arm brackets on the JT (COR-4110010) are separate, bolt-on products. Buyers building a complete protection package need both front and rear — and should note that only the front skids require welding.

JL and JT share this SKU despite being different platforms because the front lower control arm bracket geometry is compatible across both. This is confirmed across all retailer fitment listings and Clayton's own product description.

Installation Notes

Skill level: Intermediate to advanced — MIG or TIG welding required. Owner-performed installation is viable with basic welding competency. Professional fabrication shop installation is the correct path if welding is not available on-site.

Tools required: Welder (MIG or TIG), wire brush or grinder for surface prep, grinder for weld cleanup, primer and paint or rattle can for surface finish, basic positioning clamps or magnets.

Installation sequence:

1. Safely lift and support the vehicle — front suspension accessible.
2. Clean the front face of the OEM front lower control arm brackets on both sides — remove all dirt, grease, undercoating, and loose paint from the weld area. Weld adhesion requires clean bare steel.

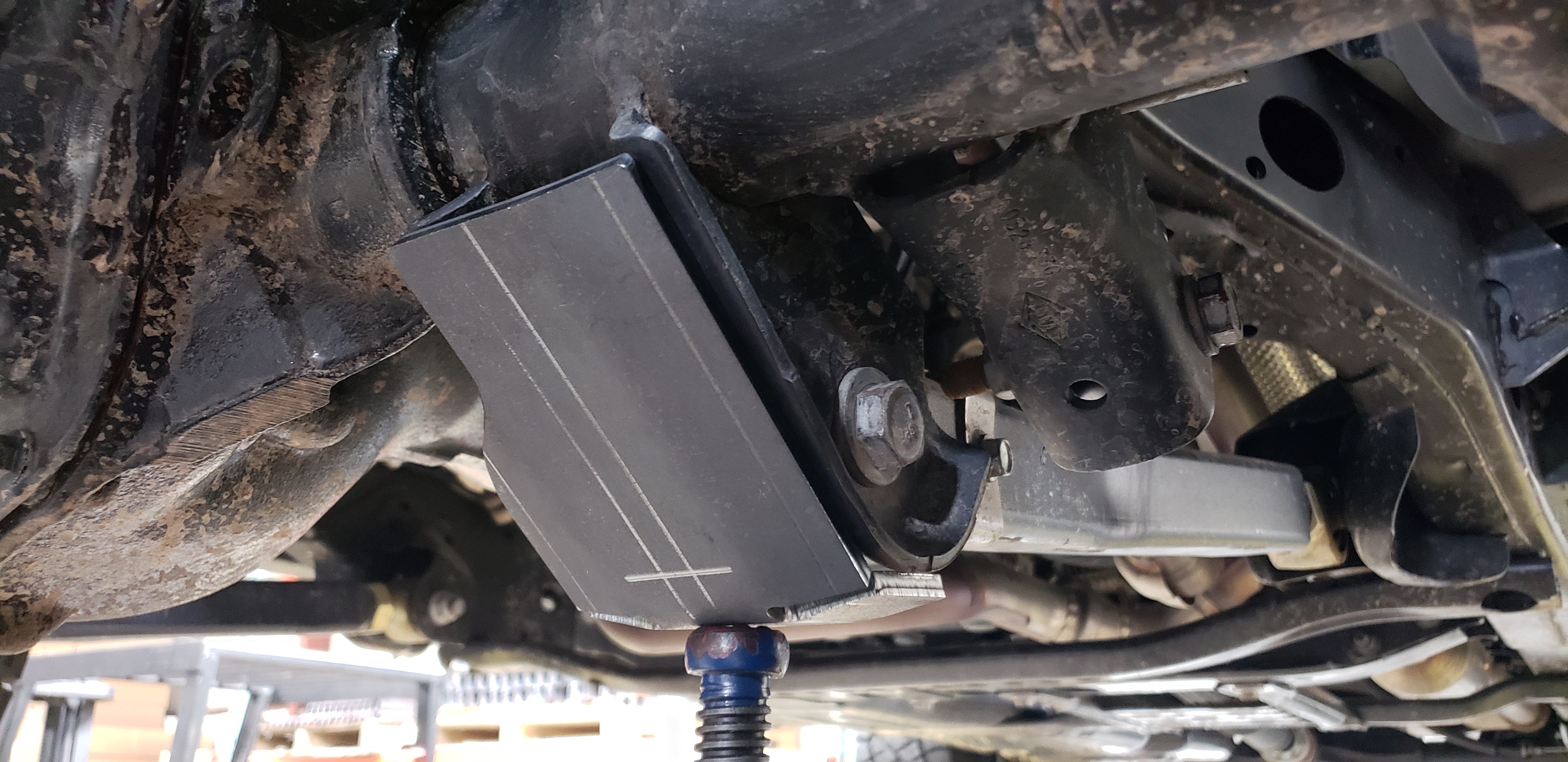

3. Dry-fit the driver-side mini skid plate against the front face of the OEM bracket — confirm the plate seats flush and squarely.
4. Tack weld in position at two or more points — confirm alignment before completing the weld.
5. Complete the weld per Clayton's installation instructions — full perimeter or weld as specified.
6. Repeat for the passenger side.
7. Allow all welds to cool fully before handling.
8. Grind the weld faces smooth as needed, then prime and paint or apply preferred corrosion-resistant coating to all bare steel surfaces exposed by the welding process.
9. Cycle the front suspension through full droop and full compression — confirm no contact between the installed skid plates and adjacent components at either extreme.

No paint or finish is included. Post-weld surface treatment is required to prevent rust — the 1/4" steel plates and any exposed OEM bracket steel will corrode without primer and paint or a bed liner-style coating.

Common Questions

Why do the front skids require welding when the rear skids don't?
The front lower control arm brackets are the highest-stress attachment points in the front suspension system. Clayton's weld-on design for the front integrates the skid plate structurally with the OEM bracket, creating a reinforced unit rather than just a protective cover. The rear shock bracket and lower control arm locations on the JL (covered by COR-4109030) are a different geometry and load environment where bolt-on installation achieves the protective function without the structural reinforcement benefit — hence the different installation approach.

Can a beginner do this installation?
Only with access to welding equipment and basic welding competency. If you've never welded before, this is not the project to learn on — the tack-and-weld procedure needs to hold under trail loading. A local fabrication shop can install these in under an hour.

Do these fit both the JL and JT?
Yes — COR-4109020 fits the front lower control arm brackets on both the 2018–2026 Jeep Wrangler JL and 2020–2026 Gladiator JT. The front bracket geometry is compatible across both platforms.

What's included in the box?

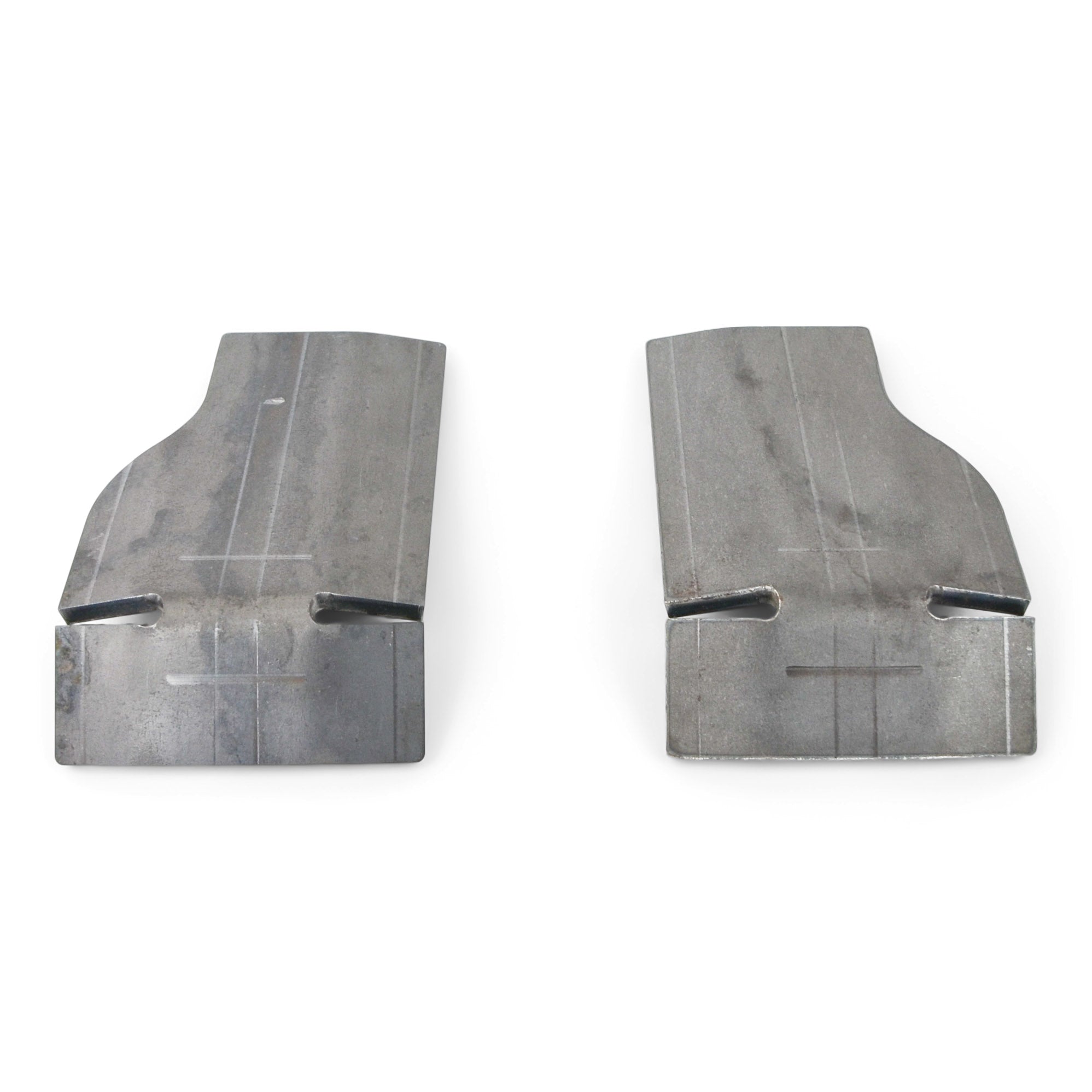

The pair of mini skid plates — driver side and passenger side. No hardware, no fasteners, no paint. The installation is weld-only; no bolts are required or used.

Do I need to paint them after installation?
Yes. The 1/4" steel plates ship unfinished and will rust after installation if left bare. After welding and grinding, prime and paint or apply a preferred coating to all bare steel surfaces — including any OEM bracket areas exposed during surface prep.

What's the difference between these and the rear skids for the JL (COR-4109030)?
Installation method and function. COR-4109030 rear skids are 100% bolt-on — they install with Grade 8 hardware, no welding required. COR-4109020 front skids are weld-on only — welding is mandatory. The front skids also add structural reinforcement to the OEM bracket, which the bolt-on rear skids do not.

The Obsidian Take

The COR-4109020 is the correct choice when you want more than protection — you want reinforcement. Bolt-on skid plates add a sacrificial barrier in front of the factory bracket. These weld-on plates add material to the bracket itself. That's a meaningful engineering difference when you're rock crawling and a direct hit to the lower control arm bracket would otherwise bend a factory steel component that can only be replaced, not bent back.

At $39.00 for a pair, this is the lowest-cost bracket reinforcement available for the JL and JT platforms and one of the highest protection-per-dollar additions in the Clayton lineup. The limiting factor is the welding requirement — which is also why this SKU costs less than the bolt-on alternatives. The labor of welding is yours to provide.

If you're building a complete protection package for your JL, the correct pairing is COR-4109020 (front — weld-on) and COR-4109030 (rear — bolt-on). For the JT, it's COR-4109020 (front — weld-on) and COR-4110010 (rear — bolt-on). Both platforms need front and rear coverage, and the installation requirements differ by position.

This SKU is for: 2018–2026 JL and 2020–2026 JT owners who want structural reinforcement at the front lower control arm brackets, have access to welding equipment or a fabrication shop, and are building a serious trail rig where bracket damage from rock strikes is a genuine concern.

This SKU is NOT for: Anyone without welding access or the budget to hire a shop (bolt-on alternatives don't exist for the front lower CA brackets on these platforms — welding is the only path here), JK Wrangler owners, or anyone looking for rear bracket protection (see COR-4109030 for JL rear or COR-4110010 for JT rear).
