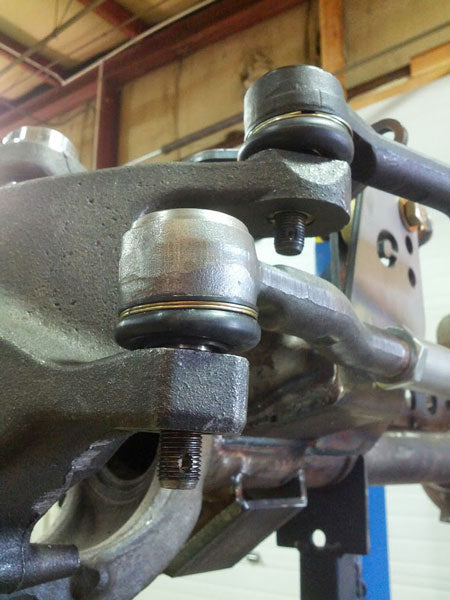

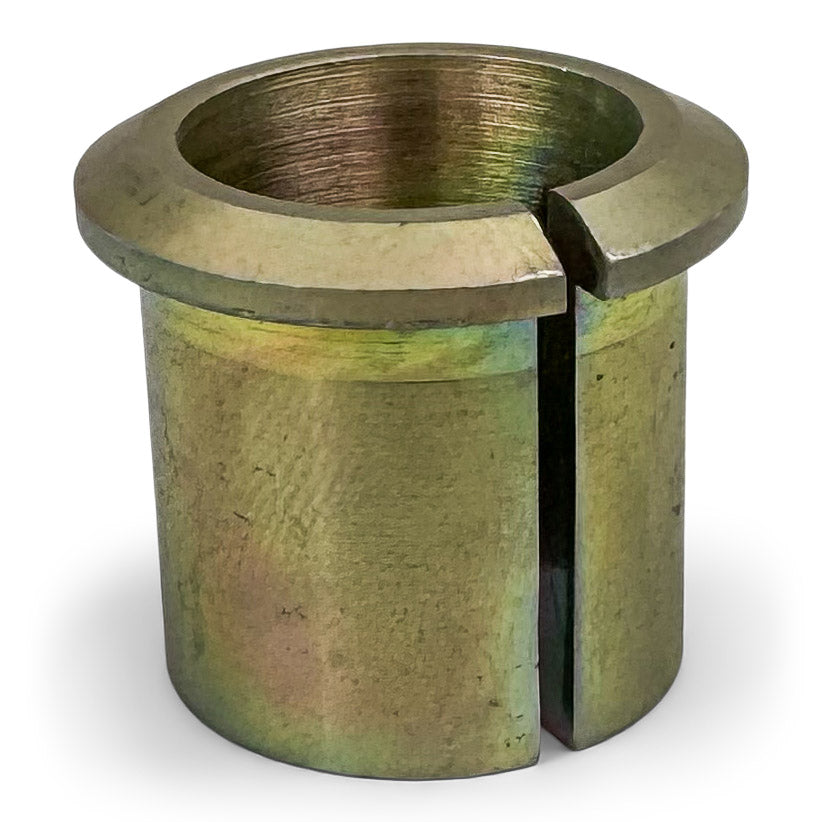

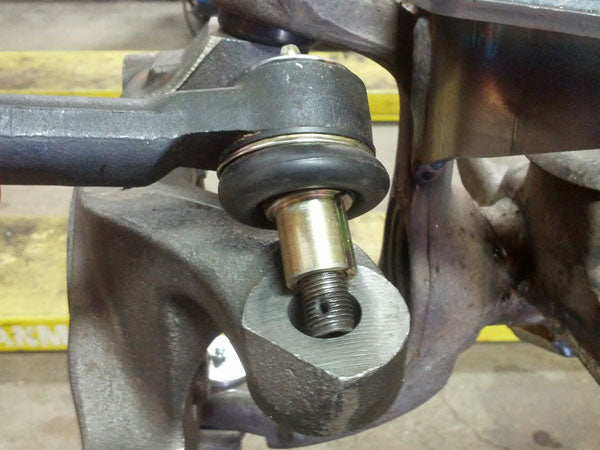

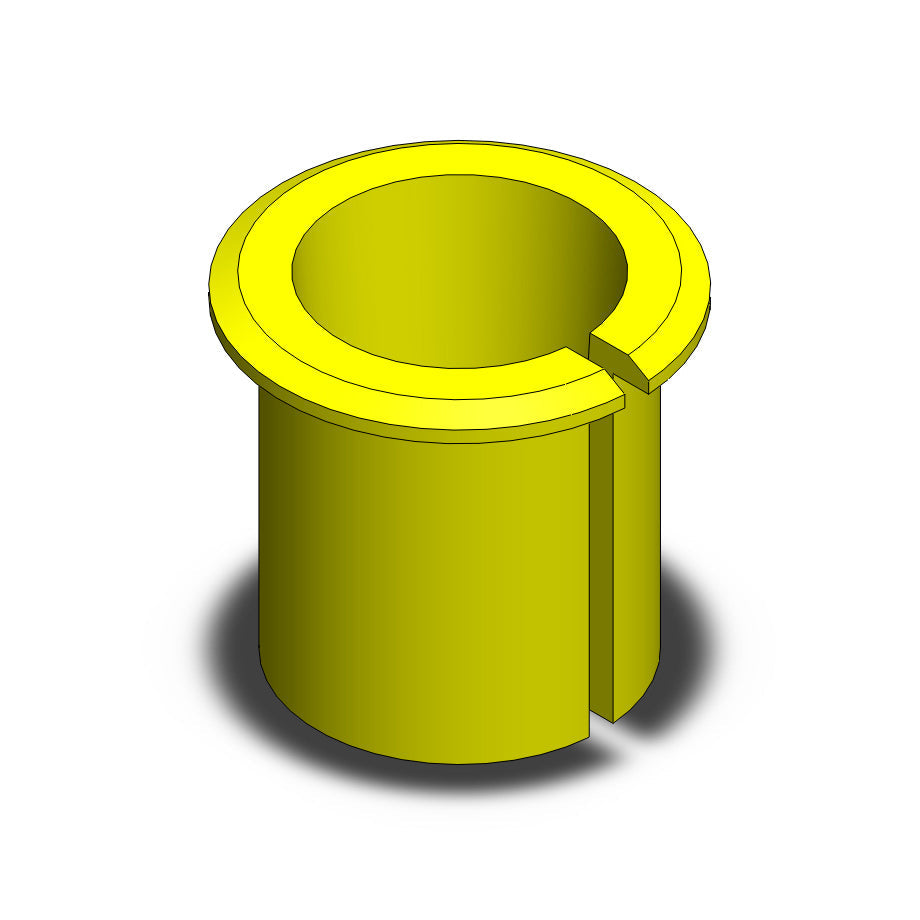

The Clayton Off Road Flip Kit Tie Rod Bushing (COR-5200950) is a CNC-machined, gold zinc plated tapered bushing that allows a knuckle to be drilled to 3/4" and converted to accept an OE-style Jeep Grand Cherokee WJ tie rod end in the top-mount (flip) position. Used across TJ, LJ, XJ, ZJ, and WJ steering builds, most commonly as part of a right-hand-drive (RHD) drag link conversion or custom high-steer setup using the matching RHD-style WJ tie rod end Clayton offers separately. The tapered profile matches the OE-style WJ tie rod end taper for correct seating and retention under steering load. Made in the USA. Sold individually.
This bushing alone does not complete a flip kit. The matching RHD-style WJ tie rod end and any required drag link/trackbar bracket components are sold separately.
Component Specifications
| Spec | Detail |
|---|---|
| Part Number | COR-5200950 |
| Brand | Clayton Off Road |
| Application | Flip kit tie rod knuckle bushing |
| Profile | Tapered — matches OE-style WJ tie rod end taper |
| Material | CNC-machined steel |
| Finish | Gold zinc plated |

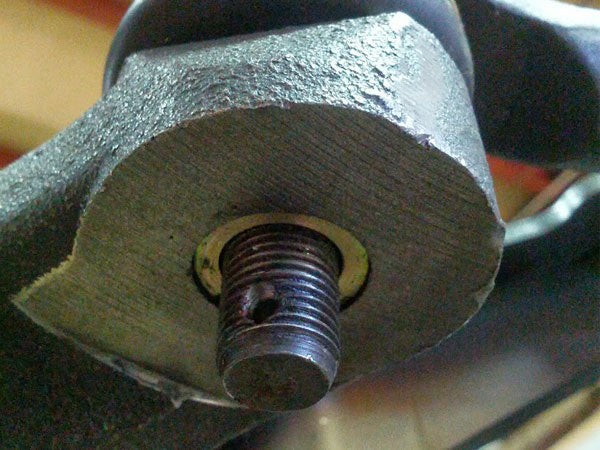

| Installation | Press-fit — knuckle must be drilled to 3/4" before installation |
| Drill Size Required | 3/4" |
| Compatible Tie Rod End | OE-style WJ tie rod end (top-mount flip position) — including RHD-specific variant |
| Common Application | Right-hand-drive drag link conversion; custom high-steer builds |
| Quantity | Sold each |
| Country of Origin | USA |
| Shipping Weight | 1 lb |
| Shipping Dimensions | 3" x 5" x 1" |
| Price | $29.00 |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1x CNC-machined tapered bushing | ✓ |
| WJ-style tie rod end (standard or RHD) | ✗ NOT included — sold separately |
| Drag link | ✗ NOT included — sold separately, RHD-specific version available |
| Trackbar bracket (if correcting trackbar geometry for the conversion) | ✗ NOT included — sold separately |
Platform Comparison — Confirm the Correct Bushing for Your Build
| SKU | Drill Size | Platform | Purpose |
|---|---|---|---|
| COR-5200950 (this listing) | 3/4" | TJ / LJ / XJ / ZJ / WJ knuckles | Converts knuckle to accept OE-style WJ tie rod end, often for RHD drag link conversion |
| COR-5208210 | 7/8" | JK (2007-2018) passenger side upper knuckle | Converts JK knuckle for RHD drag link installation — requires RHD drag link and trackbar bracket |
These are not interchangeable — confirm your platform and required drill size before ordering.
Verified Fitment
| Application | Status |
|---|---|
| TJ, LJ, XJ, ZJ knuckles being modified for OE-style WJ tie rod end | ✓ |
| WJ knuckle applications | ✓ |
| Jeep Wrangler JK (2007-2018) | ✗ Requires different bushing — COR-5208210, 7/8" drill |
| Jeep Grand Cherokee WK (2005-2010) | ✗ Different front knuckle architecture |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Drill size | Must drill to exactly 3/4" — undersized prevents seating, oversized causes movement under steering load |
| Drilling method | Use a drill press or guided step drill for a straight, on-axis bore — an angled bore misaligns the tie rod end taper |
| Press installation | Use a press or appropriate driver — do not hammer without a driver, as uneven force distorts the bushing taper |
| Tie rod end and drag link | Not included — this is the knuckle interface component only; a complete flip or RHD conversion requires the matching tie rod end and drag link |
| Trackbar geometry | For RHD drag link conversions, a trackbar bracket is typically also required to correct trackbar geometry |
| JK platform | Does not use this bushing — requires COR-5208210 at 7/8" drill instead |
Common Questions
What is this bushing actually for?
Most commonly, converting a knuckle to accept a right-hand-drive (RHD) style WJ tie rod end as part of a drag link relocation or custom high-steer conversion. It's also used in general tie rod flip applications on TJ, LJ, XJ, and ZJ builds.
Does this work on my JK?
No. The JK uses a different bushing (COR-5208210) with a 7/8" drill requirement, specifically for the passenger side upper knuckle RHD drag link conversion.
What else do I need to complete the build?
The matching OE-style WJ tie rod end (standard or RHD-specific), the appropriate drag link, and — for RHD drag link conversions — typically a trackbar bracket to correct trackbar geometry. This bushing is the knuckle interface component only.
How many do I need?
Sold individually. Most flip or RHD conversion builds use one bushing per modified knuckle — confirm your specific build's requirements before ordering.
What happens if I drill the bore at an angle?
The tie rod end taper will be misaligned, causing binding or improper seating. Use a drill press or guided step drill to keep the bore straight and on-axis.
The Obsidian Take
The COR-5200950 is for the builder converting a knuckle to accept an OE-style WJ tie rod end — most often as part of a right-hand-drive drag link conversion or a custom high-steer setup, and used across TJ, LJ, XJ, ZJ, and WJ platforms. CNC-machined taper, gold zinc plated, precise 3/4" press fit.
This is one component in a larger system, not a complete solution. Before ordering, confirm you also have the matching tie rod end, the correct drag link, and — if doing an RHD conversion — the trackbar bracket needed to correct trackbar geometry. And confirm you're not on a JK platform, which uses a completely different bushing at a different drill size.
