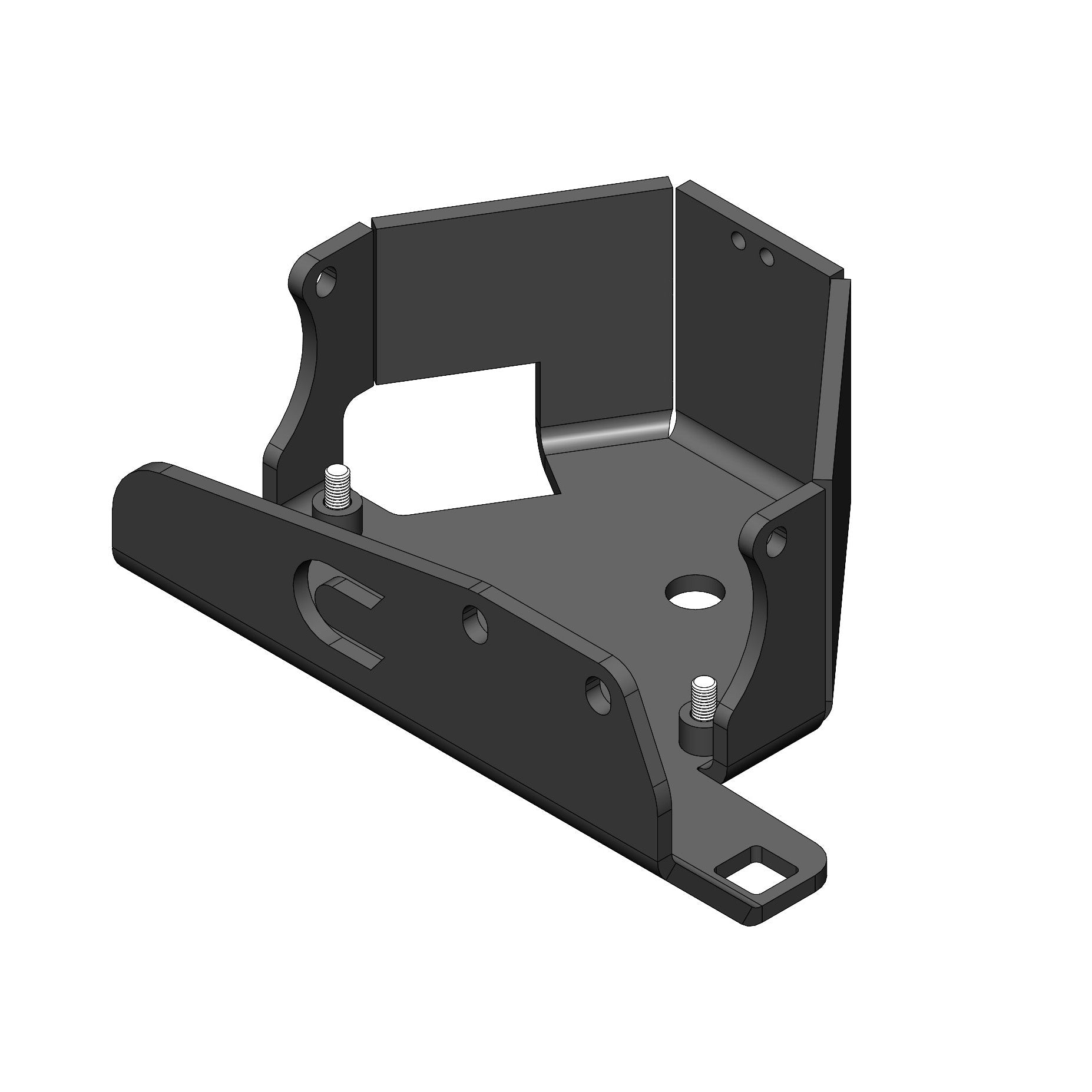

Clayton Off Road Front Axle Disconnect (FAD) Skid Plate | 1/4" Steel | 6-Point Bolt-On | Disconnector Motor Coverage | Requires COR-5209011 | 2018–2026 Jeep Wrangler JL / 2020–2026 Gladiator JT | SKU: COR-4109010

Verified Fitment

Does NOT fit:

• Jeep Wrangler JL Sport or Sport S with Command-Trac transfer case — these trims typically do not use the front axle disconnect system; verify your transfer case before ordering
• Jeep Wrangler JK (2007–2018) — different front suspension architecture; JK does not use the JL/JT FAD system
• Jeep Wrangler TJ / LJ — different suspension system
• Any JL or JT that does not have the FAD unit installed on the front axle

FAD system verification — check before ordering: The front axle disconnect (FAD) is not present on all JL and JT configurations. Clayton's own package notes explicitly state "Not all models use a front axle disconnect." Confirm your JL or JT has the FAD unit on the front axle before ordering. Rubicon (Rock-Trac) and Sahara (Selec-Trac) trims typically include FAD; base Sport and Sport S models with the standard Command-Trac may not. If unsure, look for the FAD unit on the passenger side of the front axle — it will be visible as a motor-driven disconnect housing.

Prerequisite — COR-5209011 required: The stock steering stabilizer bracket must be removed before this skid plate can be installed. Clayton's COR-5209011 high-clearance, over-the-tie-rod steering stabilizer conversion bracket is the required replacement. Do not order this skid plate without COR-5209011 if you do not already have it installed.

Component Specifications

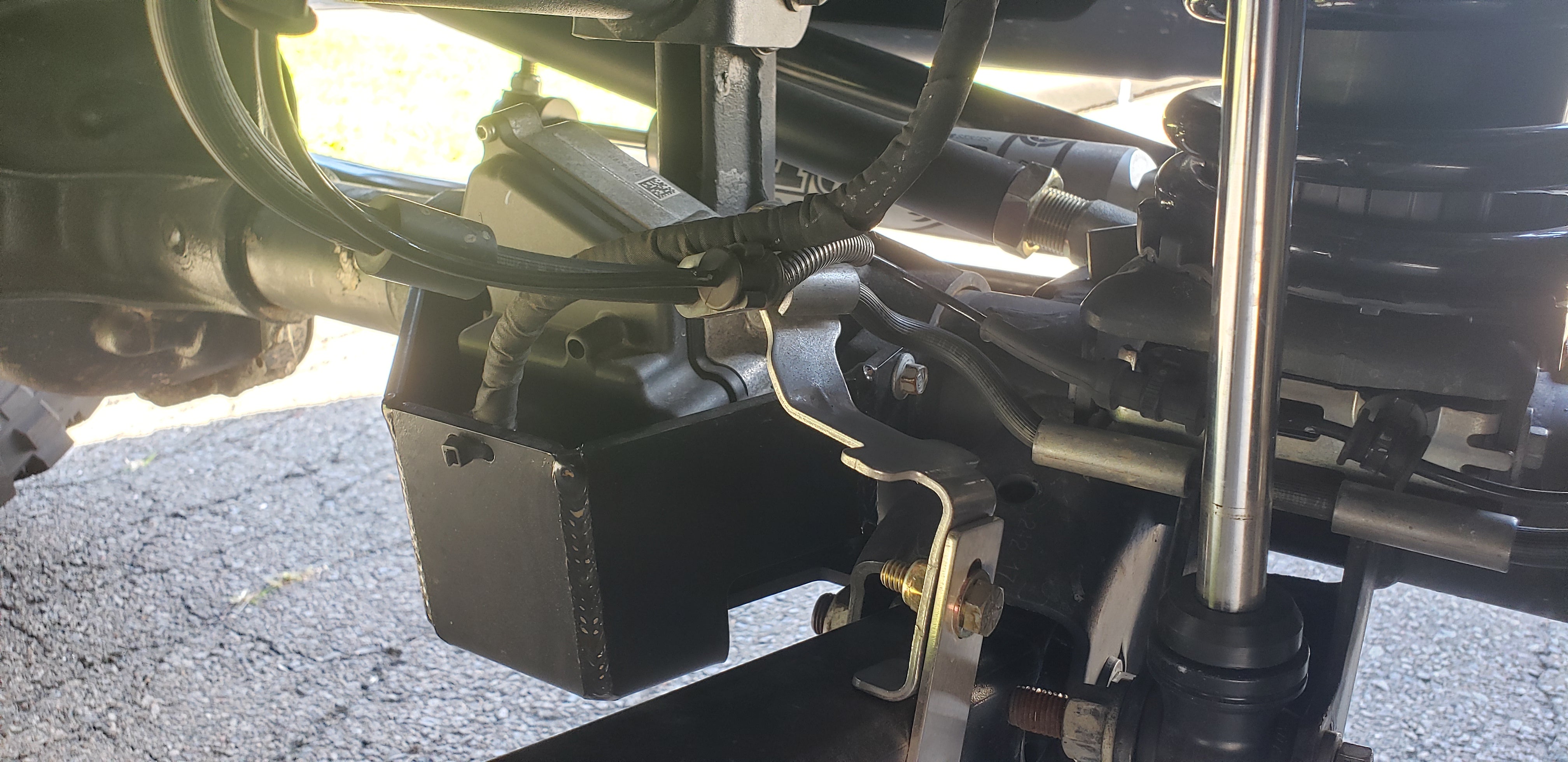

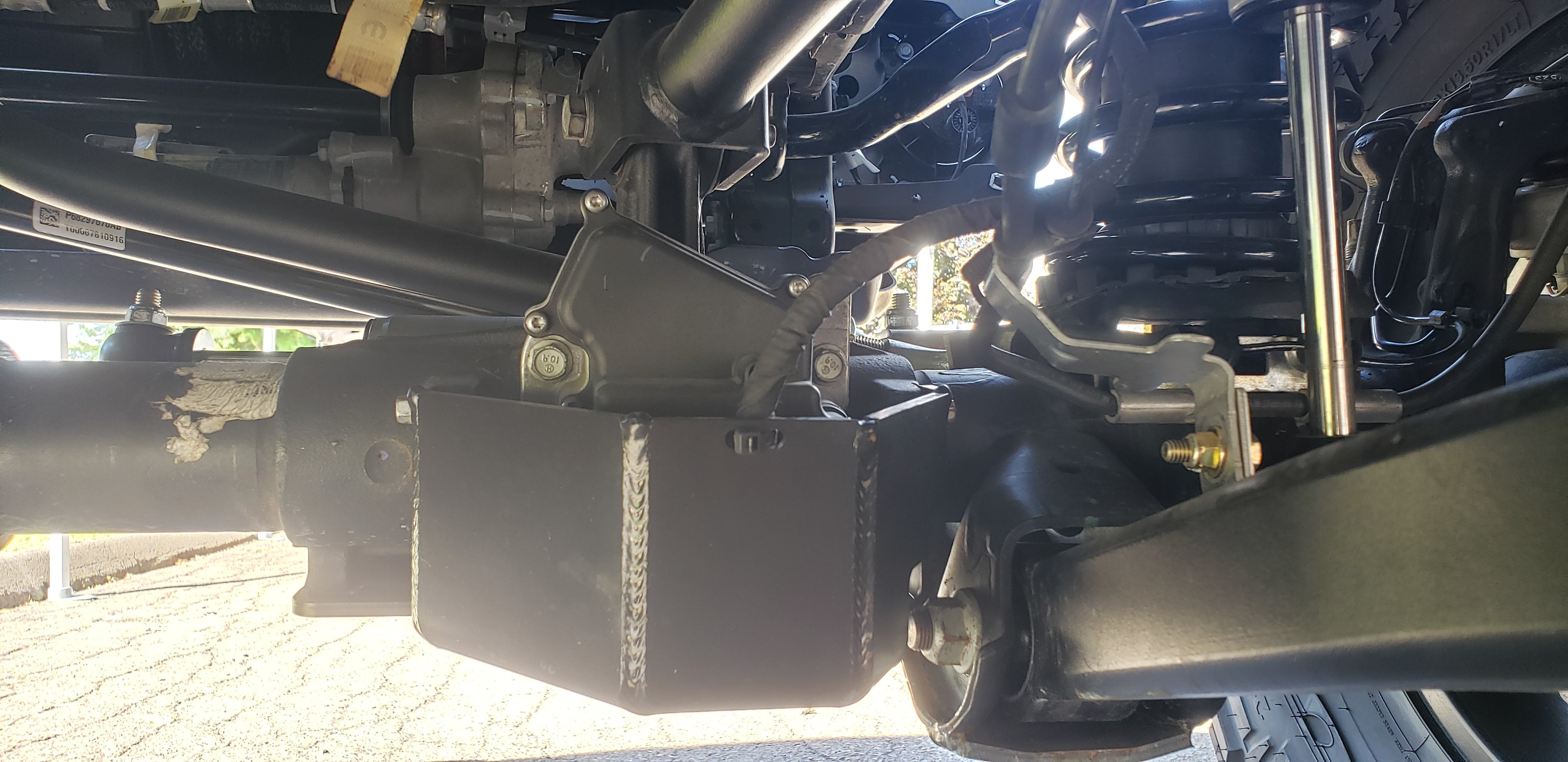

Why the rear is taller: The FAD unit's plastic and aluminum disconnector motor housing projects rearward from the main FAD body. A flat-profile skid plate would cover the front of the FAD mount but leave the motor housing exposed. Clayton's rear section is intentionally taller to wrap coverage around and over the disconnector motor — the component most vulnerable to damage from rocks passing under the axle at an angle.

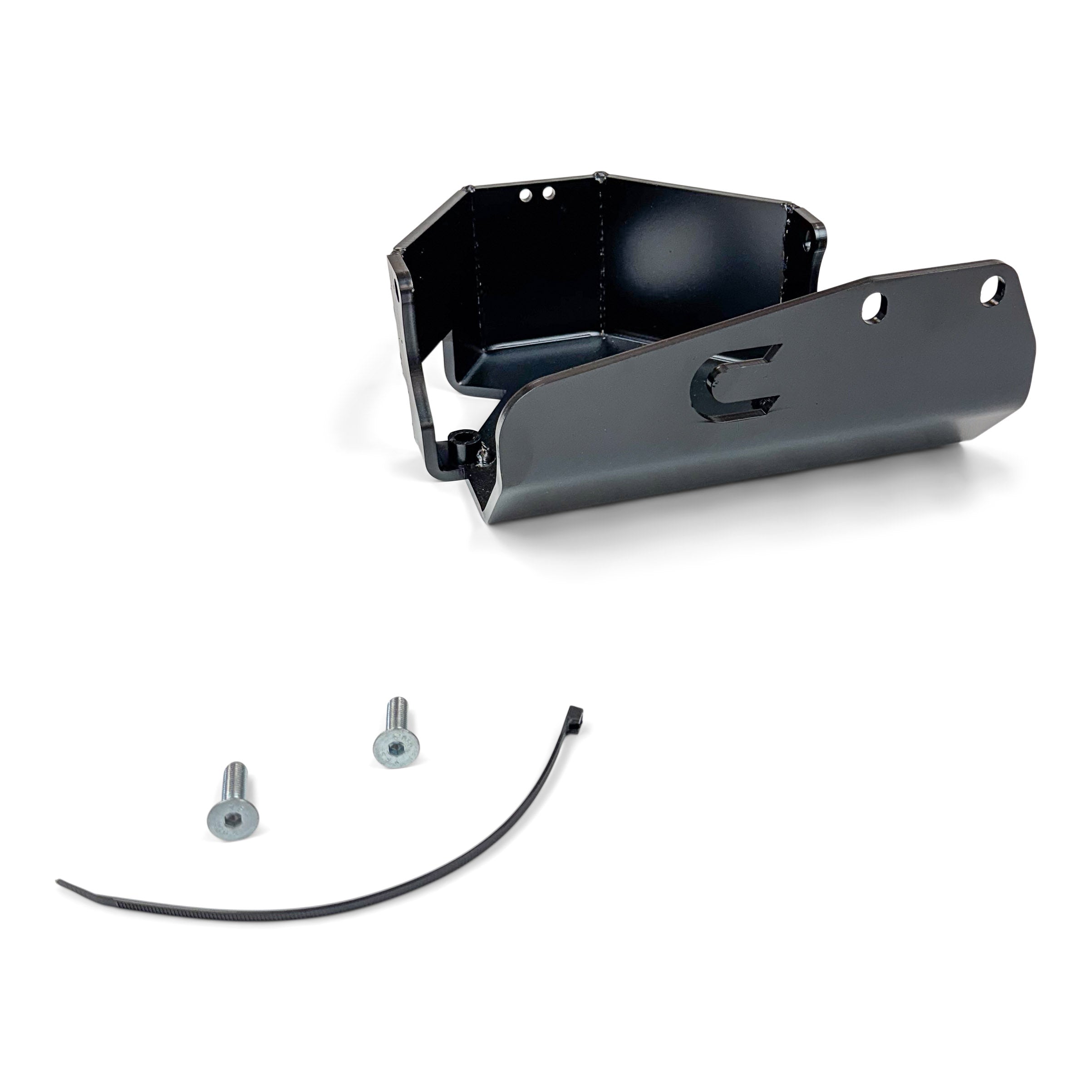

Countersunk lower bolts: Standard bolt heads at the lower 2 mounting points would create a protrusion that reduces ground clearance at a location already close to the ground. Countersunk bolts sit flush with the skid plate surface — maintaining the smoothest possible undercarriage profile for sliding over rock surfaces.

What Is and Is NOT Included

COR-5209011 is mandatory, not optional. The stock steering stabilizer bracket physically occupies space required by this skid plate. The skid plate cannot be installed without removing the stock bracket. Clayton's COR-5209011 high-clearance, over-the-tie-rod steering stabilizer conversion bracket relocates the mounting point and allows the FAD skid plate to install correctly. This bracket must be ordered and installed before or concurrently with the COR-4109010.

Critical Compatibility

Two gates must be cleared before this product is right for your build: FAD presence and the COR-5209011 prerequisite.

FAD presence. The front axle disconnect unit is not present on every JL and JT. It is a component of specific transfer case and drivetrain configurations. Before ordering, verify the FAD unit is physically present on your front axle. Clayton's own package installation notes flag this explicitly — "Not all models use a front axle disconnect." If your JL or JT does not have the FAD unit, this skid plate has no application on your vehicle.

COR-5209011 is a required companion purchase. The stock steering stabilizer bracket must be removed before this skid plate installs. This is not a minor clearance issue — the stock bracket physically prevents the skid plate from seating. Clayton's own product page states: "This skid plate REQUIRES the removal of your stock steering stabilizer bracket. We offer a high clearance, over the tie rod steering stabilizer conversion bracket. Part # COR-5209011." Order COR-5209011 at the same time as this skid plate. Do not order COR-4109010 expecting to install it without addressing the steering stabilizer bracket.

Steering range verification post-installation: The FAD skid plate is in close proximity to steering components. After installation, manually cycle through the full steering range — lock to lock — before trail use. Confirm no contact between the skid plate and the tie rod, drag link, or other steering components at any point in the steering range.

Installation Notes

Skill level: Intermediate — bolt-on, but the COR-5209011 prerequisite must be completed first, and bolt alignment requires care per owner review documentation.

Tools required: Basic socket set and wrench, torque wrench.

Installation sequence:

Step 1 — Required prerequisite (do not skip):
Install COR-5209011 high-clearance, over-the-tie-rod steering stabilizer conversion bracket per its own installation instructions before proceeding to the FAD skid plate. Remove and discard the stock steering stabilizer bracket — it cannot remain in place.

Step 2 — FAD skid plate installation:

1. Position the FAD skid plate over the front axle disconnect unit.
2. Start by loosely threading the top 4 factory hardware bolts — do not torque yet.
3. Install the included countersunk bolts at the lower 2 mounting locations — use light tapping with a rubber mallet to align bolt holes if needed (owner-confirmed installation technique).
4. Once all 6 mounting points are loosely engaged, verify alignment and seat the skid plate fully.
5. Torque all 6 mounting points to specification — top 4 factory hardware bolts first, then lower 2 countersunk bolts.

Step 3 — Post-installation verification:
Cycle steering lock-to-lock manually at ride height and confirm no contact between the skid plate and any steering or suspension component across the full range. Do not drive until clearance is verified.

Installation note from owner experience: Bolt alignment can require minor positioning — a rubber mallet tap from different angles while bolts are loosely installed is the confirmed field technique. Do not force-torque out of alignment.

Common Questions

Does my JL have a front axle disconnect?
Not all JL Wranglers have the FAD system. Rubicon models (Rock-Trac transfer case) and Sahara models (Selec-Trac transfer case) typically have FAD. Sport and Sport S models with the standard Command-Trac transfer case typically do not. Look for the FAD unit on the passenger side of the front axle — it will be visible as a motor-driven disconnect housing attached to the axle shaft. If it's not there, this skid plate has no application on your vehicle.

Do I really need to order COR-5209011 separately?
Yes — it is mandatory. The stock steering stabilizer bracket physically prevents the COR-4109010 from installing. Clayton's own product page explicitly states the requirement. Order COR-5209011 at the same time as this skid plate and install it first.

What does COR-5209011 do?
The COR-5209011 is Clayton's high-clearance, over-the-tie-rod steering stabilizer conversion bracket. It relocates the steering stabilizer mounting point to a higher, over-the-tie-rod position — providing the clearance the FAD skid plate needs while keeping the steering stabilizer functional. It is not simply removed and discarded; it is replaced with a better-positioned mount.

Is this bolt-on or does it require welding?
100% bolt-on — no cutting or welding required for the FAD skid plate itself. The prerequisite COR-5209011 is also bolt-on. The only weld-on component in the Clayton JL/JT skid system is the front lower control arm bracket mini skid plates (COR-4109020).

What does the taller rear section protect?
The rear section is made taller specifically to cover the plastic and aluminum disconnector motor housing that projects rearward from the main FAD body. This motor controls engagement and disengagement of the front axle — if it cracks from a rock strike, the 4WD disconnect system stops functioning. The taller rear section addresses that specific vulnerability.

The Obsidian Take

The FAD unit on the JL and JT is one of the few components in the entire suspension system where a single rock strike can disable a core drivetrain function. The plastic and aluminum disconnector motor housing is fragile relative to the steel it lives near — it was not designed with rock crawling in mind. When it breaks on the trail, your front axle disconnect stops working, and you're either stuck in 2WD or stuck in 4WD depending on the position it failed in. Neither is a good outcome mid-trail.

The COR-4109010 addresses this with 1/4" steel coverage across both the front and rear of the FAD mount, with the rear section specifically taller to wrap over the motor housing. The 6-point mounting is meaningfully more secure than most competitors' 4-point designs for this application.

The prerequisite conversation is the most important part of this listing. COR-5209011 is not a suggested upgrade — it is a physical requirement. Buyers who order this skid plate without also ordering COR-5209011 will receive a skid plate they cannot install without an additional order and additional wait time. Order both together.

Also worth noting in the context of a complete JL or JT protection build: this SKU addresses the front axle only. Pair it with COR-4109020 (front lower control arm bracket mini skids — weld-on) and COR-4109030 (JL rear shock bracket and control arm skids — bolt-on) or COR-4110010 (JT rear lower control arm bracket skids — bolt-on) for comprehensive front and rear bracket protection.

This SKU is for: FAD-equipped 2018–2026 JL Wrangler and 2020–2026 JT Gladiator owners who wheel on rocky terrain, have confirmed the FAD unit is present on their front axle, and are ordering COR-5209011 simultaneously.

This SKU is NOT for: JL or JT owners without the FAD unit (check your transfer case configuration before ordering), JK Wrangler owners (different system), anyone who hasn't secured COR-5209011, or anyone expecting a plug-and-play installation without the prerequisite steering stabilizer bracket swap.
