Clayton Off Road Heavy Duty Drag Link Bar | 1-3/8" Solid 7075-T651 Aluminum | OE 24mm-1.5 Thread | 1999-2004 Jeep Grand Cherokee WJ | SKU COR-5206911
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support

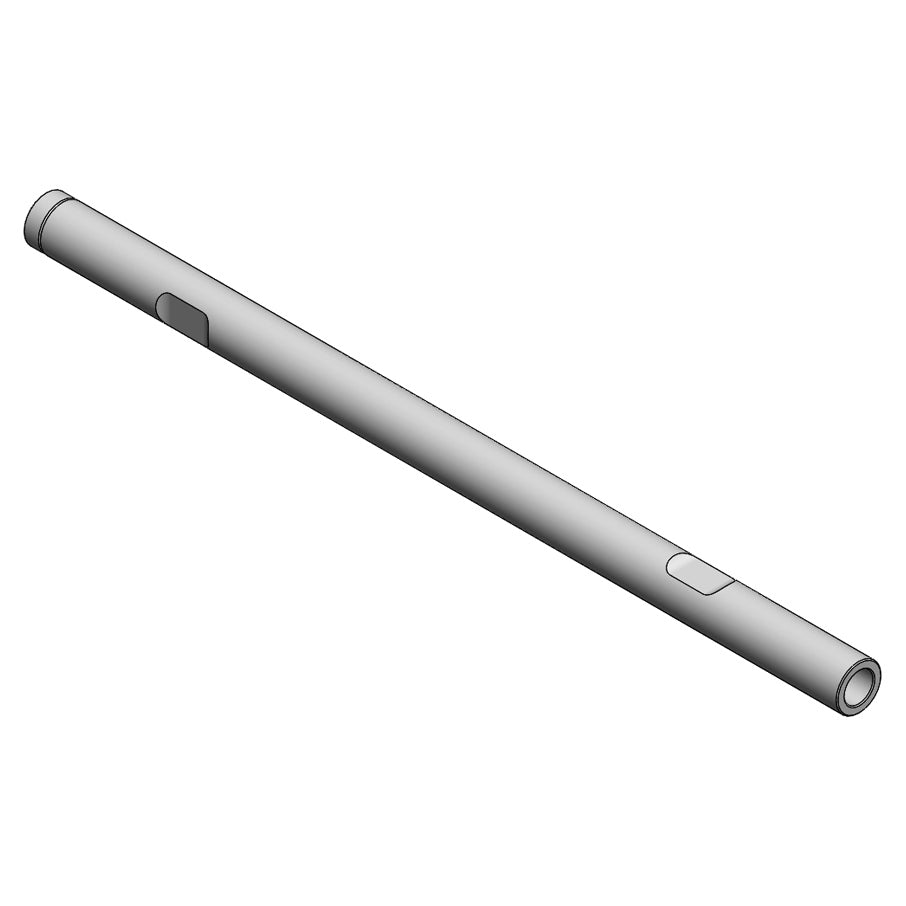

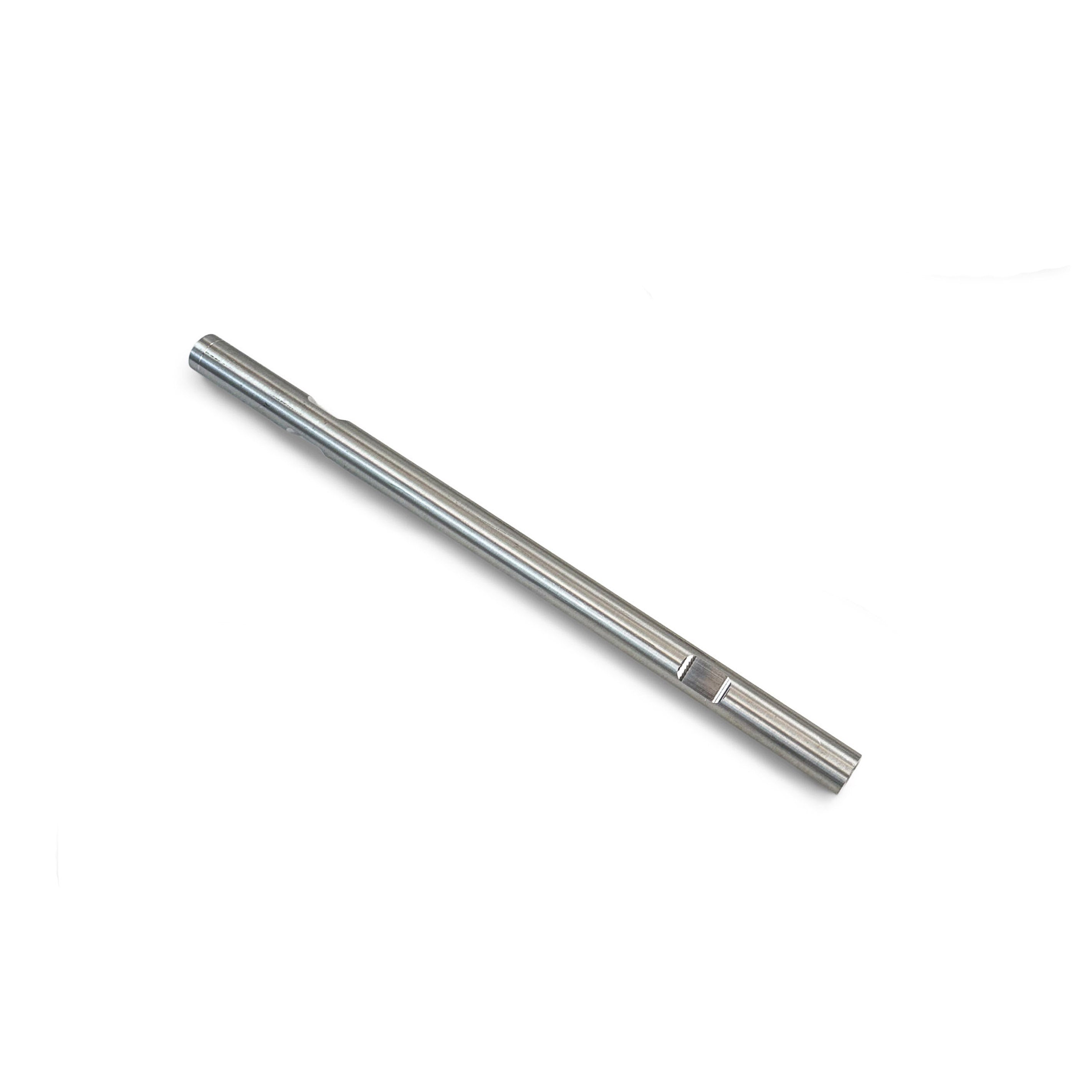

The Clayton Off Road Heavy Duty Drag Link Bar (COR-5206911) is a bolt-in drag link replacement for the 1999–2004 Jeep Grand Cherokee WJ, machined from 1-3/8" solid 7075-T651 aluminum. Drilled and tapped to the OE WJ 24mm-1.5 metric thread pitch for direct compatibility with factory end links and the factory pitman arm. Left-hand/right-hand thread configuration allows drag link length adjustment by rotating the bar body — the same adjustment method as the factory drag link, no end link removal required. Installation is 100% bolt-in: unbolt the factory stamped steel drag link, bolt this one in its place. No knuckle drilling, pitman arm modification, or frame work required. 7075-T651 alloy delivers strength comparable to many steels with good fatigue resistance, resisting the bending and flex that deforms the factory steel drag link under trail load and high-steer inputs. Made in the USA.
Pairs with the companion 7075 aluminum tie rod bar (COR-5206921) for a complete heavy-duty bolt-in WJ steering upgrade. A factory-stabilizer-compatible or Fox/Bilstein-upgradeable stabilizer mount is also available for the tie rod side of the system.
Component Specifications
| Spec | Detail |
|---|---|
| Part Number | COR-5206911 |
| Brand | Clayton Off Road |
| Application | Heavy duty drag link bar, bolt-in replacement |
| Material | 1-3/8" solid 7075-T651 aluminum |
| Thread Pitch | OE WJ 24mm-1.5 (metric) |
| Thread Configuration | Left-hand / right-hand — adjustable by rotating bar |
| End Links | Drilled and tapped for OE-style WJ end links — reuse factory end links if in good condition |
| Installation | 100% bolt-in — no cutting, welding, or fabrication |
| Companion Part | COR-5206921 — WJ 7075 aluminum tie rod bar |
| Stabilizer Mount Option | Available separately for tie rod side — reuse factory stabilizer or upgrade to Fox/Bilstein |
| Country of Origin | USA |
| Shipping Weight | 4 lbs |
| Shipping Dimensions | 27" x 2" x 2" (per OFAS data) / 36" x 4" x 4" (per Clayton's own box dimensions) |
| Price | $109.00 |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| 1-3/8" solid 7075-T651 aluminum drag link bar | ✓ |
| Drilling/tapping for OE-style end links | ✓ |
| OE end links | ✗ NOT included — reuse your existing factory end links or source separately if worn |
| Tie rod bar (COR-5206921) | ✗ NOT included — sold separately as the companion part |
| Stabilizer mount upgrade | ✗ NOT included — available separately |
Drag Link Only vs. Complete Steering System
| Configuration | Contents | Best For |
|---|---|---|
| COR-5206911 (this listing) | Drag link bar only | End links already in good condition; phasing the steering upgrade |
| COR-5206921 | Tie rod bar only | Drag link already upgraded or in good condition |
| Clayton WJ Drag Link System | Drag link + tie rod + jam nuts + stabilizer mount | Complete steering rebuild while reusing existing end links |
| Clayton WJ Upgrade Steering System | Full system with new end links included | Complete rebuild when end links also need replacement |
Verified Fitment
| Vehicle | Years | Status |
|---|---|---|
| Jeep Grand Cherokee WJ Laredo | 1999–2004 | ✓ |
| Jeep Grand Cherokee WJ Limited | 1999–2004 | ✓ |
| Jeep Grand Cherokee WJ Overland | 2002–2004 | ✓ |
| Jeep Grand Cherokee WJ Sport | 2002 | ✓ |
| Jeep Grand Cherokee WJ Special Edition | 2004 | ✓ |
| Jeep Grand Cherokee ZJ | 1993–1998 | ✗ Different drag link thread spec and geometry |
| Jeep Grand Cherokee WK | 2005–2010 | ✗ Different front steering architecture |
| Jeep Wrangler TJ/LJ/JK/JL | Any | ✗ Different front steering geometry and thread spec |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Worn or damaged OE end links | Replace before installing — this bar is drilled and tapped for end links, not sold with new ones |
| Factory stabilizer | Compatible for reuse — or upgrade to a Fox/Bilstein stabilizer with the separate mount upgrade |
| Factory stamped steel tie rod left in place | Leaves the weakest link in the steering system unchanged — pair with COR-5206921 for a complete upgrade |
| Thread engagement depth | Verify minimum thread engagement specification is met before final installation |
Common Questions
Is this a complete bolt-in replacement?
Yes. Remove the factory drag link, thread your existing (or new) OE-style end links onto this bar at the correct 24mm-1.5 thread engagement, and bolt it in using the factory pitman arm and knuckle mounting points. No drilling, welding, or fabrication required.
How do I adjust drag link length?
Rotate the bar body. The left-hand/right-hand thread configuration changes the effective length without requiring you to remove the end links — the same method as the factory drag link.
Should I upgrade the tie rod at the same time?
Yes, if your tie rod is still factory stamped steel. Upgrading the drag link alone leaves the tie rod as the weakest remaining link in the steering system. Pair with COR-5206921 for a complete heavy-duty bolt-in upgrade.
Can I reuse my factory steering stabilizer?
Yes — or upgrade to a Fox or Bilstein stabilizer using the separate stabilizer mount upgrade available for the tie rod side of the system.
The Obsidian Take
The COR-5206911 is for the WJ owner replacing a bent or worn factory drag link who wants a genuine bolt-in upgrade rather than a fabrication project. 1-3/8" solid 7075-T651 aluminum, drilled and tapped to the exact OE 24mm-1.5 metric thread, left-hand/right-hand adjustment that mirrors the factory method. No knuckle drilling, no pitman arm work, no frame modification.
The honest recommendation: don't stop at the drag link. If your tie rod is still factory steel, it remains the weakest point in the system — pair this with COR-5206921 for a complete steering upgrade in one session.
⚠️ California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information visit P65Warnings.ca.gov.
Non-Returnable Notice: Once installed, this product is non-returnable. Confirm end link condition and thread engagement before final installation.
Manufacturer Data Disclaimer: Specifications sourced from Clayton Off Road's own product documentation and authorized distributor pages. Obsidian Forged Auto Supply is an authorized Clayton Off Road dealer. Manufacturer specifications are subject to change without notice.
