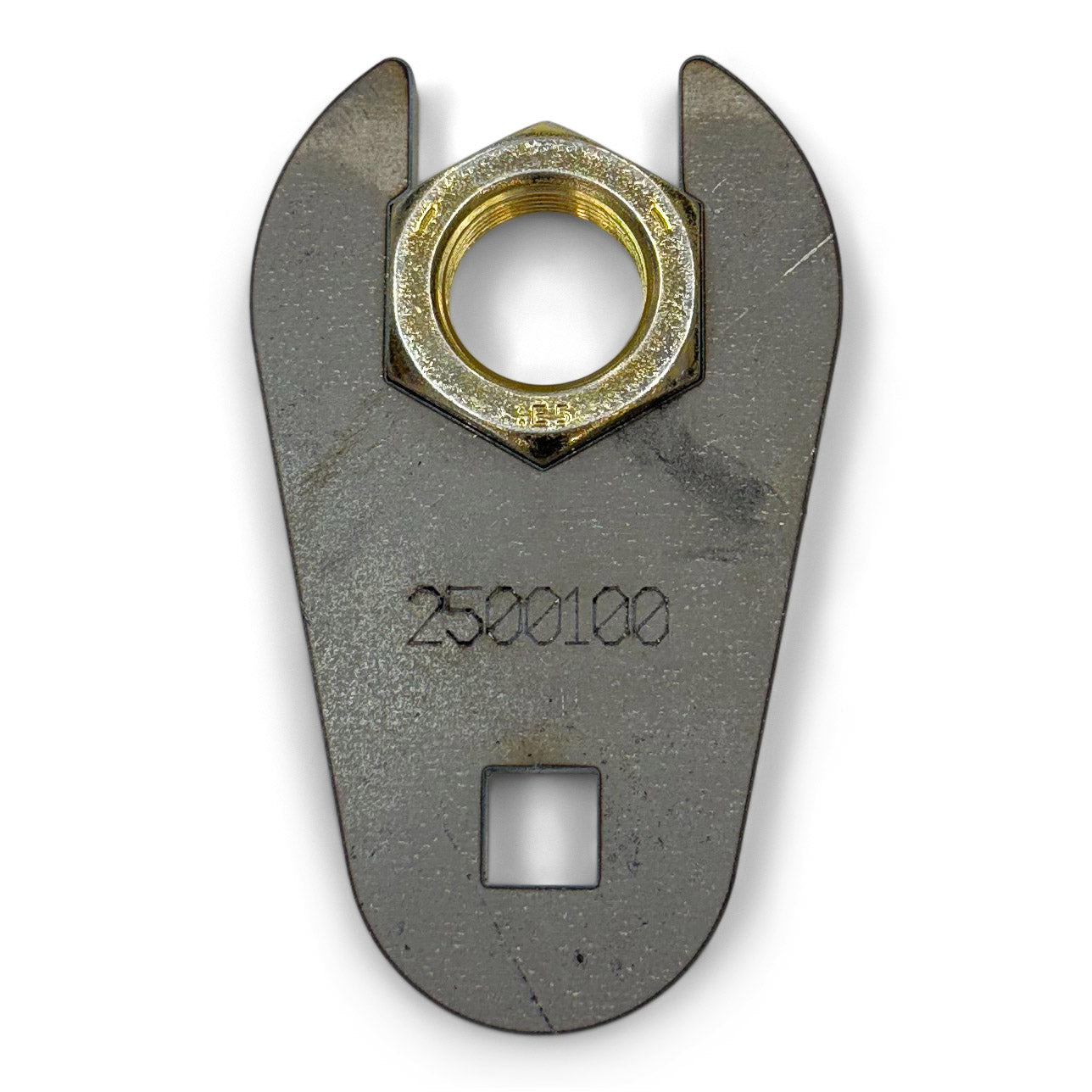

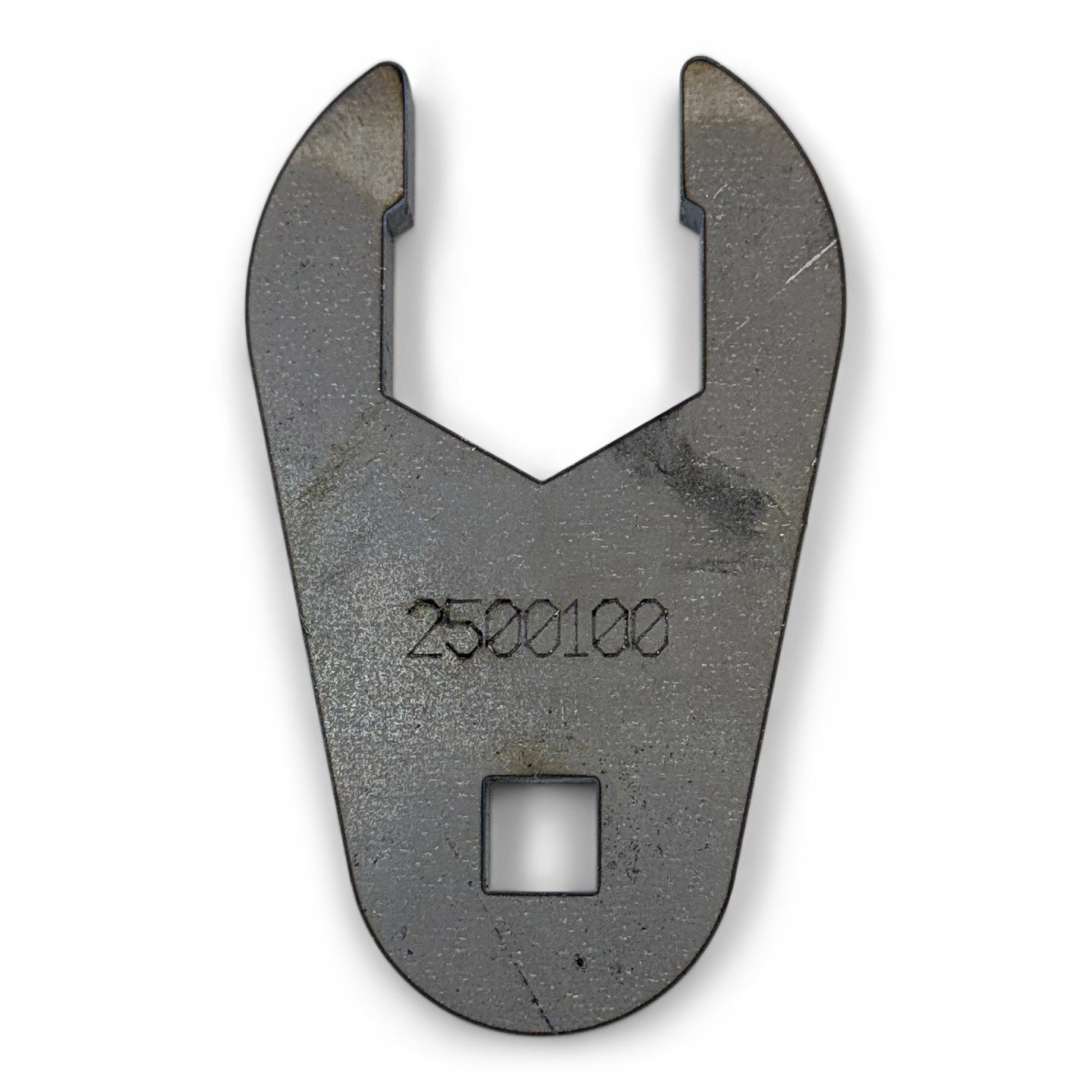

The Clayton Off Road Crow's Foot Jam Nut Wrench (COR-2500100) is a purpose-built tool for torquing the 1" jam nuts used on Clayton control arms, track bars, and tie rods. Machined to 1.485" inside width — 0.015" undersized from the nominal 1-1/2" (1.500") wrench spec — for full 6-point contact across all flats of the jam nut, eliminating the corner-loading that rounds hex flats with a standard open-end wrench. Crow's foot design accepts a 1/2" drive ratchet or torque wrench for accurate torque application in confined suspension access areas.
Designed specifically for Clayton Off Road jam nuts. May not engage correctly on non-Clayton 1" jam nuts due to the intentionally undersized bore. Do not use with an impact gun.
Component Specifications
| Spec | Detail |
|---|---|
| Part Number | COR-2500100 |
| Brand | Clayton Off Road |
| Type | Crow's foot jam nut wrench |

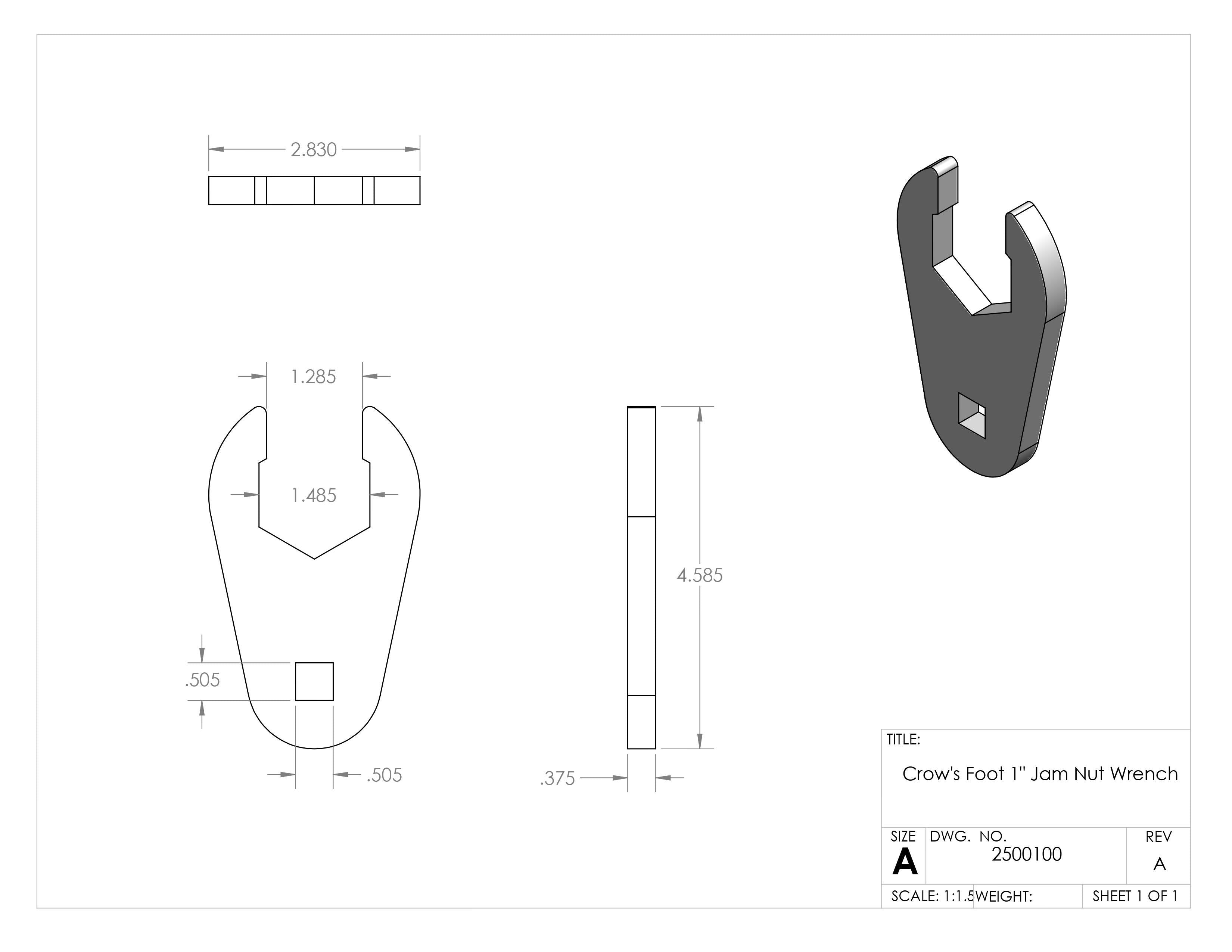

| Inside Width | 1.485" |
| Nominal Equivalent | 1-1/2" (1.500") |
| Undersize Tolerance | 0.015" |
| Drive Size | 1/2" drive |
| Contact Points | 6-point — full flat contact |
| Application | Clayton Off Road 1" jam nuts on control arms, track bars, tie rods |
| Compatibility Note | Designed specifically for Clayton jam nuts — may not work on non-Clayton applications |
| Shipping Weight | 1 lb |
| Shipping Dimensions | 6" x 10" x 1" |
| Price | $20.00 |
| Sold As | Each |
What Is and Is NOT Included
| Item | Included |
|---|---|
| Crow's foot jam nut wrench, 1.485" | ✓ |
| 1/2" drive ratchet or torque wrench | ✗ NOT included — required to use this wrench |
| Standard (non-crow's-foot) jam nut wrench | ✗ NOT included — available separately or in pair sets |
Clayton Jam Nut Wrench Family — Confirm the Correct Size
| Product | Jam Nut Size | Inside Width | Nominal Equivalent |
|---|---|---|---|
| COR-2500100 (this listing) | 1" | 1.485" | 1-1/2" (1.500") |
| Crow's Foot 1-1/4" Jam Nut Wrench | 1-1/4" | 1.843" | 1-7/8" (1.875") |
| Jam Nut Wrenches (Pair) — Small | 1" | 1.485" | Includes both crow's foot and standard wrench |
| Jam Nut Wrenches (Pair) — Large | 1-1/4" | 1.843" | Includes both crow's foot and standard wrench |
| Jam Nut Wrenches Set — Small and Large | 1" and 1-1/4" | 1.485" and 1.843" | Four wrenches total — both sizes, both styles |
If you're servicing multiple jam nut sizes across your Clayton suspension components, the combined set may be more cost-effective than buying individual wrenches.
Verified Fitment
| Application | Status |
|---|---|
| Clayton Off Road 1" jam nuts on control arms, track bars, tie rods | ✓ |
| Non-Clayton 1" jam nuts | ⚠️ May not engage correctly — bore is intentionally undersized specifically for Clayton hardware tolerances |
| Jam nuts requiring 1-1/4" wrench (Clayton's larger size) | ✗ Different wrench required — see Crow's Foot 1-1/4" |
| Impact drivers | ✗ Not for use — will damage wrench and jam nut |
Critical Compatibility
| Configuration | Notes |
|---|---|
| Non-Clayton jam nuts | Not guaranteed to fit — the undersized bore is calibrated to Clayton's specific jam nut manufacturing tolerances |
| Impact gun use | Will damage the crow's foot and the jam nut — use only with a 1/2" drive ratchet or torque wrench |
| Out-of-spec or already-rounded jam nuts | The 1.485" bore will not engage correctly — verify your jam nut is a standard, undamaged 1" hex before use |
| Angled engagement | Defeats the 6-point contact advantage — apply the wrench squarely to the jam nut before applying torque |
Common Questions
Will this work on jam nuts from other brands?
Not guaranteed. Clayton designed the undersized bore specifically around their own jam nut manufacturing tolerances. It may not engage correctly on other brands' 1" jam nuts.
Can I use this with an impact gun?
No. Use only with a 1/2" drive ratchet or torque wrench. Impact torque will damage both the crow's foot and the jam nut.
What if I also have 1-1/4" jam nuts to service?
Clayton makes a separate 1-1/4" crow's foot wrench (1.843" inside width). If you service both sizes regularly, the combined Small and Large set bundles both crow's foot wrenches plus standard wrenches for hard-to-reach spots.
Why not just use a standard 1-1/2" wrench?
The manufacturing tolerance gap between a standard 1.500" wrench and the jam nut allows the wrench to contact only 2 corners under load instead of all 6 flats, concentrating torque and rounding the hex over time. The 0.015" undersized fit eliminates that gap.
The Obsidian Take
The COR-2500100 is for the Clayton suspension owner who's tired of standard wrenches slipping or rounding jam nuts during install or service. The 1.485" undersized bore is calibrated specifically to Clayton's own jam nut tolerances for true 6-point contact — not a generic crow's foot.
The honest scope check: this is built for Clayton hardware specifically. If you're servicing a mix of brands, don't assume this wrench solves every 1" jam nut on the vehicle — verify it's Clayton hardware first.
