Clayton Off Road High-Clearance Steering Stabilizer Relocation Bracket Kit | CNC 3/16" Steel | Double-Shear Axle Mount | Grade 8 Track Bar Bolt Included | 2018–2026 Jeep Wrangler JL / 2020–2026 Gladiator JT | SKU: COR-5209011
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This bracket kit fits the 2018 and newer Jeep Wrangler JL (2-Door and 4-Door Unlimited) and the 2020 and newer Jeep Gladiator JT. Fitment applies across all trim levels provided the factory tie rod is in place. Trucks with aftermarket tie rods cannot use the included tie rod mount — see Field 3.
| Year Range | Make | Model | Configuration | Tie Rod | Notes |
|---|---|---|---|---|---|
| 2018–2026 | Jeep | Wrangler JL | 2-Door | Factory | All trims |
| 2018–2026 | Jeep | Wrangler JL Unlimited | 4-Door | Factory | All trims |
| 2020–2026 | Jeep | Gladiator JT | All cab configurations | Factory | All trims |
This is a bracket kit only — no steering stabilizer is included. A factory or most aftermarket stabilizers are compatible with the raised double-shear axle mount.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler JK (2007–2018) | Different front axle stabilizer mount geometry — this bracket is designed specifically for the JL/JT axle mount |
| Jeep Wrangler TJ / YJ / CJ | Different front axle designs — not applicable |
| Vehicles with aftermarket tie rods | The included tie rod stabilizer mount is designed for the factory JL/JT tie rod diameter and mount style. Aftermarket tie rods require separate mounting brackets specific to their diameter. The raised double-shear axle mount can still be used, but the tie rod mount must be sourced separately. |
| Buyers expecting the stabilizer to be included | This is a relocation bracket kit only. Your existing factory or aftermarket stabilizer mounts to this kit — a new stabilizer is not included. |
| Factory tie rod compatibility with non-standard axle mounts | Bracket clamps to the factory axle mount — trucks with heavily modified front axle assemblies that have removed or altered the factory bracket may require additional fitment confirmation |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5209011 |
| Bracket material | 3/16" steel — CNC laser-cut and bent |
| Finish | Gold zinc plated — corrosion resistant |

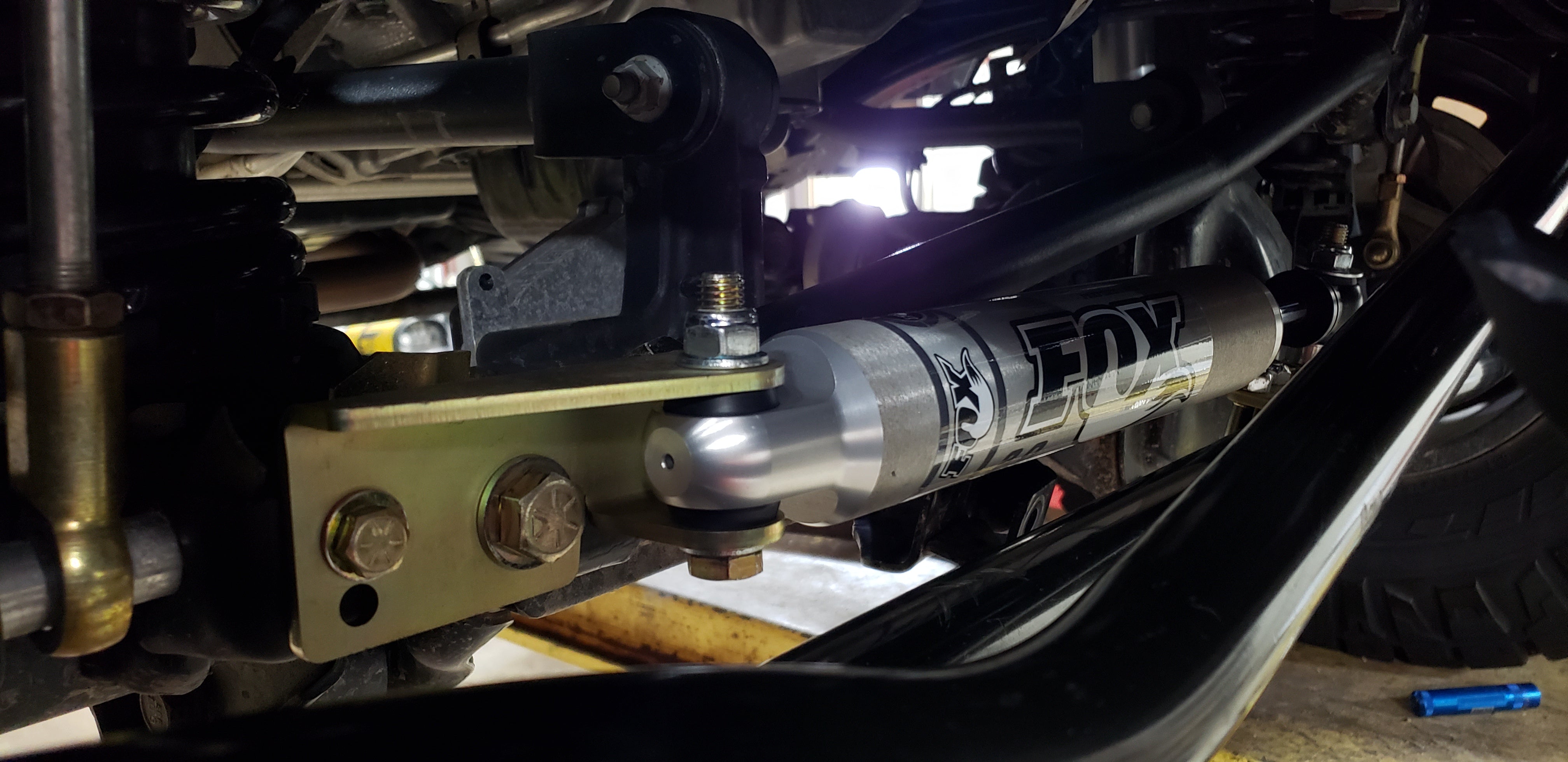

| Mount style | Double-shear at axle end — raises stabilizer above tie rod |
| Track bar bolt access | Preserved — bracket geometry specifically clears the track bar bolt head for inspection and retorque without bracket removal |
| Stabilizer compatibility | Factory JL/JT stabilizer and most aftermarket stabilizers |
| Tie rod compatibility | Factory JL/JT tie rod only — aftermarket tie rods require separate bracket |
| Installation | Clamps to factory axle bracket; requires one 3/8" drill hole in factory axle mount |
| Track bar bolt torque | 146 ft-lbs (included Grade 8 flanged bolt + top-lock nut) |
| Country of origin | Made in USA |
| Unit weight | 2 lb |
| Shipping dimensions | 9" × 7" × 7" |
What Is and Is NOT Included

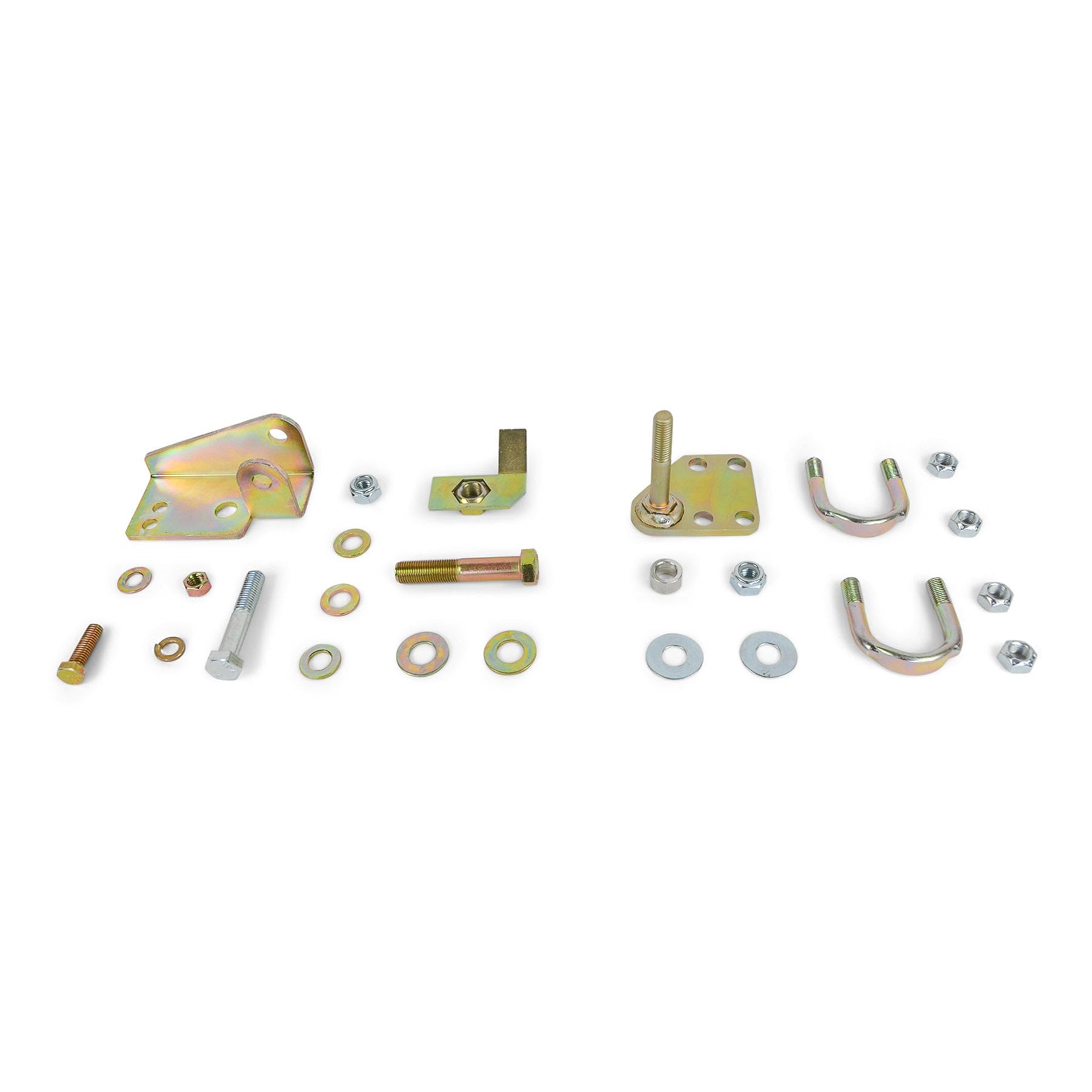

Included:
| Component |
|---|

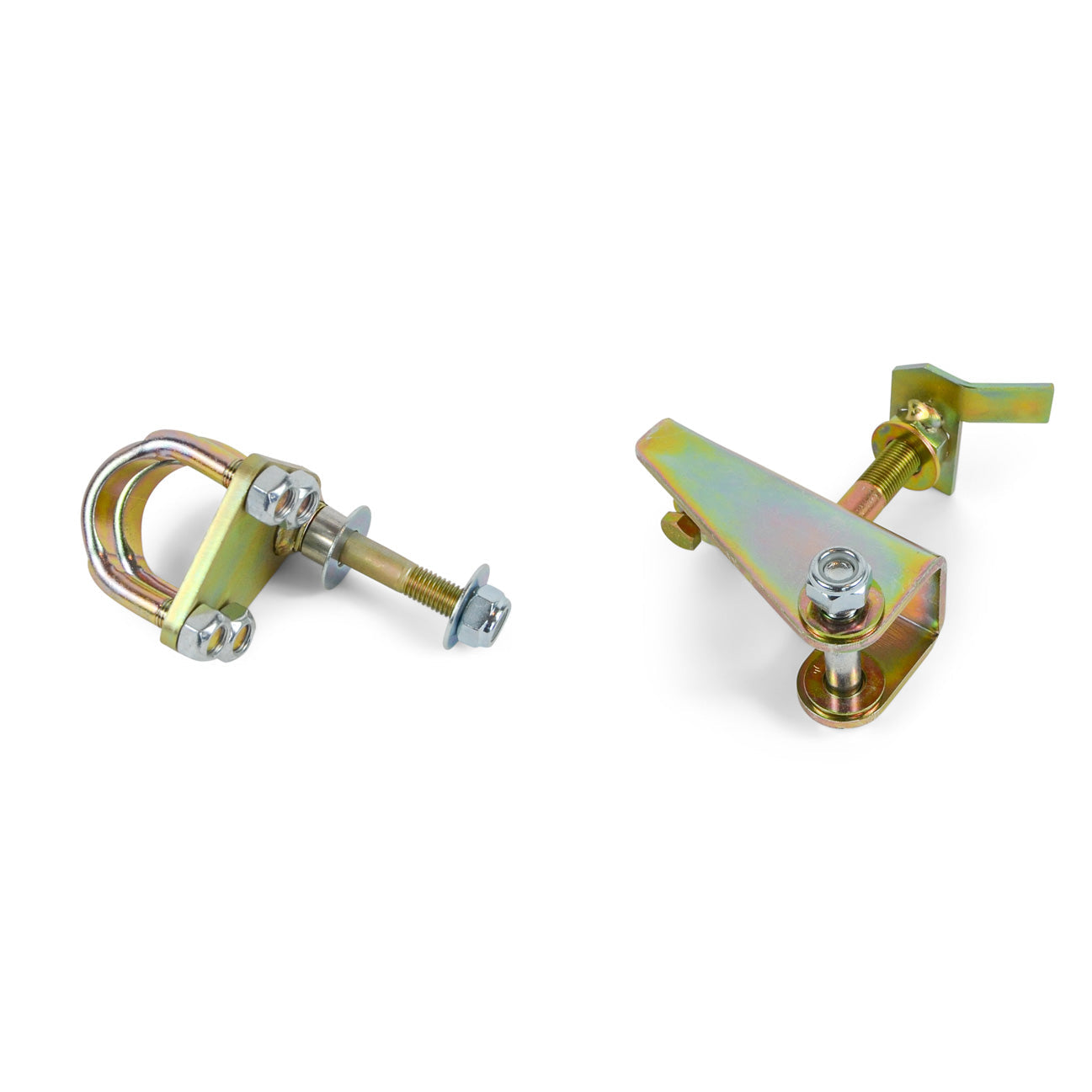

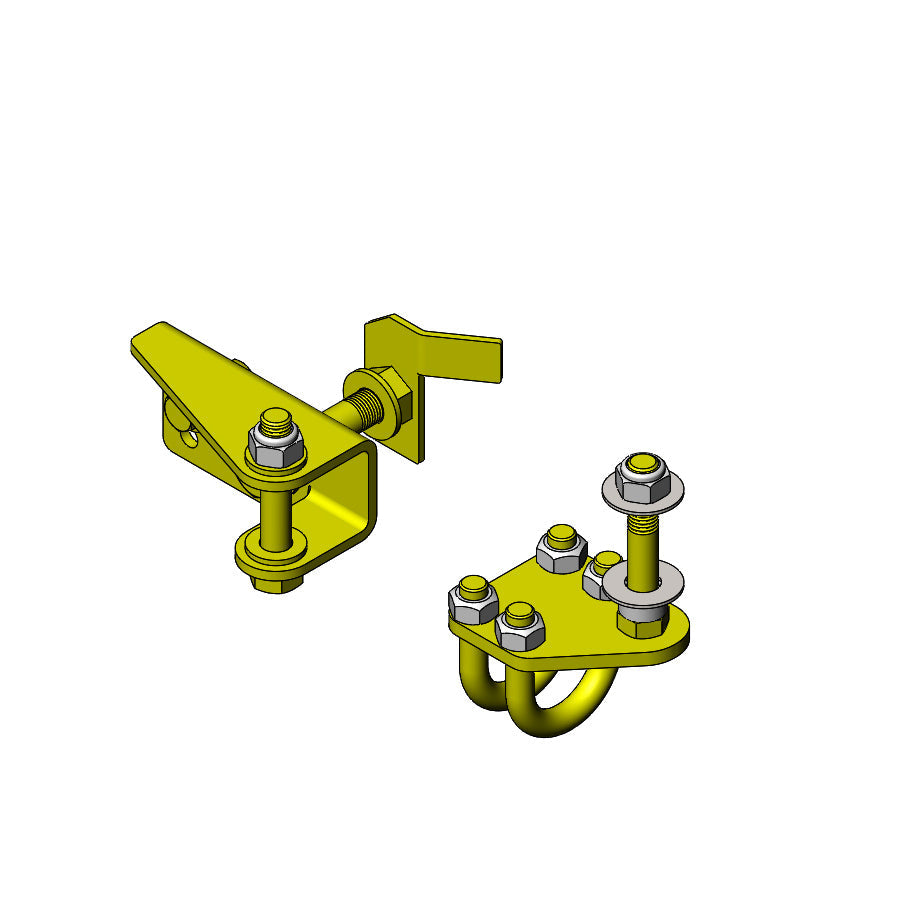

| Raised double-shear axle mount bracket (3/16" CNC steel, gold zinc plated) |
| Tie rod stabilizer mount bracket |
| Grade 8 bracket hardware (clamp hardware for factory axle bracket) |
| Grade 8 flanged track bar bolt (axle end) |
| Top-lock nut with deformed thread zones |
Not Included:
| Item | Notes |
|---|---|
| Steering stabilizer | This kit relocates your existing factory or aftermarket stabilizer — no stabilizer is included. Confirm your stabilizer's axle-end eye diameter and pin size are compatible with the double-shear mount before ordering. |
| Tie rod mount for aftermarket tie rods | If your JL or JT has an aftermarket tie rod, the included tie rod mount does not apply. Source a compatible bracket separately for your specific tie rod diameter. |
| Drill and 3/8" drill bit | One 3/8" hole must be drilled in the factory axle bracket during installation. Tools not included. |
| Professional installation labor | Not included. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Factory tie rod requirement | The included tie rod stabilizer mount is designed specifically for the factory JL/JT tie rod. Running an aftermarket tie rod means this mount cannot be used as-is — only the axle-side double-shear bracket applies. | Confirm whether your JL or JT has a factory or aftermarket tie rod before ordering. |
| Stabilizer eye diameter and pin size | The double-shear axle mount accepts factory and most aftermarket stabilizers, but eye diameter and pin size must be compatible. Clayton states "most aftermarket stabilizers" are compatible — confirm your specific stabilizer's axle-end dimensions before installation. | Verify your stabilizer's axle-end eye diameter and pin size match the double-shear mount before ordering. |
| Track bar bolt replacement | The kit includes an upgraded Grade 8 flanged track bar bolt and top-lock nut to replace the OEM track bar bolt at the axle end. The flanged nut contacts the axle body directly, preventing rotation. The top-lock nut uses deformed thread zones at the crown for additional retention and will not thread to final position by hand. | Install included track bar bolt and top-lock nut using a calibrated torque wrench to 146 ft-lbs — do not substitute the OEM bolt. |
| Axle bracket surface preparation | The double-shear bracket clamps to the factory axle bracket. Proper clamp load requires a clean contact surface — dirt, rust, and undercoating must be removed before installation. | Clean the factory axle bracket contact surface before installing the double-shear bracket. |
| Lift height and stabilizer length | Relocating the stabilizer above the tie rod changes its mounting position. Verify that your stabilizer's length and travel range are appropriate for your current lift height after installation. | Confirm stabilizer length and travel compatibility with your lift height before finalizing installation. |
Installation Notes
Skill level: Intermediate. One 3/8" hole must be drilled in the factory axle bracket — this is the only permanent modification required. All other steps are bolt-on. A basic tool set, torque wrench, and 3/8" drill bit are the primary requirements.
Step-by-step installation summary:
- Clean the factory axle bracket contact surface — remove dirt, rust, and undercoating for proper clamp load on the double-shear bracket.
- Drill one 3/8" hole in the factory axle bracket at Clayton's specified location per installation instructions.
- Clamp the double-shear axle bracket to the factory bracket using the included Grade 8 hardware — torque all bracket bolts to Clayton's specified values.
- Install the included Grade 8 flanged track bar bolt and top-lock nut in place of the OEM track bar bolt at the axle end. Start by hand to confirm thread engagement — this nut will not thread to final position by hand. Torque to 146 ft-lbs with a calibrated torque wrench.

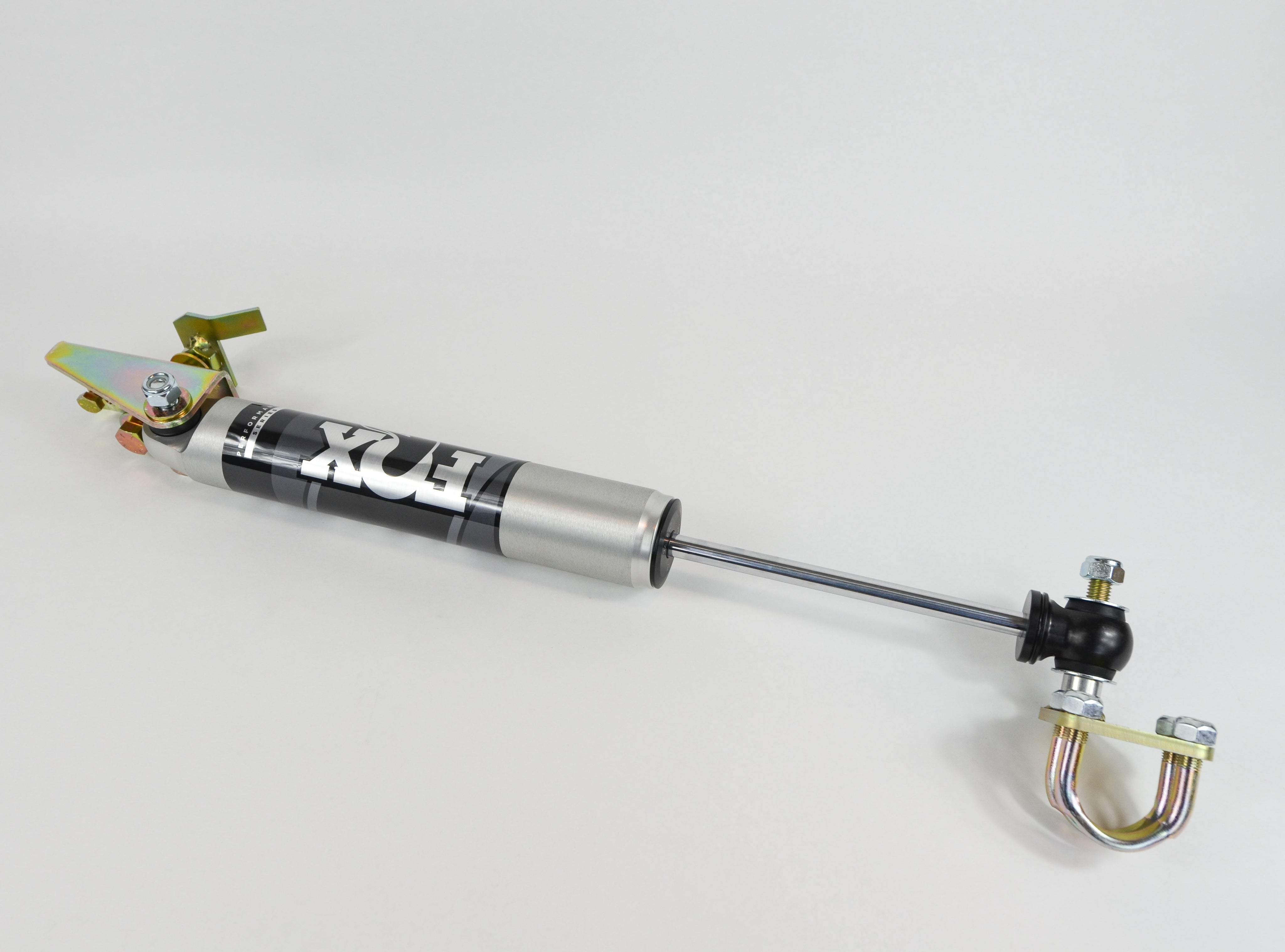

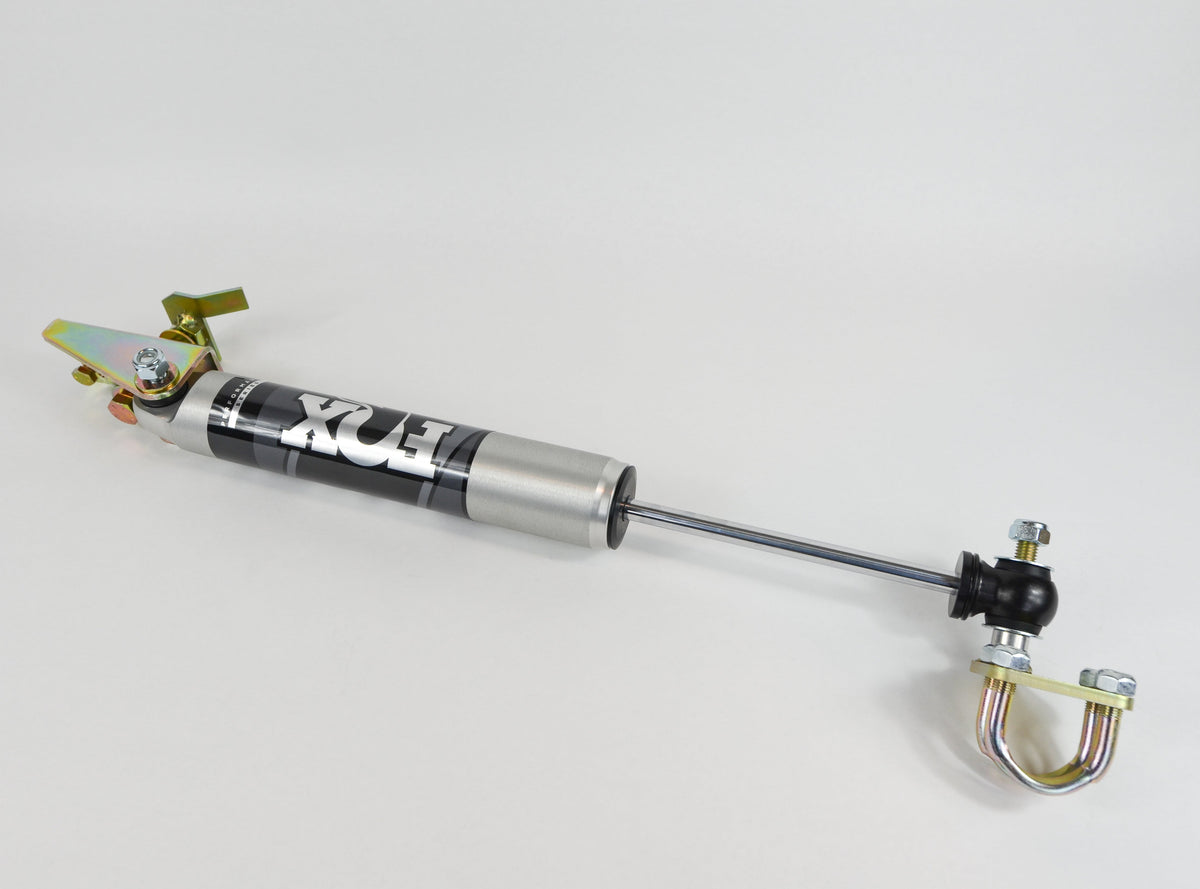

- Mount your stabilizer to the raised double-shear bracket at the axle end and to the new tie rod mount at the tie rod end (factory tie rod only).
- Verify track bar bolt head is accessible after bracket installation — confirm clearance before final torque.
- Verify stabilizer length and travel range are appropriate for your lift height before returning to the trail.
Required tools:
| Tool | Required |
|---|---|
| Torque wrench (to 146 ft-lbs) | Yes |
| 3/8" drill bit and drill | Yes |
| Full socket and wrench set | Yes |
| Wire brush or surface prep tool | Recommended |
Common Questions
Why does the factory JL/JT steering stabilizer position cause problems off-road?

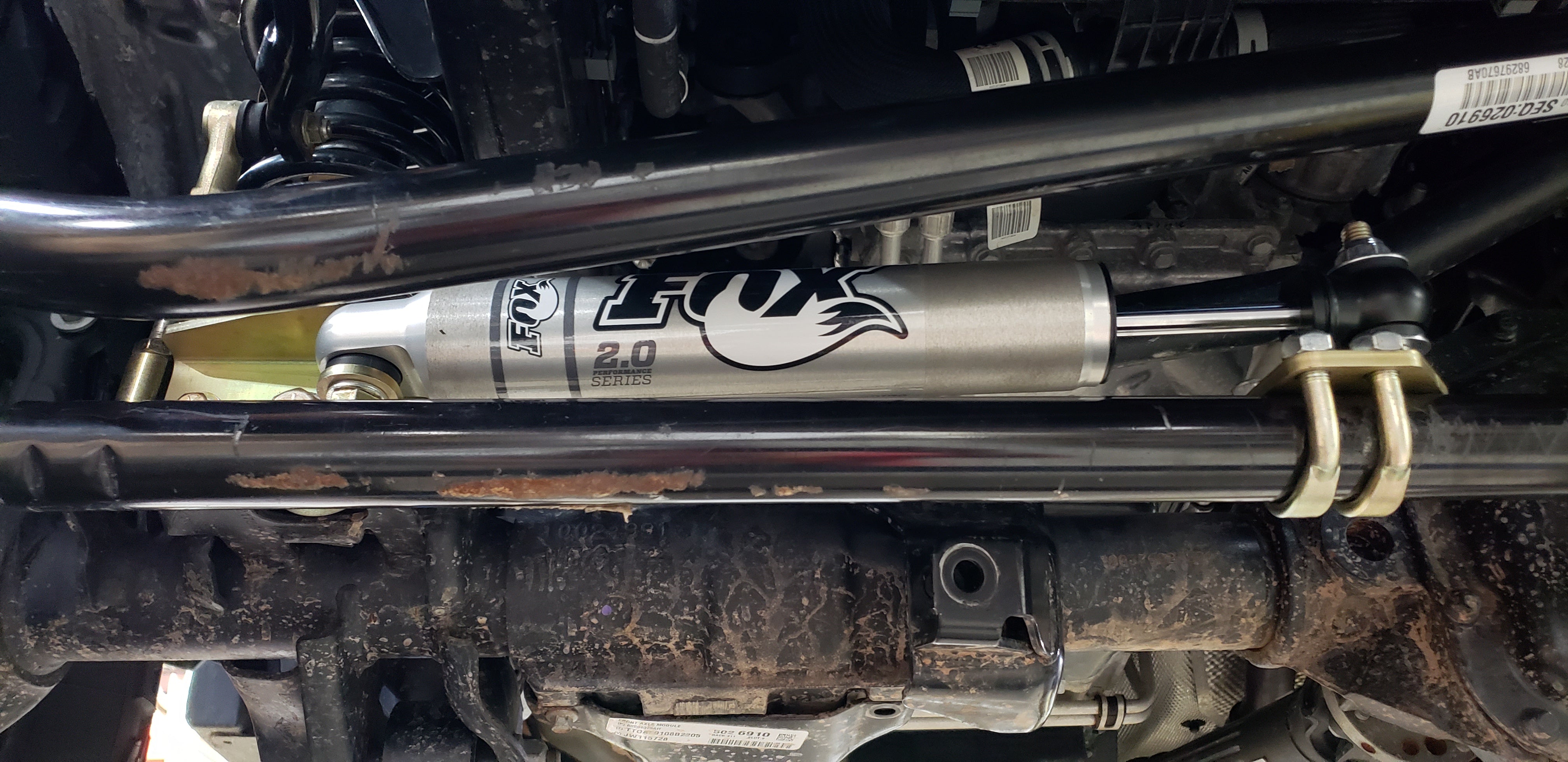

The factory JL/JT stabilizer mounts below the tie rod on the axle side. In that position it is the lowest-hanging component in the steering system and takes direct rock contact on technical terrain — ledges, boulder fields, and trail obstacles that pass harmlessly under the tie rod will hit the stabilizer. This kit raises the stabilizer above the tie rod, putting the tie rod between the stabilizer and the obstacle. The tie rod is already there regardless — the relocation simply moves the more vulnerable stabilizer above it.
Do I need to drill into the axle?
One 3/8" hole must be drilled into the factory axle bracket (not the axle housing itself) during installation. This is the only permanent modification required. The double-shear bracket then clamps to the factory bracket using the drilled hole and Grade 8 hardware.
Why does the kit include a new track bar bolt?
The bracket is installed around the same axle area as the track bar bolt. Clayton engineered the bracket geometry to preserve access to the track bar bolt head — you can inspect and retorque the track bar without removing this bracket. The included Grade 8 flanged bolt and top-lock nut replace the OEM track bar bolt at the same time as the bracket installation. The flanged nut contacts the axle body directly to prevent rotation; the deformed thread zones in the top-lock nut resist loosening under vibration. Torque to 146 ft-lbs.
I have an aftermarket tie rod. Can I still use this kit?
Partially. The raised double-shear axle mount can still be used. The included tie rod mount is designed for the factory JL/JT tie rod diameter — if your tie rod is aftermarket, the included mount likely will not fit your tie rod's diameter. Source a compatible tie rod bracket separately for your specific aftermarket tie rod. Text (469) 407-7538 if you need help identifying the right companion bracket.
Does this kit include a steering stabilizer?
No — this is a relocation bracket kit only. Your existing factory or aftermarket stabilizer mounts to this kit. Verify your stabilizer's axle-end eye diameter and pin size are compatible with the double-shear mount before ordering.
The Obsidian Take
This kit is for the JL Wrangler or Gladiator JT owner who runs technical terrain and has either already destroyed a steering stabilizer on a rock or plans to before the end of the season. The factory mount position puts the stabilizer below the tie rod — the lowest contact point in the steering system — and on anything technical that becomes a recurring replacement expense. Moving it above the tie rod solves the problem at the source for 2 lb and the cost of one drill hole.
The track bar bolt access detail is not marketing language — it is the specific design feature that separates this bracket from a simpler relocation. Many brackets in this category require removing the stabilizer to retorque the track bar bolt. Clayton designed the clearance in specifically so you don't have to. For any JL or JT owner who retorques their front-end hardware on a regular inspection schedule, that matters.
It is not for the JK owner — the axle geometry is different. It is not for any truck running an aftermarket tie rod without sourcing a compatible tie rod mount separately. And it is not a complete solution for stabilizers that are already damaged — relocate the bracket after replacing a worn stabilizer, not before confirming the stabilizer itself is in serviceable condition.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm fitment with your existing stabilizer and tie rod setup before installation.
Prop 65 Warning
N/A — Prop 65 applicability not confirmed in Clayton Off Road source data for this SKU. Verify with Clayton Off Road before publishing if selling to California customers.
Non-Returnable Notice
Steering components are non-returnable once installed. Confirm fitment (2018–2026 JL or 2020–2026 JT, factory tie rod) and stabilizer compatibility before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
