Clayton Off Road Steering Stabilizer High-Clearance Relocation Axle Bracket | JK No-Drill | JL/JT Requires COR-5200940 | 2007–2018 JK / 2018–2026 JL / 2020–2026 JT | SKU: COR-5209010
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This bracket fits the Jeep Wrangler JK, JL, and Gladiator JT — but installation requirements differ significantly by platform. Read the platform split carefully before ordering.
| Year Range | Make | Model | Configuration | Tie Rod | Drill Required | Additional Part Required |
|---|---|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door and 4-Door | Factory | No | None — factory tie rod mount reused |
| 2018–2026 | Jeep | Wrangler JL | 2-Door | Factory | Yes — one 3/8" hole | COR-5200940 tie rod mount |
| 2018–2026 | Jeep | Wrangler JL Unlimited | 4-Door | Factory | Yes — one 3/8" hole | COR-5200940 tie rod mount |
| 2020–2026 | Jeep | Gladiator JT | All configurations | Factory | Yes — one 3/8" hole | COR-5200940 tie rod mount |
JL/JT buyers: If you want the complete packaged solution without ordering COR-5200940 separately, order COR-5209011 instead — it includes this bracket plus the COR-5200940 tie rod mount.
This is an axle bracket only — no tie rod mount is included. No steering stabilizer is included.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler TJ / LJ (1997–2006) | Different front axle stabilizer mount geometry — not applicable |
| Jeep Wrangler YJ / CJ | Different front axle design — not applicable |
| JL/JT without also ordering COR-5200940 | This bracket does not include a tie rod mount. JL/JT installation is incomplete without COR-5200940. If you need both, order COR-5209011 (the complete kit). |
| Vehicles with aftermarket tie rods | The factory tie rod mount (JK reuse) and COR-5200940 (JL/JT) are both designed for the factory tie rod diameter. Aftermarket tie rods require a separate, diameter-specific tie rod bracket. |
| Buyers expecting a steering stabilizer to be included | This is a relocation bracket only. Your existing stabilizer mounts to this bracket. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5209010 |

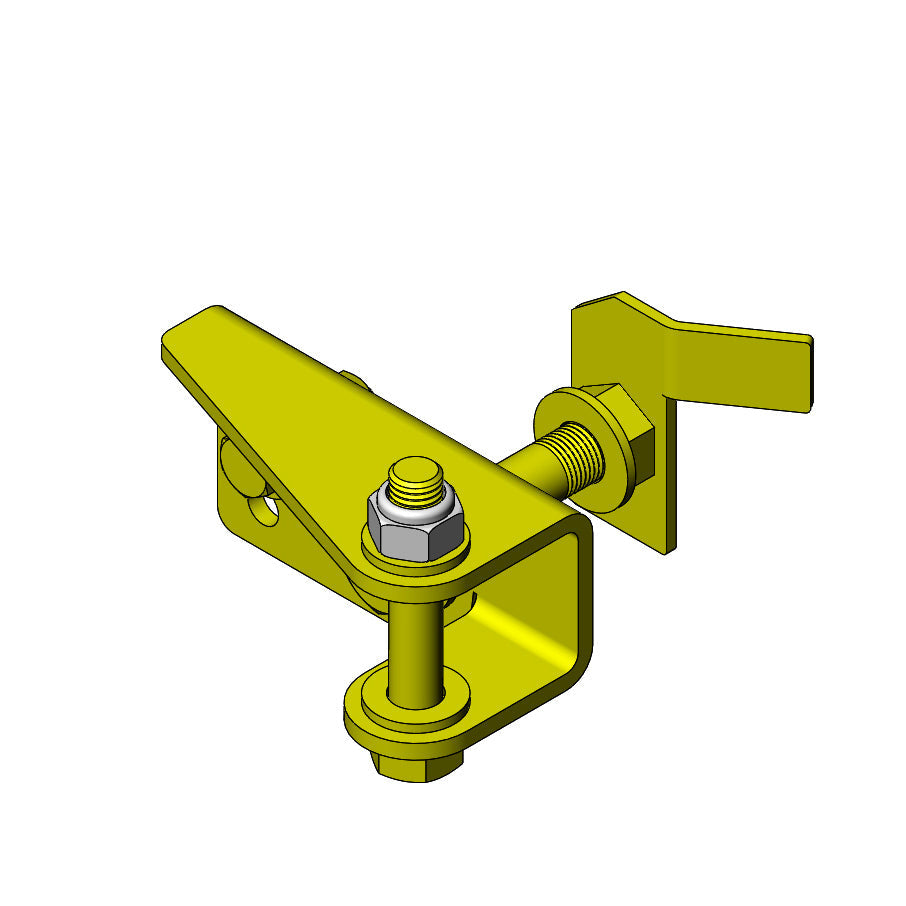

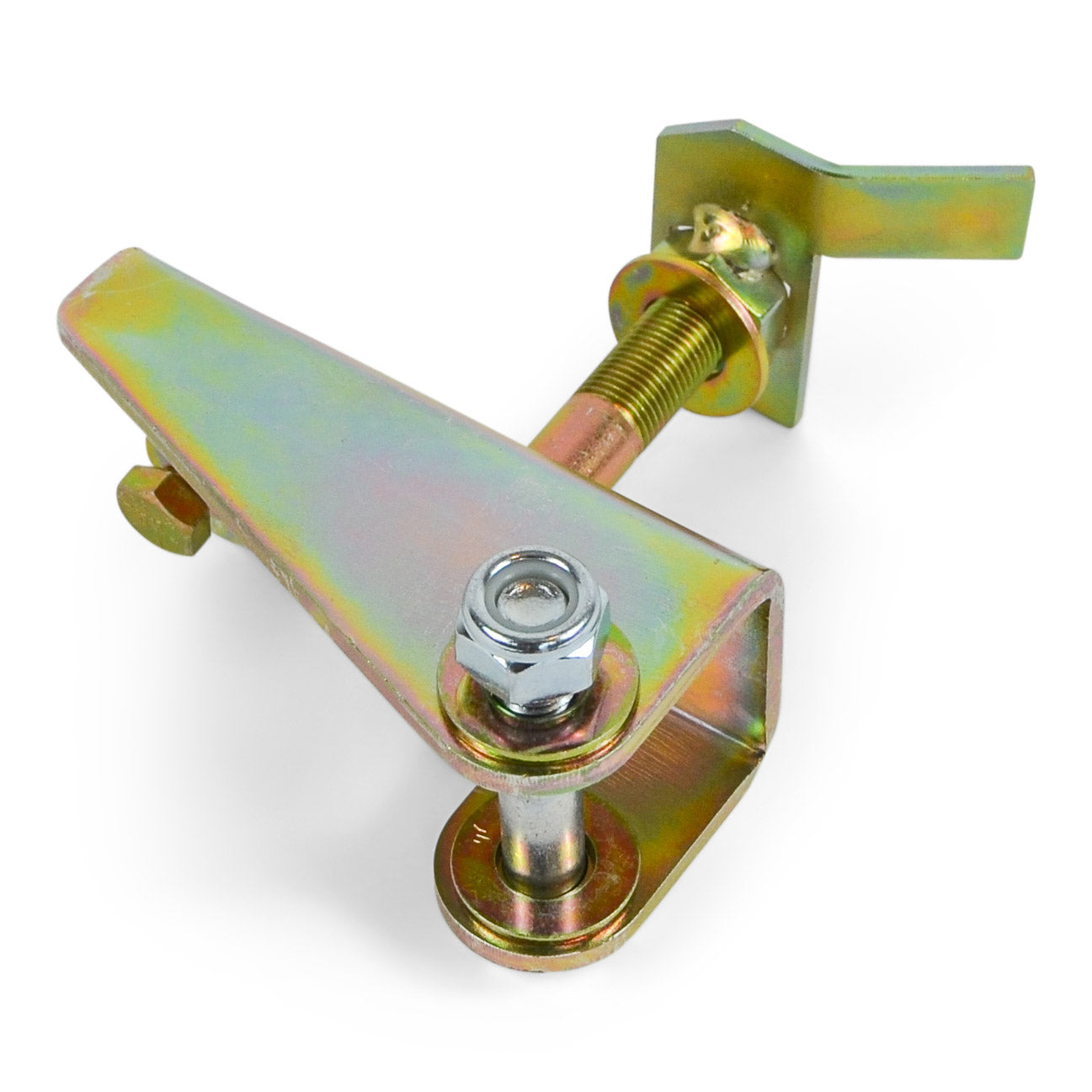

| Kit contents | Double-shear axle bracket, Grade 8 bracket hardware, Grade 8 flanged track bar bolt, top-lock nut |
| Tie rod mount included | No — axle bracket only |
| JL/JT tie rod mount | COR-5200940 (sold separately) — or order COR-5209011 for complete JL/JT package |
| Bracket material | 3/16" steel — CNC laser-cut and bent |
| Finish | Gold zinc plated |
| Mount style | Double-shear (axle end) |
| JK installation | Bolt-on — factory tie rod mount reused, no drilling required |
| JL/JT installation | One 3/8" drill hole in factory axle bracket + COR-5200940 required |

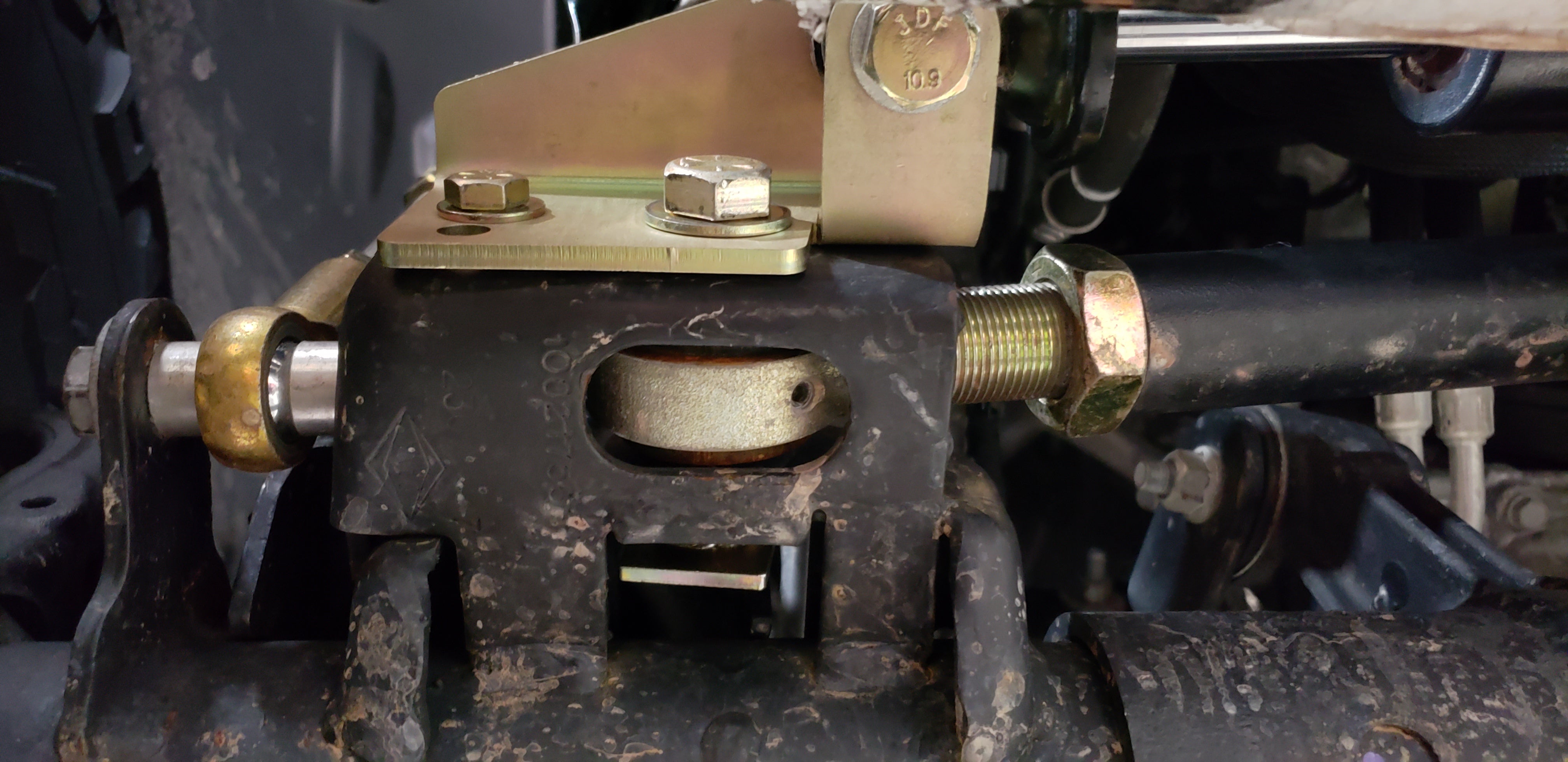

| Track bar bolt access | Preserved — bracket geometry clears track bar bolt head for inspection and retorque without removal |
| Track bar bolt torque | 146 ft-lbs (included Grade 8 flanged bolt + top-lock nut) |
| Stabilizer compatibility | Factory and most aftermarket stabilizers |
| Tie rod compatibility | Factory tie rod only |
| Country of origin | Made in USA |
| Unit weight | 2 lb |
| Shipping dimensions | 6" × 4" × 4" |
What Is and Is NOT Included

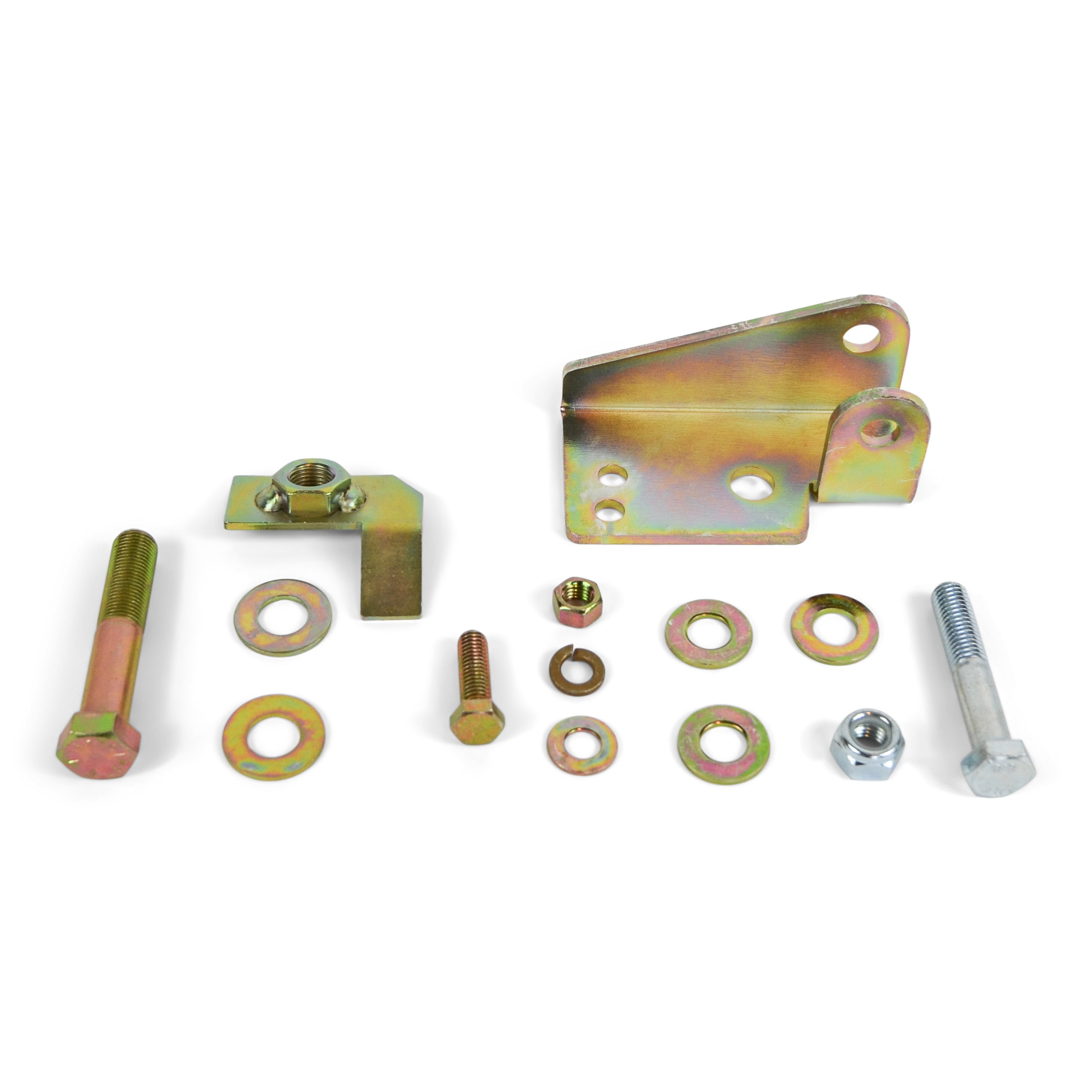

Included:
| Component |
|---|
| Double-shear axle bracket (3/16" CNC steel, gold zinc plated) |
| Grade 8 bracket clamp hardware |
| Grade 8 flanged track bar bolt (axle end) |
| Top-lock nut with deformed thread zones |
Not Included:
| Item | Notes |
|---|---|
| Tie rod stabilizer mount | Not included in this SKU. JK owners reuse the factory tie rod mount — no additional part needed. JL/JT owners must order COR-5200940 separately, or order COR-5209011 for the complete kit that includes it. |
| Steering stabilizer | This bracket relocates your existing factory or aftermarket stabilizer. Confirm your stabilizer's axle-end eye diameter and pin size are compatible with the double-shear mount. |
| Drill and 3/8" drill bit | JL/JT installation only — one 3/8" hole must be drilled in the factory axle bracket. Tools not included. |
| Professional installation labor | Not included. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| JL/JT tie rod mount — not included | This is the most common ordering error on this SKU. JL/JT owners who order COR-5209010 without also ordering COR-5200940 will receive an axle bracket with no way to mount the tie rod end of the stabilizer. | JL/JT owners: add COR-5200940 to your order, or order COR-5209011 for the complete packaged kit. |

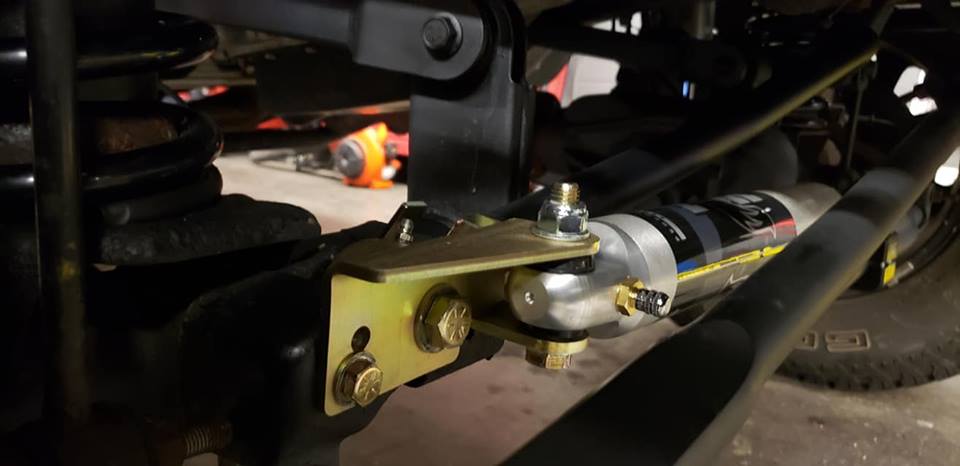

| JK factory tie rod mount reuse | On the JK, the factory tie rod stabilizer mount is simply repositioned above the tie rod — unbolt the stabilizer, install this axle bracket, loosen and rotate the factory tie rod mount above the tie rod, tighten, reinstall. No drilling, no additional parts. | JK installation only. Confirm factory tie rod mount is in good condition before repositioning. |
| Aftermarket tie rod | Both the JK factory reuse approach and the COR-5200940 tie rod mount are designed for the factory tie rod. Aftermarket tie rods require a separately sourced bracket compatible with the aftermarket tie rod's diameter. | Confirm factory tie rod is installed before ordering. |
| Stabilizer eye diameter and pin size | Clayton states compatibility with factory and most aftermarket stabilizers, but eye diameter and pin size at the axle end must be compatible with the double-shear mount. | Verify your stabilizer's axle-end dimensions match the double-shear mount before installation. |
| Track bar bolt replacement | The included Grade 8 flanged track bar bolt and top-lock nut replace the OEM track bar bolt at the axle end. The top-lock nut will not thread to final position by hand — start by hand to confirm thread engagement, then torque to 146 ft-lbs. | Install with a calibrated torque wrench — do not substitute OEM bolt. |
Installation Notes
Skill level: Beginner to intermediate.
JK Installation (no drilling required):
- Unbolt the factory steering stabilizer from the axle-end mount.

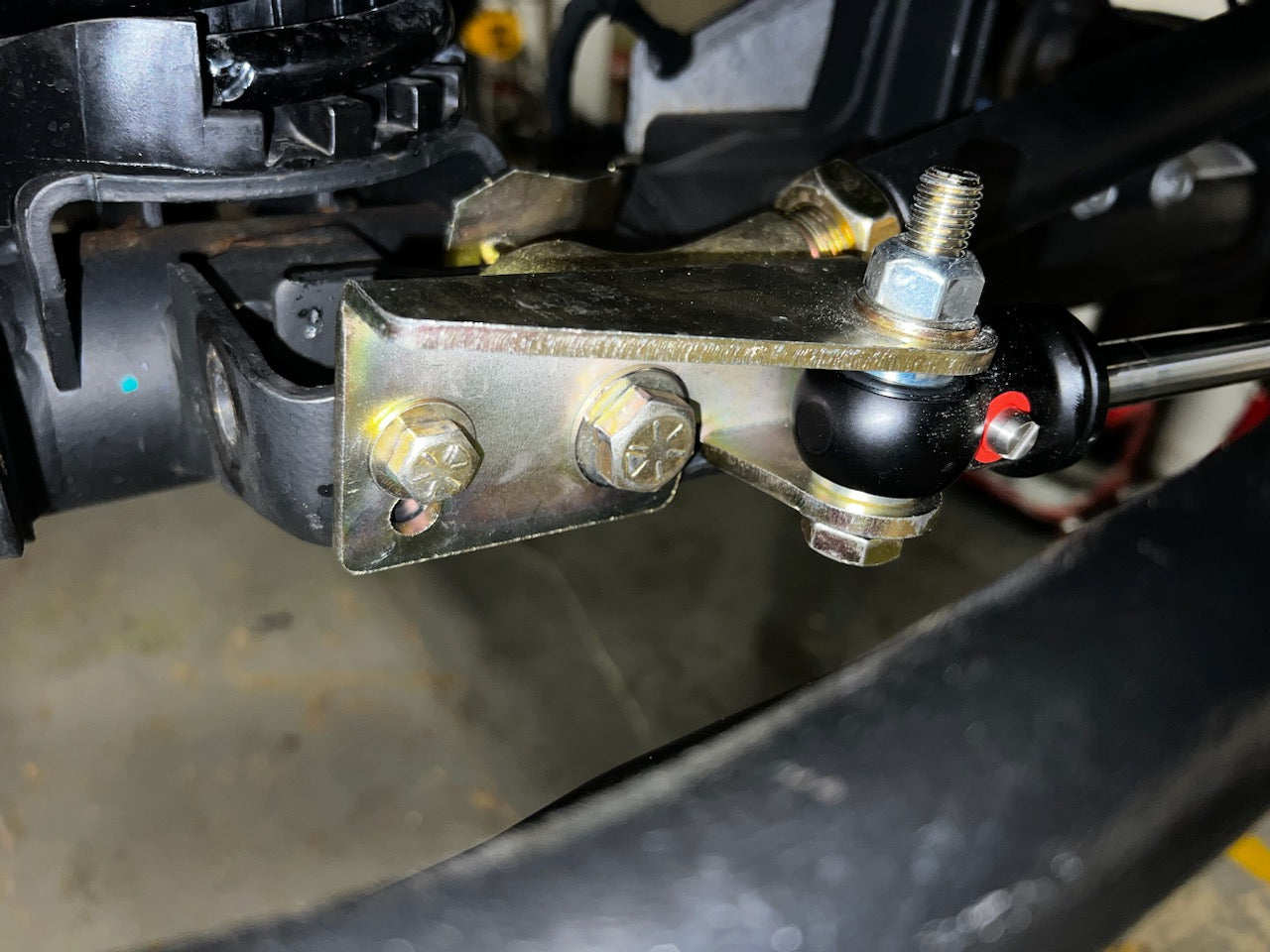

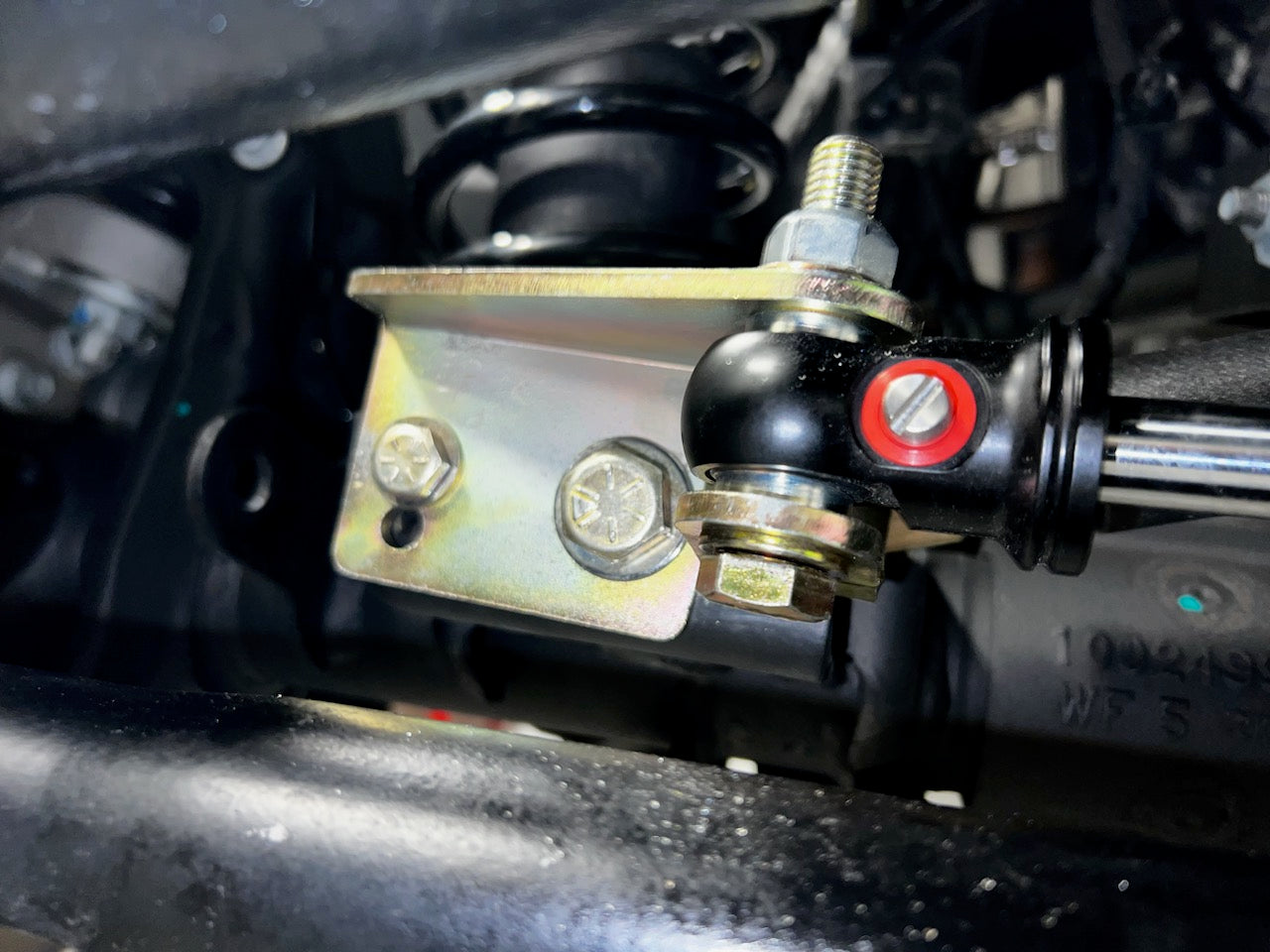

- Install this double-shear axle bracket onto the factory axle bracket using included Grade 8 hardware.
- Loosen the factory tie rod stabilizer mount, rotate it above the tie rod, and retighten.

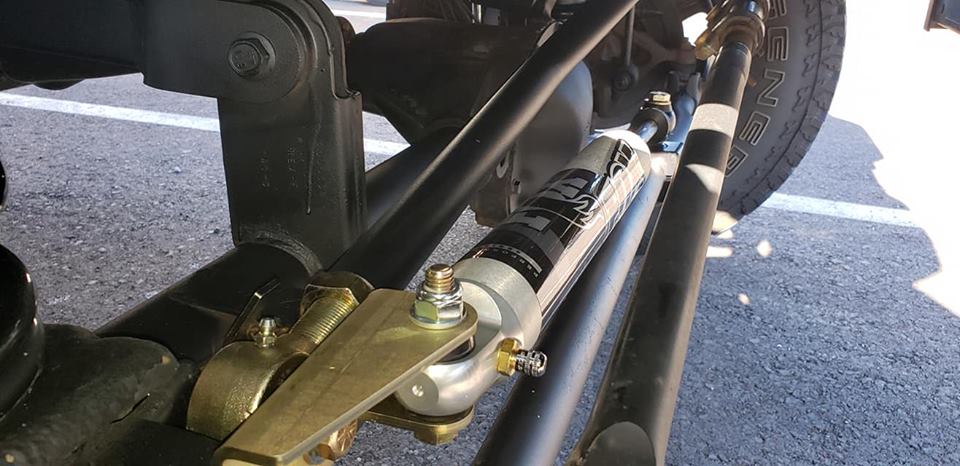

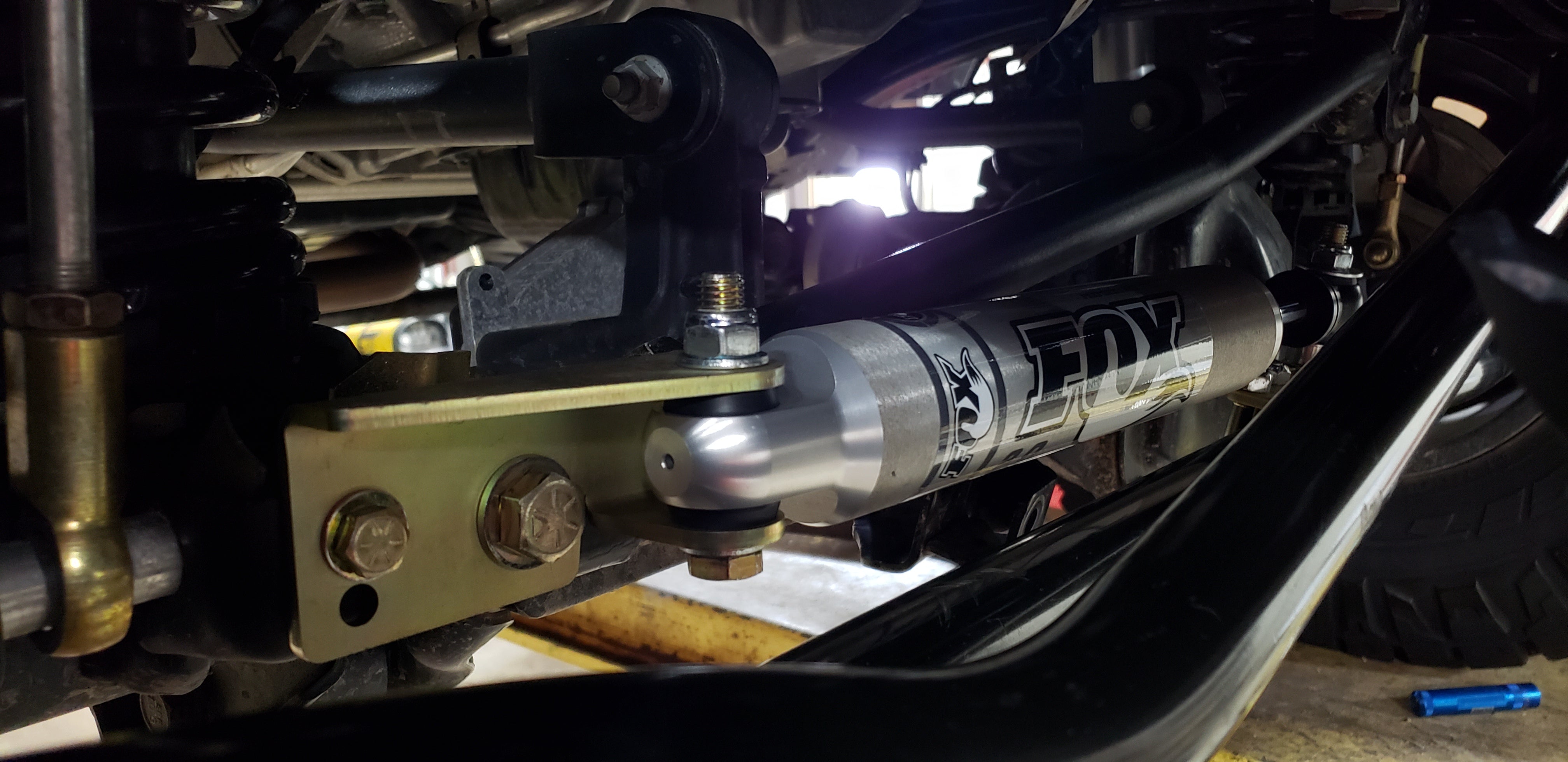

- Reinstall the stabilizer into the raised double-shear axle bracket and repositioned tie rod mount.
- Install the included Grade 8 flanged track bar bolt and top-lock nut — start by hand, torque to 146 ft-lbs.
- Verify track bar bolt head is accessible after bracket installation.
JL/JT Installation (one drill hole required):
- Drill one 3/8" hole in the factory axle bracket at Clayton's specified location.
- Clean the factory bracket contact surface — remove dirt, rust, and undercoating.
- Install this double-shear axle bracket using included Grade 8 hardware.
- Install COR-5200940 tie rod mount on the factory tie rod.
- Reinstall the stabilizer.
- Install the included Grade 8 flanged track bar bolt and top-lock nut — torque to 146 ft-lbs.
- Verify track bar bolt head is accessible.
Required tools:
| Tool | JK | JL/JT |
|---|---|---|
| Torque wrench (to 146 ft-lbs) | Yes | Yes |
| Full socket and wrench set | Yes | Yes |
| 3/8" drill bit and drill | No | Yes |
| Wire brush or surface prep tool | Recommended | Required |
Common Questions
I have a JL. Should I order this or COR-5209011?
If you haven't already purchased a separate COR-5200940 tie rod mount, order COR-5209011 — it is the complete JL/JT packaged kit that includes this bracket plus COR-5200940. Ordering COR-5209010 alone for a JL gives you only the axle bracket — you won't be able to mount the tie rod end of your stabilizer without COR-5200940.
I have a JK. Is this literally bolt-on?
Yes — true bolt-on for the JK. Install the axle bracket, reposition the factory tie rod mount above the tie rod, reinstall the stabilizer. No drilling, no additional parts required. The factory tie rod mount on the JK is designed to be repositioned without replacement.
Does this work on the JK 2-door and 4-door equally?
Yes — the COR-5209010 fits both the 2-door JK and the 4-door JK Unlimited (2007–2018) with the same installation process.
My JK has an aftermarket tie rod. Can I still use this?
The axle bracket installs the same way regardless of tie rod. The JK factory tie rod repositioning step, however, only works for the factory JK tie rod. If you have an aftermarket tie rod, you need a separate tie rod bracket compatible with your specific aftermarket tie rod's diameter — the factory reuse approach will not work. Text (469) 407-7538 for help identifying the correct tie rod bracket for your build.
Why does this keep the track bar bolt accessible?
Clayton dimensioned the bracket specifically to clear the track bar bolt head. On any lifted Jeep, the track bar bolt at the axle end should be inspected and retorqued periodically — if your stabilizer bracket covers the bolt head, you have to remove the bracket every time. This bracket is designed so you don't have to.
Does this include a steering stabilizer?
No — this is an axle-side relocation bracket only. Your existing factory or aftermarket stabilizer mounts to this bracket.
The Obsidian Take
This bracket is for the JK, JL, or JT owner who wants the raised double-shear stabilizer position without paying for components they don't need. JK owners get a no-drill, no-extra-parts bolt-on install that repositions the factory tie rod mount above the tie rod in under an hour. JL/JT owners who already have COR-5200940, or who are sourcing their own tie rod bracket for an aftermarket tie rod, get exactly what they need — the axle bracket — without the bundled parts they already have.
It is not the right order for a JL or JT owner starting from scratch without COR-5200940 — that buyer should order COR-5209011 instead and get both pieces in one transaction. It is not for the TJ or LJ owner — the front axle geometry on those platforms is different. And it is not for any truck running an aftermarket tie rod without a plan for the tie rod mount — the factory reuse approach and COR-5200940 are both factory-tie-rod-specific.
The JK's no-drill installation is the reason this SKU exists separately from COR-5209011. For JK owners, paying for a tie rod mount they don't need makes no sense — this bracket is the correct buy.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, and compatibility may vary by specific vehicle configuration, existing modifications, and manufacturer updates. Confirm fitment with your existing stabilizer and tie rod setup before installation.
Prop 65 Warning
N/A — Prop 65 applicability not confirmed in Clayton Off Road source data for this SKU. Verify with Clayton Off Road before publishing if selling to California customers.
Non-Returnable Notice
Steering components are non-returnable once installed. Confirm platform (JK, JL, or JT), tie rod type (factory or aftermarket), and whether COR-5200940 is needed before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
