Clayton Off Road Drag Link Flip High Steer Correction Kit | 1/4" Bolt-and-Weld Track Bar Bracket | Raised Stabilizer Mount | Relocated Sway Bar Mount | 3.5"–4.5" Lift | 2007–2018 Jeep Wrangler JK | SKU: COR-5208110
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This kit fits the 2007 through 2018 Jeep Wrangler JK — 2-Door and 4-Door Unlimited — in all trims, at 3.5" to 4.5" of front lift. It is designed for use with Clayton Off Road's 3.5" and 4.5" JK lift kits. Non-Clayton lifts at these heights may also benefit from this correction — verify geometry compatibility before ordering.
| Year Range | Make | Model | Configuration | Lift Range | Notes |
|---|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door | 3.5"–4.5" | Weld-out required for permanent installation |
| 2007–2018 | Jeep | Wrangler JK Unlimited | 4-Door | 3.5"–4.5" | Weld-out required for permanent installation |
System requirements: COR-5208110 alone does not complete the drag link flip. This kit must be used with COR-5208210 (passenger side upper knuckle bushing) and the Clayton RHD drag link. An adjustable front track bar is strongly recommended after installation — the factory track bar will be the wrong length for the raised mount position.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler JL (2018–2026) | Different front axle and steering geometry — JL-specific correction kits apply |
| Jeep Gladiator JT (2020–2026) | Different front axle and steering geometry |
| Jeep Wrangler TJ / LJ (1997–2006) | Different front axle architecture |
| JK trucks running less than 3.5" of lift | At lower lift heights, the factory drag link and track bar geometry may not require correction — installing this kit at stock or mild lift heights may over-correct geometry |
| JK trucks running more than 4.5" of lift | Above 4.5", the geometry correction provided by this kit may be insufficient — verify with Clayton before ordering at extreme lift heights |
| Non-Clayton lift kits at 3.5"–4.5" | Designed for Clayton 3.5" and 4.5" lift kits; compatible with most non-Clayton lifts at these heights but geometry verification is required — text (469) 407-7538 to confirm |
| Buyers without access to a certified welder | Bolt-in installation is temporary only — permanent installation requires welding both sides of the bracket to the front axle. Do not drive this kit long-term on bolt-in hardware alone. |
| Buyers who do not also have COR-5208210 and the Clayton RHD drag link | This bracket is the primary component of the drag link flip system but does not function alone. All three components are required. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5208110 |
| Application | Drag link flip high steer correction kit — 2007–2018 JK |
| Bracket material | 1/4" steel |
| Finish | Not specified in source — confirm with Clayton |

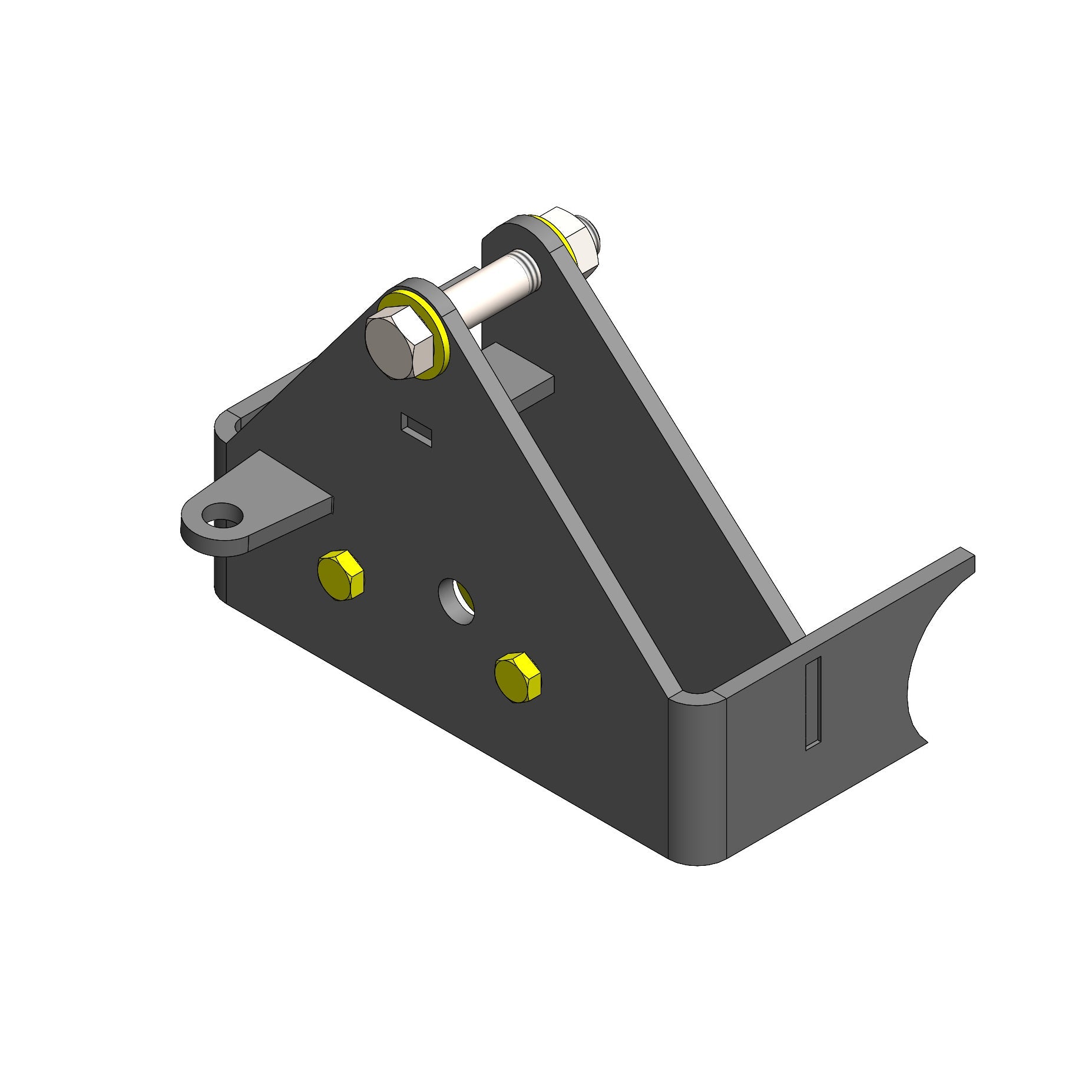

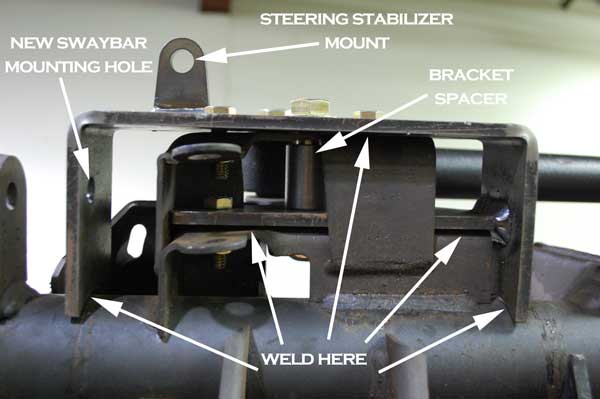

| Bracket mount | Bolts to factory axle bracket location using 3× 3/8" bolts + 1× 9/16" bolt with spacer |
| Permanent installation | Weld both sides of bracket to front axle — full-penetration welds on all bracket-to-axle contact surfaces |
| Temporary drive capability | Yes — bracket can be driven to welder after bolt-in; not for long-term use without weld-out |

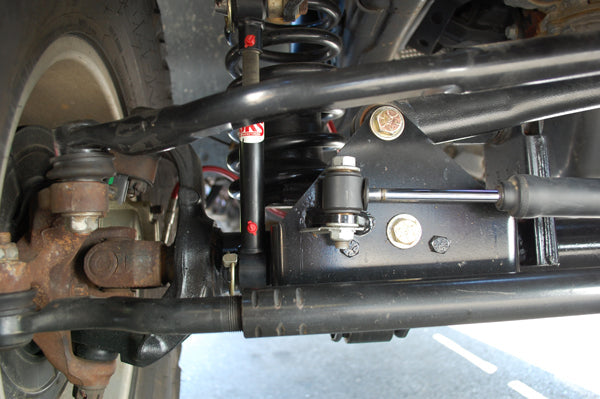

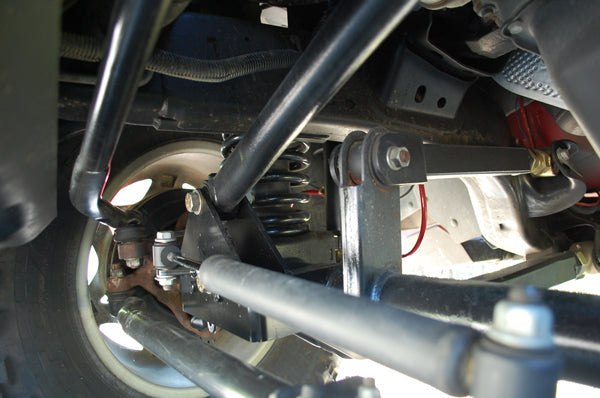

| Track bar bracket | Raises track bar mount for differential cover clearance and improved track bar angle at lift |
| Stabilizer mount | Raised — integrated into bracket |
| Sway bar mount | Relocated lower position — integrated into bracket |
| Adjustable track bar | Strongly recommended (sold separately) — factory track bar will be wrong length for raised mount |
| Designed for | Clayton Off Road 3.5" and 4.5" JK lift kits |
| Required companion parts | COR-5208210 knuckle bushing + Clayton RHD drag link |
| Country of origin | Made in USA |
| Unit weight | 7 lb |
| Shipping dimensions | 9" × 7" × 7" |
What Is and Is NOT Included

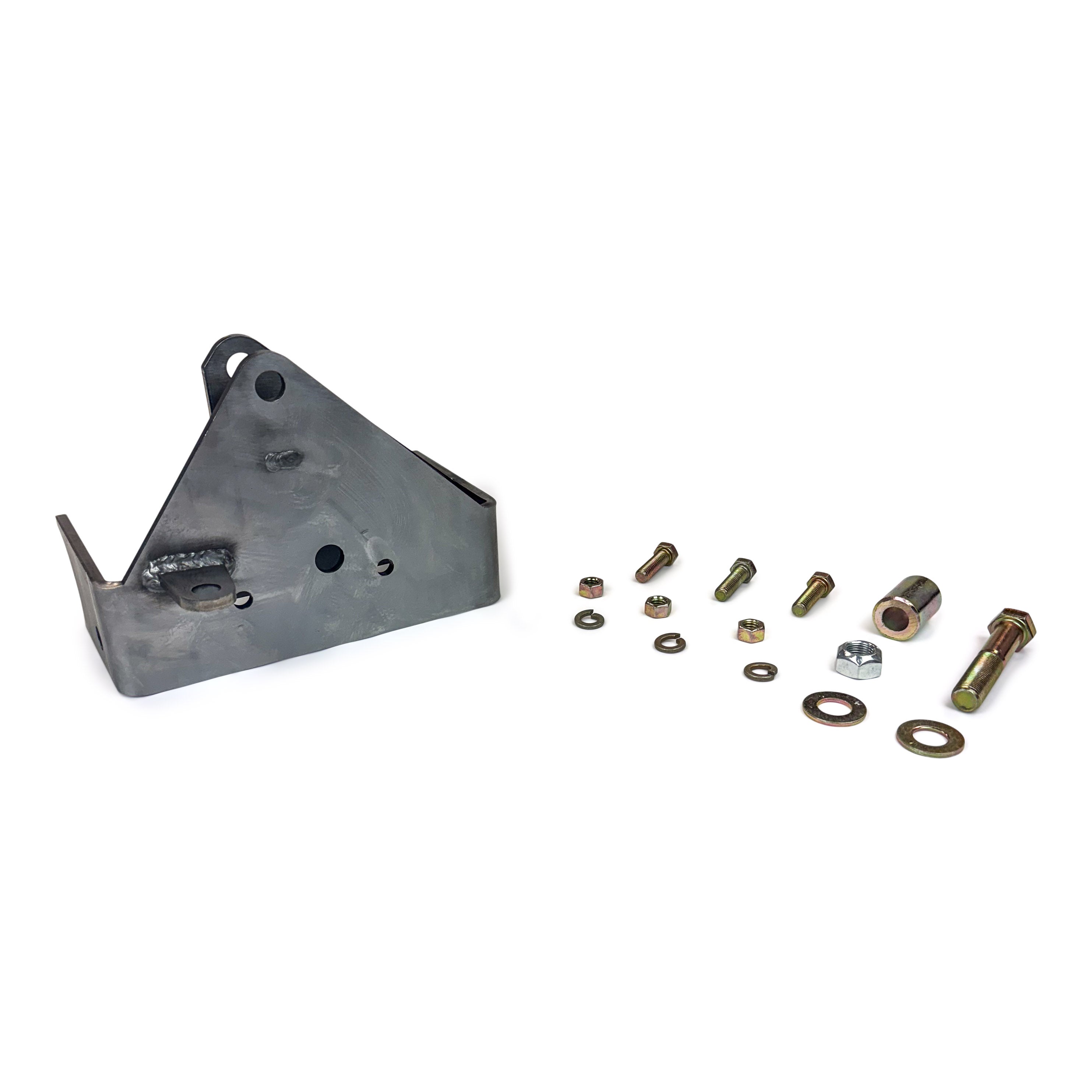

Included:
| Component |
|---|
| 1/4" steel drag link flip / track bar bracket |
| 3× 3/8" bolts |
| 1× 9/16" bolt with spacer |
| Raised stabilizer mount (integrated into bracket) |
| Relocated lower sway bar mount (integrated into bracket) |
Not Included:
| Item | Notes |
|---|---|
| COR-5208210 passenger side upper knuckle bushing | Required to complete the drag link flip — provides the knuckle-side mount point for the RHD drag link. Order separately or confirm it is already in hand. |
| Clayton RHD drag link | Required to complete the drag link flip — spans from the pitman arm to the passenger side upper knuckle. Order separately or confirm it is already in hand. |
| Adjustable front track bar | Strongly recommended — the factory track bar will be the wrong length for the raised mount position and will leave the front axle off-center if not replaced. Sold separately. |
| Sway bar end links | Verify existing end link length is appropriate for the relocated lower sway bar mount after installation — replacement end links may be required depending on lift height and existing hardware. |
| Professional welding labor | Certified welder required for permanent bracket installation — not included. |
| Weld-through primer and chassis paint | Required to coat bare metal at weld zones after weld-out — not included. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Weld-out is mandatory — bolt-in is temporary only | The bracket bolts into the factory axle bracket location for initial installation and temporary driving. This bolt-in state is for transit to the welder only — it is not a finished installation. Long-term driving on bolt-in hardware only risks bracket movement under load. Both sides of the bracket must be fully welded to the front axle for permanent use. | Drive to a certified welder immediately after bolt-in — do not use bolt-in as a finished state. |
| Full-penetration welds required | Stitch welds on load-bearing joints are not acceptable. Both sides of the bracket require full-penetration welds at all bracket-to-axle contact surfaces. | Use a certified welder with front axle tube experience. |
| Post-weld corrosion protection | Welding burns off any existing coating at the weld zone. Bare metal at weld zones will corrode without treatment. | Apply weld-through primer and chassis paint to all bare metal areas after weld-out before returning the vehicle to service. |
| Adjustable track bar — functional requirement | The bracket raises the track bar mount point. The factory track bar is a fixed length that re-centers the axle at the factory mount height. At the raised mount position, the factory track bar will hold the axle off-center. Driving with an off-center axle causes uneven tire wear and handling pull. | Install an adjustable front track bar after bracket installation and re-center the axle before alignment. |
| Sway bar end link length | The relocated lower sway bar mount changes the end link geometry. Existing end links may be too short or too long for the new position. | Check end link length after installation and replace if necessary. |
| Three-component system completeness | COR-5208110 provides the track bar bracket and stabilizer/sway bar mount corrections. COR-5208210 provides the knuckle-side mount for the RHD drag link. The Clayton RHD drag link completes the geometry. All three are required. | Confirm all three components are in hand or on order before beginning installation. |
| Lift height range | This kit is engineered for 3.5"–4.5" of lift. At lower lifts the correction may be unnecessary; at higher lifts the geometry may be under-corrected. | Confirm your lift height is 3.5" or 4.5" before ordering. Text (469) 407-7538 if running a different lift height. |
Installation Notes
Skill level: Advanced — certified welding required for permanent installation. Initial bolt-in can be performed by an experienced DIY builder with a basic tool set.
Phase 1 — Bolt-in (can be performed in driveway):
- Confirm all three system components are in hand: COR-5208110 (this kit), COR-5208210 bushing, Clayton RHD drag link.
- Install bracket at factory axle bracket location using the included 3× 3/8" bolts and 1× 9/16" bolt with spacer. Verify all bolts are fully seated and snug.
- Install the raised stabilizer mount to your steering stabilizer.
- Note the relocated lower sway bar mount position — verify end link length before driving.
- Drive immediately to a certified welder. Do not use this as a completed installation.
Phase 2 — Weld-out (certified welder required):
- Weld both sides of the bracket to the front axle tube — full-penetration welds on all bracket-to-axle contact surfaces. No stitch welds on load-bearing joints.
- Allow welds to cool completely before handling.
- Apply weld-through primer to all bare metal at weld zones. Follow with chassis paint.
Phase 3 — Track bar and alignment:
- Install an adjustable front track bar. Adjust to re-center the front axle at the new raised mount height.
- Verify sway bar end link length — replace if required.
- Complete a full front alignment — caster, toe, and thrust angle.
Required tools and services:
| Item | Required |
|---|---|
| Torque wrench | Yes |
| Full socket and wrench set | Yes |
| Certified welder (MIG minimum for axle tube) | Yes — mandatory for permanent installation |
| Weld-through primer and chassis paint | Yes — post-weld corrosion protection |
| Alignment equipment or appointment | Yes — post-install |
Common Questions
What is the drag link flip and why does my lifted JK need it?

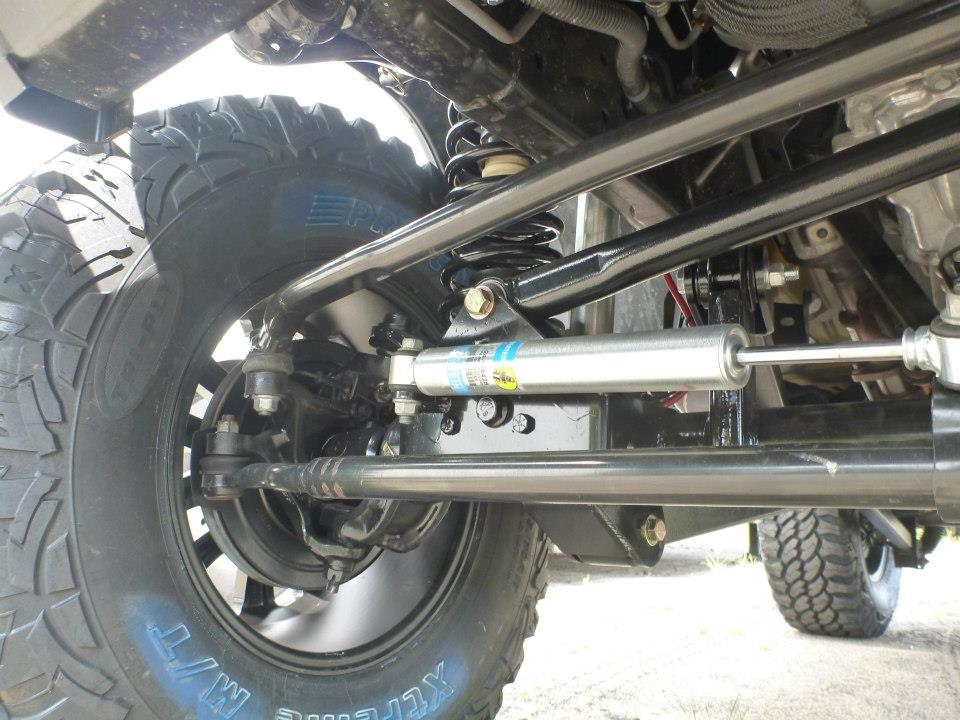

At factory ride height, the JK's drag link and tie rod run roughly parallel — the correct geometry for predictable, bump-steer-free steering. When you lift the JK 3.5"–4.5", the drag link drops relative to the tie rod and the two links no longer run at the same angle. The result is bump steer — the steering turns slightly every time the suspension compresses or droop — and in severe cases, death wobble triggered by that bump steer. The drag link flip moves the drag link mount point above the tie rod, restoring parallel geometry. COR-5208110's track bar bracket simultaneously corrects track bar angle and clears the differential cover — both issues are addressed in one installation.
Can I drive it after bolt-in without welding?
Temporarily, to reach a welder. The bracket bolt-in is specifically designed to allow the vehicle to be driven from the installation point to a certified welding shop. It is not a finished installation state and is not intended for normal use. Drive directly to the welder.
Do I need an adjustable track bar?
In practical terms, yes. The bracket raises the track bar mount point. The factory track bar is a fixed length calibrated for the original mount height — at the raised position, the factory track bar will leave the front axle offset to one side. This produces handling pull and uneven tire wear. An adjustable front track bar lets you re-center the axle at the new mount height. Clayton's language is "strongly recommended" — treat it as required for a correctly finished installation.
Does this kit work with non-Clayton lift kits?
The geometry correction is designed and validated for Clayton's 3.5" and 4.5" lift systems. Most non-Clayton lifts at these heights use similar geometry and should benefit from this correction, but the exact link angles vary by kit manufacturer. Text (469) 407-7538 with your lift brand and height to confirm compatibility before ordering.
What welds are required and how strong do they need to be?
Both sides of the bracket require full-penetration welds at all bracket-to-axle contact surfaces — this is load-bearing steering geometry hardware on a solid front axle. Stitch welds are not acceptable on the bracket-to-axle joints. MIG welding on the axle tube is the minimum. Use a certified welder with experience on front axle tubes.
The Obsidian Take
This kit is for the JK owner running 3.5"–4.5" of lift who is experiencing bump steer, steering wander, or death wobble caused by the factory LHD drag link geometry that lifts don't correct on their own. The drag link flip and track bar correction address both the link angle and the differential cover clearance issue simultaneously — one bracket, installed at the factory axle location, corrects the two front steering geometry problems that lifted JKs most commonly develop.
The bolt-and-weld installation approach is a practical design choice — you can install this bracket in your driveway and drive to a certified welder for the permanent weld-out rather than needing welding equipment on-site. That makes it accessible to more builders. It does not make the weld optional.
It is not complete without COR-5208210 and the Clayton RHD drag link — COR-5208110 provides the track bar correction and the axle-side geometry, but the passenger side knuckle bushing and the RHD drag link are what complete the geometry flip. It is not for lifts below 3.5" where the factory geometry may still be within acceptable range. And it is not finished until the bracket is welded, the track bar is adjusted, and the truck has a full front alignment.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, lift height compatibility, and weld specifications may vary by specific vehicle configuration, existing lift kit, and manufacturer updates. Confirm compatibility with your specific lift height and brand before ordering.
Non-Returnable Notice
Steering components are non-returnable once installed. This product requires permanent welding to the front axle. Confirm lift height (3.5"–4.5"), system completeness (COR-5208210 and Clayton RHD drag link in hand or on order), and access to a certified welder before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
