Clayton Off Road Complete 7075 Aluminum Tie Rod System | 1-3/8" 7075-T651 Bar + OE End Links Installed | Non-Greaseable Right Knuckle End | Factory Stabilizer Not Compatible | 1999–2004 Jeep Grand Cherokee WJ | SKU: COR-5206906
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment

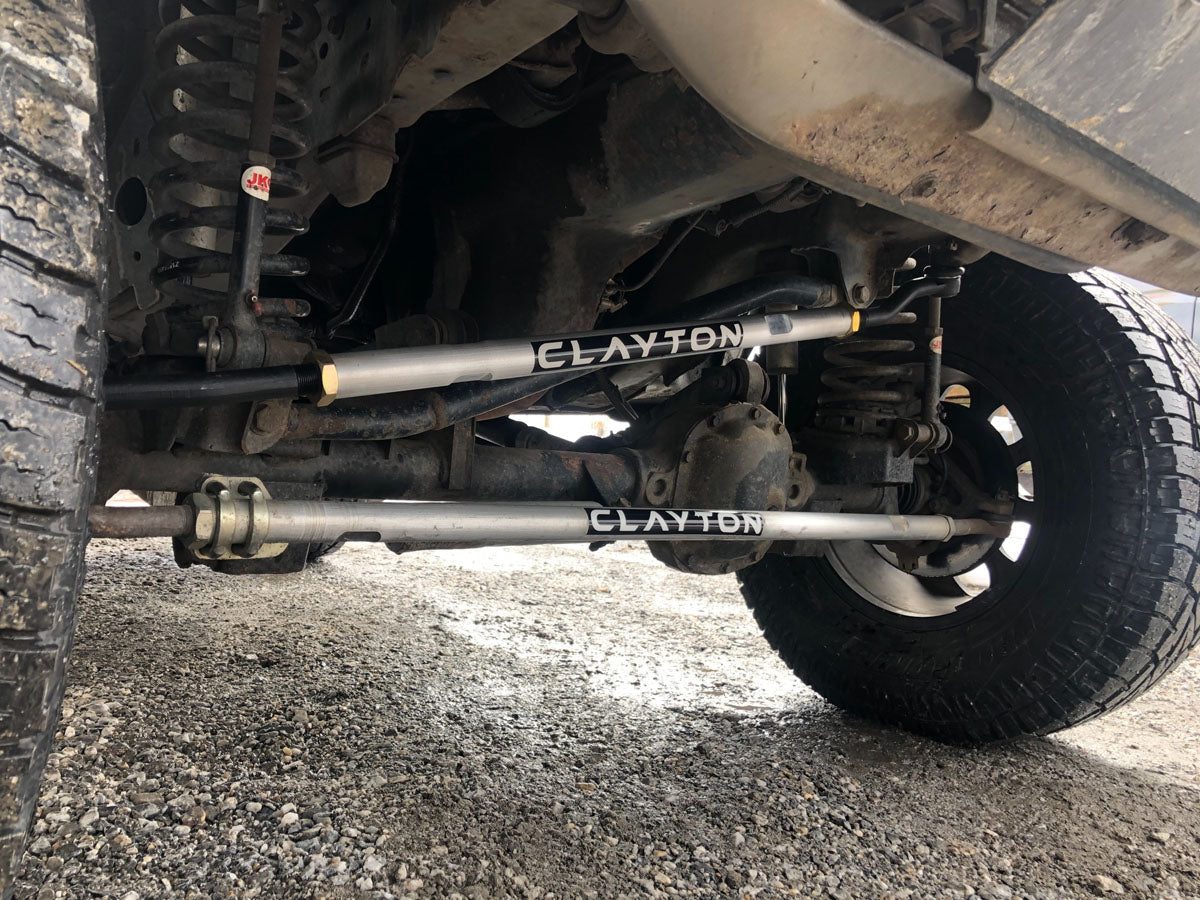

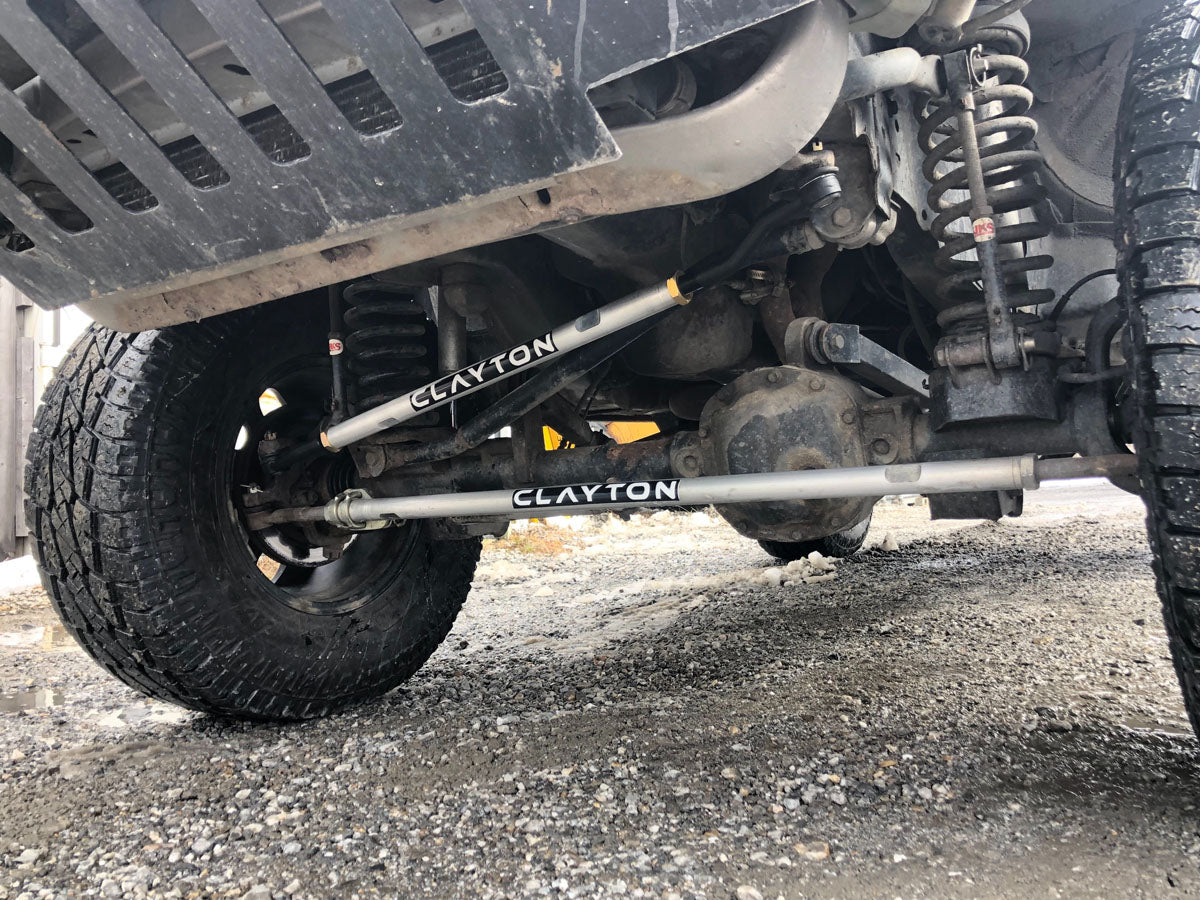

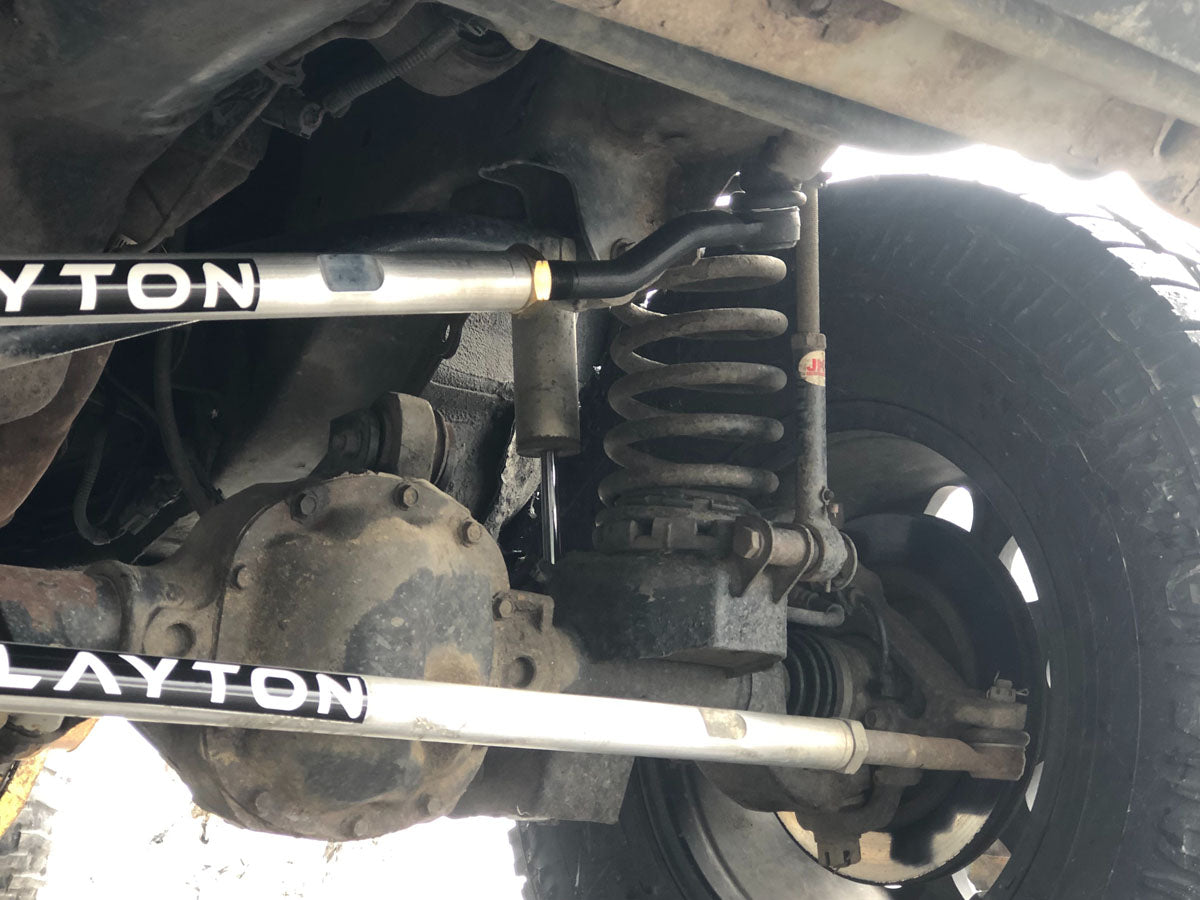

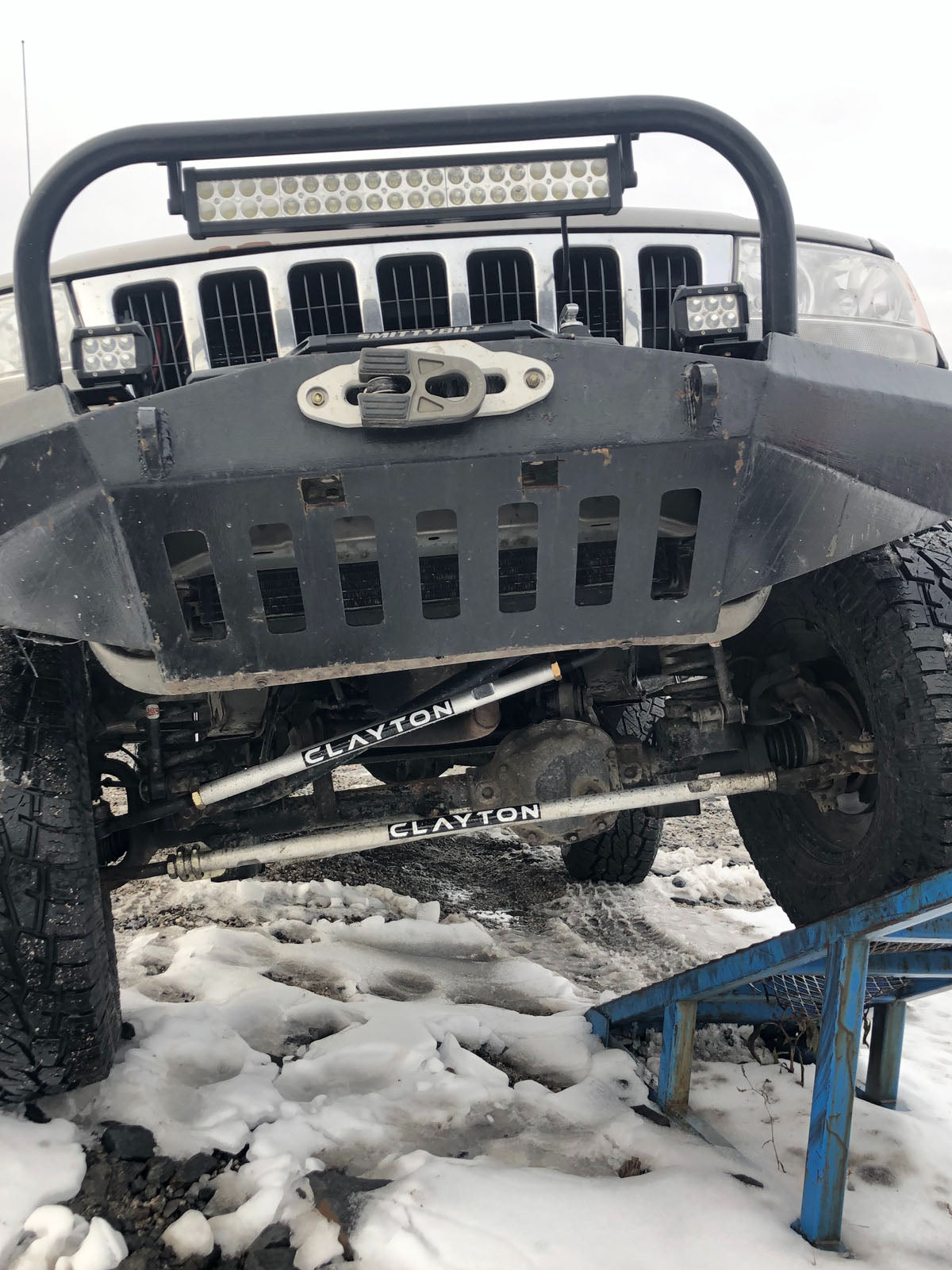

This complete tie rod system fits the 1999 through 2004 Jeep Grand Cherokee WJ in all trims. It is a direct bolt-in replacement for the factory WJ tie rod assembly at stock height or with a lift — end links are pre-installed on the bar, so the complete assembly arrives ready to bolt in with no additional parts to source.
| Year Range | Make | Model | Drivetrain | Notes |
|---|---|---|---|---|
| 1999–2004 | Jeep | Grand Cherokee WJ | All | Factory steering stabilizer not compatible — see Field 3 |
Before ordering: The factory WJ steering stabilizer will not mount to this system. An upgraded tie rod stabilizer mount and a Fox or Bilstein steering stabilizer are required before driving. Confirm these are sourced before installation day.
If you have already upgraded your WJ end links: The Clayton WJ Upgrade Steering System includes the aluminum bars, jam nuts, and stabilizer mount and allows you to reuse your existing end links. That system is the better purchase if you do not need new end links.
Pairs with: COR-5206911 (Clayton 7075 aluminum drag link bar) for a complete heavy-duty bolt-in WJ steering upgrade.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Grand Cherokee ZJ (1993–1998) | Different front steering geometry and end link specification |
| Jeep Grand Cherokee WK (2005–2010) | Different front steering architecture |
| Jeep Grand Cherokee WK2 (2011+) | Different front steering architecture |
| Jeep Wrangler TJ / LJ / JK / JL | Different front steering geometry |
| Jeep Gladiator JT | Different front steering geometry |
| Buyers who plan to reuse the factory WJ steering stabilizer | Factory WJ stabilizer is not compatible with this system. An upgraded stabilizer mount and a Fox or Bilstein stabilizer are required before the vehicle can be driven. |
| Buyers with existing upgraded end links who want to avoid paying for new ends | The Clayton WJ Upgrade Steering System includes the bars, jam nuts, and stabilizer mount and allows reuse of existing end links — that system is the correct purchase in this case. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5206906 |

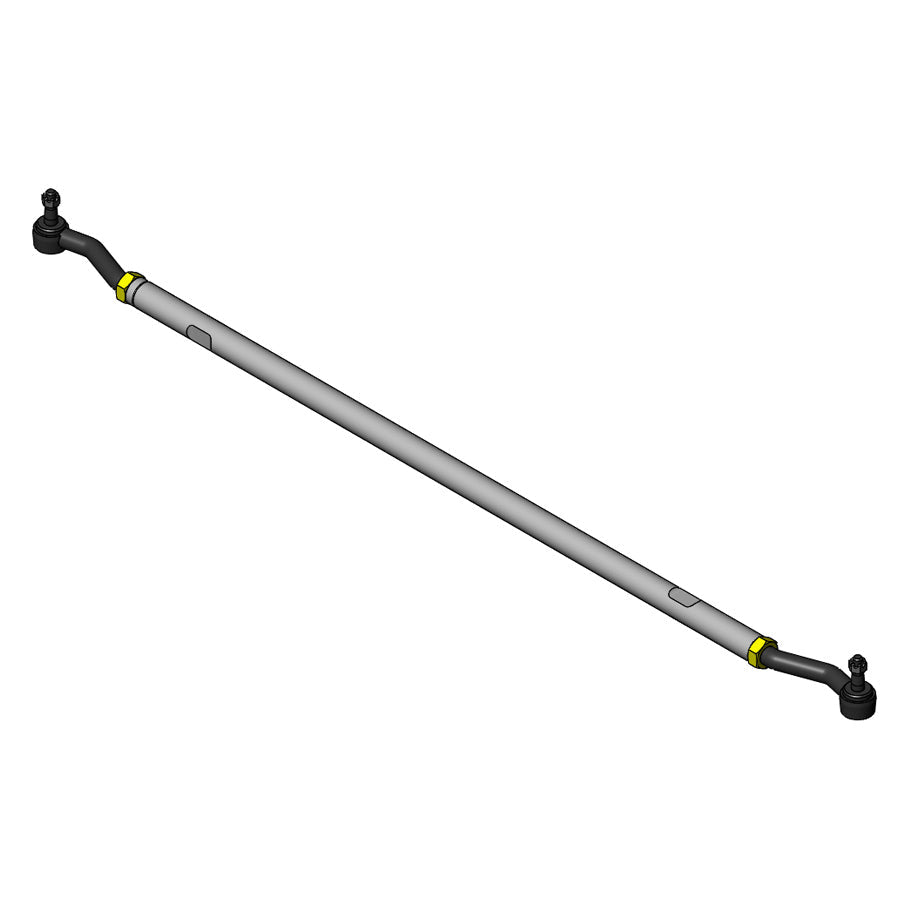

| Application | Complete tie rod system — direct bolt-in replacement for factory WJ tie rod assembly |
| Bar material | 1-3/8" solid 7075-T651 aluminum |
| End links | OE-style end links pre-installed — no separate sourcing required |

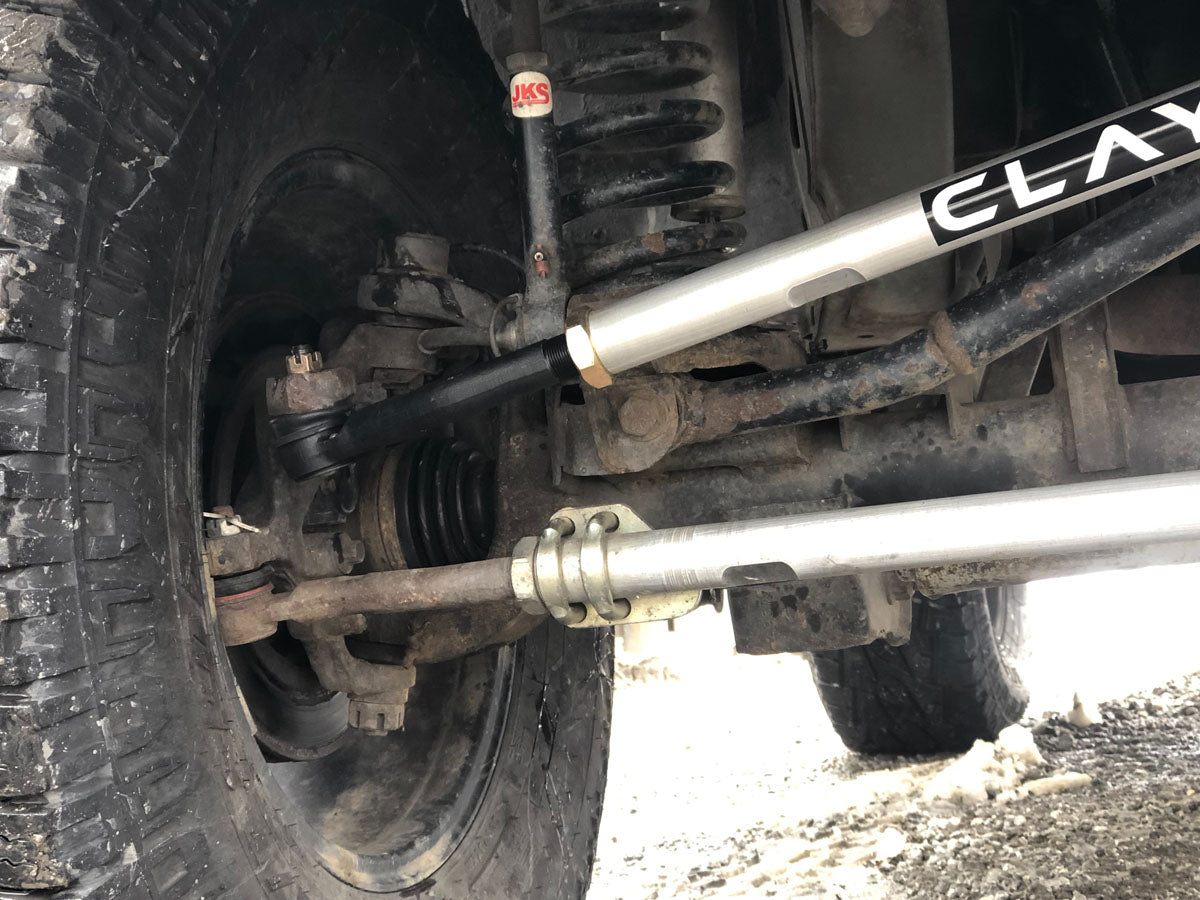

| Right knuckle tie rod end | CRO-5208870AA — non-greaseable, sealed, maintenance-free |
| Installation | 100% bolt-in — stock height and lifted WJ compatible; no cutting, welding, or fabrication |
| Steering stabilizer | Factory WJ stabilizer NOT compatible — upgraded tie rod stabilizer mount + Fox or Bilstein required |
| Companion part | COR-5206911 (Clayton 7075 aluminum drag link bar) |
| Buyers with existing end links | Clayton WJ Upgrade Steering System — includes bars + jam nuts + stabilizer mount, reuse existing ends |
| Country of origin | Made in USA |
| Unit weight | 15 lb |
| Shipping dimensions | 48" × 4" × 4" |
What Is and Is NOT Included

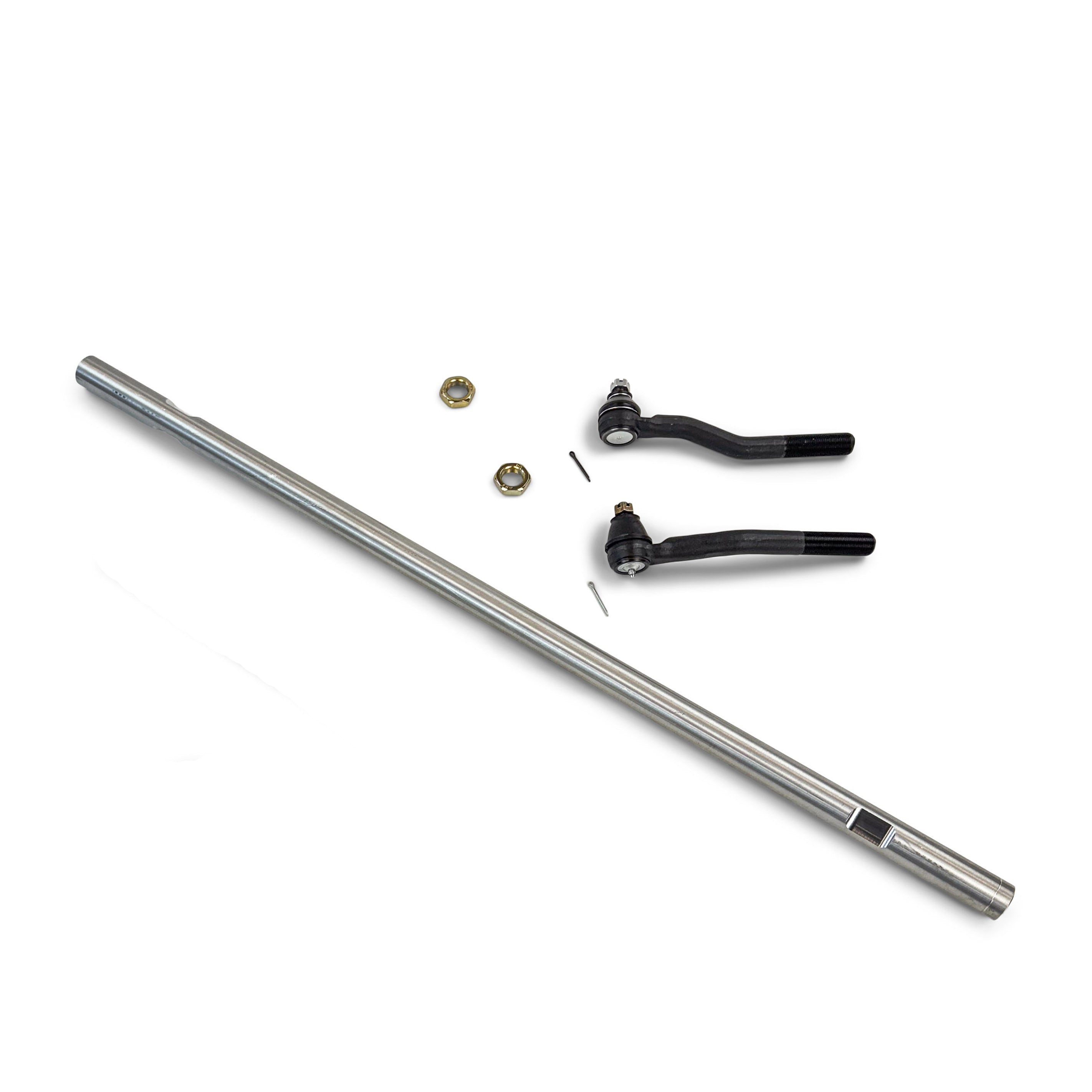

Included:
| Component |
|---|
| 1-3/8" solid 7075-T651 aluminum tie rod bar |
| OE-style end links — pre-installed on bar |
| Right knuckle tie rod end CRO-5208870AA (non-greaseable, sealed) |
Not Included:
| Item | Notes |
|---|---|
| Upgraded steering stabilizer | Required — factory WJ stabilizer will not mount to this system. Clayton recommends Fox or Bilstein. See related items for compatible options. |
| Tie rod stabilizer mount | Required for upgraded stabilizer installation. See related items. |
| COR-5206911 drag link bar | Companion part for a complete heavy-duty WJ steering upgrade — sold separately. |
| Professional installation labor | Not included. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Factory WJ steering stabilizer — not compatible | The factory WJ steering stabilizer cannot mount to this system. This is the same restriction as the bar-only COR-5206921 — the complete assembly does not change this incompatibility. An upgraded mount and stabilizer are required before driving. | Source an upgraded tie rod stabilizer mount and Fox or Bilstein steering stabilizer before installation. Do not drive without a steering stabilizer. |
| Right knuckle tie rod end — non-greaseable | CRO-5208870AA is a sealed, maintenance-free end. Do not attempt to install a grease fitting — the end is not designed for it. Inspect periodically for wear rather than grease-interval servicing. | No grease fitting installation. Inspect sealed end for wear per Clayton's maintenance guidance. |
| Buyers with existing upgraded end links | If your WJ already has upgraded end links, this complete system replaces hardware you already have. The Clayton WJ Upgrade Steering System delivers the aluminum bar and stabilizer mount without new end links — better value if existing ends are serviceable. | Evaluate whether your existing end links are worth preserving before ordering this SKU. Text (469) 407-7538 if unsure. |
| Companion drag link bar (COR-5206911) | This system replaces the tie rod only. The factory drag link remains unless COR-5206911 is also installed. For a complete heavy-duty front steering upgrade, both the tie rod system and the drag link bar are needed. | Order COR-5206911 alongside this system for a complete upgrade. |
| Toe alignment | Bar length is fixed — toe is set via end link thread engagement. Minimum thread engagement must be maintained at final toe setting. | Verify toe after installation. If pairing with COR-5206911, set final alignment after both components are installed. |
Installation Notes
Skill level: Beginner to intermediate. True bolt-in installation — no cutting, welding, drilling, or pressing. End links are pre-installed, so the assembly is ready to install out of the box.
Installation summary:
- Remove the factory WJ tie rod assembly.
- Install this complete assembly in the factory tie rod position using the pre-installed OE-style end links — no bracket modification, no fabrication required.
- Do not reinstall the factory steering stabilizer. Install an upgraded tie rod stabilizer mount and Fox or Bilstein steering stabilizer before driving.
- The right knuckle tie rod end (CRO-5208870AA) is non-greaseable — do not attempt to add a grease fitting.
- Torque all end link hardware to OE specification at ride height.
- If also installing COR-5206911 drag link bar, complete both installations before setting final alignment.
- Verify toe alignment — adjust via end link thread engagement as needed. Confirm minimum thread engagement is maintained at final toe setting.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Alignment equipment or toe measurement | Yes — post-install |
Common Questions
What is the difference between this (COR-5206906) and the bar-only COR-5206921?
COR-5206921 is the 7075-T651 aluminum bar only — no end links included. You source and install your own OE-style end links. COR-5206906 is the complete assembly — the bar plus OE-style end links pre-installed, including the CRO-5208870AA non-greaseable right knuckle end. If you want to open one box and bolt the assembly directly in, COR-5206906 is the correct purchase. If you want to spec your own end links or reuse existing ones, COR-5206921 gives you just the bar.
What if I already have upgraded end links?
The Clayton WJ Upgrade Steering System is the better purchase — it includes the aluminum tie rod bar, drag link bar, jam nuts, and stabilizer mount, and allows you to reuse your existing upgraded end links. Ordering COR-5206906 when you already have serviceable upgraded end links means paying for new ends you don't need. Text (469) 407-7538 to confirm which system fits your build.
What is a non-greaseable tie rod end and do I need to service it?
The CRO-5208870AA right knuckle tie rod end is sealed and maintenance-free — it does not have a grease fitting and should not have one added. Inspect it periodically for play, looseness, or torn seals, but it does not require grease-interval servicing. When it wears out, it is replaced rather than greased.
Why does the factory WJ steering stabilizer not work with this system?
The factory WJ stabilizer mounts to a bracket designed for the factory tie rod geometry. This aluminum bar has different geometry and mounting points. The factory stabilizer cannot be repositioned to work with this bar — an upgraded tie rod stabilizer mount specific to aftermarket WJ bars is required, along with a Fox or Bilstein stabilizer. Clayton lists compatible options in the related items.
Should I also order the drag link bar (COR-5206911)?
If your goal is a complete heavy-duty WJ front steering upgrade, yes. This system replaces the factory tie rod only. The factory drag link remains in place unless COR-5206911 is also installed. Both bars together form Clayton's complete heavy-duty bolt-in WJ steering upgrade.
The Obsidian Take
This system is for the WJ owner who wants a complete, open-box bolt-in tie rod replacement with nothing to source separately — bar, end links, and right knuckle end all pre-assembled and ready to install. It is the fastest path to a Clayton 7075-T651 aluminum tie rod upgrade for the 1999–2004 Grand Cherokee.
The three-way buyer decision for WJ tie rod work is straightforward: COR-5206906 (this system) is correct when starting fresh with no existing upgraded end links. COR-5206921 (bar only) is correct when you want to spec your own end links or already have ends you want to reuse. The Clayton WJ Upgrade Steering System is correct when you already have upgraded end links and want to preserve them — it includes the bars, jam nuts, and stabilizer mount without new ends.
The steering stabilizer requirement applies to all three options — the factory WJ stabilizer does not mount to any of these aluminum bar systems. Source the stabilizer and mount before installation day, not after.
It is not for the ZJ, WK, or any Wrangler platform. And it is not a complete front steering upgrade without COR-5206911 — the factory drag link remains unless the drag link bar is also installed.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, end link specifications, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm fitment with your specific WJ steering configuration before ordering.
Non-Returnable Notice
Steering components are non-returnable once installed. Confirm fitment (1999–2004 Grand Cherokee WJ), that you do not already have upgraded end links you wish to reuse, and that a compatible upgraded steering stabilizer and tie rod mount are sourced before ordering. Text (469) 407-7538 with any fitment or system questions before your order is placed.
