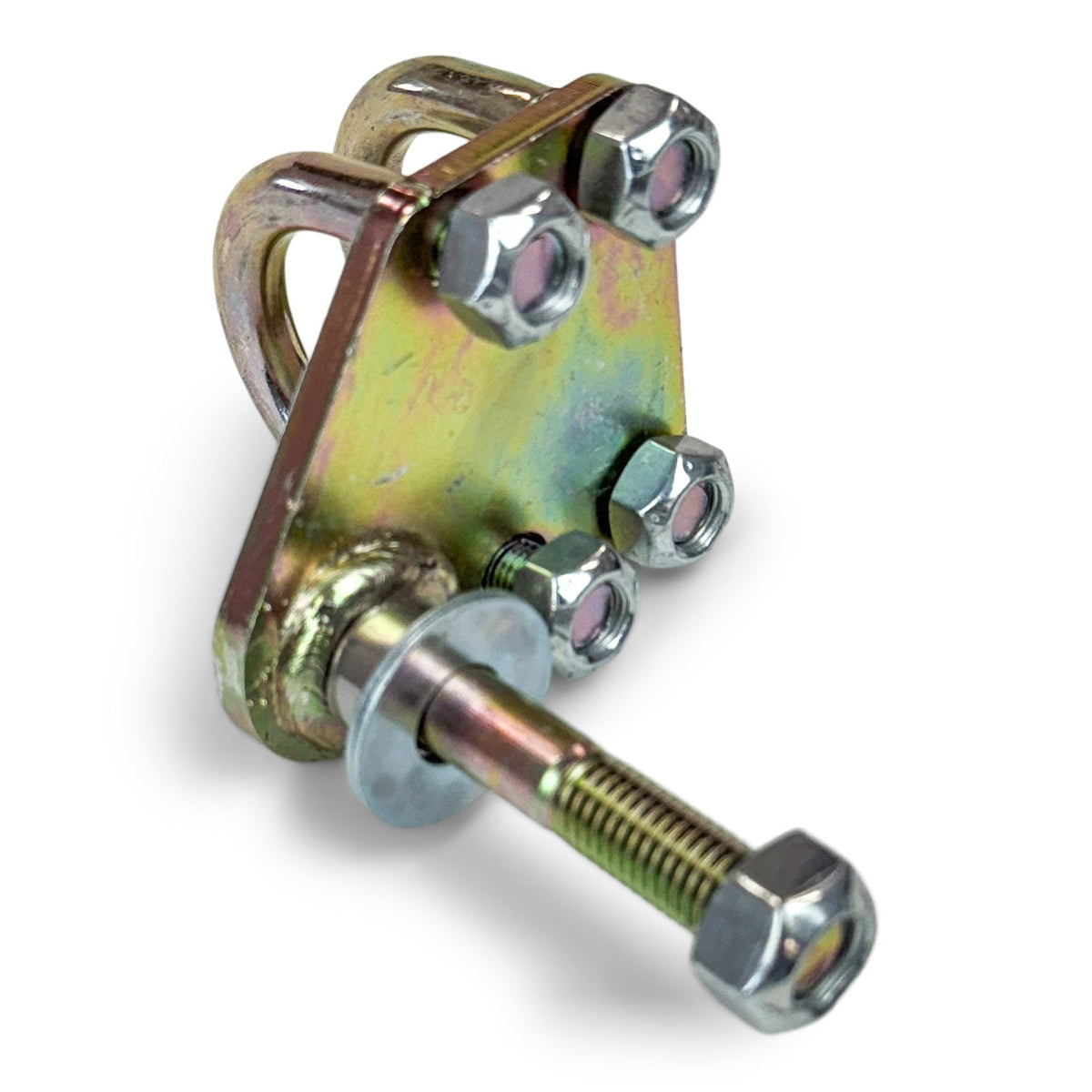

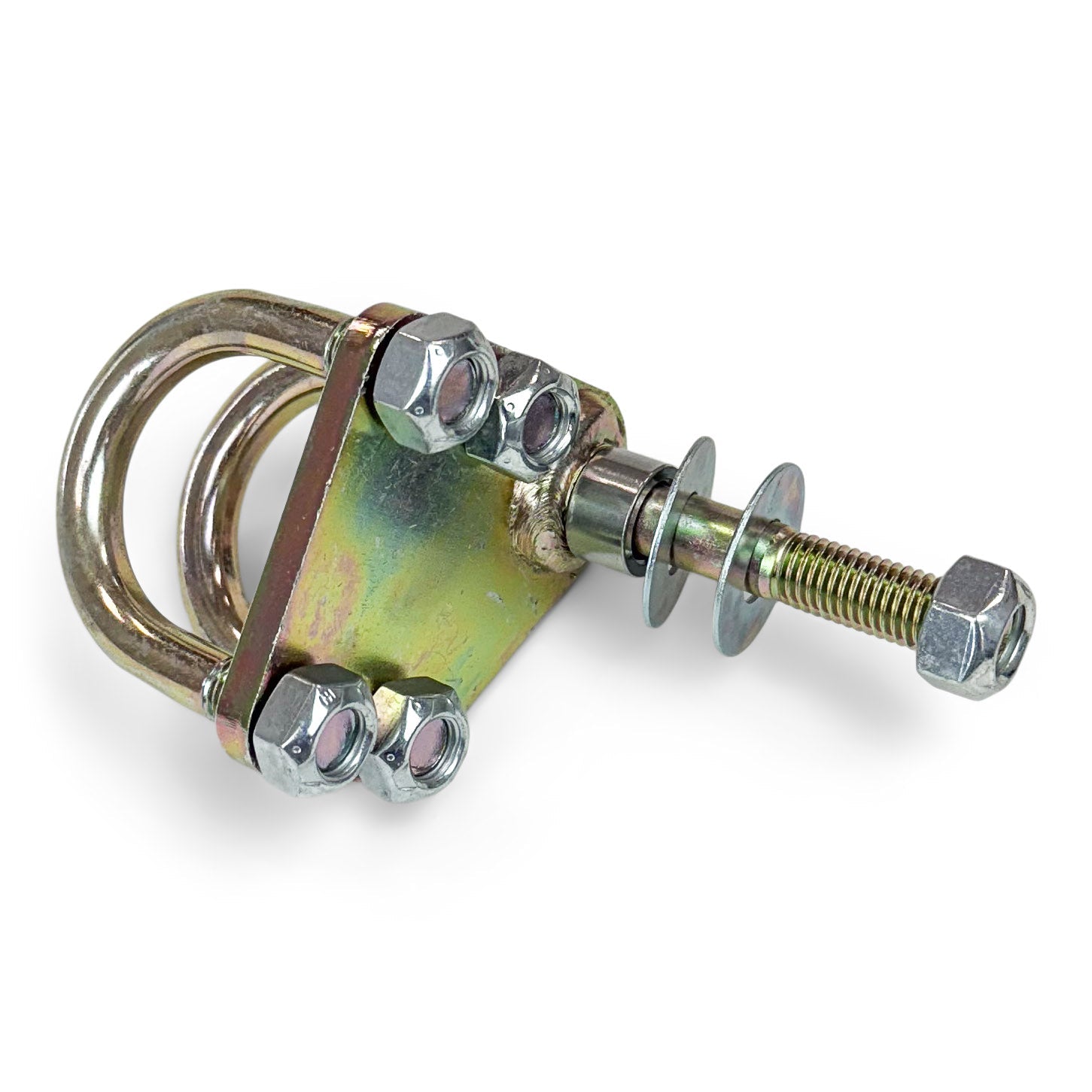

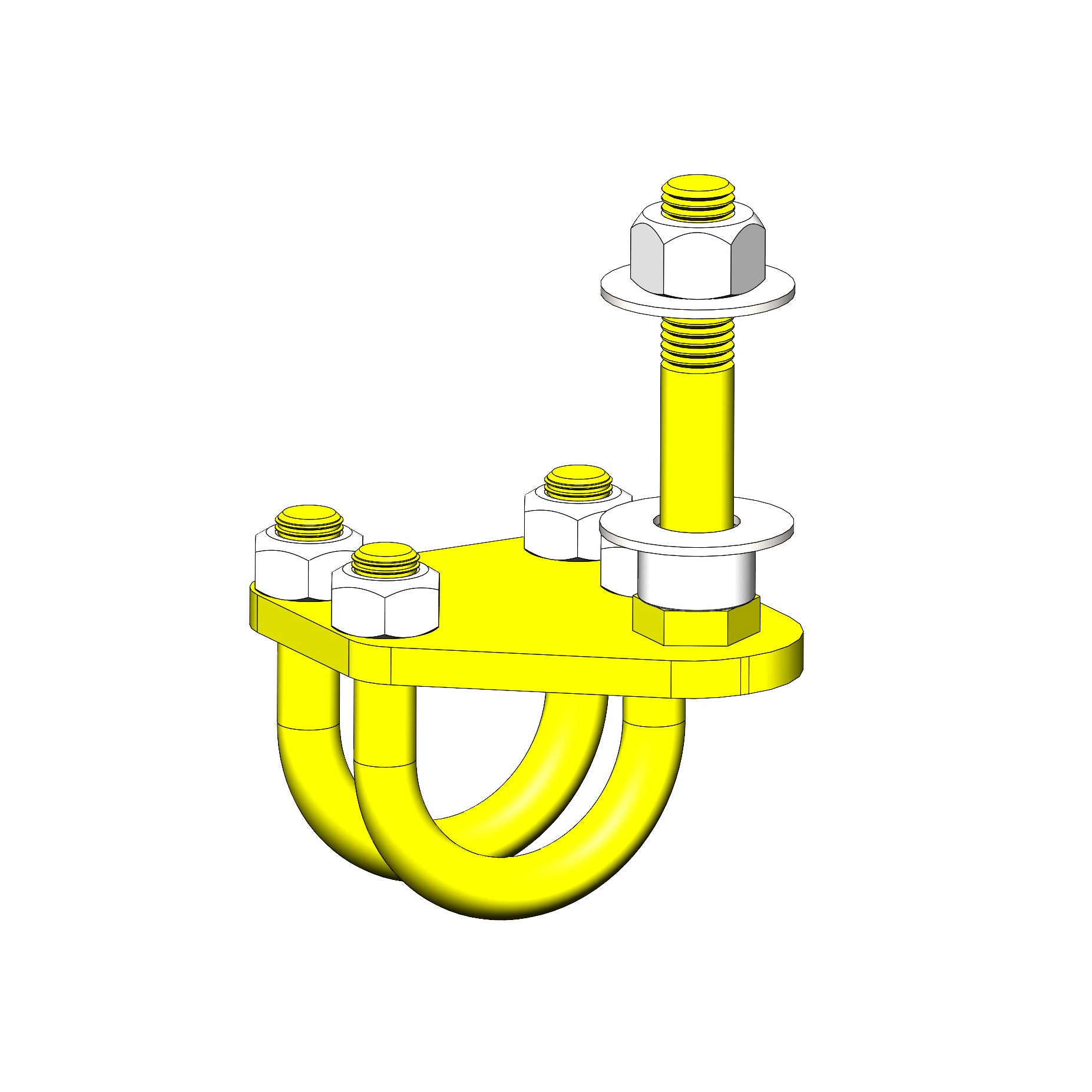

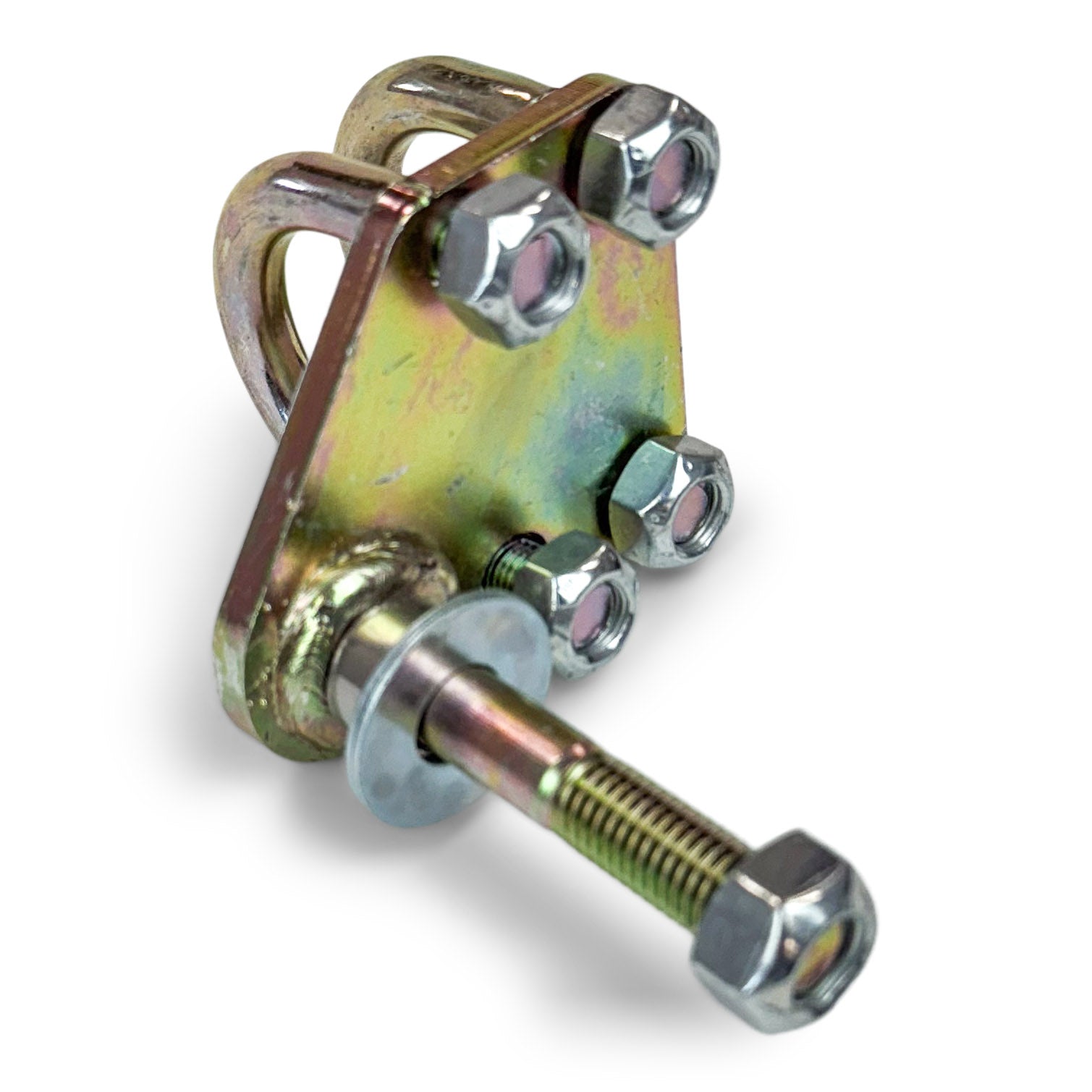

Clayton Off Road Tie Rod Steering Stabilizer Clamp Mount | Fits Tie Rods Up to 1.5" Diameter | 2007–2018 JK / 2018–2026 JL / 2020–2026 JT | Also Fits WJ 7075 Aluminum Bars | SKU: COR-5200940
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This clamp mount fits the Jeep Wrangler JK, Wrangler JL, and Gladiator JT — and also accepts Clayton's 1-3/8" WJ aluminum tie rod bars. Fitment is driven by tie rod diameter, not vehicle model — this mount accepts any tie rod or steering bar up to 1.5" in diameter.
| Year Range | Make | Model | Configuration | Application |
|---|---|---|---|---|
| 2007–2018 | Jeep | Wrangler JK | 2-Door | Tie rod stabilizer clamp mount |
| 2007–2018 | Jeep | Wrangler JK Unlimited | 4-Door | Tie rod stabilizer clamp mount |
| 2018–2026 | Jeep | Wrangler JL | 2-Door | Tie rod stabilizer clamp mount |
| 2018–2026 | Jeep | Wrangler JL Unlimited | 4-Door | Tie rod stabilizer clamp mount |
| 2020–2026 | Jeep | Gladiator JT | All configurations | Tie rod stabilizer clamp mount |
| 1999–2004 | Jeep | Grand Cherokee WJ | All | Fits Clayton 1-3/8" 7075 aluminum tie rod bar |
Companion part for COR-5209010: JL and JT owners who purchase the COR-5209010 axle bracket must also order this clamp mount — the axle bracket does not include a tie rod stabilizer mount. JK owners using COR-5209010 reuse the factory tie rod mount and do not need this part. If you want the complete JL/JT package with both components, order COR-5209011 instead.
A steering stabilizer is not included — this is a clamp mount only.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Tie rods or bars larger than 1.5" diameter | The clamp is sized for tie rods up to 1.5" diameter. Larger-diameter tie rods or bars will not clamp correctly. |
| JK owners using COR-5209010 as a standalone | JK owners using the COR-5209010 axle bracket reuse the factory JK tie rod stabilizer mount — this clamp mount is not needed for that application. |
| Any vehicle with tie rod diameter larger than 1.5" | Clamp bore is designed for ≤1.5" — confirm tie rod diameter before ordering. |
| Buyers expecting a steering stabilizer to be included | This is a clamp mount only — your existing or new stabilizer attaches to this mount. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5200940 |
| Application | Tie rod steering stabilizer clamp mount |
| Compatible tie rod diameter | Up to 1.5 inches |
| Compatible bars | Factory JK/JL/JT tie rods; Clayton 1-3/8" WJ 7075 aluminum tie rod bars; most aftermarket tie rods ≤1.5" |
| Mount style | Clamp — no welding, no drilling, no fabrication |
| Stabilizer included | No — clamp mount only |
| Required companion (JL/JT + COR-5209010) | This part — COR-5200940 — is the tie rod mount required when purchasing the COR-5209010 axle bracket for JL/JT applications |
| Complete JL/JT package | COR-5209011 — includes COR-5209010 axle bracket and this clamp mount together |
| Country of origin | Made in USA |
| Unit weight | Not confirmed in source document |
| Shipping dimensions | Not confirmed in source document |
What Is and Is NOT Included
Included:
| Component |
|---|
| COR-5200940 tie rod steering stabilizer clamp mount |
| Clamp hardware |
Not Included:
| Item | Notes |
|---|---|
| Steering stabilizer | Not included — this mount accepts your existing or new aftermarket stabilizer at the tie rod end |
| COR-5209010 axle bracket | Required for a complete JL/JT stabilizer relocation — this clamp mount is the tie rod end; the axle bracket is the axle end. Order both, or order COR-5209011 for the packaged kit. |
| Professional installation labor | Not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| JL/JT + COR-5209010 axle bracket | COR-5209010 is the axle-side bracket for JL/JT stabilizer relocation. COR-5200940 (this part) is the tie rod-side mount. Both are required for a complete JL/JT installation. Neither functions without the other at its respective end. | Order COR-5200940 with COR-5209010, or order COR-5209011 for the complete packaged kit. |
| JK owners using COR-5209010 | JK owners do not need this clamp mount when using the COR-5209010 axle bracket — the factory JK tie rod stabilizer mount is repositioned, not replaced. | JK owners: do not order this mount for use with COR-5209010 unless replacing a damaged factory tie rod mount. |
| WJ aluminum bar applications | Clayton's 1-3/8" WJ aluminum tie rod bars (COR-5206921, COR-5206906, COR-5206902, COR-5206900) have an OD of 1-3/8" — within the ≤1.5" clamp range. This mount can serve as the tie rod stabilizer mount for WJ steering builds. | Confirm WJ tie rod bar OD is ≤1.5" before ordering for WJ applications. |
| Tie rod diameter confirmation | This mount is sized for tie rods up to 1.5" diameter. Confirm your specific tie rod or bar OD is within this range before ordering — aftermarket tie rods vary in diameter. | Measure existing tie rod OD before ordering if using on a non-Clayton aftermarket bar. |
| Stabilizer eye diameter | The clamp mount has a specific pin size for the stabilizer's tie-rod-end eye. Verify your stabilizer's tie-rod-end eye diameter and pin size are compatible with this mount before ordering. | Confirm stabilizer eye spec against mount pin spec — see related items or text (469) 407-7538. |
Installation Notes
Skill level: Beginner. No drilling, welding, pressing, or fabrication required — clamp mount only. This is the simplest installation in the entire Clayton product lineup covered in this session.
Installation summary:

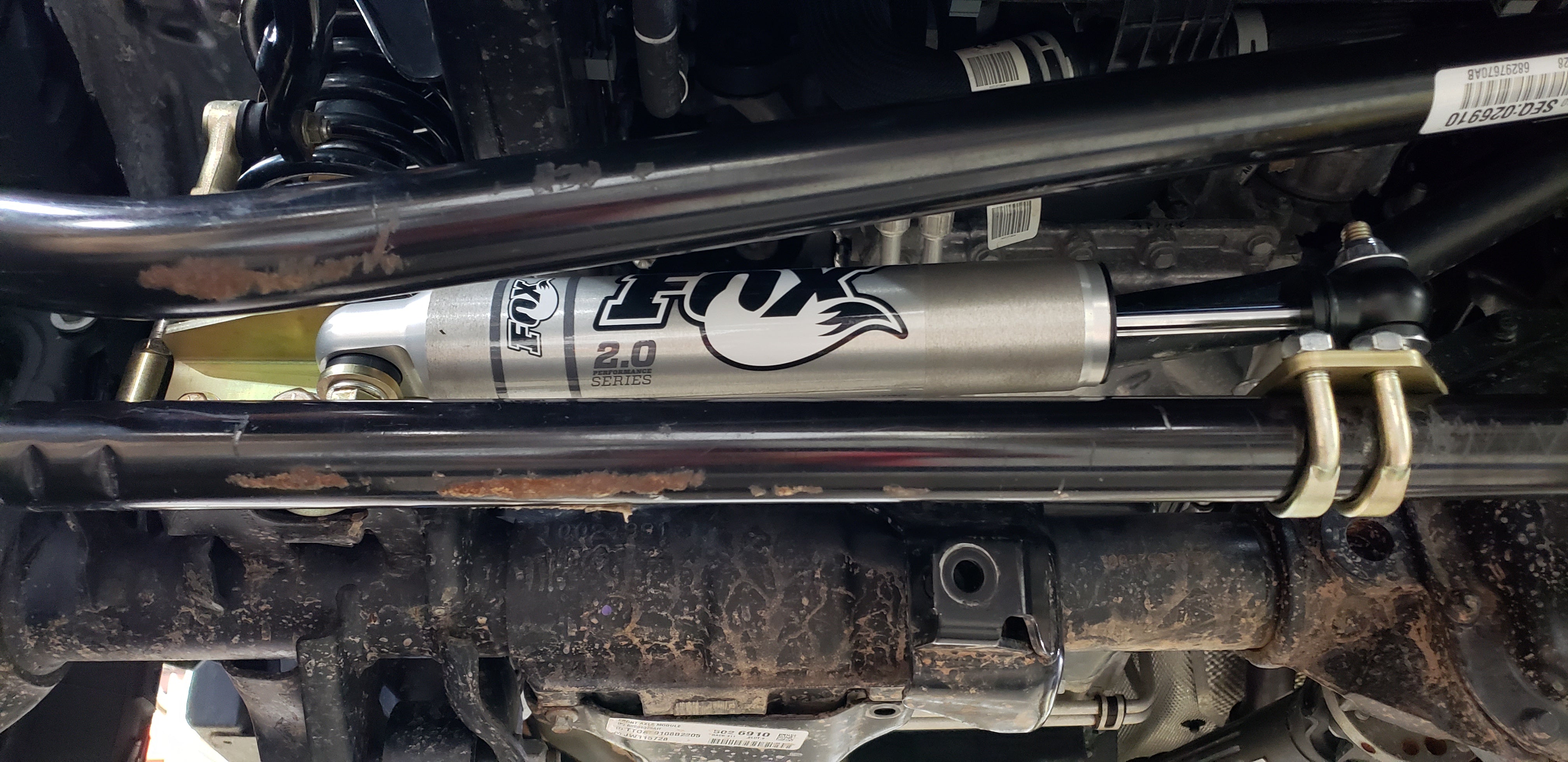

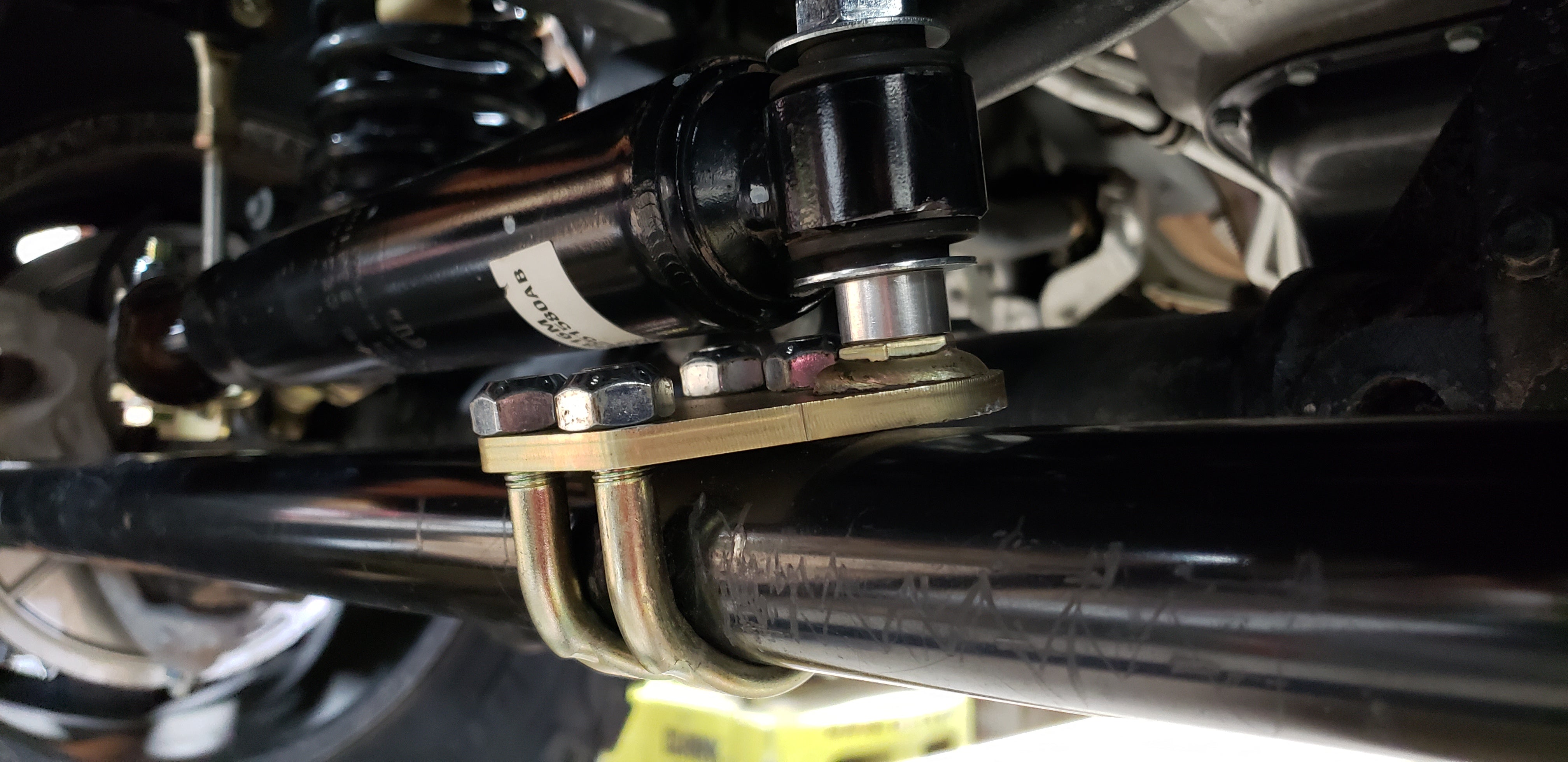

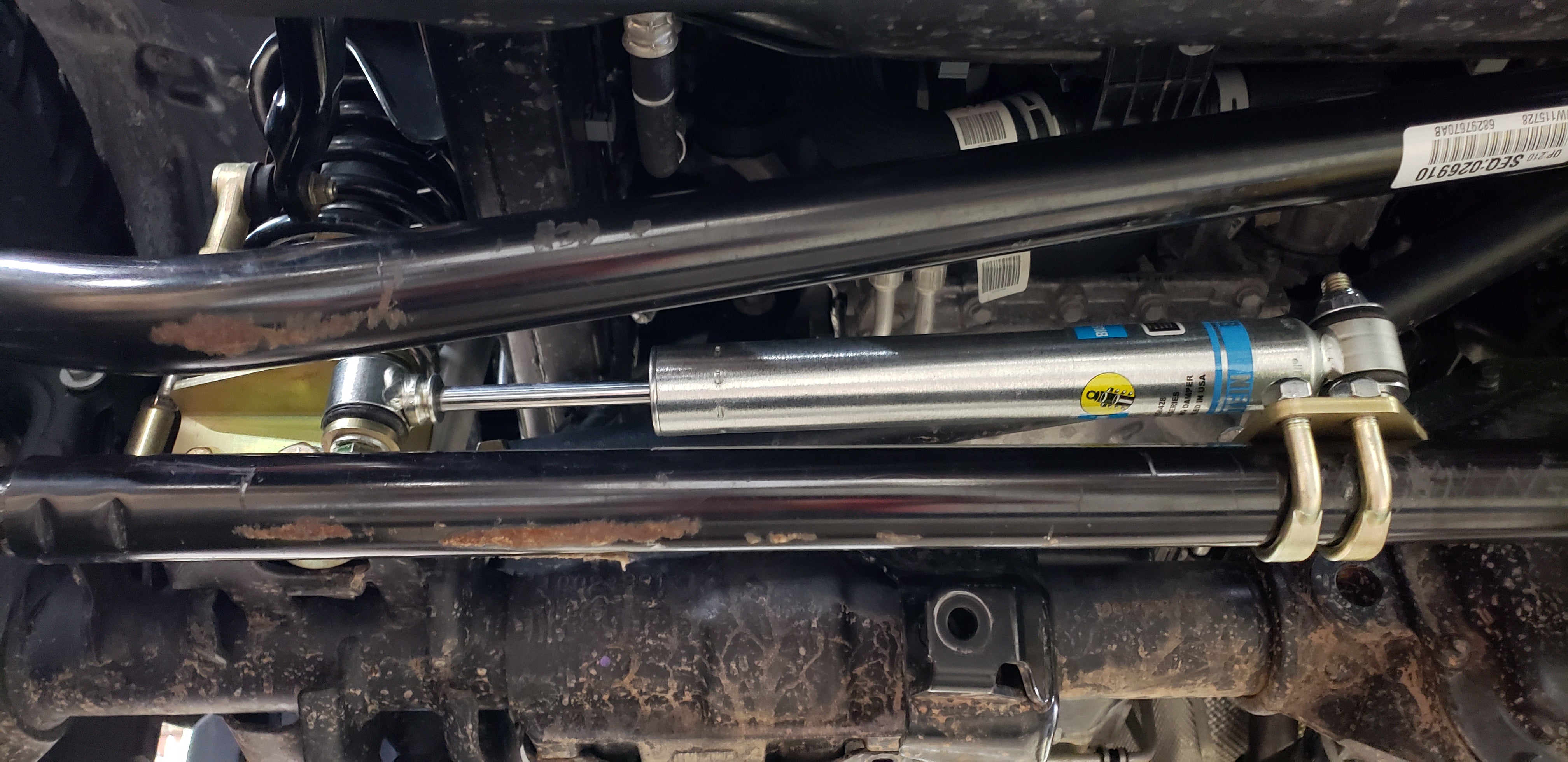

- Position the clamp mount on the tie rod at the stabilizer attachment point.
- Secure the clamp to the tie rod using the included clamp hardware — torque to Clayton's specification.
- Attach the steering stabilizer's tie-rod end to the mount.
- Torque all hardware at ride height.
Required tools:
| Tool | Required |
|---|---|
| Socket and wrench set | Yes |
| Torque wrench | Yes |
Common Questions
I ordered COR-5209010 for my JL — do I need to order this too?
Yes — COR-5209010 is the axle-side bracket only. COR-5200940 is the tie rod-side clamp mount. Both are required for a complete JL/JT stabilizer relocation. If you want both in a single purchase, order COR-5209011 (the packaged kit that includes both components).
Does this work on the JK?
JK owners using COR-5209010 do not need this part — the factory JK tie rod stabilizer mount is repositioned above the tie rod during that installation, not replaced. This clamp mount is needed for JL/JT applications where the factory tie rod does not have a factory-equivalent repositionable mount. If your factory JK tie rod mount is damaged and needs replacement, this clamp mount can substitute.
Can this be used on a WJ build with Clayton aluminum bars?
Yes — Clayton's 1-3/8" WJ aluminum tie rod bars are within the ≤1.5" clamp range. This mount can serve as the tie rod stabilizer mount for WJ steering builds using Clayton's aluminum bars. The factory WJ stabilizer is not compatible with Clayton's aluminum bars — this mount is the interface point for an upgraded stabilizer on those builds.
What stabilizer do I need?
This mount does not include a stabilizer. Compatible options depend on your vehicle, lift height, and intended use. See related items or text (469) 407-7538 for stabilizer recommendations for your specific platform and build.
The Obsidian Take
This clamp mount is the tie rod-side half of the Clayton stabilizer relocation system for JL and JT applications, and the stabilizer mount for WJ steering builds using Clayton's aluminum bars. At less than a minute of installation time and no fabrication required, it is the least complex component in the Clayton lineup — but it is also the part that gets forgotten and turns a complete stabilizer relocation into a non-functional build. JL and JT owners who order COR-5209010 without this mount cannot complete the installation.
For JK owners, this part is typically not needed — the factory JK tie rod mount repositions above the tie rod without replacement. For JL and JT owners, it is a required companion to COR-5209010. For WJ owners building with Clayton aluminum bars, it solves the stabilizer mount question left open by every WJ page in this session. And for any buyer who wants both the axle bracket and this clamp mount in a single transaction, COR-5209011 is the packaged solution.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, clamp diameter range, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm tie rod diameter and stabilizer eye specification before ordering.
Non-Returnable Notice
Steering components are non-returnable once installed. Confirm tie rod diameter (≤1.5"), stabilizer eye compatibility, and companion parts (COR-5209010 for JL/JT axle bracket) before ordering. Text (469) 407-7538 with any fitment or application questions before your order is placed.
