Clayton Off Road Rear Sway Bar End Link Mount Reinforcement Bracket | Weld-On | Factory Mount Crack Prevention | 2020–2026 Jeep Gladiator JT | SKU: COR-5110200
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment

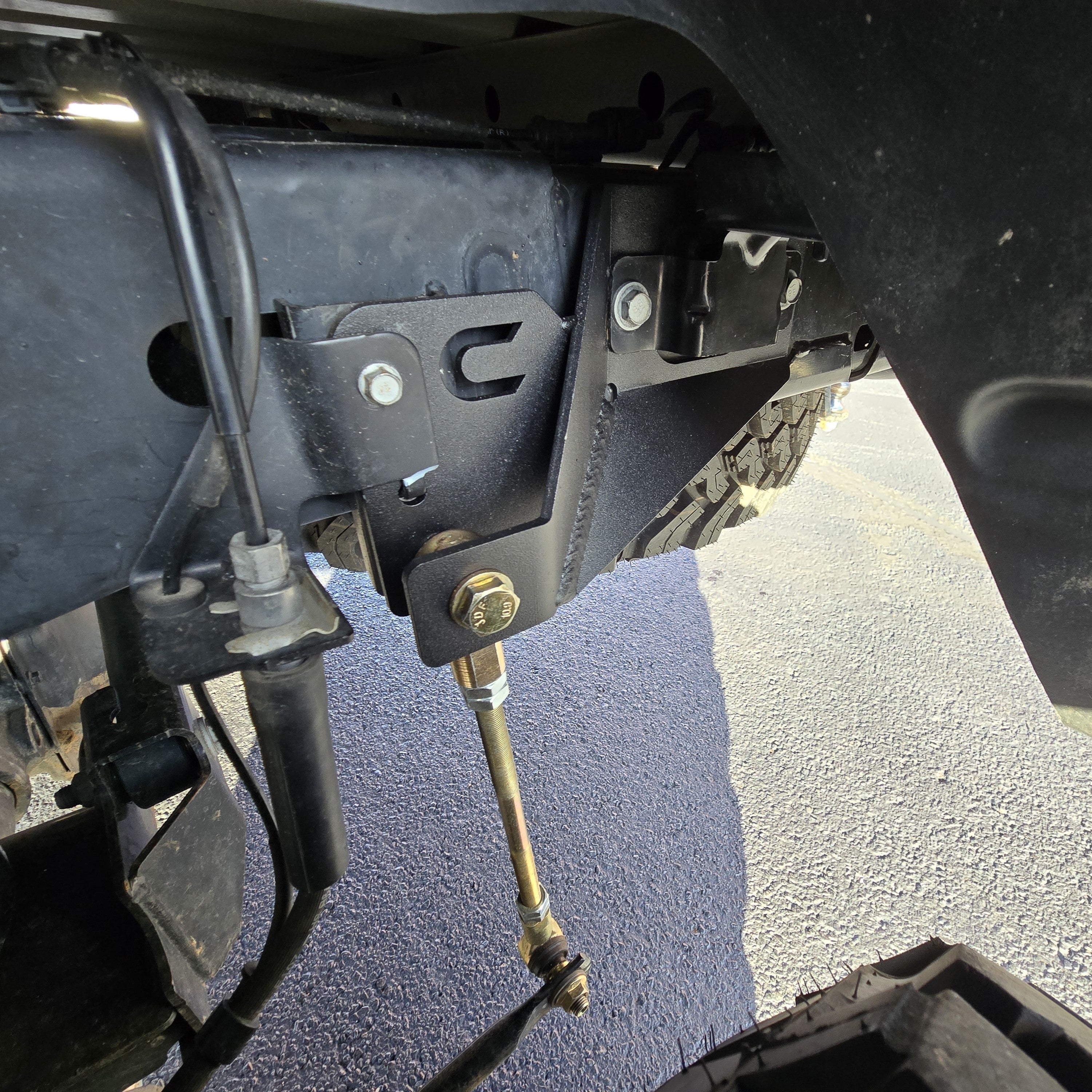

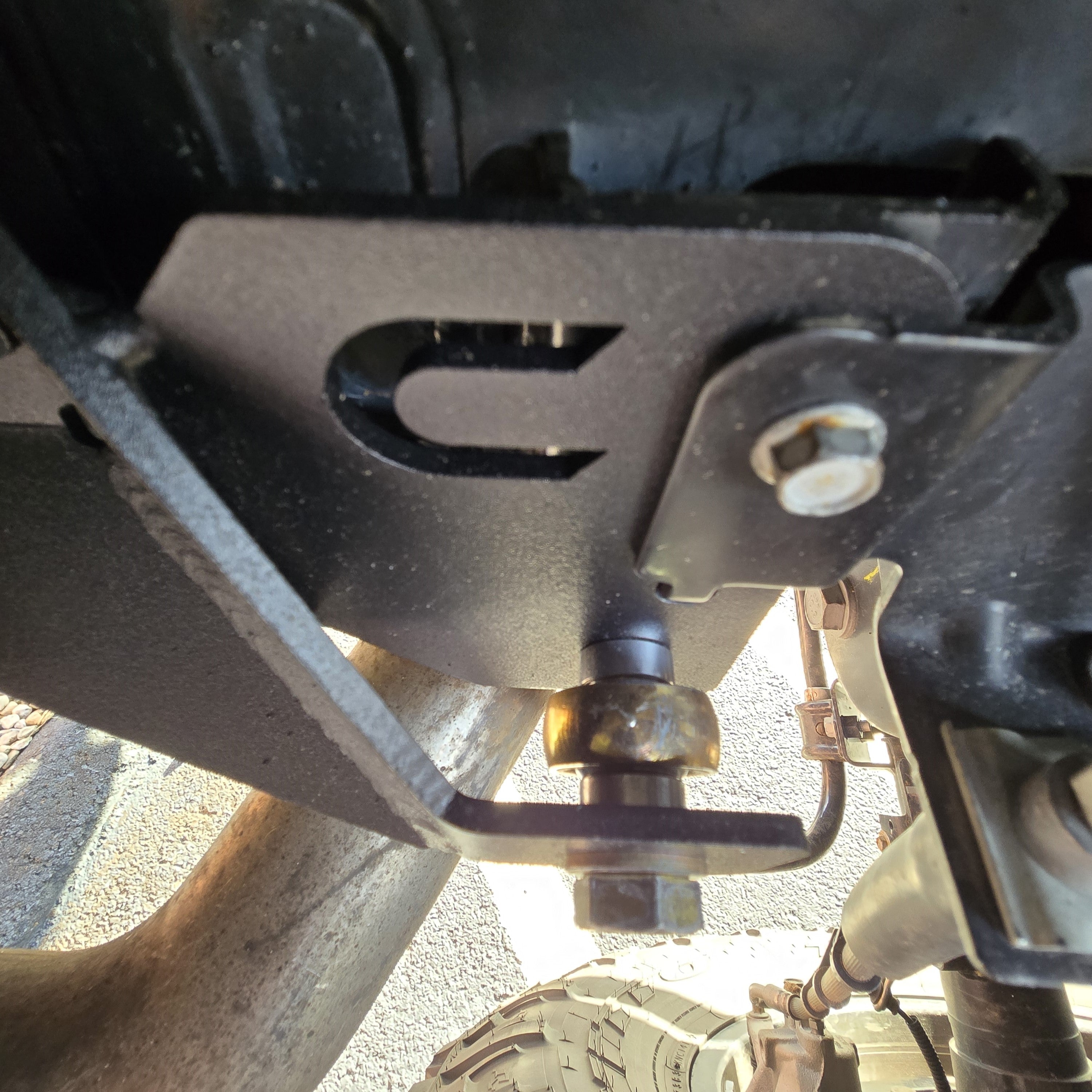

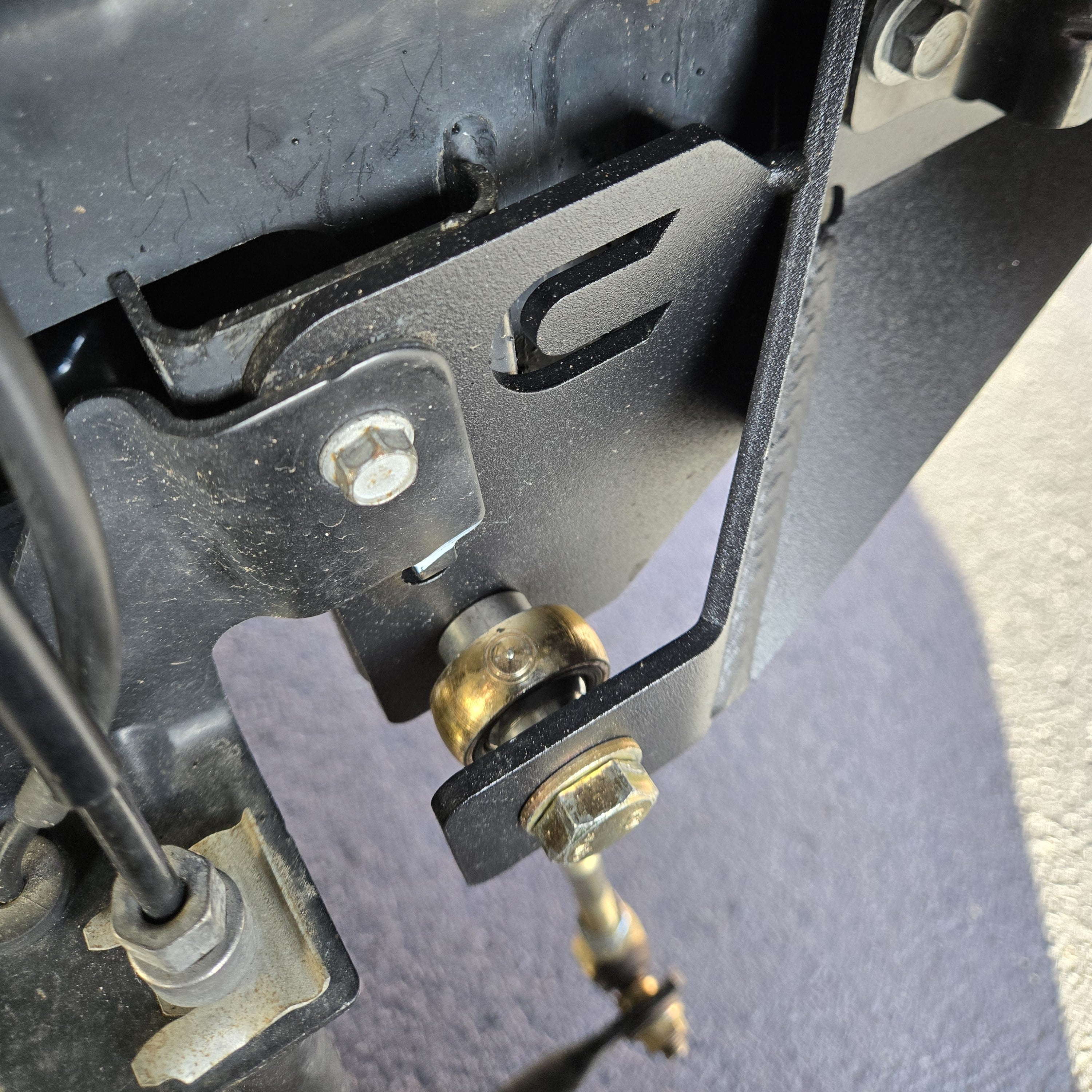

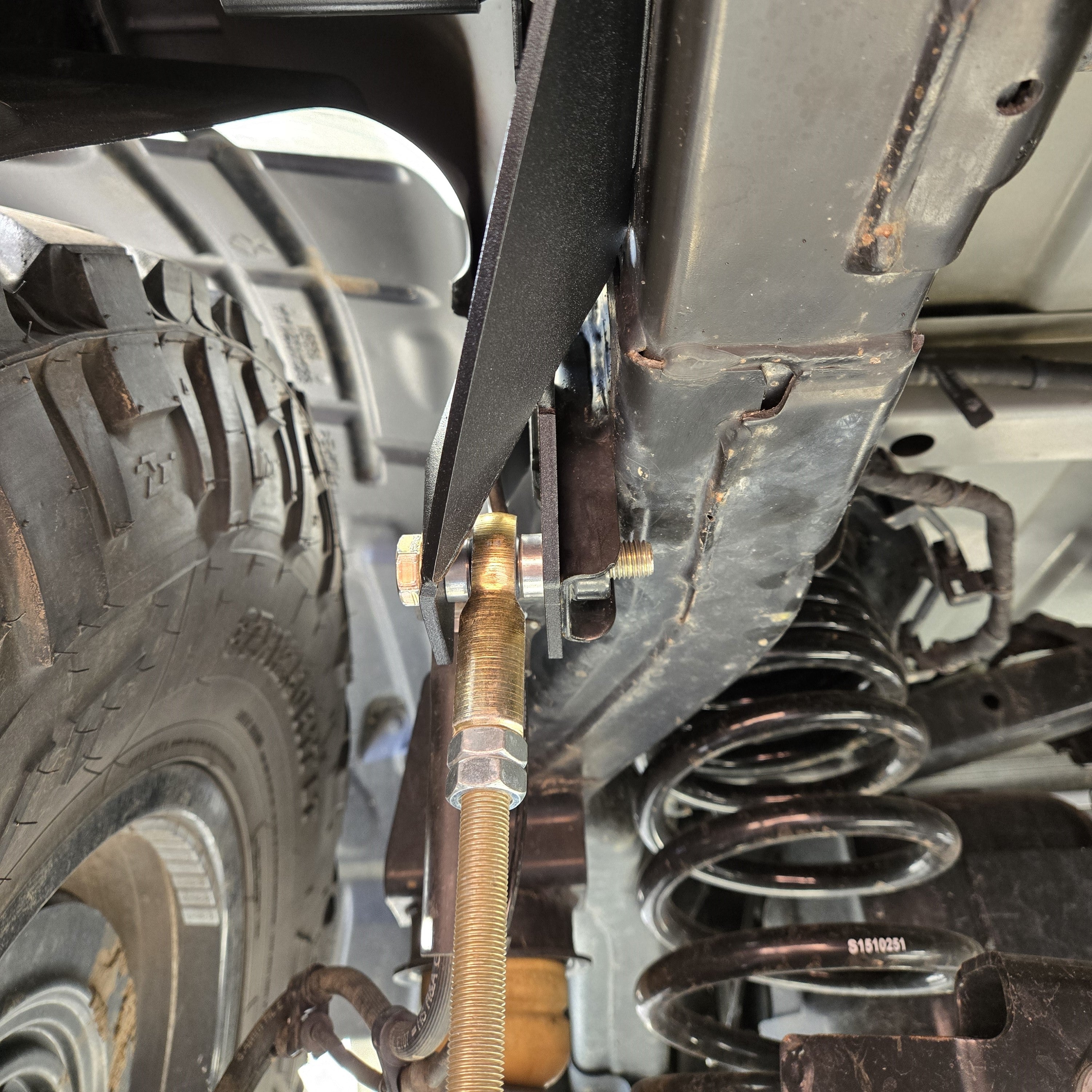

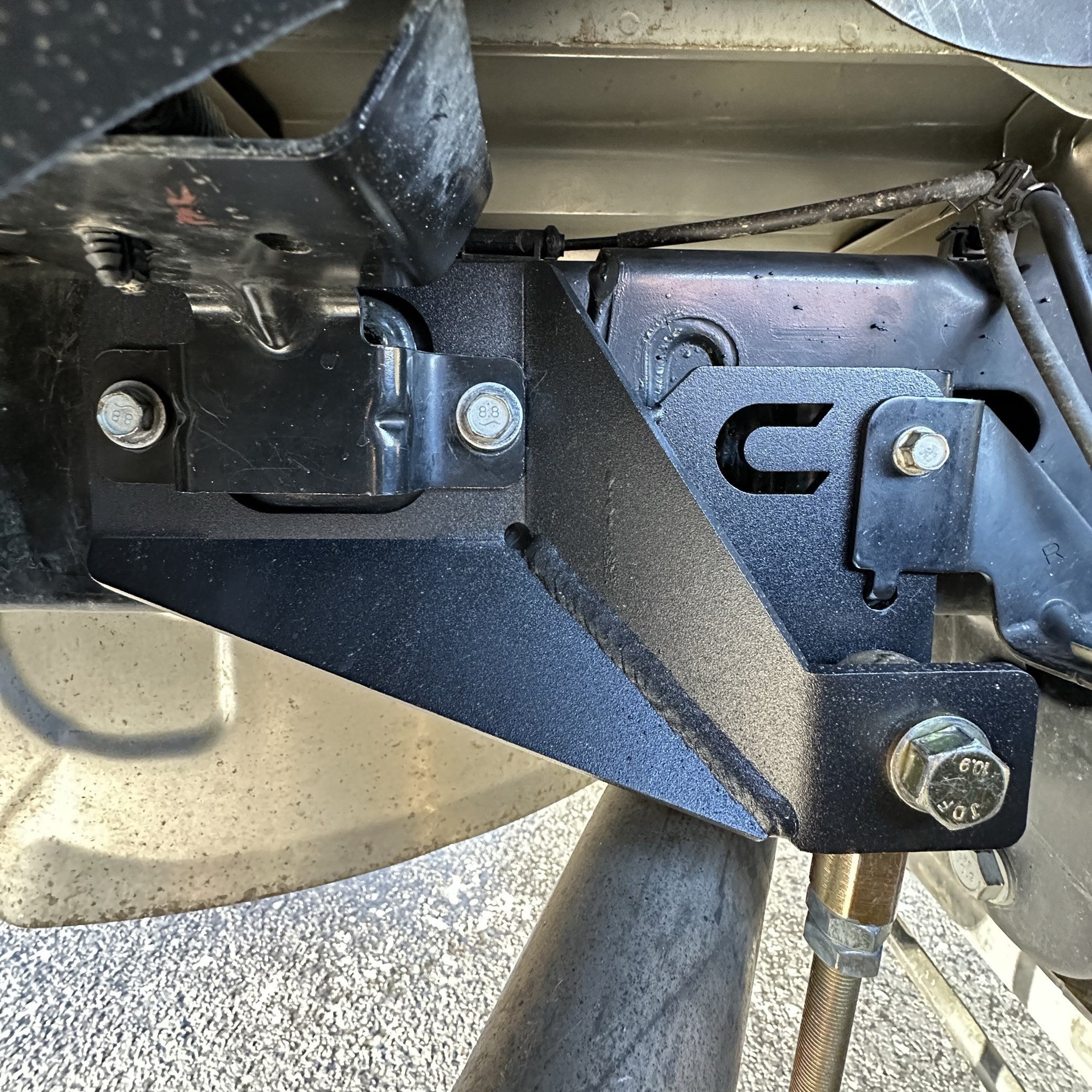

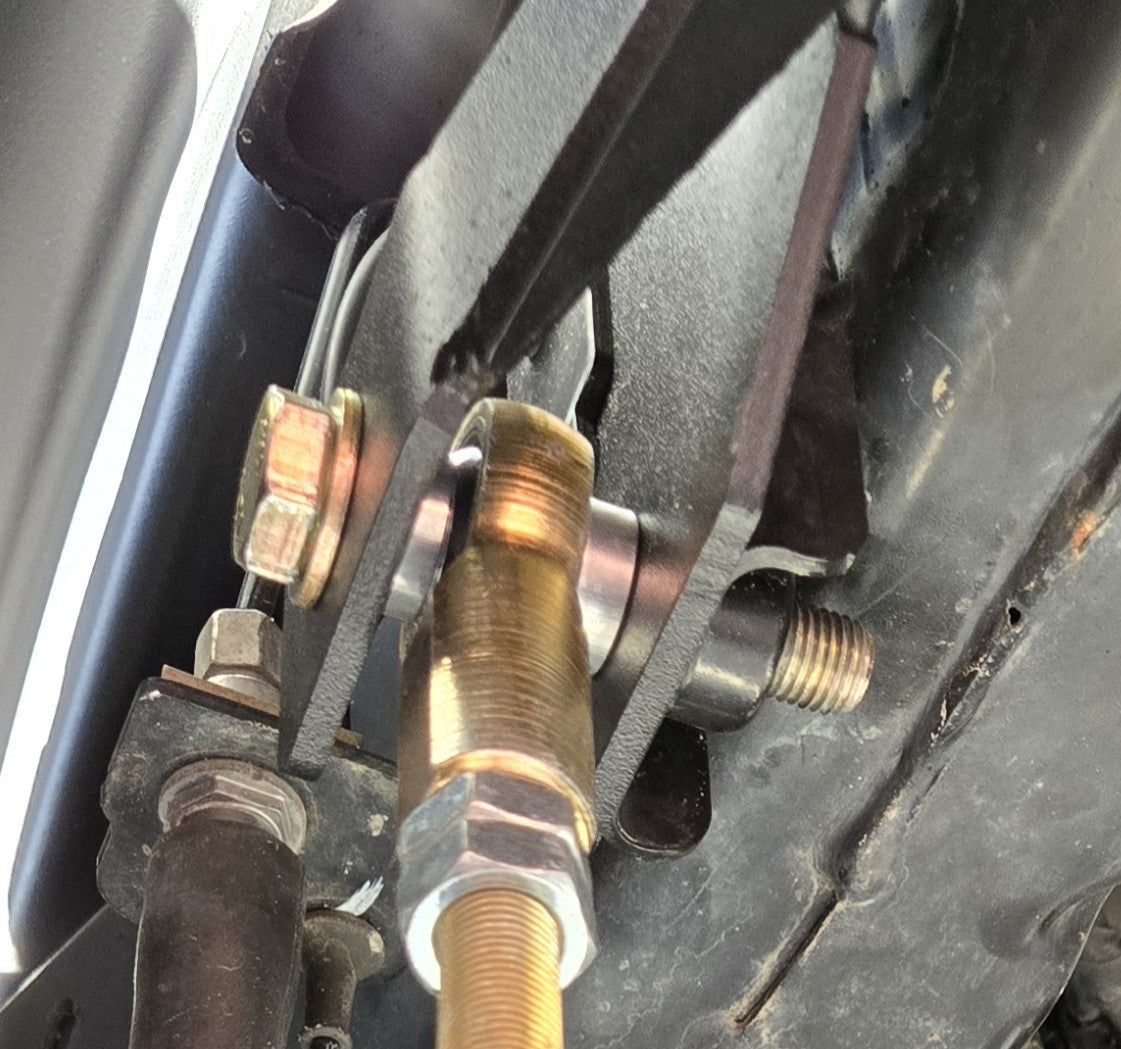

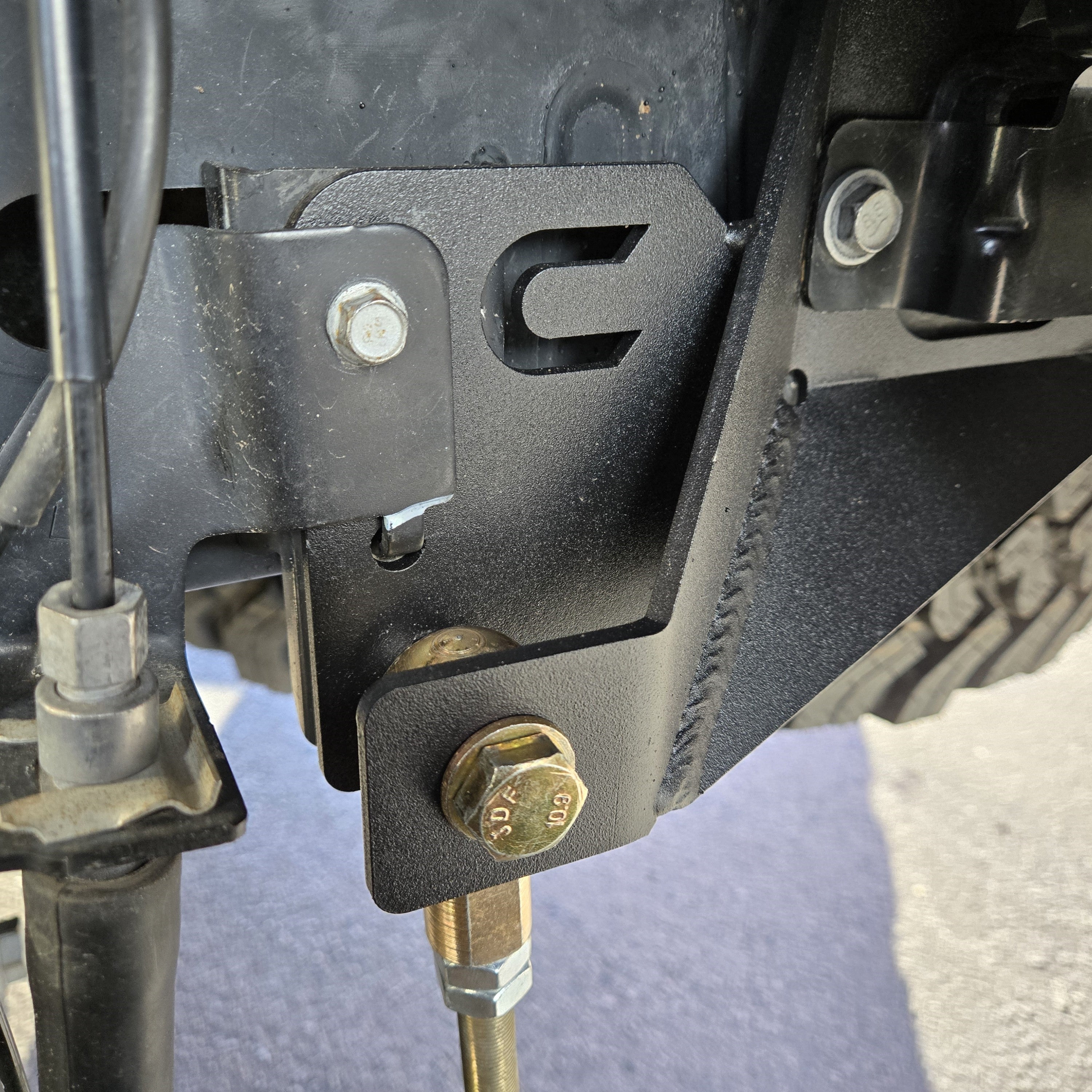

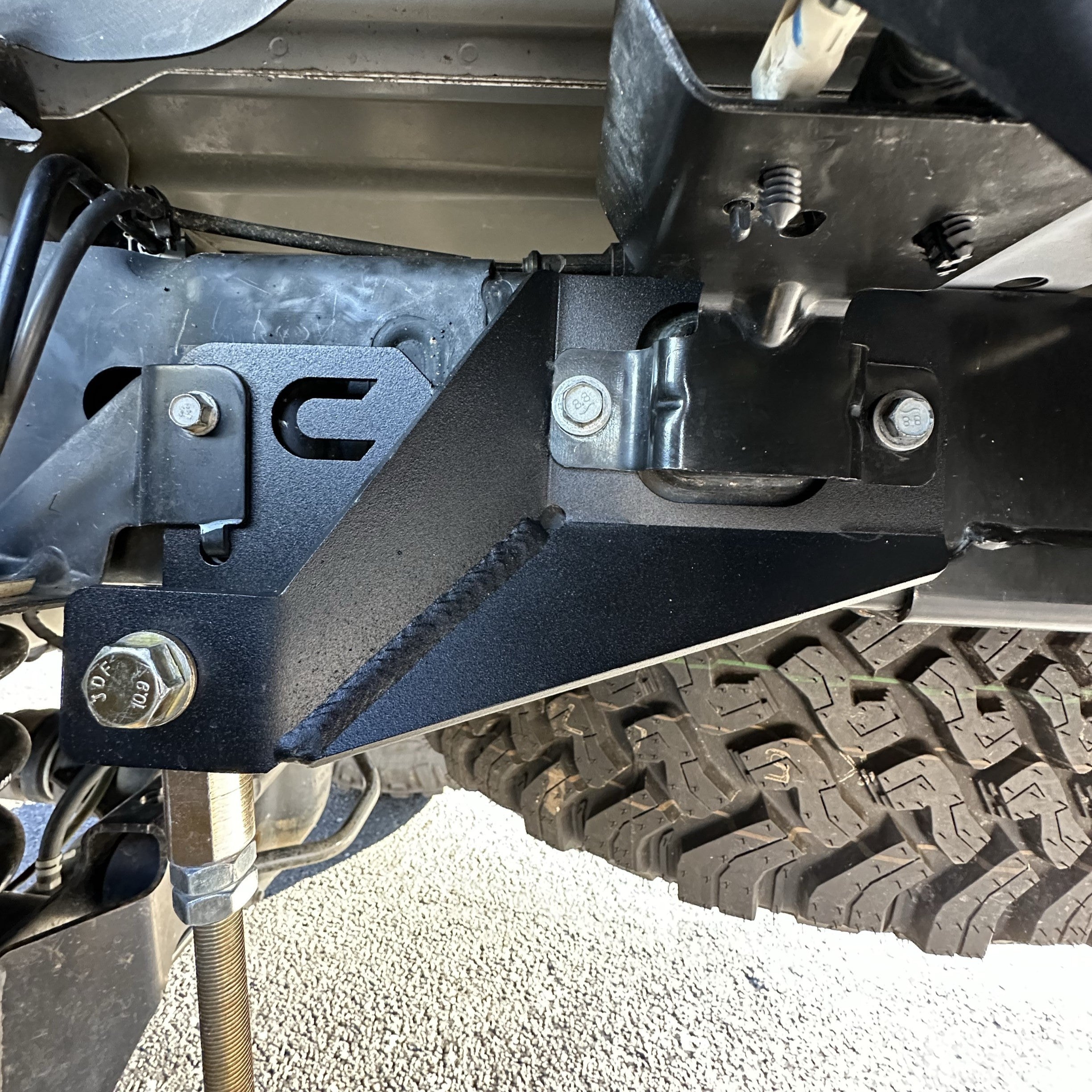

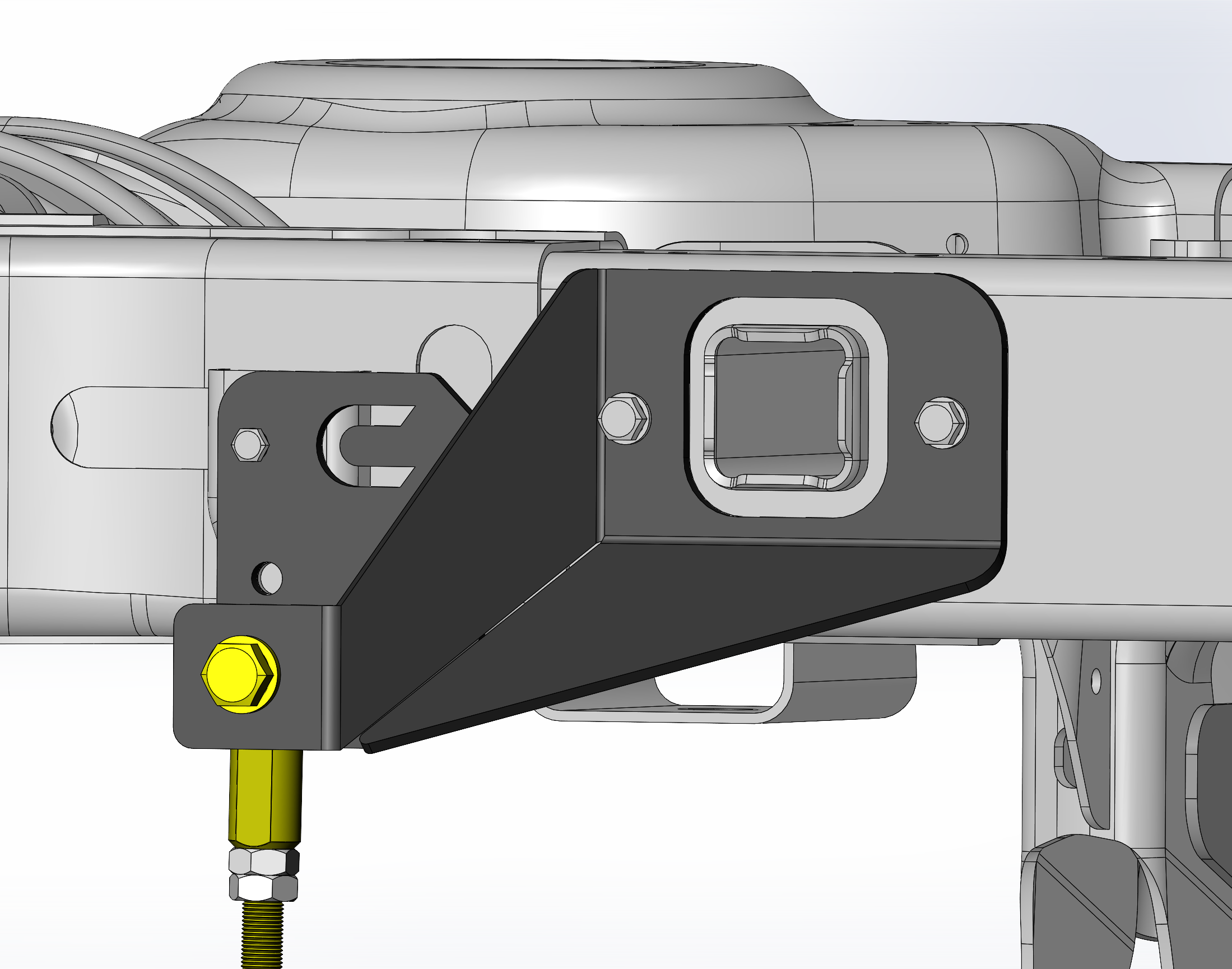

This bracket fits the 2020 through 2026 Jeep Gladiator JT in all trims. It reinforces the factory rear sway bar end link mount — a stamped steel bracket welded to the axle housing that is a known failure point under repeated load cycling, particularly on lifted trucks running extended sway bar end links.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 2020–2026 | Jeep | Gladiator JT | All trims | Weld-on installation — certified welder required |
Before ordering: This bracket requires welding to install — permanent chassis modification. Confirm access to a certified welder before ordering.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler JL (2018–2026) | JL rear sway bar end link mount geometry differs from Gladiator JT — JT-specific bracket |
| Jeep Wrangler JK (2007–2018) | Different rear axle and sway bar mount configuration |
| Jeep Wrangler TJ / LJ | Not applicable |
| Any Gladiator JT where the factory sway bar end link mount has already cracked or torn | If the factory mount has already failed, welding a reinforcement bracket to a cracked mount is not a structural repair. Replace the damaged mount before adding reinforcement. Text (469) 407-7538 for guidance. |
| Buyers without access to a certified welder | Weld-on installation — permanent chassis modification. Not a bolt-on bracket. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5110200 |
| Application | Rear sway bar end link mount reinforcement — 2020–2026 Gladiator JT |

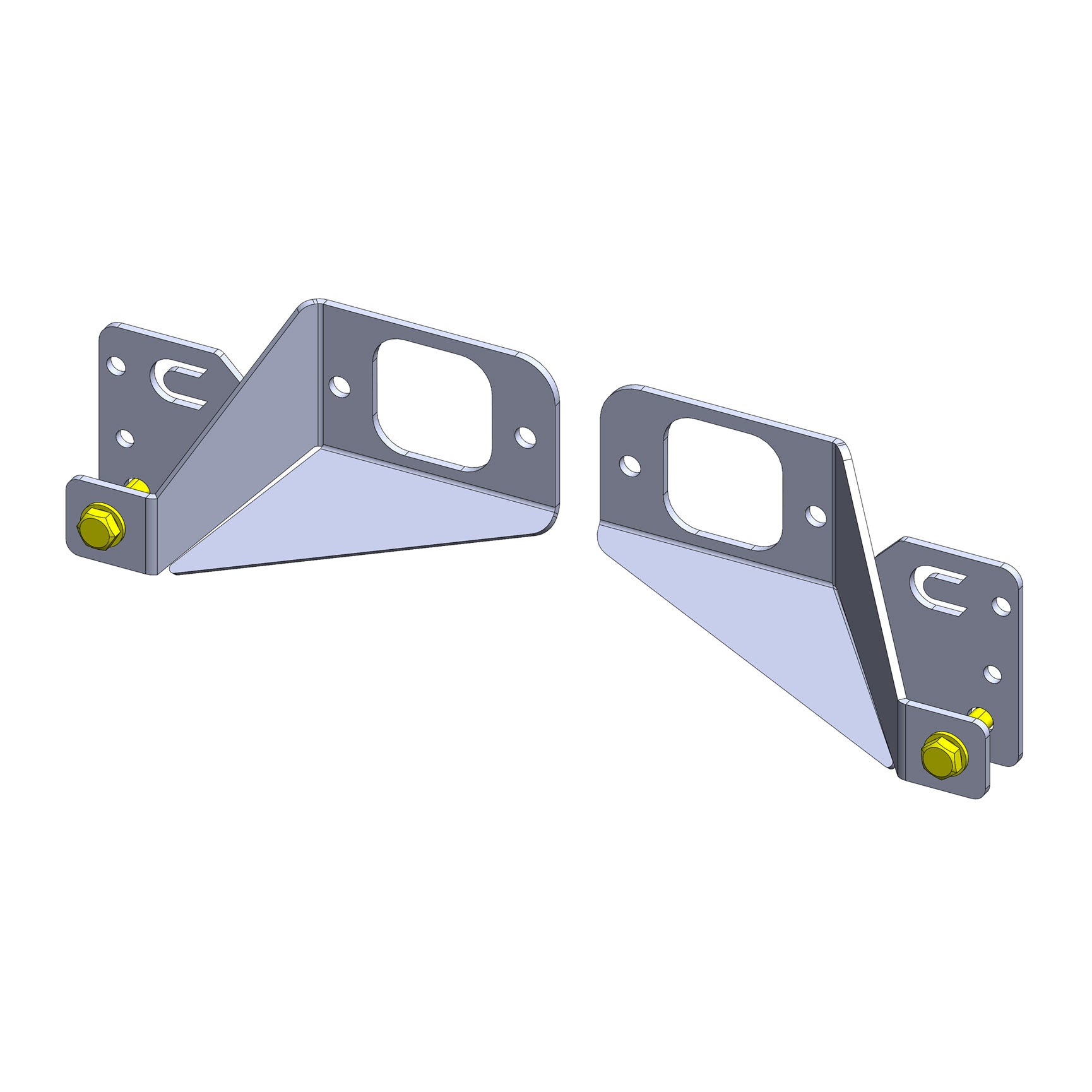

| Bracket material | Steel — CNC laser-cut and formed |
| Finish | Not confirmed in source document |
| Installation | Weld-on — permanent reinforcement of factory end link mount |
| Factory mount condition required | Factory mount must be intact and uncracked — not a repair bracket for damaged mounts |
| Relevance by lift height | Increases with lift height and extended sway bar end links — greater end link angles create more cyclic load on the factory mount |
| Country of origin | Made in USA |
| Unit weight | Not confirmed in source document |
| Shipping dimensions | Not confirmed in source document |
What Is and Is NOT Included
Included:
| Component |
|---|

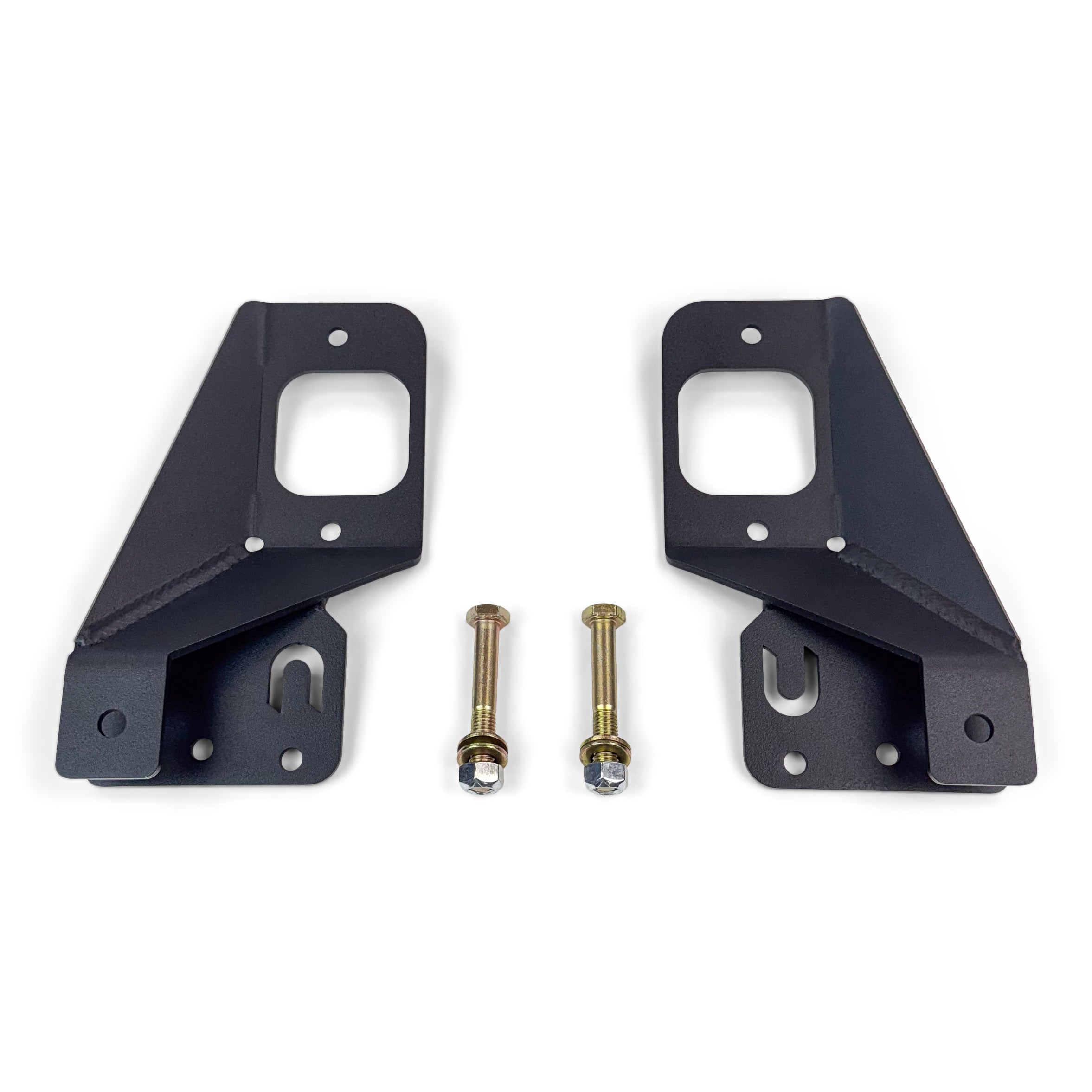

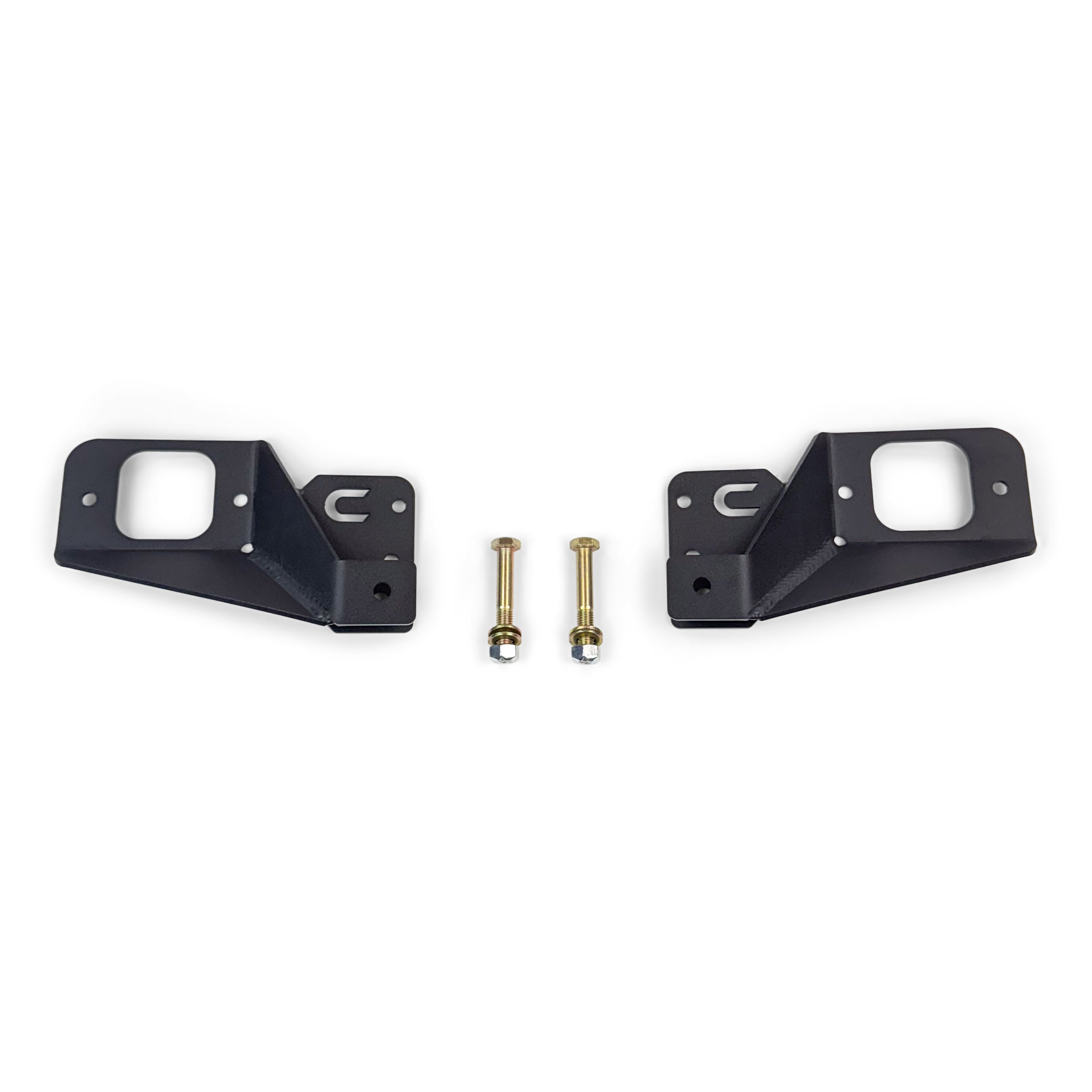

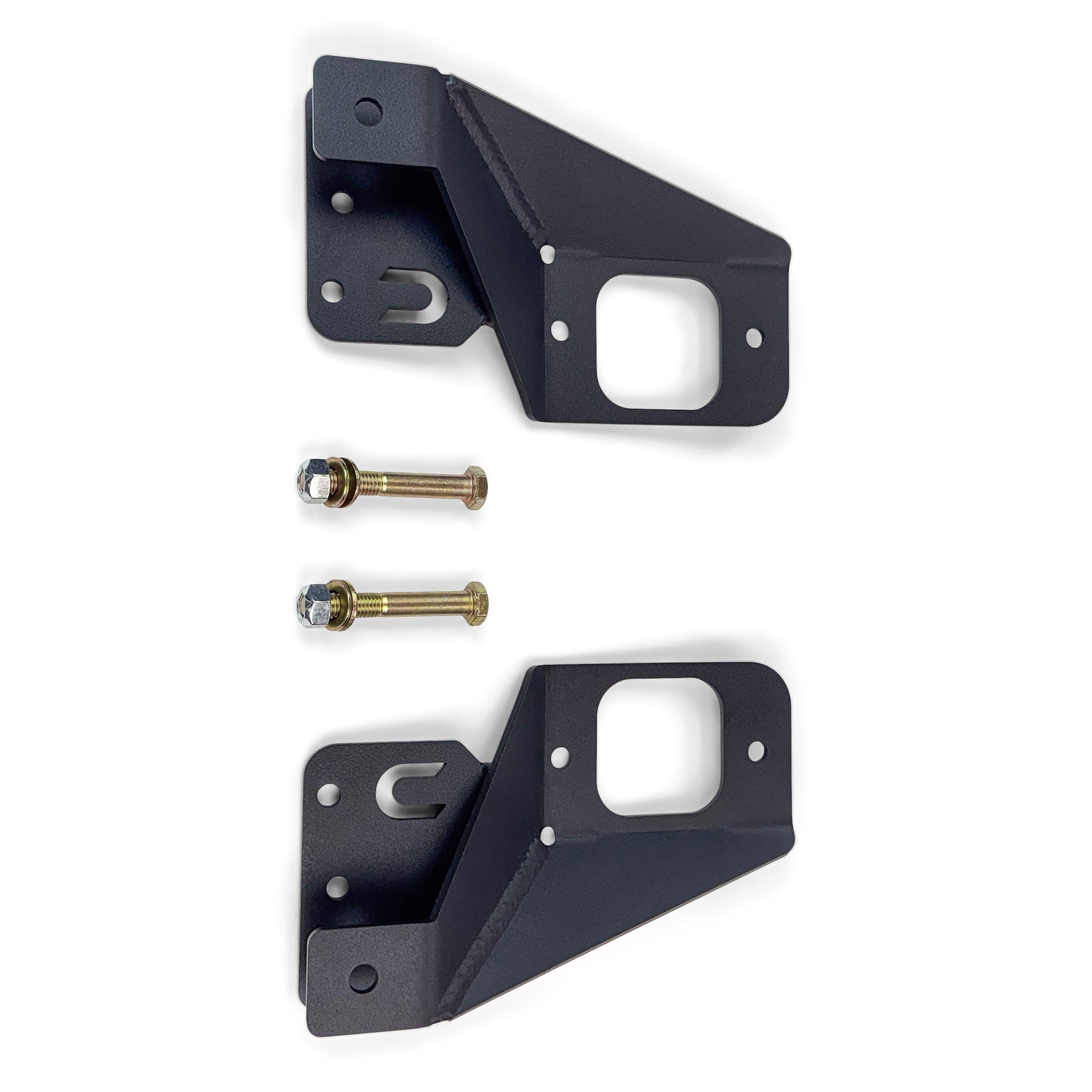

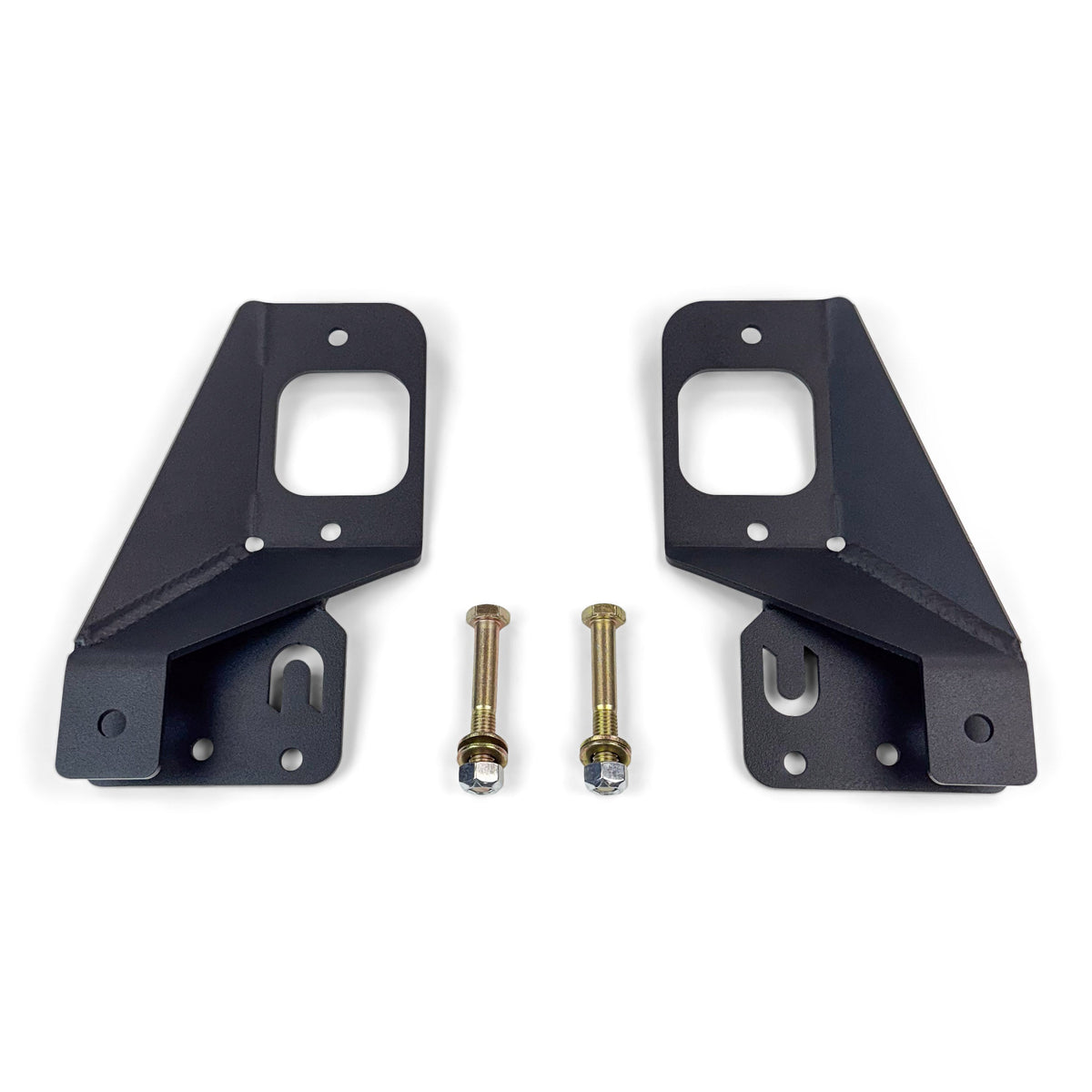

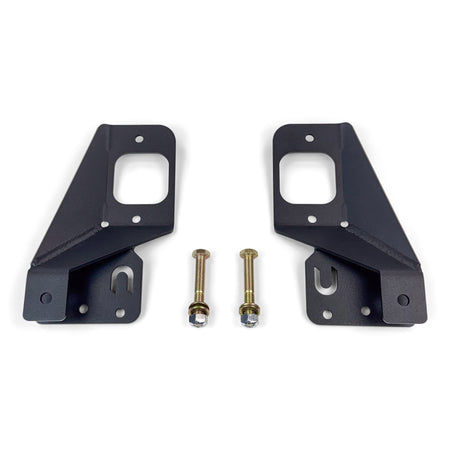

| COR-5110200 rear sway bar end link mount reinforcement bracket |
| Weld-on installation hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| Extended sway bar end links | Not included — if your build requires extended end links for your lift height, source separately |
| Professional welding labor | Certified welder required — not included |
| Weld-through primer and chassis paint | Required to coat bare metal at weld zones after installation — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Factory mount must be intact | This bracket reinforces an intact factory sway bar end link mount — it is not a structural repair for a cracked or torn mount. Installing this bracket over a cracked mount does not restore the mount's structural integrity. | Inspect the factory mount carefully before installation. If cracked or torn, consult Clayton or a qualified fabricator for mount repair before adding reinforcement. Text (469) 407-7538. |
| Weld-on installation — permanent | Welding this bracket to the axle housing is a permanent chassis modification. The bracket cannot be removed without cutting. | Confirm this is the correct course of action for your build before installation. |
| Post-weld corrosion protection | Welding burns off any existing coating at the weld zone. Unprotected bare metal at weld zones will corrode. | Apply weld-through primer and chassis paint to all bare metal areas after welding before returning to service. |
| Lift height and end link angle | The factory mount failure is accelerated by lifted ride height and extended sway bar end links — both increase the cyclic load angle applied to the mount. At stock height with stock end links, the factory mount is under normal design load. At lifted height with extended links, load cycles are more severe. | Most relevant for lifted JT builds. Install proactively rather than waiting for visible cracking. |
| JL Wrangler exclusion | This bracket is specific to the Gladiator JT rear sway bar end link mount geometry. The JL's rear axle and sway bar mount configuration differ — this bracket is not a universal Jeep rear sway bar reinforcement. | Confirm vehicle is a Gladiator JT, not a Wrangler JL. |
Installation Notes
Skill level: Intermediate — certified welding required. The bracket itself is a simple, small weld-on reinforcement, but welding to an axle housing requires a qualified shop. This is a shorter, simpler weld than the COR-5208110 drag link flip kit's full bracket — but it still requires proper weld penetration and post-weld corrosion protection.
Phase 1 — Pre-installation inspection:
- Inspect the factory rear sway bar end link mount carefully — check for cracks, tears, or separation at the factory weld point. If the mount is damaged, do not proceed. Consult a fabricator for repair before reinforcement.
- Clean the mount area — remove dirt, undercoating, and rust from the reinforcement contact surfaces for proper weld penetration.
Phase 2 — Weld-on installation:

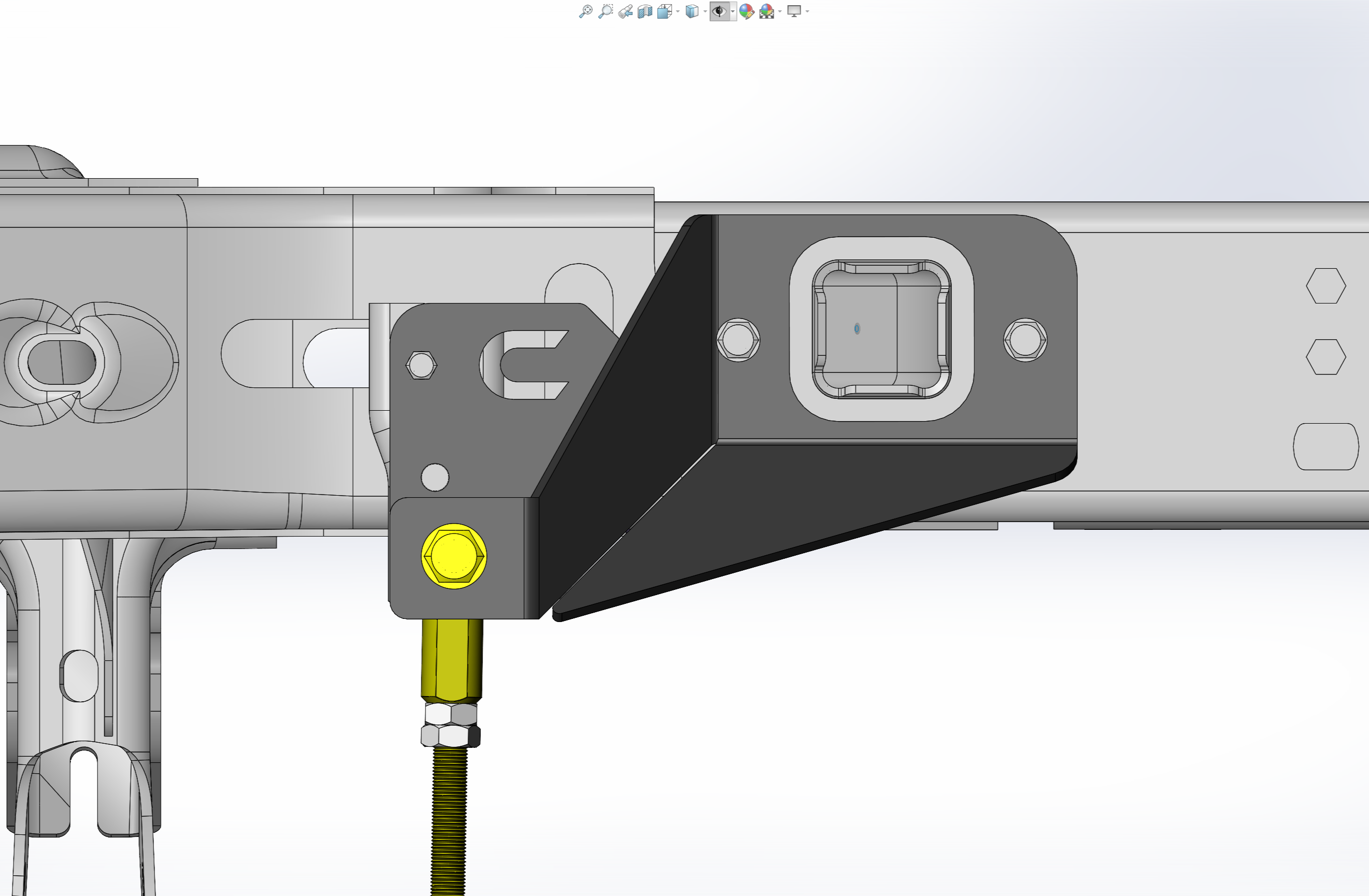

- Position the bracket over or adjacent to the factory mount per Clayton's installation specification.
- Weld per Clayton's specification — full-penetration welds on all contact surfaces. No stitch welds on load-bearing joints.
- Allow welds to cool completely.
- Apply weld-through primer and chassis paint to all bare metal at weld zones before returning to service.
Required tools:
| Tool | Required |
|---|---|
| Welding equipment (MIG minimum) | Yes — certified welder |
| Wire brush / surface prep tool | Yes — for weld zone cleaning |
| Weld-through primer and chassis paint | Yes — post-weld |
Common Questions
Why does my Gladiator JT need rear sway bar end link mount reinforcement?
The factory JT rear sway bar end link mount is a stamped steel bracket welded to the rear axle housing. Under normal stock-height use, this mount handles its design load without issue. When the JT is lifted and running extended sway bar end links, the angle and load of each suspension cycle increases — the factory mount absorbs more cyclic stress per cycle than it was designed for. Over time this repeated load cycling can crack or tear the factory mount at its weld point. The COR-5110200 adds material to reinforce that weld point before failure occurs — a proactive fix that costs far less than repairing or replacing a damaged axle mount after the fact.
Can I install this myself without a welder?
No — this is a weld-on reinforcement bracket. Welding to the rear axle housing requires proper equipment and technique. Welding a structural bracket to an axle with insufficient penetration is worse than no bracket — it adds weight without adding strength and can delaminate under load. A certified MIG welder is the minimum for this installation.
My factory mount is already cracked. Will this fix it?
No — this bracket reinforces an intact mount. It is not a structural repair for a cracked or torn factory mount. If your mount has already failed, the cracked metal must be addressed first — either repaired or replaced by a qualified fabricator — before adding the reinforcement bracket. Text (469) 407-7538 for guidance.
Does this fit the Wrangler JL?
No — this bracket is specific to the Gladiator JT's rear sway bar end link mount geometry. The JL Wrangler has a different rear axle and sway bar configuration. A JL-specific bracket would be a separate product.
What is the warranty?
Clayton Off Road warranty terms are not confirmed in current source documentation. Contact OFAS or Clayton Off Road directly for warranty information on this product.
The Obsidian Take
This bracket is for the Gladiator JT owner who has lifted the truck, is running extended sway bar end links, and wants to address the factory mount vulnerability before it becomes an axle repair. The factory stamped steel mount at the rear sway bar end link is a documented weak point under the increased cyclic load of a lifted JT — this bracket adds the material reinforcement that should have been there from the factory for off-road applications.
The installation is simple — a short weld-on bracket with no geometry correction, no alignment requirement, and no companion parts required. The weld requirement is the only gate. If you have access to a certified welder, this is a one-session installation that takes minutes to complete alongside any other chassis work.
It is not a repair bracket for a mount that has already failed. It is not for the Wrangler JL. And it is most relevant for lifted JT builds — at stock height, the factory mount may be adequate for the expected load cycle, but any serious trail build or daily driver with meaningful lift height benefits from this reinforcement.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment, weld specifications, and factory mount condition requirements may vary by specific vehicle configuration and manufacturer updates. Inspect the factory mount before ordering to confirm it is intact and uncracked.
Non-Returnable Notice
Suspension and chassis components are non-returnable once installed. This bracket requires permanent welding to the rear axle housing. Confirm the factory rear sway bar end link mount is intact and uncracked before ordering — this is not a repair bracket for a failed mount. Text (469) 407-7538 with any fitment questions before your order is placed.
