Clayton Off Road Adjustable Rear Sway Bar End Links | Length-Adjustable for Lift Height | 2020–2026 Jeep Gladiator JT | SKU: COR-5110110
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This product fits the 2020 through 2026 Jeep Gladiator JT in all trims. These are adjustable rear sway bar end links engineered for lifted JT builds — the factory end links are fixed-length and do not accommodate the changed sway bar and axle geometry that results from lifting the truck. Adjustable end links correct this geometry and allow the rear sway bar to function correctly through the full suspension travel range at lift height.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 2020–2026 | Jeep | Gladiator JT | All trims | Set length per installed lift height — see Field 4 for confirmed length range |
Companion product: COR-5110200 (rear sway bar end link mount reinforcement bracket) — addresses the factory mounting point vulnerability that lifted JT builds with extended end links create. Recommended to install alongside these end links if not already installed.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Wrangler JL (2018–2026) | Different rear sway bar end link geometry — JT-specific product |
| Jeep Wrangler JK (2007–2018) | Different rear sway bar end link geometry |
| Jeep Wrangler TJ / LJ | Not applicable |
| Trucks at stock ride height without a lift | Factory fixed-length end links are correct for stock geometry — adjustable end links at stock height do not provide a functional benefit unless the factory end links are damaged |
| Buyers who have not confirmed their rear lift height | These end links must be set to the correct length for your installed lift height. Ordering without knowing your lift height means the end links cannot be correctly set at installation. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-5110110 |
| Application | Adjustable rear sway bar end links — 2020–2026 Gladiator JT |
| Adjustability | Length-adjustable — set to match installed lift height |
| Adjustment range | Not confirmed in source data — see Missing Data Report |
| End fitting type | Not confirmed in source data — see Missing Data Report |
| Material | Not confirmed in source data — see Missing Data Report |
| Finish | Not confirmed in source data — see Missing Data Report |
| Thread pitch | Not confirmed in source data — see Missing Data Report |
| Greaseable ends | Not confirmed in source data — see Missing Data Report |
| Country of origin | Made in USA |
| Unit weight | Not confirmed in source data |
| Shipping dimensions | Not confirmed in source data |
What Is and Is NOT Included
Included:
| Component |
|---|

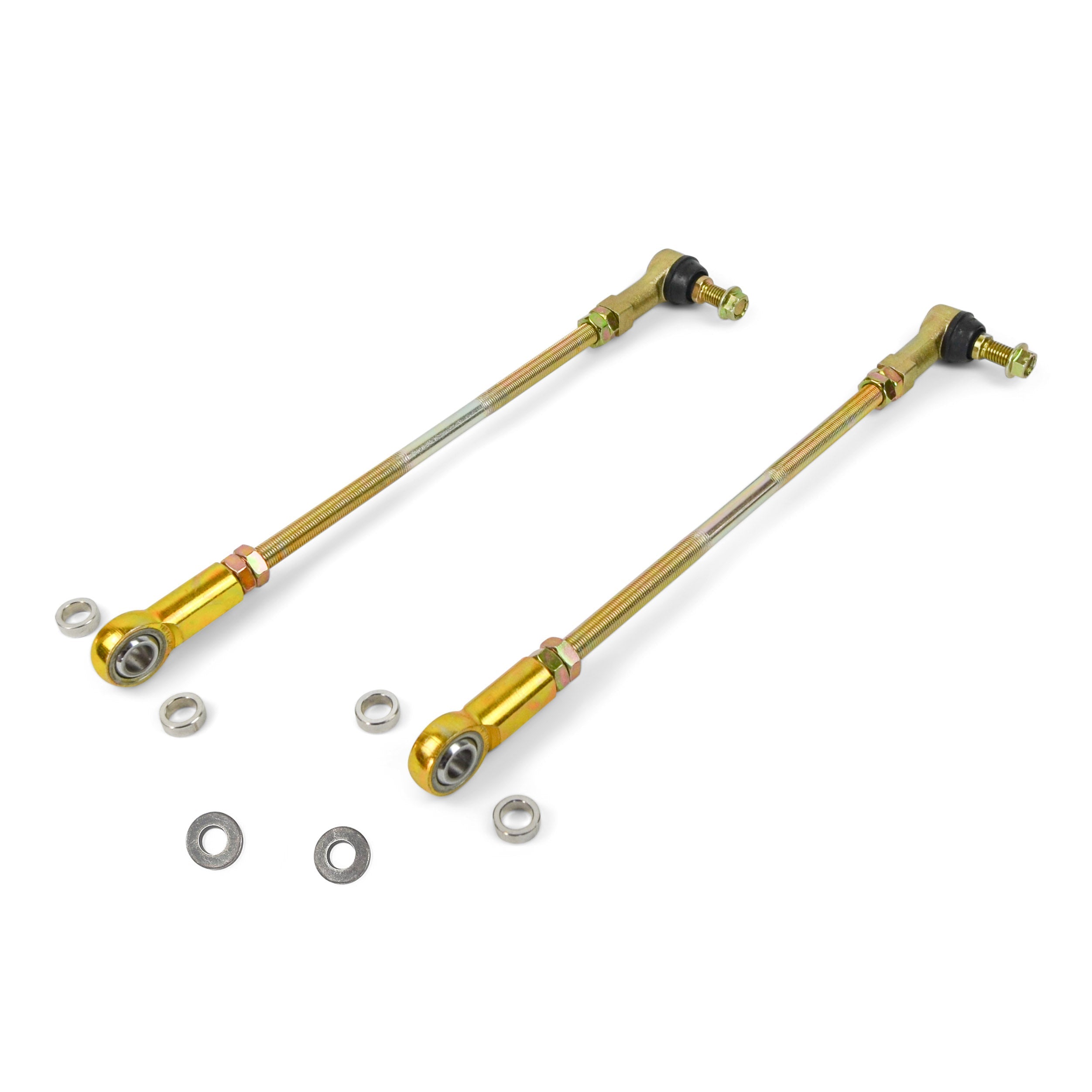

| COR-5110110 adjustable rear sway bar end links — pair (left and right) |
| Hardware per Clayton specification (not confirmed from source — verify before publishing) |
Not Included:
| Item | Notes |
|---|---|
| COR-5110200 rear sway bar end link mount reinforcement bracket | Recommended companion — reinforces the factory end link mount point that extended end links stress at lifted ride heights. Sold separately. |
| Professional installation labor | Not included. |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Length setting must match lift height | These end links are adjustable — they must be set to the correct length for your specific installed lift height. Incorrect length produces either a compressed sway bar that restricts suspension travel or a sway bar operating outside its designed range. | Confirm your installed lift height and set end link length to Clayton's specification for that height before installation. |

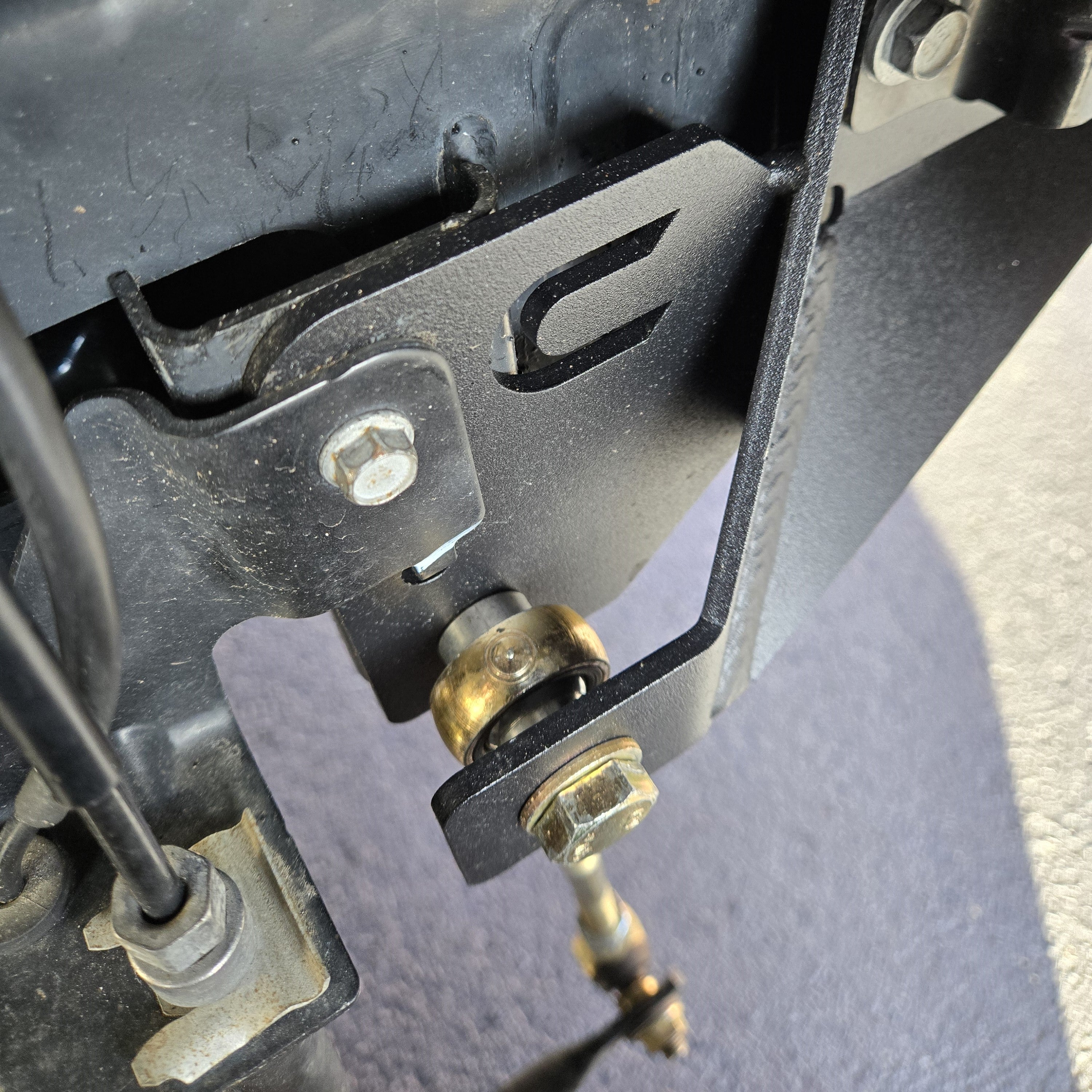

| Factory end link mount reinforcement | Extended adjustable end links at lift height apply increased cyclic load to the factory rear sway bar end link mount. The factory mount is a documented weak point on lifted JT builds. COR-5110200 addresses this. | Install COR-5110200 simultaneously or confirm factory mount is already reinforced before running these end links. |
| JL vs. JT rear sway bar geometry | These end links are JT-specific. The Wrangler JL uses different rear sway bar geometry — do not order these for a JL build. | Confirm vehicle is a Gladiator JT before ordering. |
| Minimum thread engagement | Confirm minimum thread engagement is maintained at the set length. Do not adjust to the extremes of the adjustment range without confirming engagement is adequate. | Per Clayton's installation spec — confirm before installation. |
Installation Notes
Skill level: Beginner to intermediate. Adjustable end link replacement is a straightforward bolt-in job — no welding, drilling, or fabrication. The additional step vs. fixed-length end links is measuring and setting the correct length before installation.
Installation summary:
- Determine the correct end link length for your installed lift height — per Clayton's length specification for the COR-5110110 at your lift height.
- Set both end links to the correct length by threading to the specified setting. Verify minimum thread engagement is maintained at the set length.
- Remove factory rear sway bar end links.
- Install COR-5110110 adjustable end links in the factory end link position.
- Torque all hardware to Clayton's specification at ride height — not at full droop or full compression.

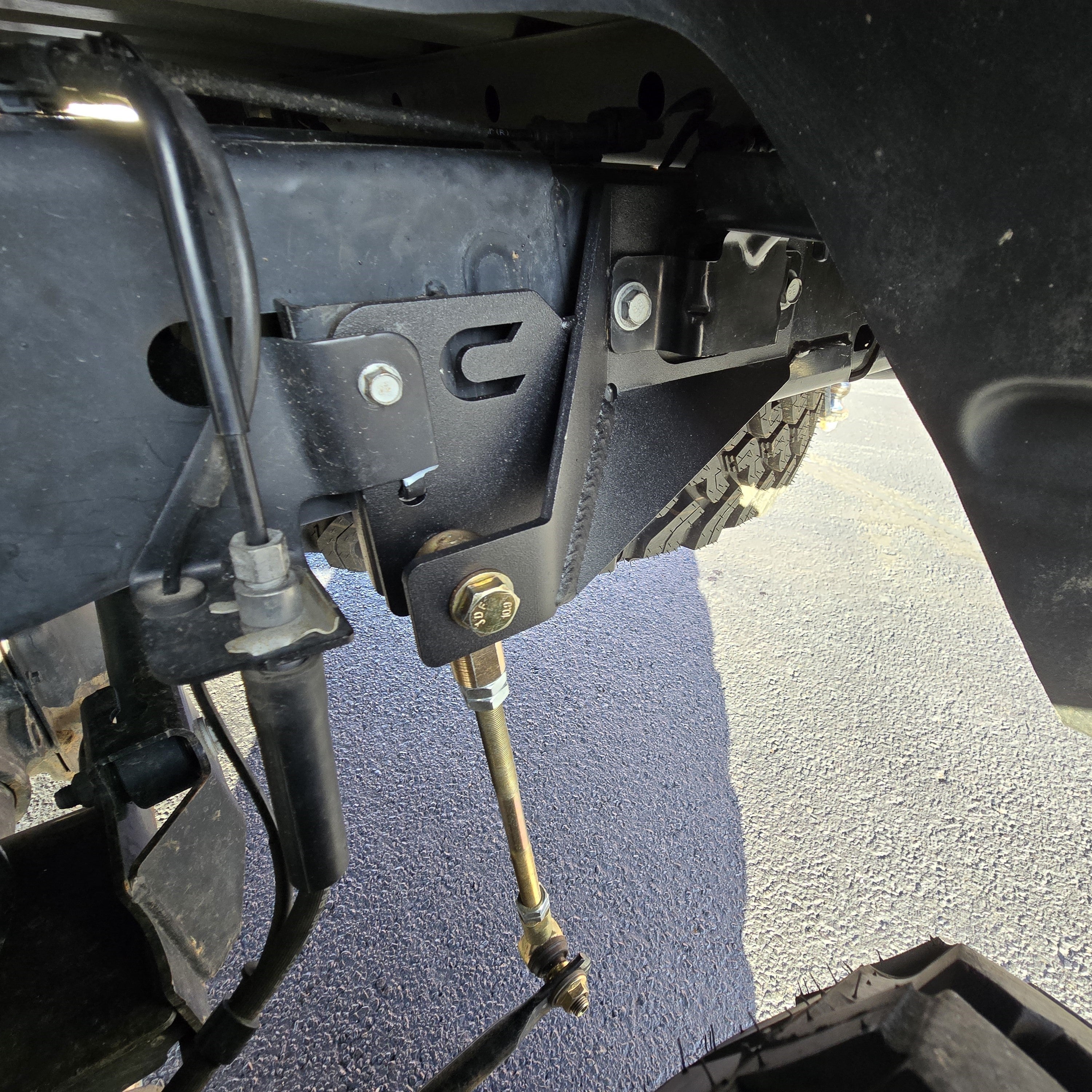

- Inspect factory rear sway bar end link mount (factory axle housing bracket) — if not already reinforced with COR-5110200, assess condition and install reinforcement if the mount shows wear or the truck will continue to see trail use at lift height.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Tape measure or length-setting tool | Yes — for setting correct end link length |
Common Questions
Why do I need adjustable rear sway bar end links on my lifted Gladiator JT?
The factory JT rear sway bar end links are fixed at the length required for stock ride height. When the truck is lifted, the sway bar's geometry changes — the distance between the sway bar mounting point and the axle end link bracket changes at every lift height. Factory end links in a lifted application are too short, which holds the sway bar in a pre-loaded position that limits suspension droop travel and can cause the sway bar to bind. Adjustable end links set to the correct length for your lift height restore the sway bar to its correct operating range throughout the full suspension travel arc.
What length should I set these to for my lift height?
Length setting is specific to your installed lift height and rear suspension configuration. Clayton provides length specifications for each supported lift height — text (469) 407-7538 with your JT's lift height and OFAS will confirm the correct setting before your order ships.
Should I also install COR-5110200 (the reinforcement bracket)?
For any lifted JT running extended end links on the trail, yes. The factory rear sway bar end link mount is a stamped steel bracket that sees increased cyclic load at lifted height with extended end links — COR-5110200 reinforces this mount proactively. Install both in the same session to avoid returning to the rear axle separately.
Does this fit the Wrangler JL?
No — this product is specific to the Gladiator JT rear sway bar geometry. A JL-specific product would be a different SKU.
The Obsidian Take
These end links are for the lifted Gladiator JT owner who wants the rear sway bar operating in its correct geometry at lift height — not pre-loaded, not binding, not limiting suspension droop travel on the trail. The factory end links are correct for stock; adjustable end links are correct for lift. The adjustment range and length-setting process are the only variables the buyer manages — everything else is a standard end link replacement.
Pairing these with COR-5110200 (the factory mount reinforcement bracket) is the complete rear sway bar solution for a lifted JT: correct geometry via these end links, reinforced mounting point via the bracket. Installing one without the other addresses half the problem.
It is not for the Wrangler JL. It is not for stock-height builds where the factory end links are correct. And it is not a set-it-and-forget-it installation without first confirming the length setting for your specific lift height — the adjustability is the feature, and it requires one input from the builder before the end links can be correctly installed.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, adjustment range, end fitting specifications, and length settings per lift height may vary by specific vehicle configuration and manufacturer updates. Confirm length setting for your installed lift height with Clayton or OFAS before installation.
Non-Returnable Notice
Suspension components are non-returnable once installed. Confirm fitment (2020–2026 Gladiator JT), installed lift height, and correct length setting before ordering. Text (469) 407-7538 with any fitment or length-setting questions before your order is placed.
