Clayton Off Road Pro Series Front 3-Link Long Arm Conversion Add-On | Currie Johnny Joint + GIIRO Bushing | 1/4" Weld-On Mounts | LH/RH Adjustable Upper Arm | Existing Long Arm Required | 2004–2006 Jeep Wrangler LJ Unlimited | SKU: COR-4807015
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This kit fits the 2004 through 2006 Jeep Wrangler LJ Unlimited only — the 4-door, long-wheelbase TJ-era platform. It is a conversion add-on kit for LJ builds already running a complete front long arm system. It does not include lower arms, a crossmember, or any other long arm components — it adds only the upper 3-link arm and weld-on mounts to convert an existing 4-link long arm front to a 3-link geometry.
| Year Range | Make | Model | Configuration | Prerequisite | Notes |
|---|---|---|---|---|---|
| 2004–2006 | Jeep | Wrangler LJ Unlimited | 4-Door | Existing front long arm system required | Welding, custom exhaust, CV driveshaft + SYE kit required |
Before ordering — confirm all five:
- Vehicle is a 2004–2006 LJ Unlimited — not a TJ 2-door, not a JK, not a JL
- A complete front long arm system is already installed on the LJ
- A certified welder is available for the weld-on frame and axle mounts
- A front CV-style driveshaft with SYE kit is sourced and ready
- A custom exhaust can be fabricated or sourced — factory exhaust will not clear the 3-link geometry
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| LJ builds without an existing front long arm system | This is a conversion add-on — not a complete long arm kit. If the LJ does not already have a front long arm system installed, this kit cannot be used. |
| Jeep Wrangler TJ (1997–2006, 2-Door) | LJ Unlimited only — different rear frame dimensions prevent correct mount positioning |
| Jeep Wrangler JK (2007–2018) | Different front suspension architecture |
| Jeep Wrangler JL (2018–2026) | Different front suspension architecture |
| Jeep Gladiator JT | Different front suspension architecture |
| Buyers without access to a certified welder | Both the frame mount and axle mount are weld-on — tack welds or temporary bolting are not acceptable for load-bearing suspension mounts |
| Buyers who have not sourced a front CV driveshaft with SYE kit | After the 3-link conversion, the front driveshaft operating angle changes. A front CV-style driveshaft with SYE kit is required before driving. |
| Buyers without a plan for the custom exhaust | The 3-link upper arm and mount positions conflict with the factory LJ exhaust routing — a custom exhaust is required |
| Trucks with aftermarket front axles without a compatible truss | Clayton D30 front truss is highly recommended for Dana 30 axles. Trucks with aftermarket front axles must source a truss specific to their axle before installing the weld-on axle mount. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4807015 |
| Application | Front 3-link long arm conversion — add-on to existing LJ long arm system |
| Kit type | Conversion add-on — not a complete long arm kit |
| Frame mount | 1/4" weld-on frame mount |
| Axle mount | 1/4" weld-on axle mount |
| Upper control arm | Single upper 3-link arm — LH/RH threads for in-vehicle length adjustment without arm removal |
| Frame-end joint | Currie Johnny Joint — 40° movement, Tough 88 urethane casing, shock-absorbing, NVH-isolating |
| Axle-end joint | GIIRO dual-durometer bushing — softer outer for NVH isolation, stiffer inner for lateral load resistance, maintenance-free, self-centering |
| Arm adjustability | LH/RH thread — full length adjustment without removing arm from vehicle |
| Installation | Welding required — both frame and axle mounts are weld-on |
| Exhaust | Custom exhaust required |
| Driveshaft | Front CV-style driveshaft + SYE kit required |
| Front axle truss | Clayton D30 front truss highly recommended; aftermarket axles require compatible truss |
| Warranty | Lifetime — upper control arm |
| Unit weight | 6 lb |
| Shipping dimensions | 9" × 7" × 7" |
What Is and Is NOT Included

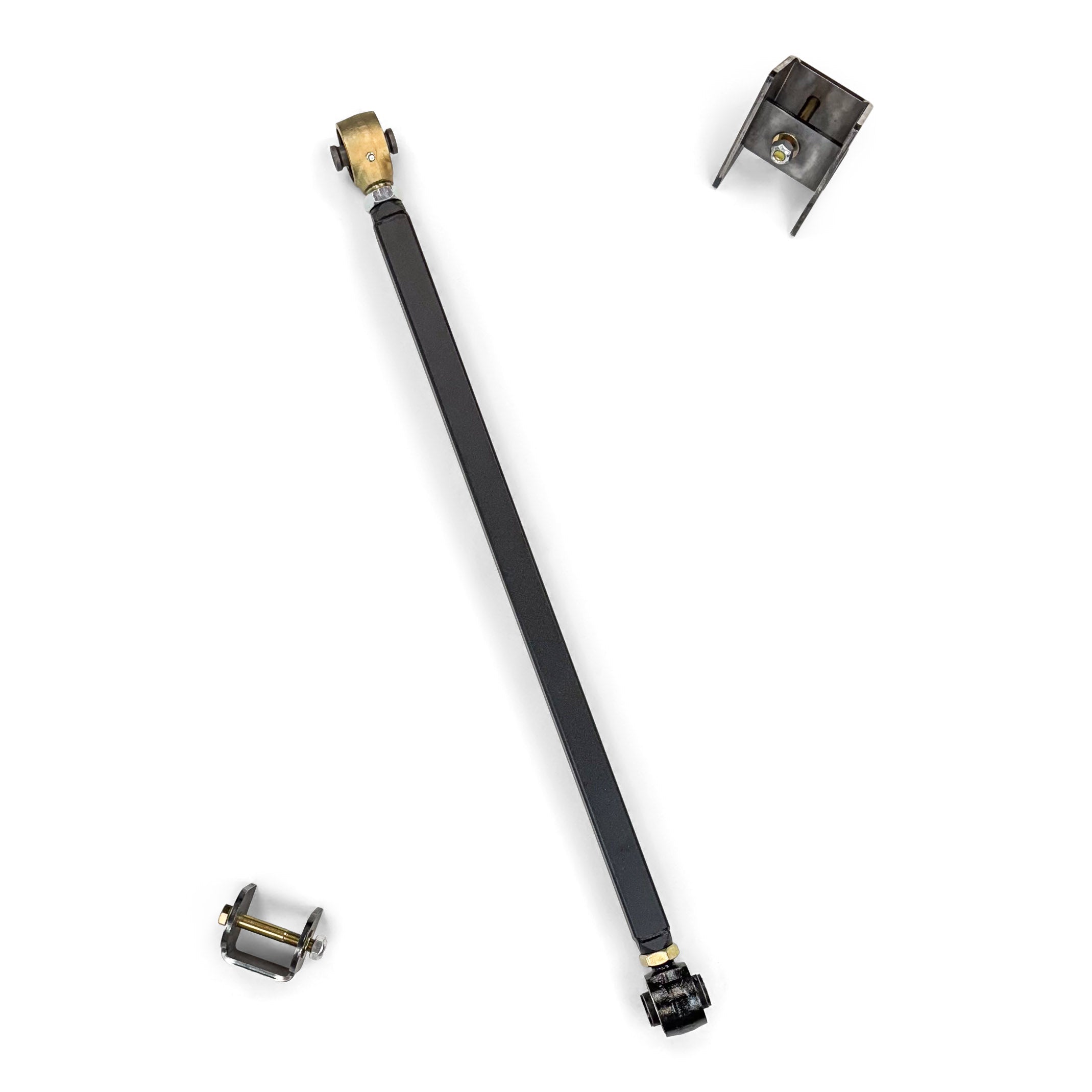

Included:
| Component |
|---|
| 1/4" weld-on frame mount |
| 1/4" weld-on axle mount |
| Single upper 3-link arm with Currie Johnny Joint frame end and GIIRO axle-end bushing (LH/RH threads) |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| Lower long arms | This kit adds only the upper 3-link arm — lower arms must already be part of the existing long arm system |
| Front crossmember | Must already be part of the existing long arm system |
| Front CV-style driveshaft and SYE kit | Required before driving after conversion — source separately |
| Custom exhaust | Required — factory exhaust will not clear the 3-link geometry. Source or fabricate separately. |
| Clayton D30 front truss | Highly recommended for Dana 30 front axles — reinforces the front axle tube at the new upper arm mount location. Sold separately. |
| Aftermarket axle truss | Trucks with aftermarket front axles must source a truss compatible with their specific axle |
| Professional welding labor | Certified welder required — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Existing long arm system required | This kit adds only the upper 3-link arm and mounts. Without a front long arm system already installed on the LJ — providing lower control arms and the crossmember — this kit is a collection of parts that cannot form a functional suspension. | Confirm a complete front long arm system is already installed before ordering. |
| Weld-on mounts — permanent chassis modification | Both the frame mount and axle mount weld permanently to the LJ frame and front axle. These modifications are irreversible. Tack welds are not adequate for load-bearing suspension mount positions — full-penetration welds are required on all contact surfaces. | Engage a certified welder with off-road chassis fabrication experience. |
| Front axle truss — install before axle mount weld | The 1/4" axle mount welds to the front axle tube at the upper arm attachment point. Without a truss reinforcing that area of the axle tube, the long arm loads applied through the upper arm can deform the tube over time. Clayton D30 front truss must be installed before welding the axle mount. Aftermarket axle owners must source a compatible truss. | Install the front axle truss before welding the axle mount. Do not weld the axle mount to an untrussed axle tube. |
| Custom exhaust — cannot be omitted | The 3-link upper arm and weld-on frame mount positions physically conflict with the factory LJ front exhaust routing. A custom exhaust is required before the truck can be driven. | Plan and budget custom exhaust fabrication as a concurrent part of this build. |
| Front CV driveshaft + SYE kit — required before driving | The 3-link front geometry changes the front driveshaft operating angle. A front CV-style driveshaft with Slip Yoke Eliminator (SYE) kit is required to handle the increased operating angle. Driving without one risks front driveshaft binding or failure. | Have the front CV driveshaft and SYE kit ready for simultaneous installation. |
| LH/RH thread adjustment — no tool required for length changes | The LH/RH thread design allows the upper arm length to be changed by rotating the arm body — no jam nut removal or arm removal required. This makes geometry fine-tuning in the field significantly faster than single-thread arms. | Set initial length per Clayton's geometry specification. Fine-tune at ride height after full installation. |
Installation Notes
Skill level: Expert — professional fabrication required. This is a precision chassis modification involving weld-on mounts on both the frame and front axle, geometry setting with a new 3-link upper arm, custom exhaust fabrication, and driveshaft work. Not appropriate for a general mechanic shop without long arm suspension fabrication experience.
Phase 1 — Preparation:
- Confirm existing front long arm system is installed and functional.
- Install the Clayton D30 front truss (or axle-specific truss for aftermarket axles) on the front axle tube at the upper arm mount location before welding any mounts.
- Plan and initiate custom exhaust fabrication — this must be completed concurrently.
- Confirm front CV-style driveshaft and SYE kit are sourced and ready.
Phase 2 — Weld-on mount installation:
- Position the 1/4" frame mount and 1/4" axle mount per Clayton's installation instructions — verify position and angle before welding.
- Weld both mounts — full-penetration welds on all contact surfaces. No tack welds on load-bearing joints.
- Allow welds to cool. Apply weld-through primer and chassis paint to all bare metal at weld zones.
Phase 3 — Upper arm installation and geometry:
- Install the single upper 3-link arm with Currie Johnny Joint at the frame end and GIIRO bushing at the axle end.
- Set initial arm length using LH/RH thread adjustment per Clayton's geometry specification.
- Set caster and pinion angle at ride height.
- Torque all hardware at ride height — not at full droop or compression.
Phase 4 — Exhaust and driveshaft:
- Complete custom exhaust installation.
- Install front CV-style driveshaft with SYE kit.
- Verify front driveshaft angle and CV/U-joint operating angles.
Phase 5 — Final alignment:
- Verify front alignment — caster and toe.
- Inspect full suspension travel for binding or component contact.
Required tools and services:
| Item | Required |
|---|---|
| Vehicle lift rated for LJ | Yes |
| Certified welder | Yes — both frame and axle mounts |
| Weld-through primer and chassis paint | Yes |
| Exhaust fabrication equipment or custom exhaust shop | Yes |
| Torque wrench | Yes |
| Geometry setting and measurement equipment | Yes |
| Alignment equipment | Yes |
Common Questions
What is the difference between this and a complete long arm kit?
This is an add-on conversion only. A complete long arm kit replaces the factory crossmember, upper arms, and lower arms. This kit adds only the upper 3-link arm and its weld-on mounts, converting an existing 4-link long arm front to 3-link geometry. If you do not already have a front long arm system on your LJ, this kit is not a starting point — it is a final conversion step for a build that is already long-arm equipped.
Why convert from 4-link to 3-link on the front?
A 4-link front geometry is over-constrained at extreme articulation angles — the four control arms resist each other's movement at the limits of droop and compression, creating bind. A 3-link front uses a single upper arm at a specific angle to control axle rotation, with two lower arms providing fore-aft and lateral control. This eliminates the binding and allows the front axle to articulate through a significantly wider range of motion. The tradeoff is complexity in setting the upper link's position and angle precisely.
Why is the LH/RH thread design useful?
With conventional single-thread control arms, changing arm length requires loosening a jam nut, adjusting the arm, and re-torquing — often requiring the arm to be removed if clearance is tight. LH/RH threads allow the arm length to be changed by simply rotating the arm body — one end loosens as the other tightens, changing overall length without removing or fully disassembling the arm. For a build where geometry is still being refined after installation, this saves significant time.
Why is the front axle truss required before welding the axle mount?
The weld-on axle mount attaches to the front axle tube at the upper arm pivot point. The long arm upper arm applies significant fore-aft and lateral loads to this location. Without a truss reinforcing the axle tube at this point, sustained loads can deform the tube wall over time. The truss must be welded to the axle tube before the arm mount is added — not after.
What is the SYE kit and why is it needed?
A Slip Yoke Eliminator (SYE) converts the transfer case output from a slip yoke design to a fixed flange, allowing a double-cardan (CV-style) front driveshaft to be run at a steeper operating angle without binding. The 3-link front geometry at long arm lift heights exceeds the operating angle limit of a standard U-joint front driveshaft — a CV-style shaft with SYE kit is required for correct driveline function.
What is the warranty on the upper arm?
Clayton Off Road provides a lifetime warranty on the upper control arm included in this kit. Confirm full warranty terms at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This kit is for the LJ Unlimited owner who has already committed to a long arm front suspension, has the lower arms and crossmember in place, and wants to take the front geometry to the maximum articulation ceiling by converting the upper arm arrangement from 4-link to 3-link. The Currie Johnny Joint and GIIRO bushing on the single upper arm, the LH/RH thread for in-vehicle adjustment, and the 1/4" weld-on mounts are the correct hardware specification for a build at this level.
The four fabrication requirements are the build gates: welding for both mounts, custom exhaust that clears the new upper arm position, front CV driveshaft with SYE kit, and a front axle truss before the axle mount goes on. All four must be resolved before the truck moves under its own power after this conversion. None of them are bolt-on steps — they are fabrication projects that require their own planning, sourcing, and shop time.
It is not a starting point for long arm suspension on an LJ — that requires a complete front long arm kit first. It is not for the TJ 2-door, JK, or JL. And it is not the right purchase for a builder who is still at the short arm stage of an LJ build.
At 6 lb and a single control arm plus two mounts, this is a deceptively small package for the capability it unlocks — but only when it lands on a build that is ready for it.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, welding specifications, and geometry requirements may vary by specific vehicle configuration, existing long arm system, and manufacturer updates. Confirm all prerequisites and build requirements with Clayton or OFAS before installation.
Non-Returnable Notice
Suspension components are non-returnable once installed. This kit requires permanent welding to the LJ frame and front axle. Confirm vehicle identity (2004–2006 LJ Unlimited only), that a complete front long arm system is already installed, that a certified welder is available, that a front CV driveshaft with SYE kit is sourced, and that a custom exhaust plan is in place before ordering. Text (469) 407-7538 with any fitment or build questions before your order is placed.
