Clayton Off Road Adjustable Front Track Bar + Drop Bracket Complete Kit | Adjustable Bar + Drop Bracket | Corrects Track Bar Angle at Lift | Bolt-On | 1997–2006 Jeep Wrangler TJ / 2004–2006 LJ Unlimited | SKU: COR-4500522
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This kit fits the 1997 through 2006 Jeep Wrangler TJ (2-Door) and the 2004 through 2006 Jeep Wrangler LJ Unlimited (4-Door) in all trims. It includes both the Clayton adjustable front track bar and the drop bracket — the complete package for correcting front track bar angle on lifted TJ and LJ builds, in one order.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 1997–2006 | Jeep | Wrangler TJ | 2-Door | Complete bolt-on kit — adjustable bar + drop bracket |
| 2004–2006 | Jeep | Wrangler LJ Unlimited | 4-Door | Complete bolt-on kit — adjustable bar + drop bracket |
If you already have a Clayton adjustable front track bar: Order COR-4500420 (drop bracket only) instead — this kit bundles the bar and bracket together. If the bar is already sourced, the bracket alone is the correct purchase.
If your build is at stock or minimal lift and OE-height is sufficient: A drop bracket lowers the mount below OE height — at stock or minimal lift this may over-correct the track bar angle. Confirm the correct bracket height for your lift height before ordering. Text (469) 407-7538.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason | Correct SKU |
|---|---|---|
| Jeep Wrangler JK (2007–2018) | Different front track bar mount geometry | COR-4508100 (JK front adjustable track bar) |
| Jeep Wrangler JL (2018–2026) | Different front track bar mount geometry | COR-4509100 (JL/JT front adjustable track bar) |
| Jeep Gladiator JT | Different front track bar mount geometry | COR-4509100 |
| Jeep Cherokee XJ / Grand Cherokee ZJ | Different platform — see XJ/ZJ track bar kits | COR-4500502 (XJ/ZJ OE-height bundle) or COR-4500410 (XJ/ZJ drop bracket) |
| Jeep Grand Cherokee WJ / WK / WK2 | Different front suspension architecture | Not applicable |
| Buyers who already have a Clayton adjustable front track bar | This kit includes the adjustable bar — ordering it when the bar is already sourced means paying for a duplicate | COR-4500420 (drop bracket only) |
| Buyers at stock or minimal lift where a drop bracket may over-correct | Drop bracket lowers the frame-side mount — confirm with OFAS that drop is correct for your specific lift height | Text (469) 407-7538 |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500522 |
| Application | Adjustable front track bar + drop bracket complete kit — 1997–2006 TJ / 2004–2006 LJ Unlimited |
| Kit type | Complete package — adjustable front track bar + drop bracket |
| Bracket type | Drop — lowers frame-side front track bar mount below OE position |
| Drop amount | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Lift height range | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Track bar | Adjustable — set to correct length for lift height |
| Installation | Bolt-on — no welding required |
| Track bar warranty | Lifetime |
| Bracket warranty | Not confirmed in source |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included

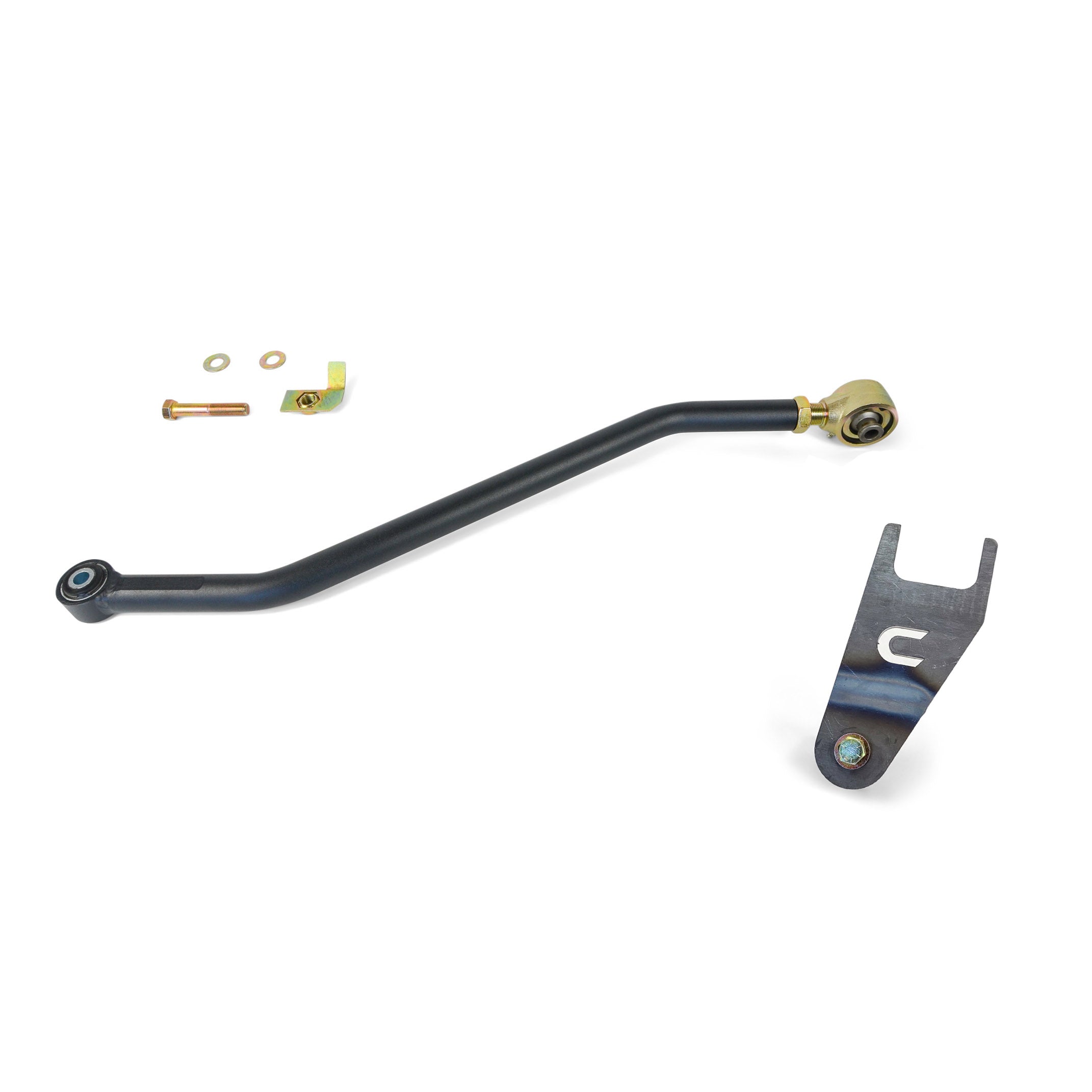

Included:
| Component |
|---|
| Clayton adjustable front track bar |
| COR-4500420 drop bracket |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| OE-height bracket | This kit uses a drop bracket. If OE-height is correct for your build, a TJ/LJ OE-height bracket bundle is not confirmed in this session — text (469) 407-7538 to confirm the correct bracket configuration for your lift height. |
| Professional installation labor | Not included |
| Front alignment service | Required after installation — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Drop amount and lift height — unconfirmed | Source does not specify the bracket's drop measurement or recommended lift height range. Confirm both before ordering. | Text (469) 407-7538 with your front lift height to confirm the drop bracket is appropriate and determine the correct bar length setting. |
| Buyers with existing Clayton adjustable track bar | This kit includes the bar — if already sourced, order COR-4500420 instead. | Confirm bar availability before ordering to avoid duplicate purchase. |
| Bar length must match lift height | Set the adjustable bar to the correct length for your front lift height before installation. | Text (469) 407-7538 to confirm correct bar length setting for your lift height. |
| Front alignment after installation | Replacing and adjusting the front track bar changes the front axle's lateral position. Full front alignment is required. | Schedule front alignment immediately after installation. |
| TJ vs. LJ mount geometry | TJ and LJ share TJ-era front track bar mount architecture. Confirm whether bracket hardware is identical for both or differs. | Text (469) 407-7538 if unsure about TJ vs. LJ specific requirements. |
Installation Notes
Skill level: Beginner to intermediate. Bolt-on — no welding, drilling, or fabrication required.
Step 1 — Confirm drop and bar length:
- Confirm the drop bracket is appropriate for your front lift height.
- Set the adjustable track bar to the correct length for your lift height. Text (469) 407-7538 to confirm both before installation.
Step 2 — Bracket installation:
- Remove the factory front track bar.

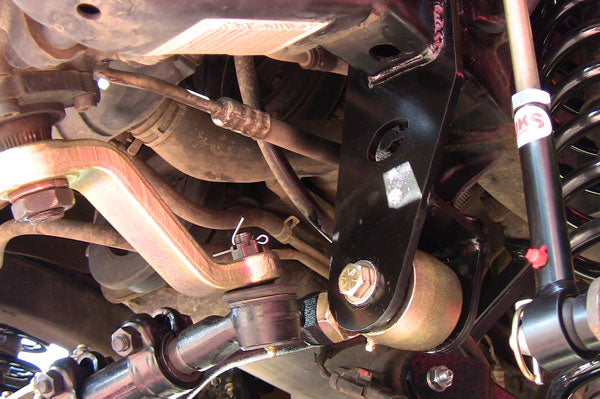

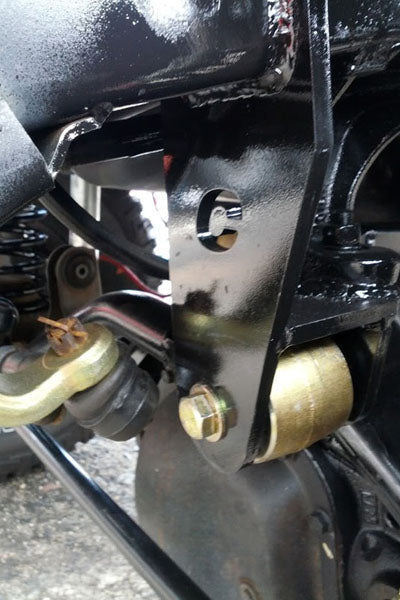

- Install the drop bracket at the factory front track bar frame mount location per Clayton's instructions.
Step 3 — Track bar installation:
- Install the adjustable track bar into the drop bracket.
- Torque all hardware at ride height.
Step 4 — Verification:
- Verify front axle is centered laterally.
- Complete full front alignment.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Alignment equipment or appointment | Yes — post-install |
Common Questions
What does this kit include and what problem does it solve?

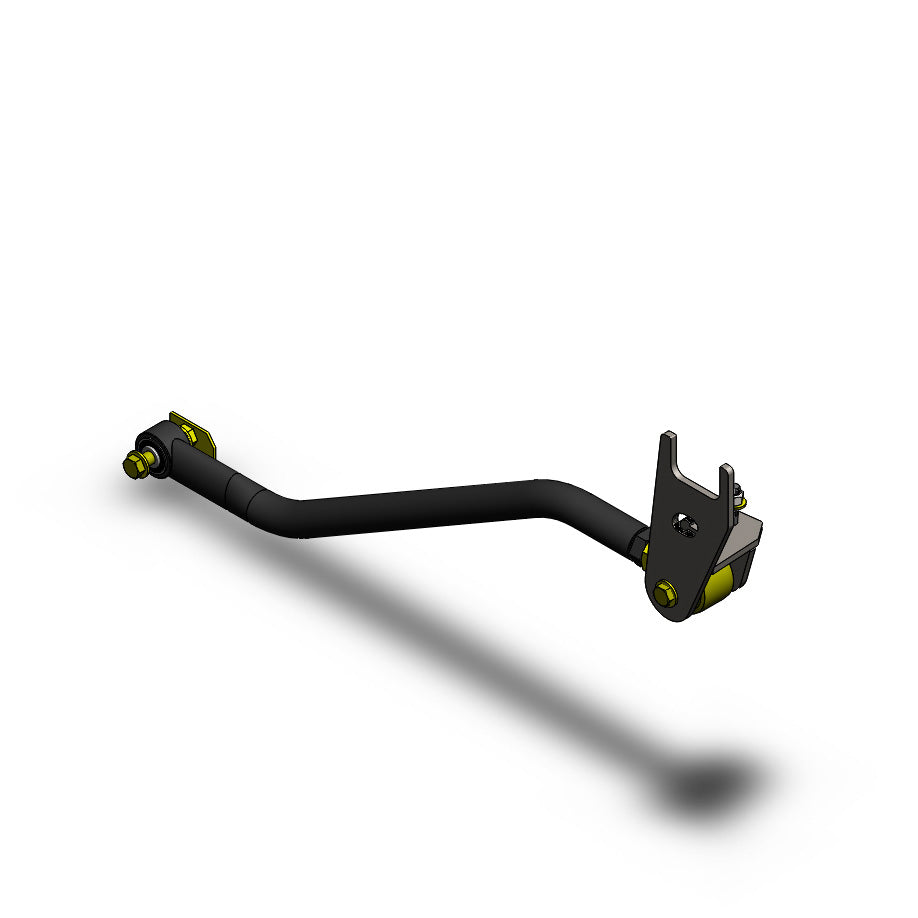

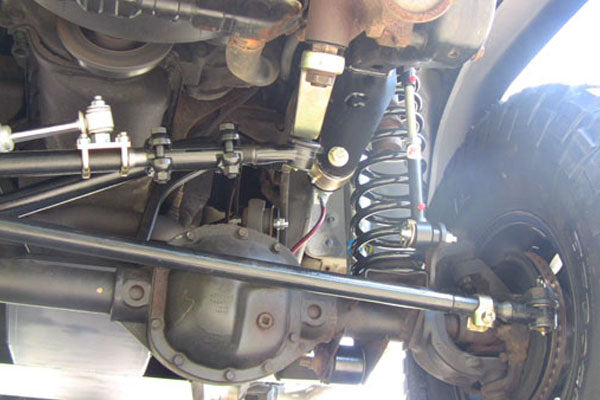

This kit includes a Clayton adjustable front track bar and the drop bracket for the TJ and LJ — both pieces needed to correct the front track bar angle on a lifted TJ or LJ. The drop bracket lowers the frame-side mount to bring the track bar back toward a flatter operating angle, reducing bump steer. The adjustable bar sets the correct track bar length for the lifted geometry. One kit, both components, bolt-on installation.
What is the difference between this and COR-4500420 (drop bracket only)?
COR-4500420 includes only the drop bracket — the adjustable track bar must be sourced separately. COR-4500522 (this kit) includes both the bracket and the adjustable track bar. If you already have a Clayton adjustable front track bar, order COR-4500420 to avoid paying for a duplicate bar.
What is the difference between this and COR-4500502 (XJ/ZJ OE-height bundle)?
Platform and bracket height. COR-4500502 is for the 1984–2001 XJ and 1993–1998 ZJ with an OE-height bracket. COR-4500522 is for the 1997–2006 TJ and 2004–2006 LJ Unlimited with a drop bracket. Do not use XJ/ZJ hardware on a TJ/LJ, or vice versa.
What drop amount does this bracket provide?
Not confirmed in available source documentation. Text (469) 407-7538 with your front lift height and OFAS will confirm whether this kit is appropriate for your lift and provide the correct bar length setting before your order ships.
What is the warranty?
Clayton Off Road provides a lifetime warranty on the adjustable track bar included in this kit. Bracket warranty terms are not confirmed in available source data. Confirm full warranty details at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This kit is for the lifted TJ or LJ Unlimited owner who wants the complete front track bar correction in one package — adjustable bar and drop bracket together. The drop bracket lowers the frame-side mount to correct the steepened track bar angle at lift height; the adjustable bar sets the correct length for the lifted geometry. Both pieces are needed; this kit provides both in one bolt-on order.
The buyer decision between this kit and COR-4500420 (drop bracket only) is the same as the XJ/ZJ family: if the adjustable track bar is already sourced, buy only the bracket. If starting fresh and both pieces are needed, this kit is the correct purchase.
The XJ/ZJ equivalent (COR-4500502) is the OE-height version for a different platform. Both are complete bolt-on kits. The platform and the bracket height are the two differentiators. Do not use XJ/ZJ hardware on a TJ/LJ, and confirm with OFAS that a drop bracket — rather than an OE-height bracket — is the correct geometry correction for your specific lift height before ordering.
It is not for the JK, JL, JT, or any Grand Cherokee or Cherokee platform.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, drop measurement, recommended lift height range, and bar length settings may vary by specific vehicle configuration and manufacturer updates. Confirm all specifications with Clayton or OFAS before ordering.
Non-Returnable Notice
Suspension components are non-returnable once installed. Confirm vehicle identity (1997–2006 TJ or 2004–2006 LJ Unlimited only), that a drop bracket is appropriate for your lift height, that you do not already have a Clayton adjustable front track bar (if you do, order COR-4500420 instead), and correct bar length setting before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
