Clayton Off Road Adjustable Front Track Bar + Drop Bracket Complete Kit | Adjustable Bar + Drop Bracket | Corrects Track Bar Angle at Lift | Bolt-On | 1984–2001 Jeep Cherokee XJ / 1993–1998 Grand Cherokee ZJ | SKU: COR-4500512
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This kit fits the 1984 through 2001 Jeep Cherokee XJ and the 1993 through 1998 Jeep Grand Cherokee ZJ in all trims. It includes both the Clayton adjustable front track bar and the drop bracket — the complete package for correcting front track bar angle on lifted XJ and ZJ builds, in one bolt-on order.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 1984–2001 | Jeep | Cherokee XJ | All trims | Complete bolt-on kit — adjustable bar + drop bracket |
| 1993–1998 | Jeep | Grand Cherokee ZJ | All trims | Complete bolt-on kit — adjustable bar + drop bracket |
If you already have a Clayton adjustable front track bar: Order COR-4500410 (drop bracket only) — this kit bundles the bar and bracket together. If the bar is already sourced, the bracket alone is the correct purchase.
If OE-height bracket is correct for your build: If your XJ or ZJ is at stock or minimal lift and the factory track bar angle is acceptable, the OE-height kit (COR-4500502) may be the correct choice. A drop bracket lowers the mount — confirm with OFAS whether drop or OE-height is appropriate for your lift height. Text (469) 407-7538.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason | Correct SKU |
|---|---|---|
| Jeep Wrangler TJ / LJ (1997–2006) | Different platform — TJ/LJ drop bracket complete kit is COR-4500522 | COR-4500522 |
| Jeep Wrangler JK (2007–2018) | Different front track bar mount geometry | COR-4508100 (JK front adjustable track bar) |
| Jeep Wrangler JL (2018–2026) | Different front track bar mount geometry | COR-4509100 |
| Jeep Gladiator JT | Different front track bar mount geometry | COR-4509100 |
| Jeep Grand Cherokee WJ (1999–2004) | Different front track bar mount geometry | WJ-specific system required |
| Jeep Grand Cherokee WK / WK2 (2005+) | Different front suspension architecture | Not applicable |
| Buyers who already have a Clayton adjustable front track bar | This kit includes the bar — ordering it when the bar is already sourced duplicates hardware | COR-4500410 (drop bracket only) |
| Buyers at stock or minimal lift where OE-height is appropriate | Drop bracket lowers mount below OE — may over-correct at minimal lift | COR-4500502 (XJ/ZJ OE-height complete kit) |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500512 |
| Application | Adjustable front track bar + drop bracket complete kit — 1984–2001 XJ / 1993–1998 ZJ |
| Kit type | Complete package — adjustable front track bar + drop bracket |
| Bracket type | Drop — lowers frame-side front track bar mount below OE position |
| Drop amount | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Lift height range | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Track bar | Adjustable — set to correct length for lift height |
| Installation | Bolt-on — no welding required |
| Track bar warranty | Lifetime |
| Bracket warranty | Not confirmed in source |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included

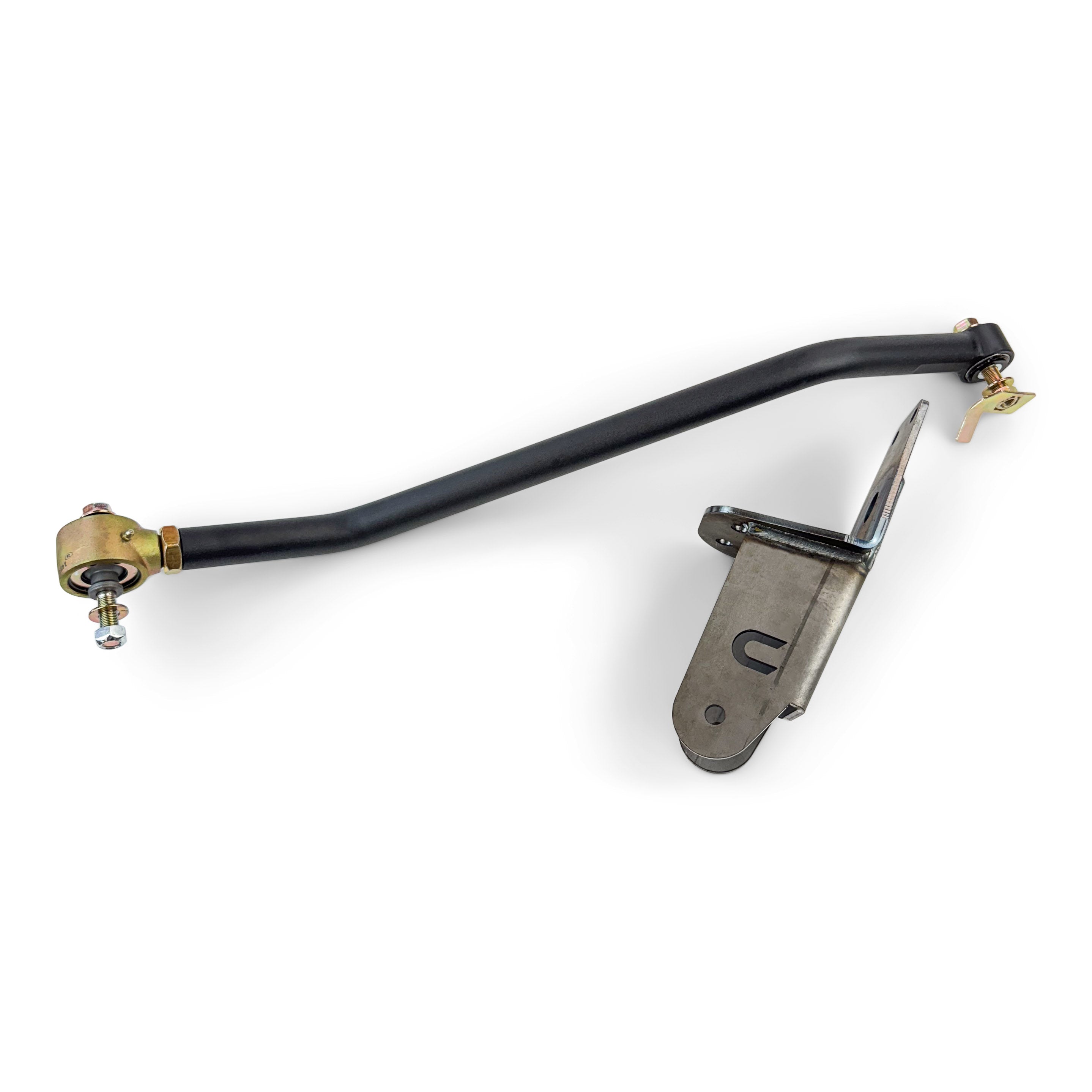

Included:
| Component |
|---|

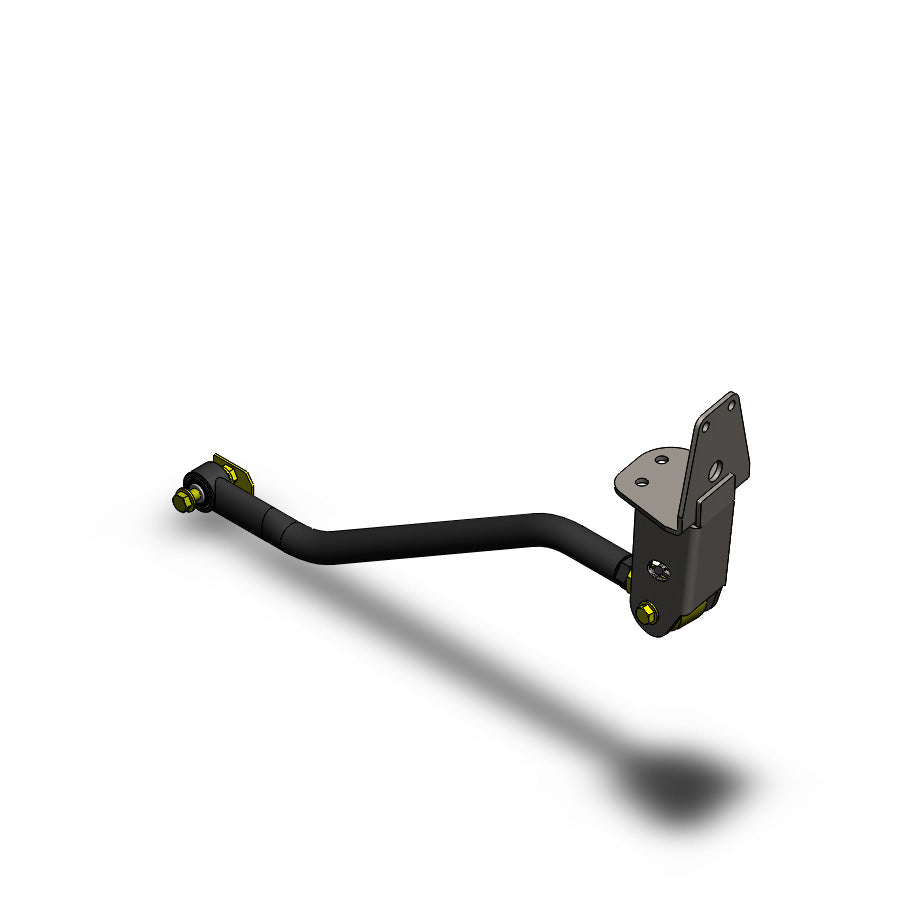

| Clayton adjustable front track bar |
| COR-4500410 drop bracket |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| OE-height bracket | This kit uses a drop bracket. For XJ/ZJ OE-height complete kit, order COR-4500502. |
| Professional installation labor | Not included |
| Front alignment service | Required after installation — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Drop amount and lift height — unconfirmed | Drop measurement and recommended lift height range not confirmed in source. A buyer cannot determine whether this kit is appropriate for their specific lift without these values. | Text (469) 407-7538 with front lift height before ordering — OFAS will confirm whether drop or OE-height is appropriate and provide the correct bar length setting. |
| Buyers with existing Clayton adjustable track bar | This kit includes the bar — if already sourced, order COR-4500410 (drop bracket only). | Confirm bar availability before ordering. |
| Bar length must match lift height | Set adjustable bar to correct length for front lift height before installation. | Text (469) 407-7538 for correct setting. |
| Front alignment after installation | Full front alignment required after installing an adjustable track bar. | Schedule alignment immediately after installation. |
| XJ vs. ZJ mount geometry | XJ and ZJ front track bar mounts may have specific hardware differences. | Text (469) 407-7538 to confirm XJ vs. ZJ specific mounting requirements. |
Installation Notes
Skill level: Beginner to intermediate. Bolt-on — no welding, drilling, or fabrication.
Step 1 — Confirm drop and bar length:
- Confirm drop bracket is appropriate for your front lift height.
- Set adjustable track bar to correct length for your lift height. Text (469) 407-7538 to confirm both.
Step 2 — Bracket installation:
- Remove factory front track bar.

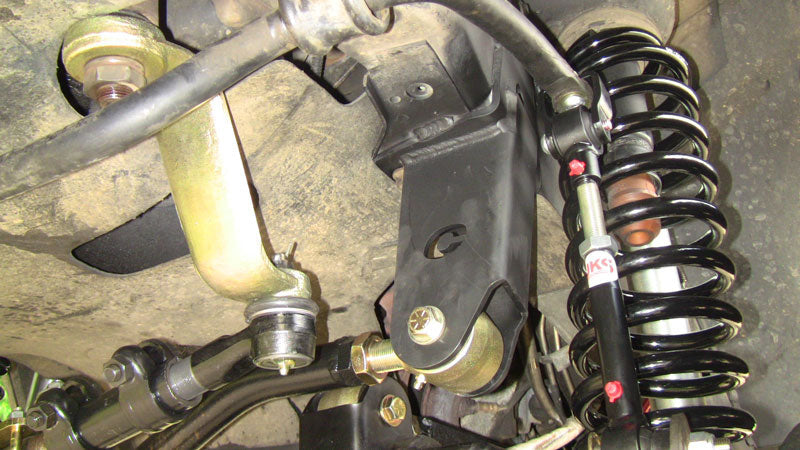

- Install drop bracket at factory front track bar frame mount location per Clayton's instructions.
Step 3 — Track bar installation:
- Install adjustable track bar into drop bracket.
- Torque all hardware at ride height.
Step 4 — Verification:
- Verify front axle is centered laterally.
- Complete full front alignment.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Alignment equipment or appointment | Yes — post-install |
Common Questions
What does this kit include and what problem does it solve?
This kit includes a Clayton adjustable front track bar and the drop bracket for the XJ and ZJ. On a lifted XJ or ZJ, the factory track bar angle steepens — the drop bracket lowers the frame-side mount to correct that angle and reduce bump steer. The adjustable bar sets the correct track bar length for the lifted geometry. Both pieces together, bolt-on, one order.
What is the difference between this and COR-4500502 (XJ/ZJ OE-height complete kit)?
Bracket height. COR-4500502 installs at OE height — correct for stock or minimal lift where the factory track bar angle is acceptable and an aftermarket adjustable bar is the primary goal. COR-4500512 (this kit) uses a drop bracket — correct for lifted builds where the track bar angle has steepened enough to cause bump steer and the mount needs to be lowered to correct it. If you are unsure which is appropriate for your lift height, text (469) 407-7538 before ordering.
What is the difference between this and COR-4500410 (drop bracket only)?
COR-4500410 is the drop bracket alone — the adjustable track bar is sourced separately. COR-4500512 includes both the bracket and the adjustable bar. If you already have a Clayton adjustable front track bar, order COR-4500410 to avoid a duplicate bar purchase.
What is the difference between this and COR-4500522 (TJ/LJ drop bracket complete kit)?
Platform only. COR-4500522 is the drop bracket complete kit for the 1997–2006 TJ and 2004–2006 LJ Unlimited. COR-4500512 is the same concept for the 1984–2001 XJ and 1993–1998 ZJ. Do not use XJ/ZJ hardware on a TJ/LJ, or vice versa.
What is the warranty?
Clayton Off Road provides a lifetime warranty on the adjustable track bar included in this kit. Bracket warranty terms are not confirmed in available source data. Confirm full warranty details at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This kit is the complete front track bar correction package for the lifted XJ or ZJ owner — adjustable bar and drop bracket together, bolt-on, one purchase. The drop bracket corrects the steepened track bar angle that lift creates; the adjustable bar sets the correct length for the lifted geometry.
The XJ/ZJ Clayton front track bar product matrix resolves cleanly: need the bracket only and OE-height is correct — COR-4500400. Need the bracket only and drop is correct — COR-4500410. Need both pieces and OE-height — COR-4500502. Need both pieces and drop — COR-4500512 (this kit). If unsure whether drop or OE-height is appropriate for your lift height, one call to OFAS resolves it before either order ships.
The TJ/LJ equivalent is COR-4500522 — same concept, different platform. Do not use XJ/ZJ track bar hardware on a TJ/LJ.
It is not for the WJ, any Wrangler, or JK/JL/JT. The drop bracket is for lifted builds — confirm with OFAS if unsure whether drop or OE-height is the correct solution for your specific lift height before ordering.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, drop measurement, recommended lift height range, and bar length settings may vary by specific vehicle configuration and manufacturer updates. Confirm all specifications with Clayton or OFAS before ordering.
Non-Returnable Notice
Suspension components are non-returnable once installed. Confirm vehicle identity (1984–2001 Cherokee XJ or 1993–1998 Grand Cherokee ZJ only), that a drop bracket is appropriate for your lift height, that you do not already have a Clayton adjustable front track bar (if you do, order COR-4500410 instead), and correct bar length setting before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
