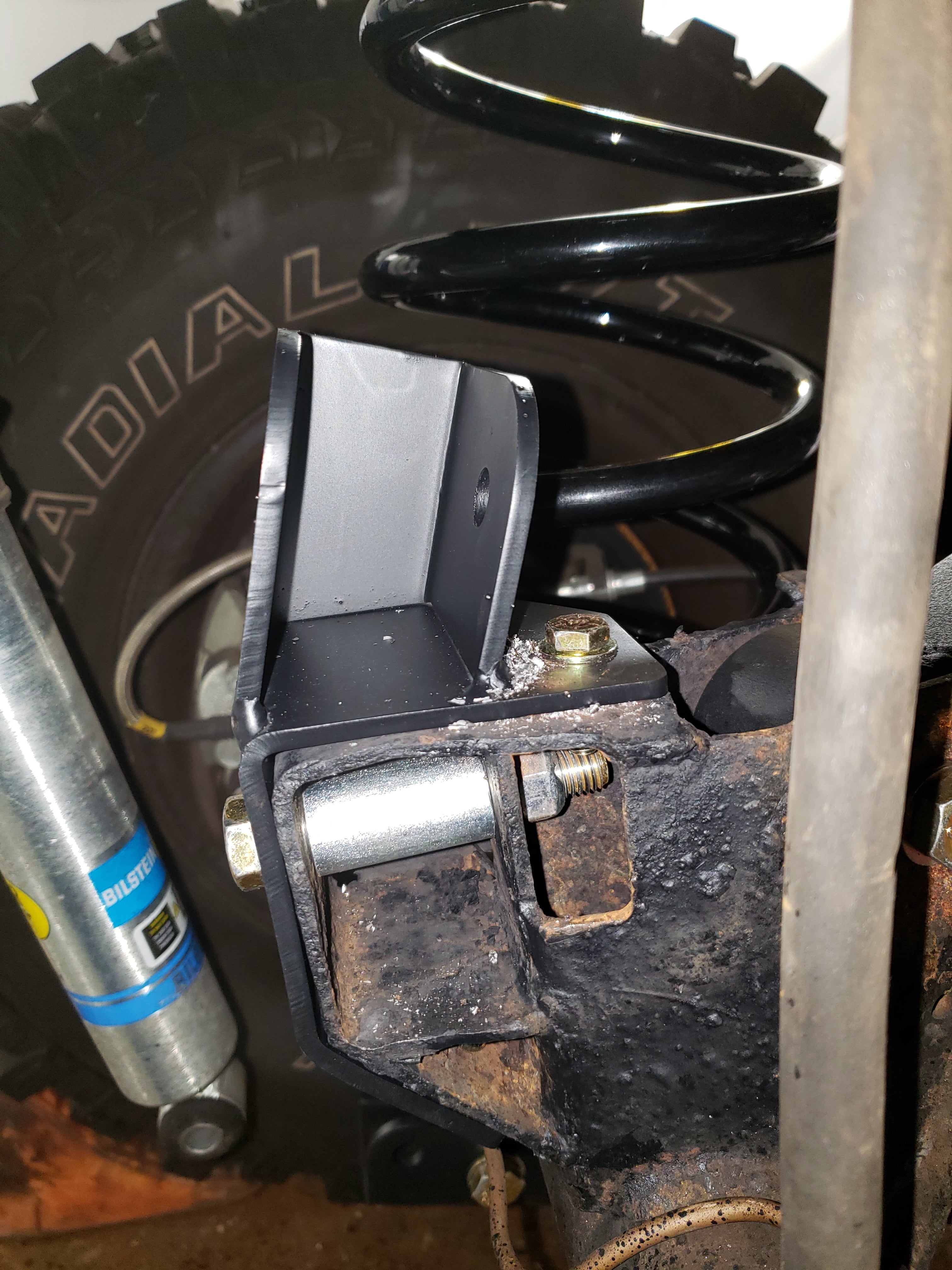

Clayton Off Road Rear Track Bar Relocation Bracket | Weld-On | Designed for SYE Kit-Equipped Builds | 1997–2006 Jeep Wrangler TJ / 2004–2006 LJ Unlimited | SKU: COR-4500500
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This rear track bar relocation bracket fits the 1997 through 2006 Jeep Wrangler TJ (2-Door) and the 2004 through 2006 Jeep Wrangler LJ Unlimited (4-Door). It is specifically designed for TJ and LJ builds equipped with a Slip Yoke Eliminator (SYE) kit. The SYE conversion changes the rear driveshaft configuration and rear suspension geometry — this bracket is calibrated for that post-SYE geometry. It is not a universal TJ/LJ rear track bar relocation bracket.
| Year Range | Make | Model | Configuration | SYE Required | Installation |
|---|---|---|---|---|---|
| 1997–2006 | Jeep | Wrangler TJ | 2-Door | Yes — SYE kit must be installed | Weld-on |
| 2004–2006 | Jeep | Wrangler LJ Unlimited | 4-Door | Yes — SYE kit must be installed | Weld-on |
Before ordering — confirm three items:
- Vehicle is a 1997–2006 TJ (2-door) or 2004–2006 LJ Unlimited (4-door) — not a JK, JL, XJ, or ZJ
- An SYE kit is already installed on this vehicle — this bracket is calibrated for post-SYE rear geometry
- A certified welder is available — weld-on bracket
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| TJ or LJ builds WITHOUT an SYE kit installed | This bracket is calibrated for the rear geometry that results from an SYE conversion. On a TJ or LJ without an SYE kit, the bracket's mount position will not produce correct track bar geometry. |
| Jeep Wrangler JK (2007–2018) | Different rear track bar mount geometry — see COR-4508200 (JK rear relocation bracket) or COR-4508110 (JK rear adjustable track bar) |
| Jeep Wrangler JL (2018–2026) | Different rear suspension architecture |
| Jeep Gladiator JT | Different rear suspension architecture |
| Jeep Cherokee XJ | Different rear suspension architecture |
| Jeep Grand Cherokee ZJ / WJ / WK | Different rear suspension architecture |
| Buyers without a certified welder | Weld-on bracket — load-bearing rear suspension bracket cannot be run on tack welds |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500500 |
| Application | Rear track bar relocation bracket — 1997–2006 TJ / 2004–2006 LJ Unlimited; SYE kit required |
| Bracket type | Weld-on rear track bar frame mount relocation |
| SYE kit requirement | SYE kit must be installed on the TJ/LJ before this bracket is installed — bracket is calibrated for post-SYE rear geometry |
| Installation | Weld-on — permanent frame modification |
| Lift height range | Not confirmed in source — verify with Clayton or OFAS |
| Function | Relocates rear track bar frame mount to correct track bar geometry on SYE-equipped TJ/LJ builds |
| Warranty | Not confirmed in source |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included

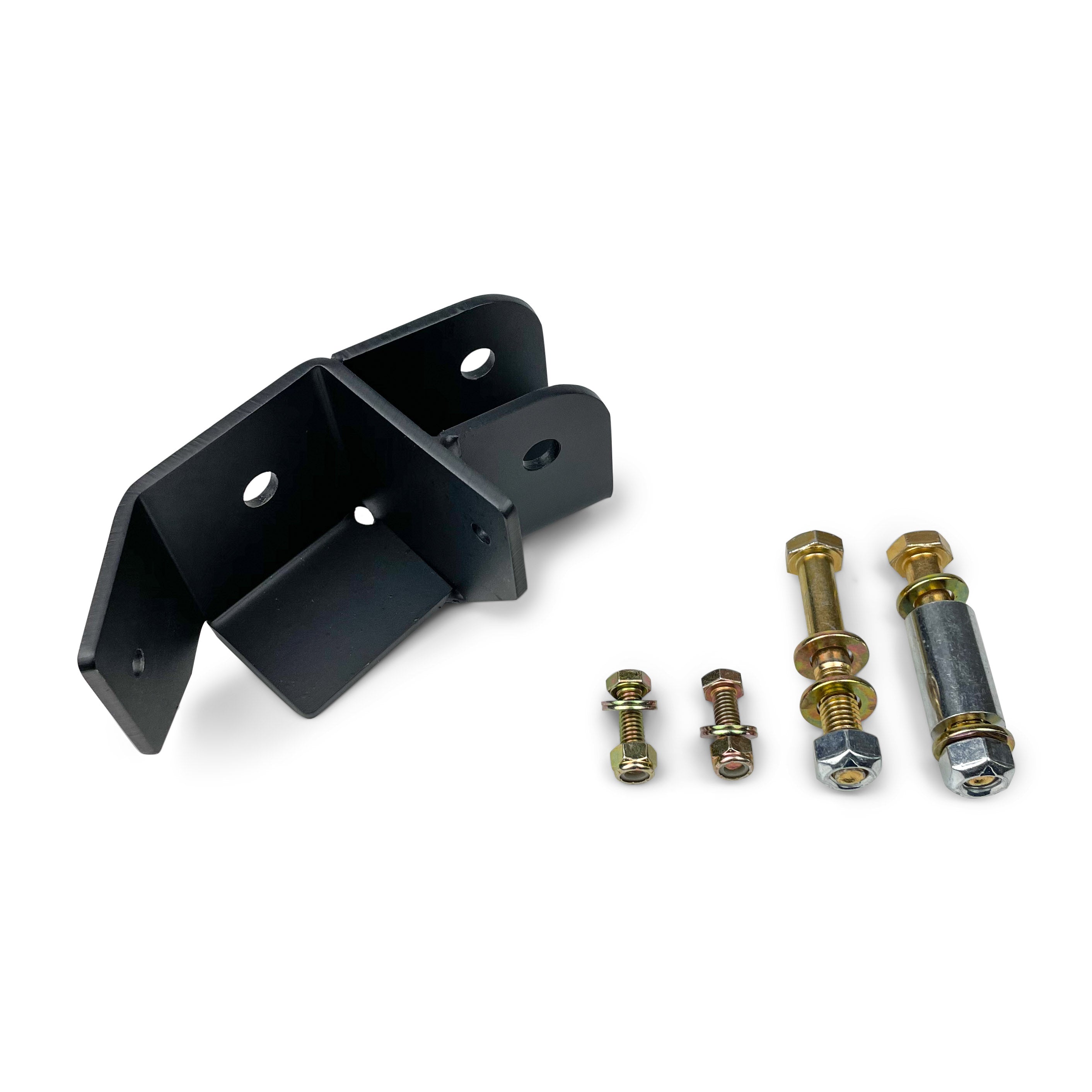

Included:
| Component |
|---|

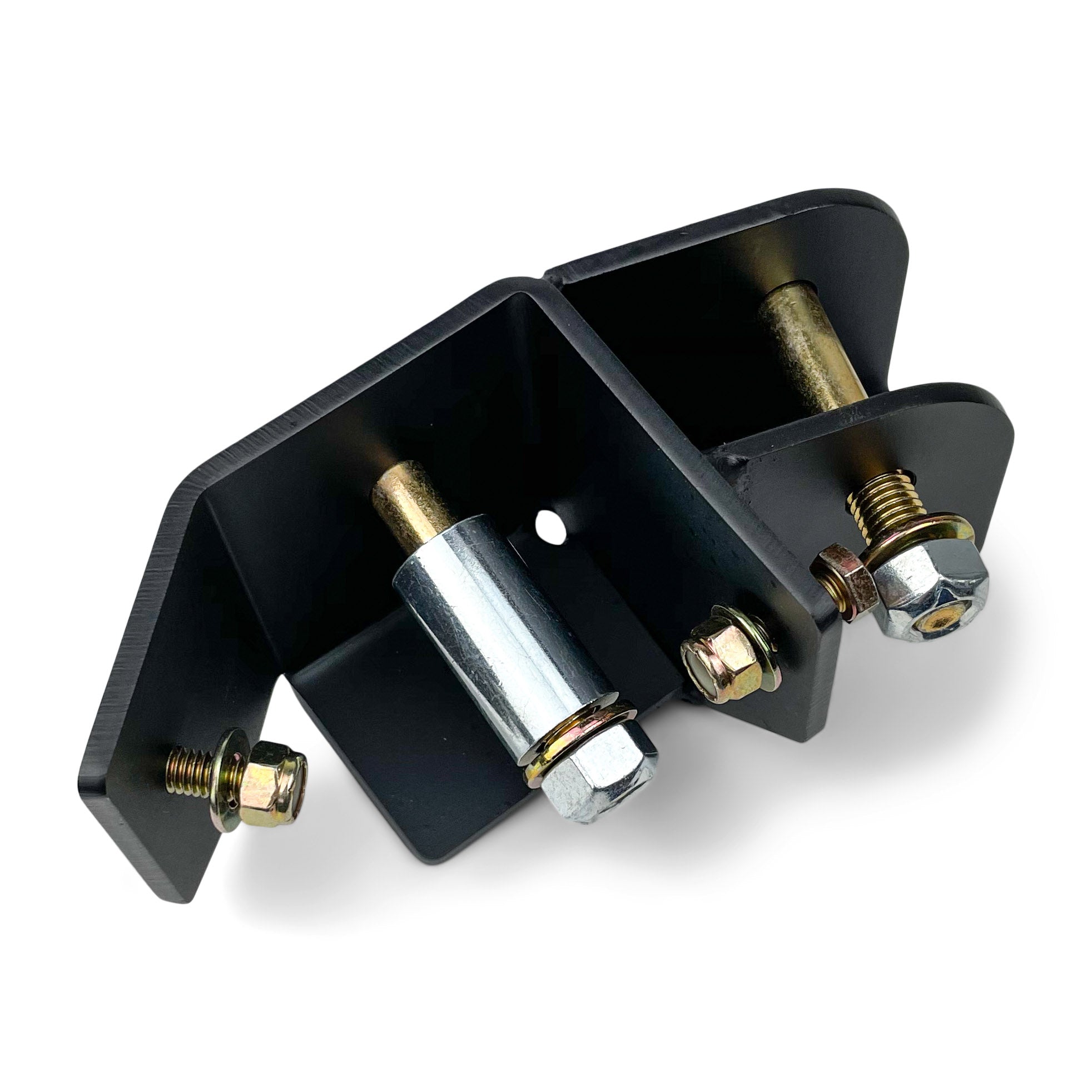

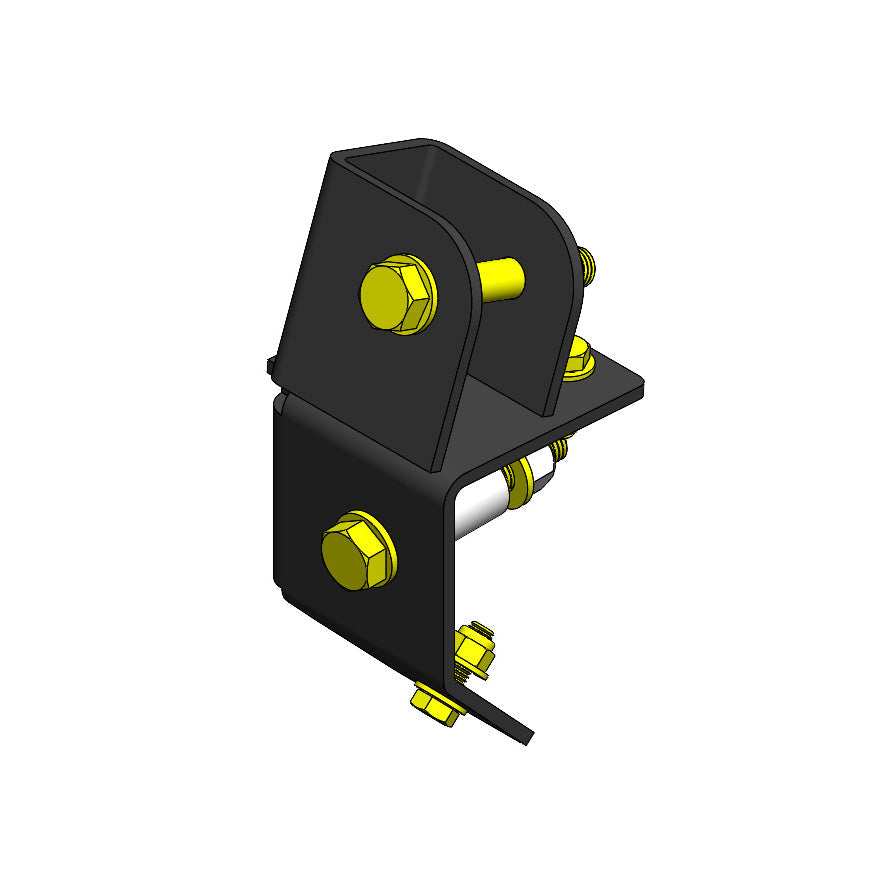

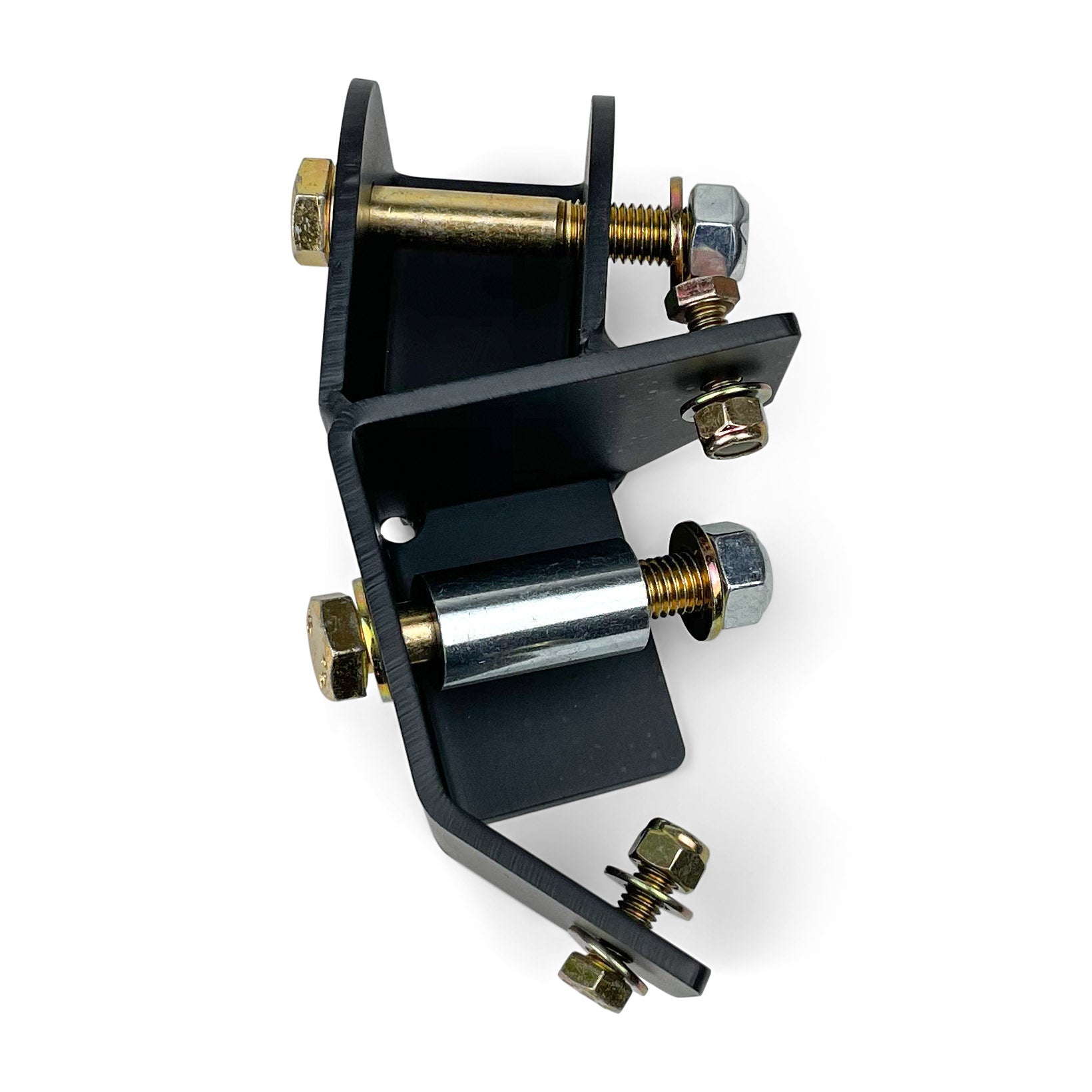

| COR-4500500 rear track bar relocation bracket |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| SYE kit | An SYE kit must already be installed — this bracket is designed for post-SYE geometry. If the SYE kit is not yet installed, install it before ordering this bracket. |
| Rear track bar | Factory or aftermarket rear track bar must be sourced separately if not already installed. |
| Professional welding labor | Certified welder required — not included |
| Weld-through primer and chassis paint | Required to protect bare metal at weld zones — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| SYE kit must be installed first | The SYE conversion changes the transfer case output shaft configuration, which changes the rear driveshaft angle and the rear suspension geometry relative to the chassis. This bracket is designed for the rear track bar geometry that exists after the SYE conversion. Installing this bracket on a TJ/LJ without an SYE kit will produce a mismatched rear track bar position that does not correct the track bar geometry correctly for either the pre-SYE or post-SYE configuration. | Confirm SYE kit is installed before ordering or installing this bracket. |
| Weld-on — permanent chassis modification | Full-penetration welds on all contact surfaces required. No tack welds on a load-bearing rear track bar mount. Once welded, the bracket cannot be removed without cutting. | Engage a certified welder. Apply weld-through primer and chassis paint to all bare metal after welding. |
| Rear track bar compatibility | Confirm the rear track bar being used with this bracket is compatible with the bracket's mount hardware. Factory TJ/LJ rear track bar or a Clayton replacement bar may be used — confirm compatibility before ordering. | Text (469) 407-7538 to confirm rear track bar compatibility. |
| Lift height range — unconfirmed | Source does not specify the lift height range this bracket is calibrated for. Confirm with OFAS before ordering. | Text (469) 407-7538 for lift height confirmation. |
| Rear alignment after installation | Relocating the rear track bar frame mount changes the rear axle's lateral position. A rear alignment check is recommended after installation. | Schedule rear alignment after installation. |
Installation Notes
Skill level: Advanced — welding required.
Phase 1 — Preparation:
- Confirm SYE kit is already installed on the TJ or LJ.
- Confirm rear track bar is sourced and compatible with this bracket.
- Engage a certified welder.
Phase 2 — Bracket positioning and weld-out:

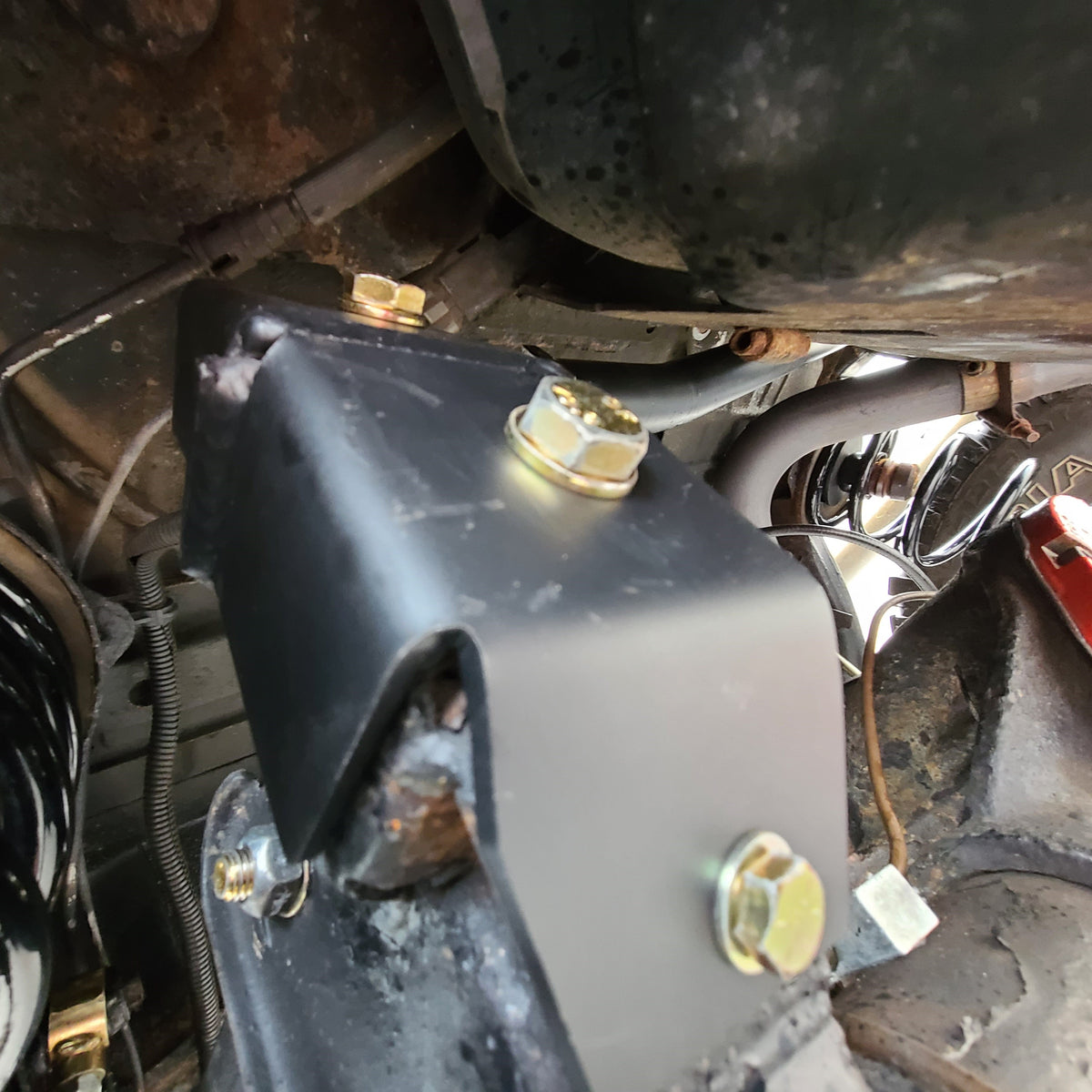

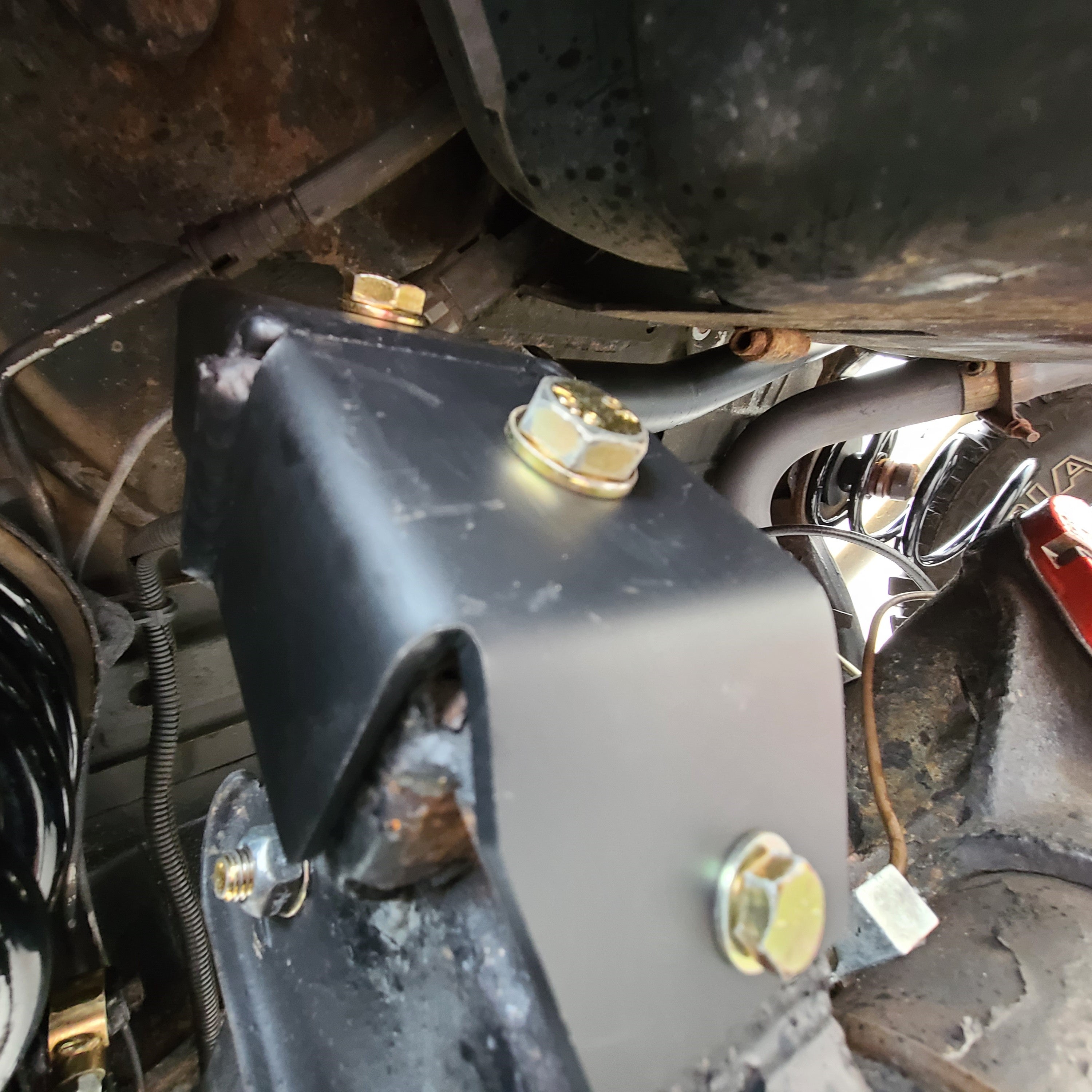

- Position the relocation bracket at the TJ/LJ rear track bar frame mount location per Clayton's installation instructions — verify position before welding.

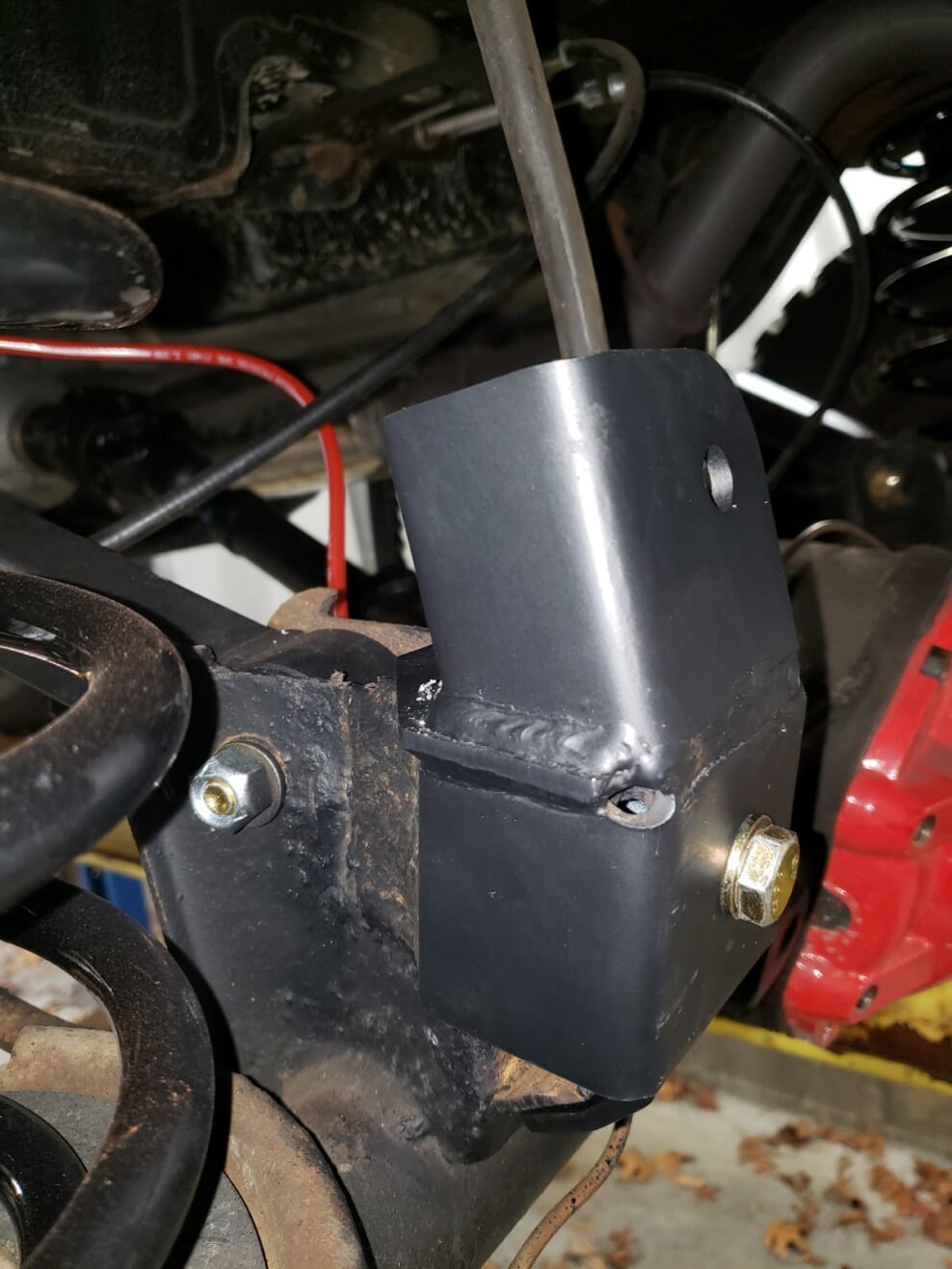

- Full-penetration welds on all contact surfaces. No tack welds on a load-bearing suspension bracket.
- Allow welds to cool. Apply weld-through primer and chassis paint to all bare metal.
Phase 3 — Track bar installation:

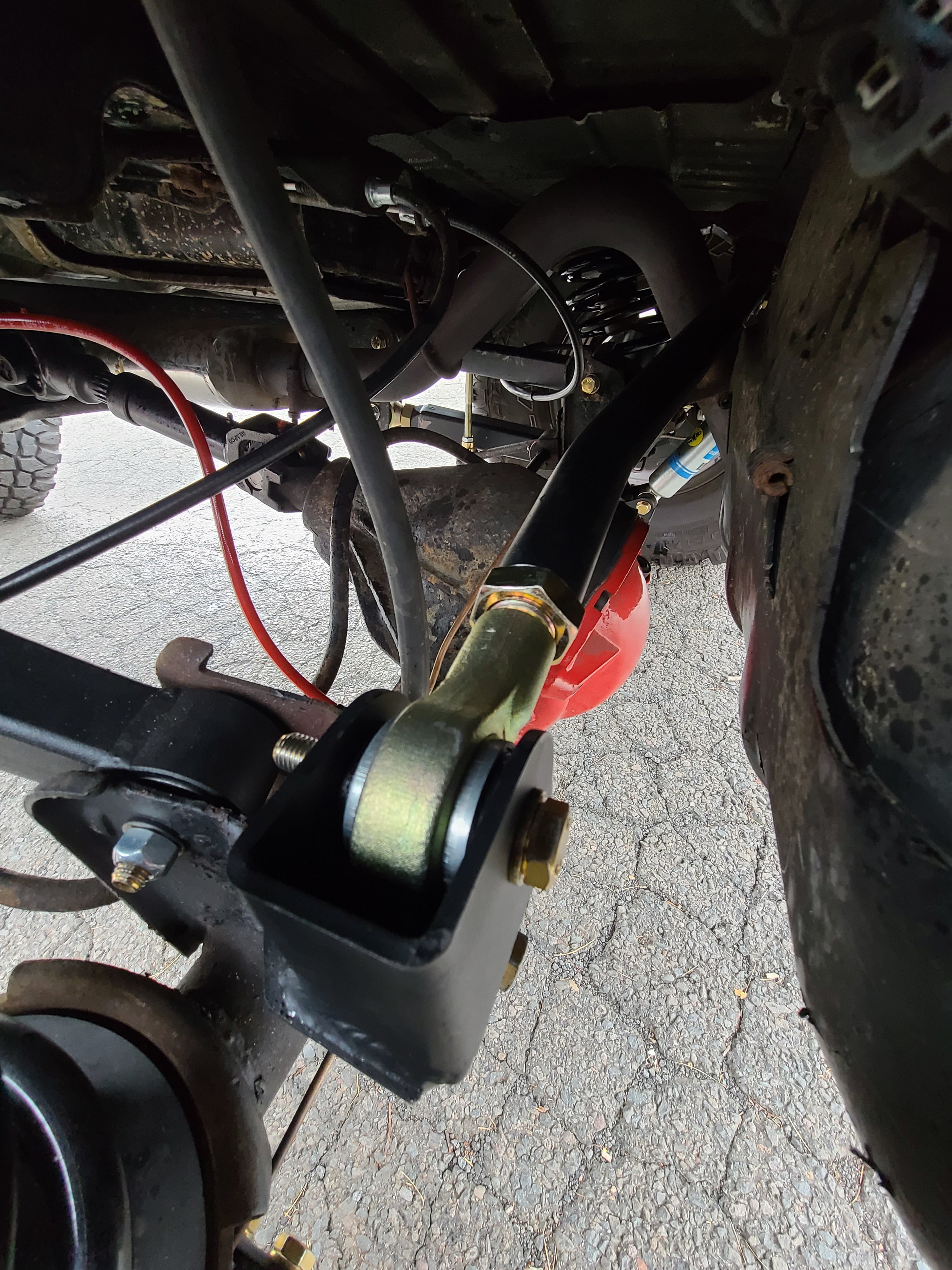

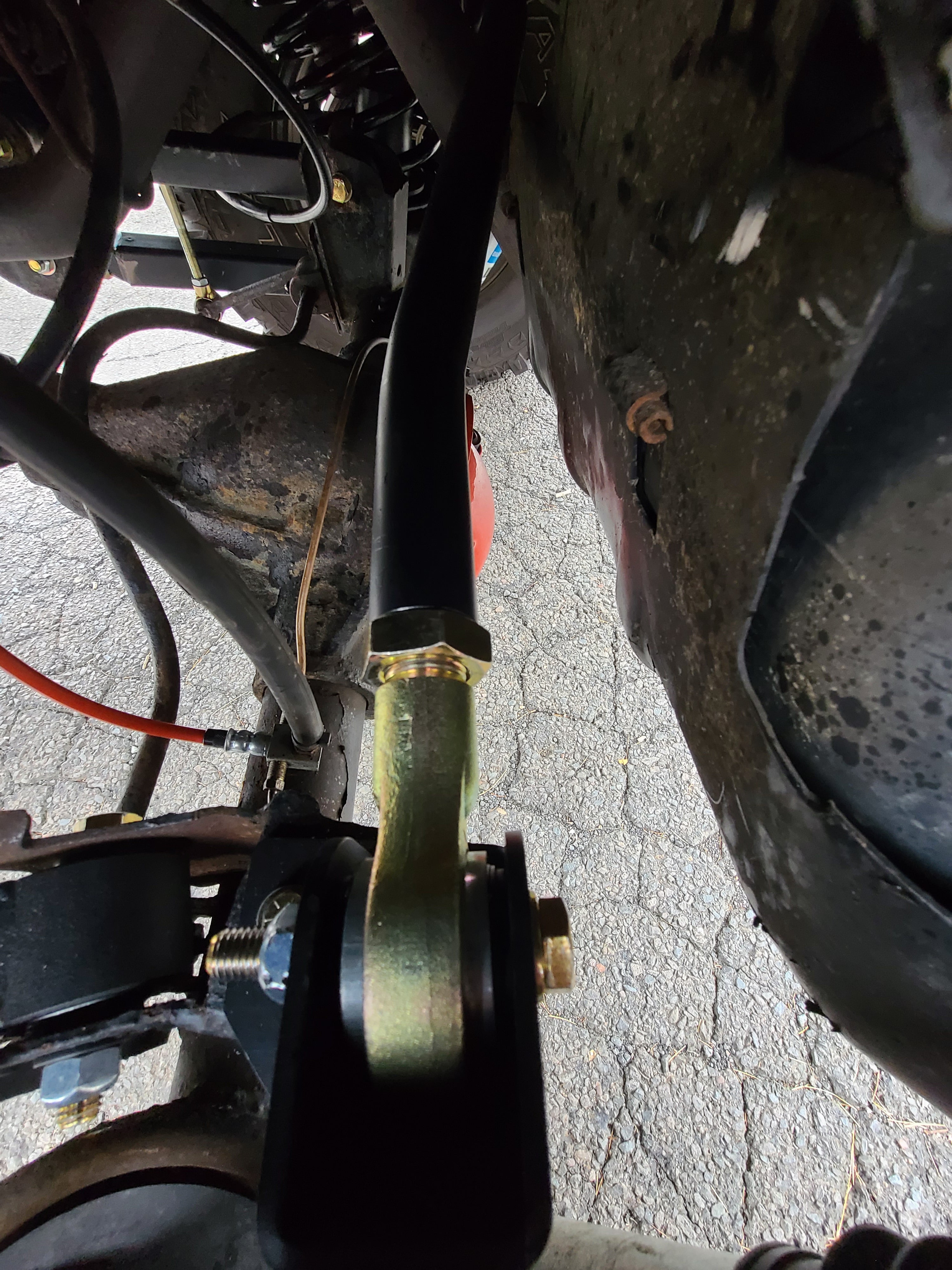

- Install the rear track bar into the relocated mount position.
- Torque all track bar hardware at ride height.
Phase 4 — Verification:
- Verify rear axle is centered laterally.
- Schedule rear alignment check.
Required tools and services:
| Item | Required |
|---|---|
| Vehicle lift rated for TJ/LJ | Yes |
| Certified welder | Yes |
| Weld-through primer and chassis paint | Yes |
| Torque wrench | Yes |
| Alignment equipment or appointment | Recommended |
Common Questions
What is an SYE kit and why does it affect the rear track bar?
A Slip Yoke Eliminator (SYE) kit converts the transfer case rear output from a sliding slip yoke to a fixed flange, allowing a double-cardan (CV-style) rear driveshaft to run at steeper operating angles. This conversion is typically done on TJ and LJ builds with significant lift to eliminate rear driveshaft vibration. The SYE conversion changes the transfer case's physical output position and, in conjunction with a long arm suspension conversion, changes the relationship between the rear axle and the chassis — including the rear track bar geometry. This bracket is specifically calibrated for the rear track bar geometry that results from an SYE conversion, not from the factory transfer case configuration.
What if I haven't installed an SYE kit yet?
Install the SYE kit first. This bracket is designed for the post-SYE rear geometry. Ordering and installing this bracket before the SYE kit is installed means the bracket will be in the wrong position for your current setup — and moving it after the SYE is installed requires cutting and re-welding.
Does this fit the JK Wrangler?
No — the JK uses different rear track bar mount geometry. See COR-4508200 (JK rear relocation bracket) or COR-4508110 (JK rear adjustable track bar) for JK rear track bar correction.
Do I need a new rear track bar with this bracket?
The factory TJ/LJ rear track bar may be reusable if it is in serviceable condition. Confirm compatibility with this bracket before installation. If the factory bar is worn or you want an aftermarket adjustable bar, source separately. Text (469) 407-7538 for compatible rear track bar options.
What is the warranty?
Warranty terms for this specific SKU are not confirmed in available source documentation. Confirm with Clayton Off Road at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This bracket is for the TJ or LJ Unlimited owner who has installed an SYE kit and needs to correct the rear track bar geometry that results from the SYE conversion. The SYE changes the rear driveshaft and transfer case output configuration — and this bracket accounts for that geometry change in its mount position. Installing a standard TJ/LJ rear track bar relocation bracket on an SYE-equipped truck would produce the wrong geometry. This SYE-specific bracket produces the correct geometry.
The welding requirement is the installation gate — same as COR-4508200 (JK rear relocation bracket). A certified welder is required, full-penetration welds are mandatory, and post-weld corrosion protection is required. None of these steps are optional.
It is not for any TJ or LJ without an SYE kit installed. It is not for the JK, JL, JT, or any other platform. And it is not the first purchase in a build — the SYE kit must already be installed before this bracket is ordered.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, lift height compatibility, and welding specifications may vary by specific vehicle configuration, SYE kit type, and manufacturer updates. Confirm SYE kit compatibility and all build requirements with Clayton or OFAS before ordering.
Non-Returnable Notice
Chassis components are non-returnable once installed. This bracket requires permanent welding to the TJ/LJ frame. Confirm vehicle identity (1997–2006 TJ or 2004–2006 LJ Unlimited), that an SYE kit is already installed, access to a certified welder, and rear track bar compatibility before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
