Clayton Off Road Front Track Bar Drop Bracket | Lowers Frame-Side Mount | Corrects Track Bar Angle at Lift | Bolt-On | 1997–2006 Jeep Wrangler TJ / 2004–2006 LJ Unlimited | SKU: COR-4500420
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment

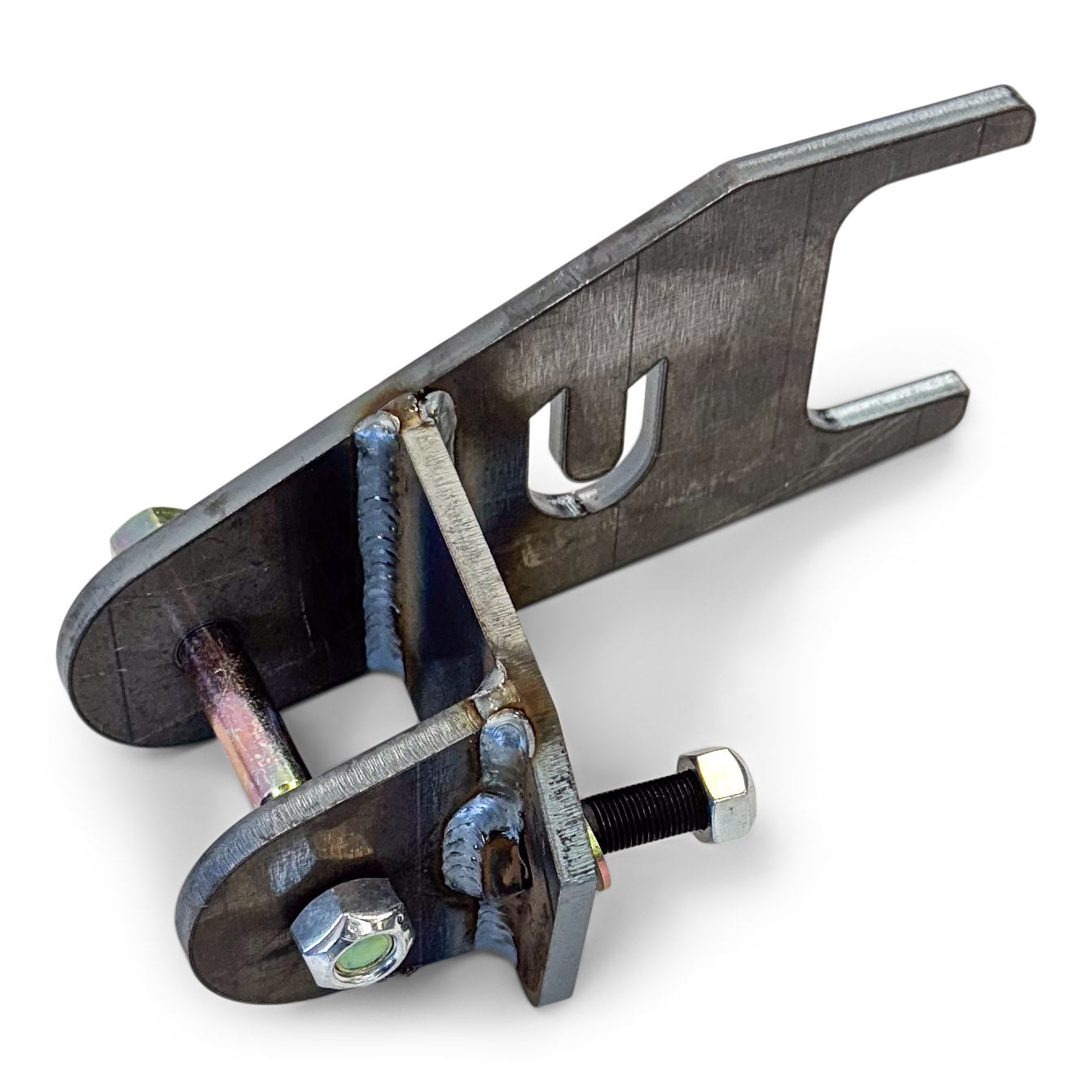

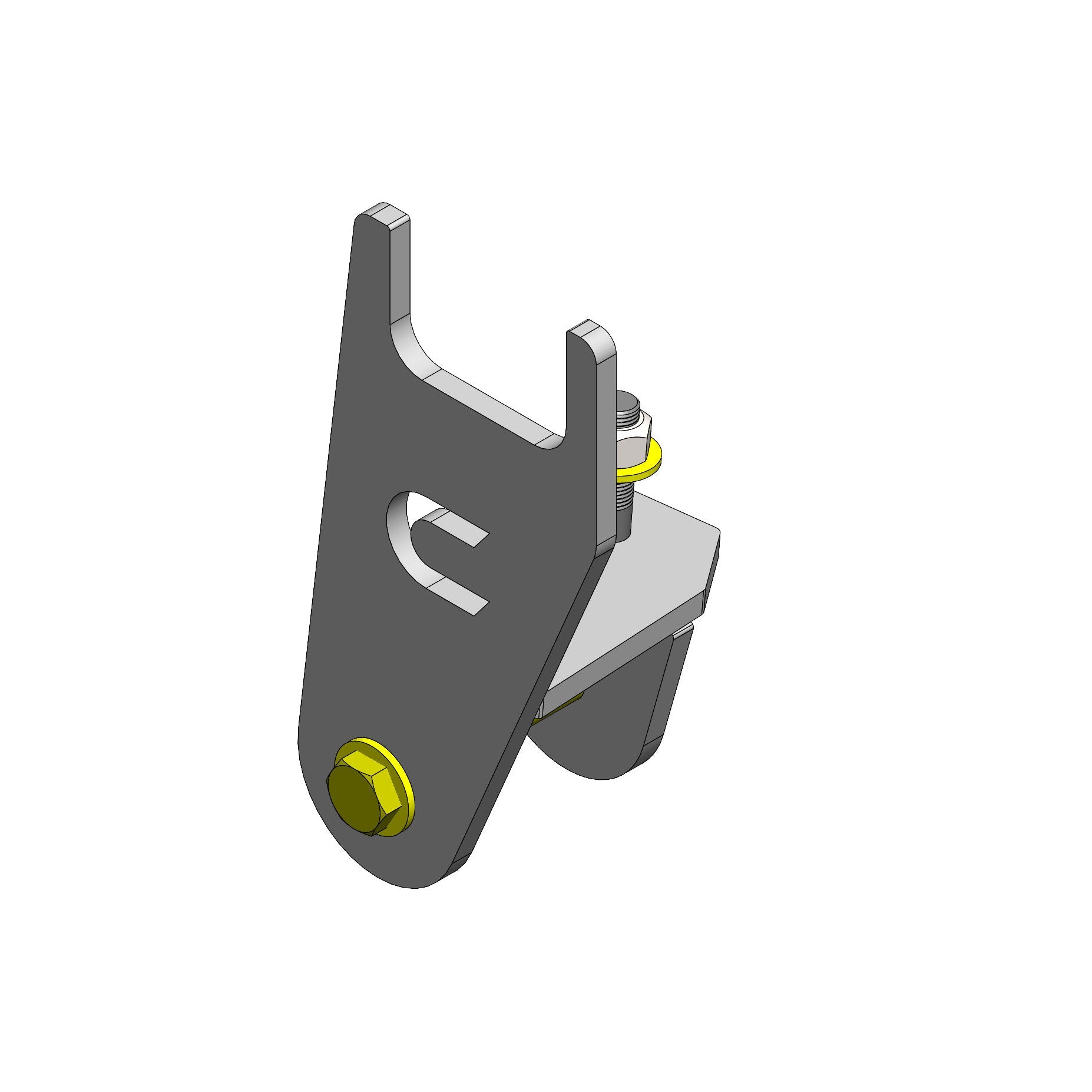

This front track bar drop bracket fits the 1997 through 2006 Jeep Wrangler TJ (2-Door) and the 2004 through 2006 Jeep Wrangler LJ Unlimited (4-Door). It lowers the frame-side front track bar mount point to correct the track bar angle and reduce bump steer on lifted TJ and LJ builds. It is designed for use with a Clayton adjustable front track bar.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 1997–2006 | Jeep | Wrangler TJ | 2-Door | Drop bracket — lowers frame-side front track bar mount; bolt-on |
| 2004–2006 | Jeep | Wrangler LJ Unlimited | 4-Door | Drop bracket — lowers frame-side front track bar mount; bolt-on |
Before ordering — confirm three items:
- Vehicle is a 1997–2006 TJ or 2004–2006 LJ Unlimited — not a JK, JL, or XJ/ZJ/WJ
- Build is meaningfully lifted and requires track bar angle correction
- A Clayton adjustable front track bar is being used or planned — confirm the specific companion track bar with OFAS before ordering
XJ and ZJ equivalent: COR-4500410 is the front track bar drop bracket for the 1984–2001 Cherokee XJ and 1993–1998 Grand Cherokee ZJ.
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason | Correct SKU |
|---|---|---|
| Jeep Wrangler JK (2007–2018) | Different front track bar mount geometry | COR-4508100 (adjustable front track bar for JK) |
| Jeep Wrangler JL (2018–2026) | Different front track bar mount geometry | COR-4509100 (adjustable front track bar for JL/JT) |
| Jeep Gladiator JT (2020–2026) | Different front track bar mount geometry | COR-4509100 |
| Jeep Cherokee XJ (1984–2001) | Different front track bar mount — XJ/ZJ drop bracket is COR-4500410 | COR-4500410 |
| Jeep Grand Cherokee ZJ (1993–1998) | Different front track bar mount — XJ/ZJ drop bracket is COR-4500410 | COR-4500410 |
| Jeep Grand Cherokee WJ / WK / WK2 | Different front suspension architecture | Not applicable |
| TJ/LJ builds at stock or minimal lift | Drop bracket lowers the mount below OE height — at stock or minimal lift, this may over-correct the track bar angle | Text (469) 407-7538 to confirm correct bracket for your lift height |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500420 |
| Application | Front track bar drop bracket — 1997–2006 Jeep Wrangler TJ / 2004–2006 LJ Unlimited |
| Bracket type | Drop — lowers frame-side front track bar mount below OE position |
| Drop amount | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Lift height range | Not confirmed in source — verify with Clayton or OFAS before ordering |
| Installation | Bolt-on — no welding required |
| Designed for | Use with Clayton adjustable front track bar |
| Function | Lowers frame-side front track bar mount to correct track bar angle and reduce bump steer on lifted TJ and LJ builds |
| Warranty | Not confirmed in source |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included
Included:
| Component |
|---|

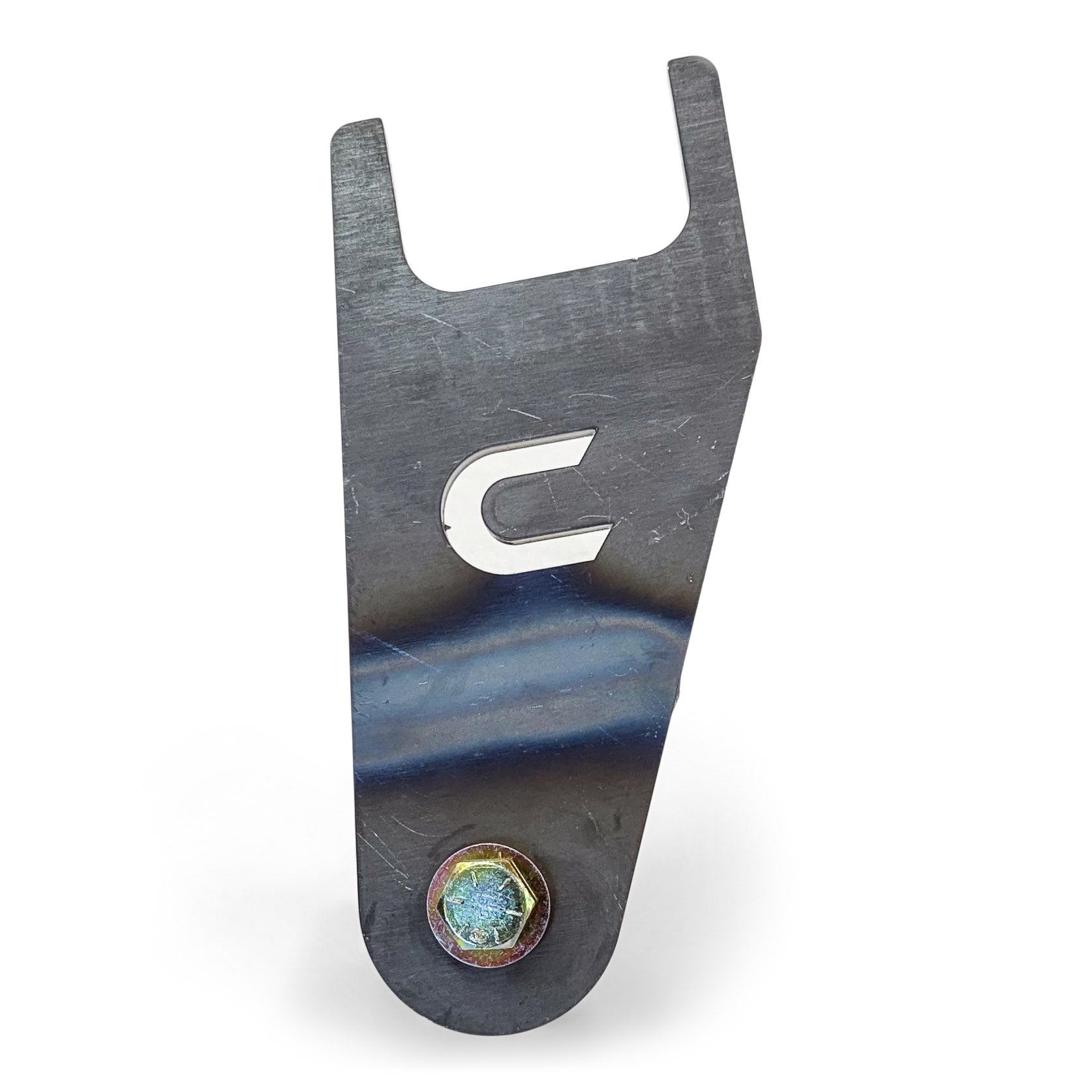

| COR-4500420 front track bar drop bracket |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| Clayton adjustable front track bar | Required companion — confirm the specific Clayton adjustable front track bar for your TJ or LJ application before ordering. Text (469) 407-7538. |
| Professional installation labor | Not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Drop amount and lift height — unconfirmed | Source does not specify the bracket's drop measurement or the lift height range it is designed for. Without these confirmed values, a buyer cannot determine whether this bracket is the correct geometry correction for their specific lift height. | Confirm drop amount and recommended lift height range with OFAS before ordering. Text (469) 407-7538. |
| TJ vs. LJ mount geometry | The TJ and LJ share the TJ-era front track bar mount architecture but the LJ's longer wheelbase may affect the mount geometry or bracket positioning. Confirm whether this bracket covers both platforms identically. | Text (469) 407-7538 to confirm TJ vs. LJ specific mounting requirements. |
| Clayton adjustable front track bar required | This bracket provides the mount — the adjustable track bar does the geometry work. Confirm the correct companion track bar SKU for your TJ or LJ before ordering this bracket. | Confirm companion track bar with OFAS before ordering. |
| Stock or minimal lift — OE-height bracket may be correct | This drop bracket is for lifted builds where the track bar angle correction is needed. At stock or minimal lift, an OE-height bracket may be the correct choice. | Confirm your lift height and whether a drop bracket is appropriate. |
Installation Notes
Skill level: Beginner to intermediate. Bolt-on installation — no welding, drilling, or fabrication required.
Installation summary:
- Confirm the Clayton adjustable front track bar for your TJ or LJ is sourced and in hand.
- Confirm drop amount is appropriate for your specific lift height.

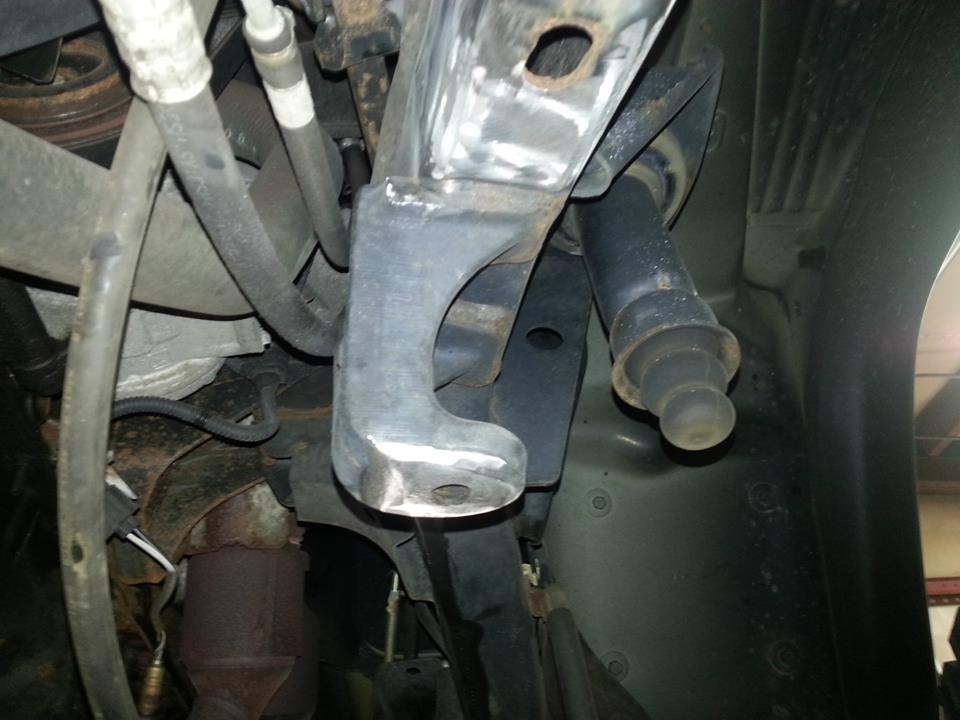

- Remove the factory front track bar.

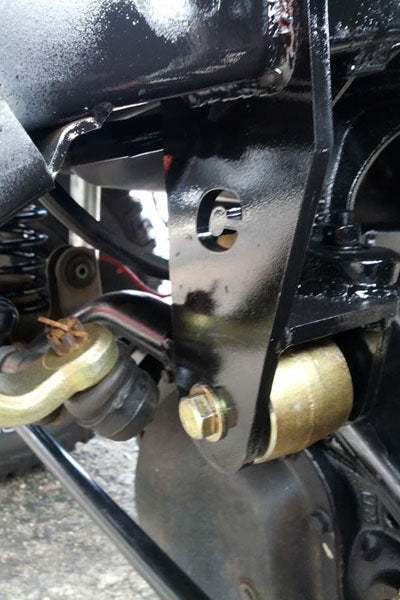

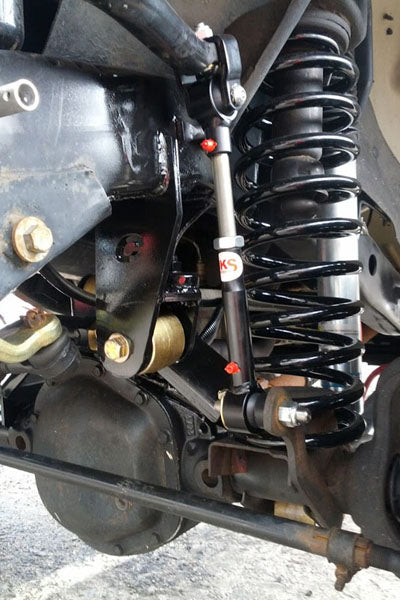

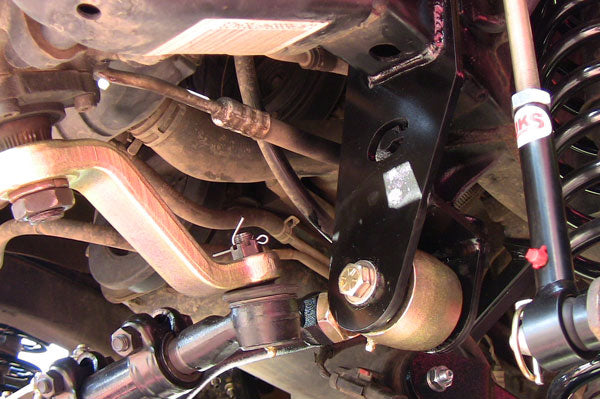

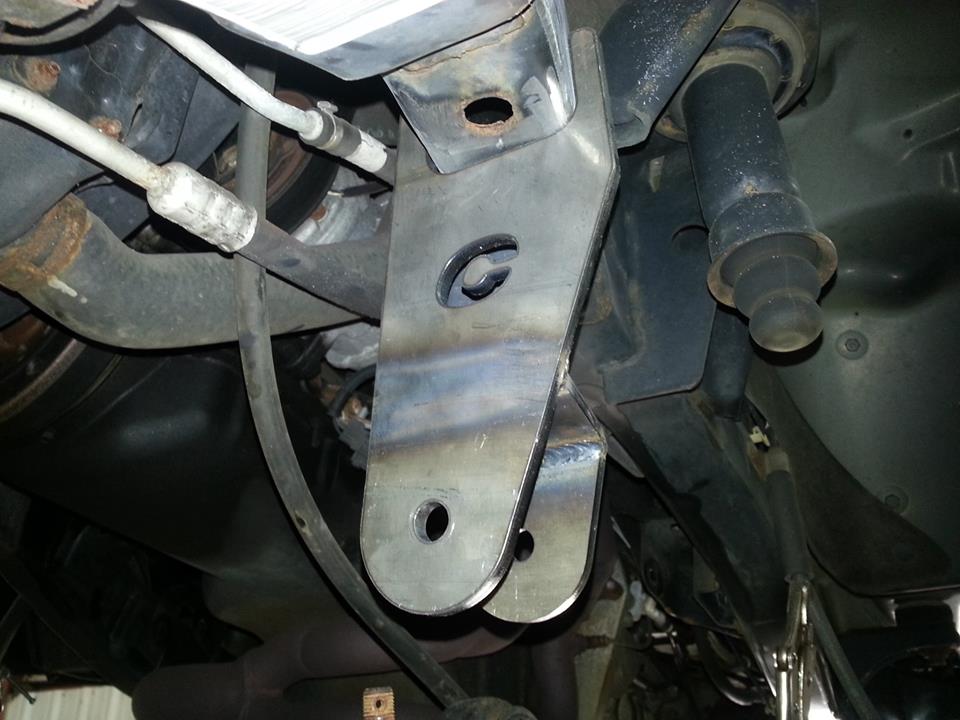

- Install COR-4500420 drop bracket at the factory front track bar frame mount location using included hardware.
- Install the Clayton adjustable front track bar into the drop bracket.
- Set the track bar to the correct length for your lift height.
- Torque all hardware at ride height.
- Verify front axle is centered laterally.
- Complete a full front alignment — caster and toe.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Alignment equipment or appointment | Yes — post-install |
Common Questions
Why does my lifted TJ or LJ need a front track bar drop bracket?
The factory TJ and LJ front track bar runs at an angle designed for stock ride height. When the front is lifted, the axle drops relative to the frame — the track bar angle steepens, which causes the front axle to shift laterally as the suspension cycles. This lateral shift shows up as bump steer: the steering moves slightly with every bump, even when the wheel is held straight. Dropping the frame-side mount point with this bracket brings the track bar back toward its designed operating angle, reducing bump steer and front axle lateral movement.
What is the difference between this and COR-4500410 (XJ/ZJ version)?
Platform only — COR-4500410 is the front track bar drop bracket for the 1984–2001 Cherokee XJ and 1993–1998 Grand Cherokee ZJ. COR-4500420 is the front track bar drop bracket for the 1997–2006 TJ and 2004–2006 LJ Unlimited. The function is identical. Do not use an XJ/ZJ bracket on a TJ or LJ, or vice versa — different mount hardware and geometry.
What drop amount does this bracket provide?
The specific drop measurement is not confirmed in available source documentation. Confirm the drop amount and the lift height range it is designed for with OFAS before ordering. Text (469) 407-7538.
Does this fit the JK Wrangler (2007–2018)?
No — the JK uses different front track bar mount geometry. The JK front adjustable track bar is COR-4508100, which is a complete replacement bar rather than a drop bracket.
What Clayton adjustable track bar do I need with this?
Confirm the correct companion track bar for your TJ or LJ application with OFAS. Text (469) 407-7538 with your vehicle, lift height, and steering setup.
What is the warranty?
Warranty terms for this specific SKU are not confirmed in available source documentation. Confirm with Clayton Off Road at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This bracket is for the lifted TJ or LJ Unlimited owner who is experiencing bump steer or front axle lateral movement from a steepened factory track bar angle after a lift — and wants to correct it with a bolt-on drop bracket rather than replacing the factory track bar with a full adjustable bar. Dropping the frame-side mount point brings the track bar back toward its designed operating angle and reduces the lateral axle shift per inch of suspension travel.
The function is identical to COR-4500410 (XJ/ZJ drop bracket) — the platform is the differentiator. TJ and LJ owners use COR-4500420; XJ and ZJ owners use COR-4500410. Both require a companion Clayton adjustable front track bar, both are bolt-on, and both have the same open questions about drop amount and lift height range that require OFAS confirmation before ordering.
It is not for the JK, JL, JT, or any Grand Cherokee platform. The companion track bar is a required purchase alongside this bracket — OFAS confirmation of the correct track bar SKU for your specific TJ or LJ build is the step that makes this order complete.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, drop measurement, recommended lift height range, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm drop amount, lift height compatibility, and companion track bar with Clayton or OFAS before ordering.
Non-Returnable Notice
Chassis components are non-returnable once installed. Confirm vehicle identity (1997–2006 TJ or 2004–2006 LJ Unlimited — not JK, JL, XJ, or ZJ), that your build is meaningfully lifted and requires a drop bracket, drop amount and lift height compatibility with Clayton, and companion Clayton adjustable front track bar before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
