Clayton Off Road Front Track Bar Drop Bracket | Lowers Frame-Side Mount | Corrects Track Bar Angle at Lift | Bolt-On | 1984–2001 Jeep Cherokee XJ / 1993–1998 Grand Cherokee ZJ | SKU: COR-4500410

Verified Fitment

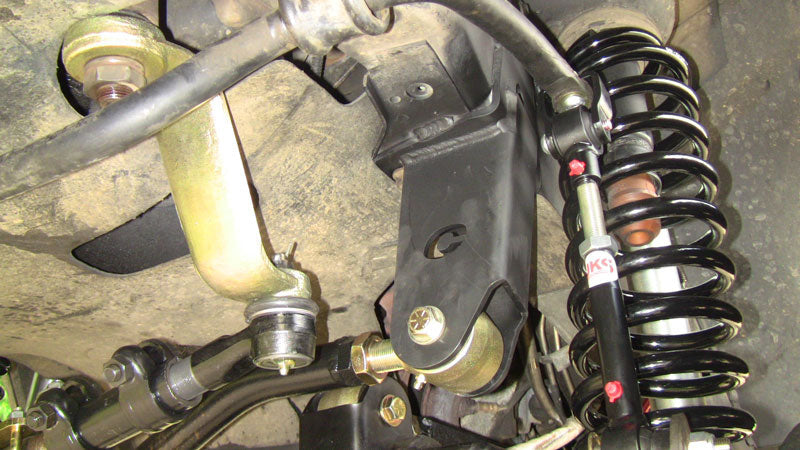

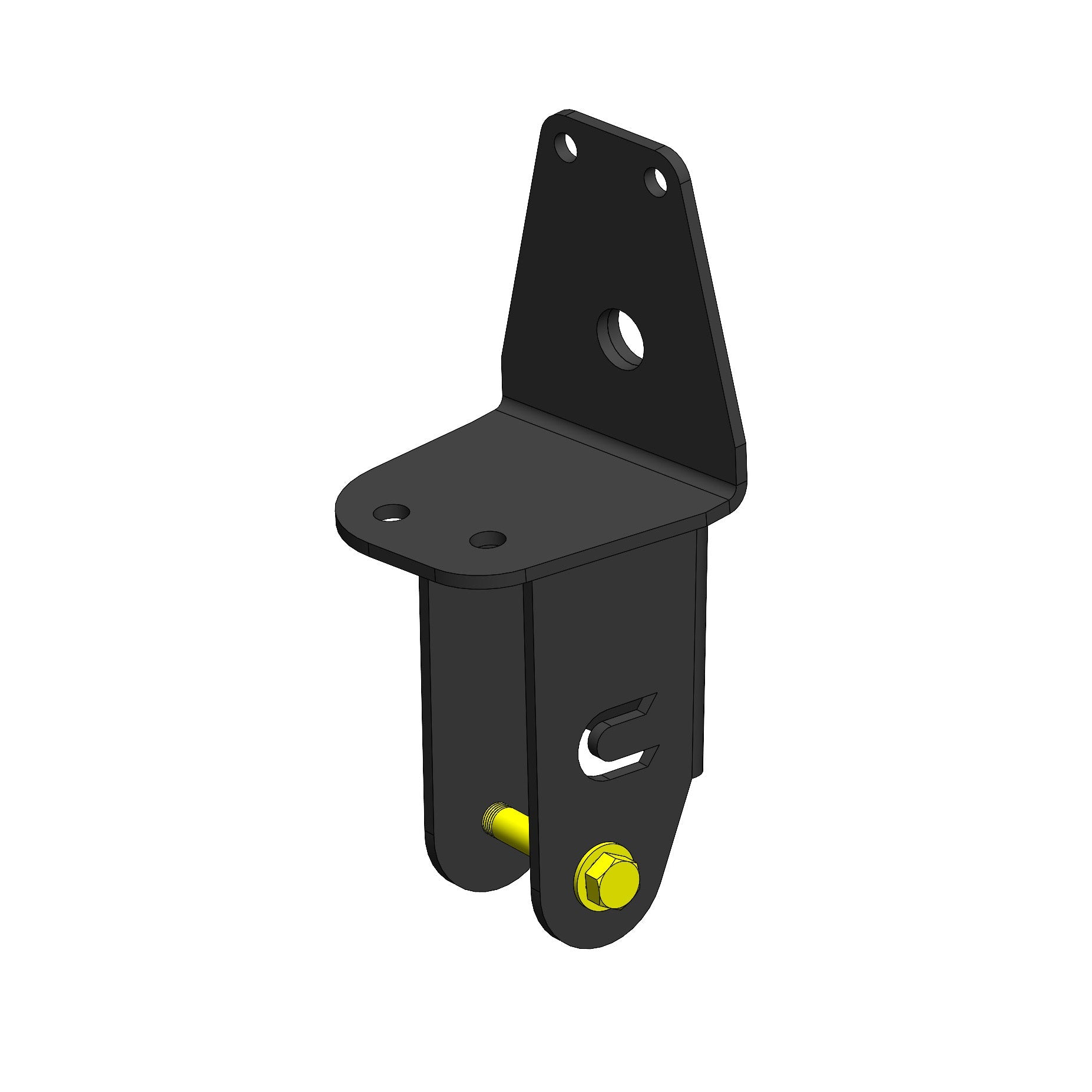

This front track bar drop bracket fits the 1984 through 2001 Jeep Cherokee XJ and the 1993 through 1998 Jeep Grand Cherokee ZJ. It lowers the frame-side front track bar mount point to correct the track bar angle and reduce bump steer on lifted XJ and ZJ builds. It is designed for use with a Clayton adjustable front track bar.

Before ordering — confirm three items:

1. Vehicle is a 1984–2001 Cherokee XJ or 1993–1998 Grand Cherokee ZJ — not a WJ, Wrangler, or JK/JL/JT
2. Build is lifted and requires track bar angle correction — for stock or minimal lift, see COR-4500400 (OE-height bracket)
3. A Clayton adjustable front track bar is being used or already installed — confirm the specific companion track bar with OFAS before ordering

Verify fitment by text: (469) 407-7538

Does NOT Fit

Verify fitment by text: (469) 407-7538

Component Specifications

What Is and Is NOT Included

Included:

Not Included:

Critical Compatibility

Installation Notes

Skill level: Beginner to intermediate. Bolt-on installation — no welding, drilling, or fabrication required.

Installation summary:

1. Confirm the Clayton adjustable front track bar for your XJ or ZJ is sourced and in hand.
2. Confirm drop amount is appropriate for your specific lift height.
3. Remove the factory front track bar.
4. Install COR-4500410 drop bracket at the factory front track bar frame mount location using included hardware.
5. Install the Clayton adjustable front track bar into the drop bracket.
6. Set the track bar to the correct length for your lift height.
7. Torque all hardware at ride height.
8. Verify front axle is centered laterally.
9. Complete a full front alignment — caster and toe.

Required tools:

Common Questions

What is a track bar drop bracket and why do I need it on a lifted XJ or ZJ?
The front track bar holds the front axle in its lateral position. The factory track bar runs at a specific angle relative to the ground — an angle that was engineered for stock ride height. When the XJ or ZJ is lifted, the axle drops relative to the frame and the track bar angle increases, making it steeper. A steeper track bar angle causes the axle to shift laterally as the suspension compresses and droops — which shows up as bump steer. A drop bracket lowers the frame-side mount point, which brings the track bar back to a flatter operating angle closer to what it was at stock height, reducing bump steer.

What is the difference between this and COR-4500400 (OE-height bracket)?
Mount height. COR-4500400 installs the track bar mount at the original factory height — correct for stock or minimal lift where the factory track bar geometry is close enough to acceptable. COR-4500410 drops the mount below OE height — correct for lifted builds where the factory track bar angle has become steep enough to cause bump steer or lateral axle movement. If your XJ or ZJ is at stock height or only slightly lifted, the OE-height bracket is likely sufficient. If it is meaningfully lifted, the drop bracket corrects the geometry.

What drop amount does this bracket provide?
The specific drop measurement is not confirmed in available source documentation. Confirm the drop amount and the lift height range it is designed for with OFAS before ordering. Text (469) 407-7538.

Does this fit the WJ (1999–2004 Grand Cherokee)?
No — the WJ has different front track bar mount geometry. This bracket is specifically for the XJ (1984–2001) and ZJ (1993–1998).

What Clayton adjustable track bar do I need with this?
Confirm the specific companion track bar for your XJ or ZJ application with OFAS. Text (469) 407-7538 with your vehicle, lift height, and steering setup.

The Obsidian Take

This bracket is for the lifted XJ or ZJ owner who is experiencing bump steer or lateral front axle movement caused by the factory track bar running at too steep an angle after a lift. By lowering the frame-side mount point, the drop bracket restores the track bar to a closer-to-horizontal operating angle — the same geometry correction principle as a front track bar relocation bracket on any other solid front axle platform.

The choice between this bracket and COR-4500400 (OE-height) is the same choice that appears across every lifted solid front axle platform: stock height or light lift uses OE-height hardware; meaningful lift requires geometry correction. For XJ and ZJ, this drop bracket is the lifted-build answer to what COR-4500400 addresses at stock height.

The two open questions that must be resolved before ordering are the drop amount and the correct companion Clayton adjustable track bar SKU. Both require a quick confirmation with OFAS — the bracket bolts in, the track bar bolts to the bracket, and the geometry is set. But neither of those steps can happen correctly without knowing the drop and confirming the bar.

It is not for the WJ, any Wrangler, or any JK/JL/JT platform. And it is not a standalone solution without the companion adjustable track bar.

Manufacturer Data Disclaimer

Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, drop measurement, recommended lift height range, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm drop amount, lift height compatibility, and companion track bar requirement with Clayton or OFAS before ordering.

Non-Returnable Notice

Chassis components are non-returnable once installed. Confirm vehicle identity (1984–2001 Cherokee XJ or 1993–1998 Grand Cherokee ZJ only), that your build is meaningfully lifted and requires a drop bracket (not OE-height), drop amount and lift height compatibility with Clayton, and companion Clayton adjustable front track bar before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
