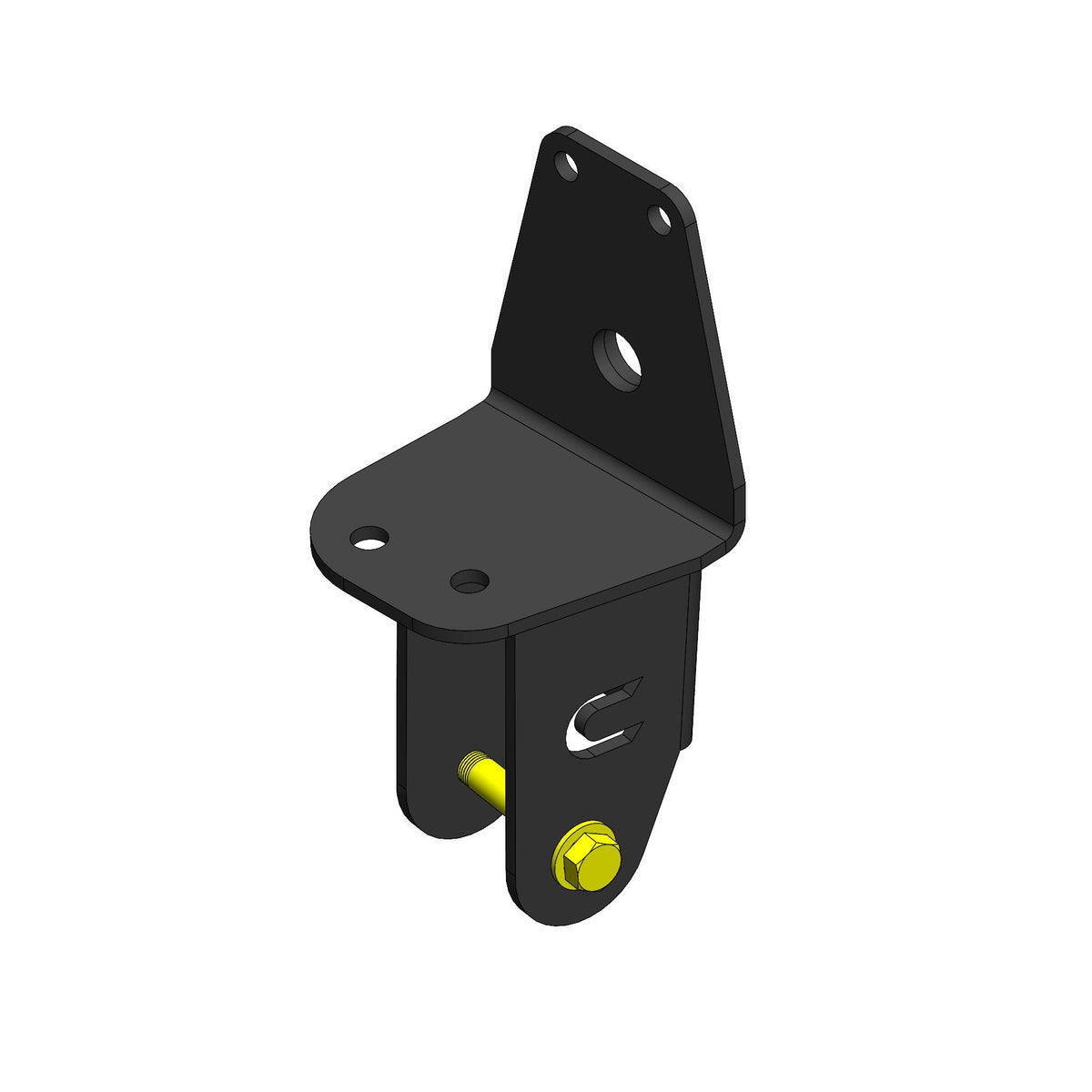

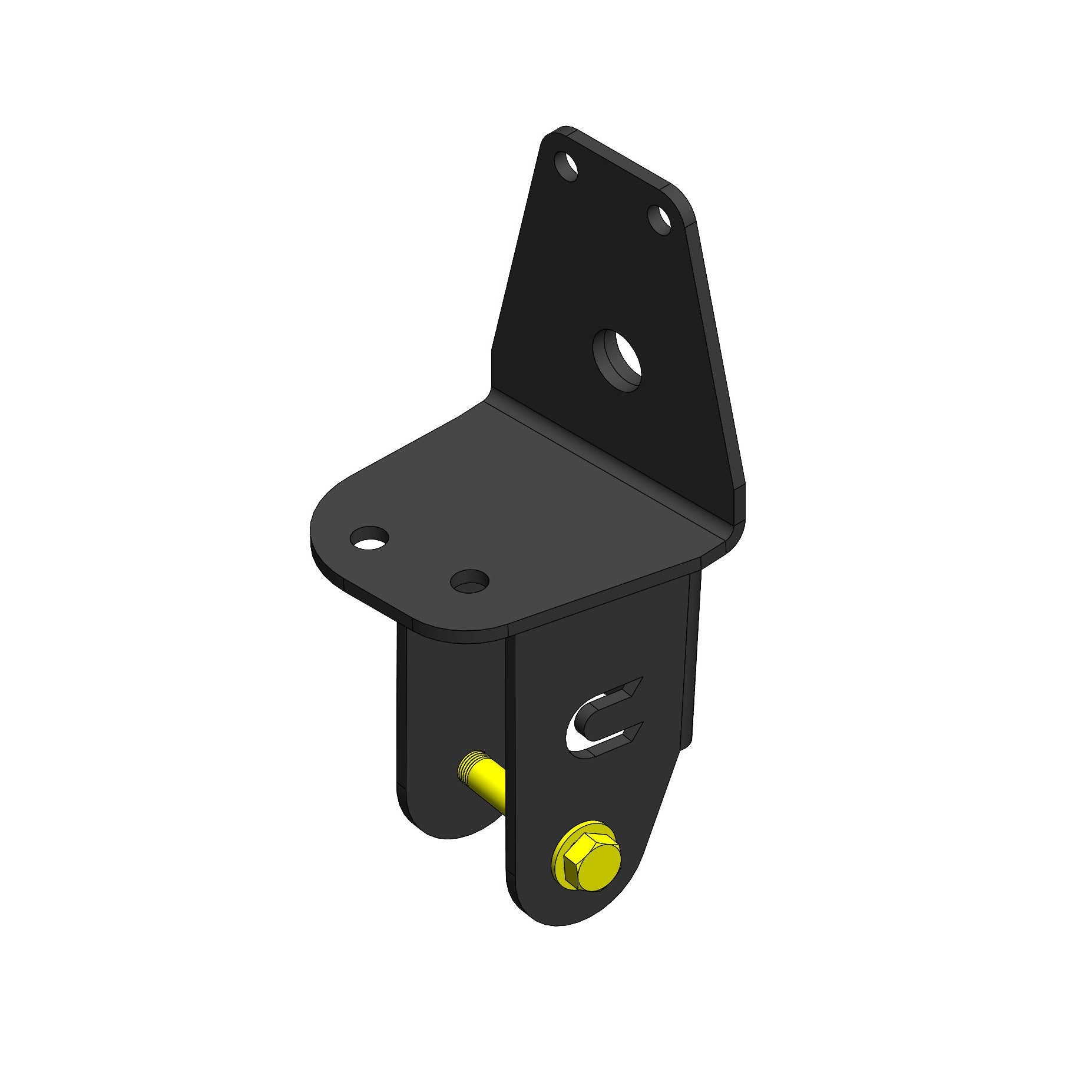

Clayton Off Road Front Track Bar OE-Height Bracket | Bolt-On | For Use with Adjustable Front Track Bar | 1984–2001 Jeep Cherokee XJ / 1993–1998 Grand Cherokee ZJ | SKU: COR-4500400
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Verified Fitment
This front track bar bracket fits the 1984 through 2001 Jeep Cherokee XJ and the 1993 through 1998 Jeep Grand Cherokee ZJ. It is a bolt-on OE-height front track bar bracket — it installs at the factory front track bar mount position and is designed for use with a Clayton adjustable front track bar.
| Year Range | Make | Model | Configuration | Notes |
|---|---|---|---|---|
| 1984–2001 | Jeep | Cherokee XJ | All trims | OE-height front track bar bracket — bolt-on |
| 1993–1998 | Jeep | Grand Cherokee ZJ | All trims | OE-height front track bar bracket — bolt-on |
Before ordering — confirm two items:
- Vehicle is a 1984–2001 Cherokee XJ or 1993–1998 Grand Cherokee ZJ — not a WJ, Wrangler, or JK/JL/JT
- A Clayton adjustable front track bar is being used or already installed — this bracket is designed to work with a Clayton adjustable front track bar
Verify fitment by text: (469) 407-7538
Does NOT Fit
| Exclusion | Reason |
|---|---|
| Jeep Grand Cherokee WJ (1999–2004) | Different front track bar mount geometry — WJ-specific bracket required |
| Jeep Grand Cherokee WK / WK2 (2005+) | Different front suspension architecture |
| Jeep Wrangler TJ / LJ / JK / JL | Different front track bar mount architecture — see platform-specific track bar products |
| Jeep Gladiator JT | Different front suspension architecture |
| Buyers who need a track bar relocation for lift height | This bracket installs at OE height — it does not change the track bar mount position for lift height correction. If your build requires a raised or lowered track bar mount for geometry correction, see platform-specific relocation brackets. |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500400 |
| Application | Front track bar OE-height bracket — 1984–2001 Jeep Cherokee XJ / 1993–1998 Grand Cherokee ZJ |
| Bracket type | OE-height — installs at factory front track bar mount position |
| Installation | Bolt-on — no welding required |
| Designed for | Use with Clayton adjustable front track bar |
| Function | Provides correct OE-height front track bar mount for use with adjustable front track bar on XJ and ZJ platforms |
| Warranty | Not confirmed in source |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included
Included:
| Component |
|---|
| COR-4500400 front track bar OE-height bracket |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| Clayton adjustable front track bar | Required companion — this bracket is designed for use with a Clayton adjustable front track bar. Source separately. Text (469) 407-7538 to confirm the correct Clayton adjustable front track bar for your XJ or ZJ application. |
| Professional installation labor | Not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| Clayton adjustable front track bar required | This bracket is designed for use with a Clayton adjustable front track bar — it provides the correct OE-height mount geometry for the adjustable bar's end hardware. Confirm the specific Clayton adjustable front track bar for your XJ or ZJ build before ordering this bracket. | Confirm compatible Clayton adjustable front track bar SKU before ordering. Text (469) 407-7538. |
| OE-height only — not a lift geometry relocation | This bracket installs at the factory track bar mount height. It is not a geometry relocation bracket that raises or lowers the track bar mount for lift height correction. If your XJ or ZJ build requires a raised track bar mount to correct geometry after a significant lift, a different bracket configuration is needed. | Confirm whether OE-height is the correct mount position for your build's lift height. |
| XJ vs. ZJ mount geometry | The XJ (Cherokee) and ZJ (Grand Cherokee) front track bar mount configurations may differ in specific bracket hardware requirements. Confirm whether this bracket covers both platforms identically or requires different hardware for each before ordering. | Text (469) 407-7538 to confirm XJ vs. ZJ specific mounting requirements. |
Installation Notes
Skill level: Beginner to intermediate. Bolt-on installation — no welding, drilling, or fabrication required.
Installation summary:
- Confirm the Clayton adjustable front track bar for your XJ or ZJ is sourced and in hand.
- Remove the factory front track bar.
- Install COR-4500400 OE-height bracket at the factory front track bar frame mount location using included hardware.
- Install the Clayton adjustable front track bar into the bracket.
- Set the track bar to the correct length for your lift height (if lifted) or to center the axle at stock height.
- Torque all hardware at ride height.
- Verify front axle is centered laterally.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
Common Questions
What is the difference between this and a track bar relocation bracket?
Mount height. A track bar relocation bracket moves the factory track bar mount to a different position — typically raised for high-lift applications to correct track bar angle. This OE-height bracket installs at the factory track bar mount position without changing its height. It is used when the goal is to provide a correct mount interface for a Clayton adjustable track bar at stock or near-stock ride height, or when the factory mount hardware needs to be replaced with a bracket that accommodates the Clayton adjustable bar's end hardware.
What Clayton adjustable track bar do I need with this bracket?
The correct Clayton adjustable front track bar for your XJ or ZJ depends on your specific build configuration. Text (469) 407-7538 with your vehicle, lift height, and steering setup and OFAS will confirm the correct companion track bar before your order ships.
Does this fit the WJ Grand Cherokee (1999–2004)?
No — the WJ has different front track bar mount geometry. This bracket is specifically for the XJ (1984–2001) and ZJ (1993–1998).
Does this require welding?
No — this bracket is fully bolt-on. No welding, drilling, or fabrication required.
What is the warranty?
Warranty terms for this specific SKU are not confirmed in available source documentation. Confirm with Clayton Off Road at claytonoffroad.com/pages/warranty-policy.
The Obsidian Take
This bracket is for the XJ or ZJ builder who is running a Clayton adjustable front track bar and needs the correct OE-height bracket to mount it at the factory track bar position. It is a straightforward bolt-on bracket that provides the mount interface — the adjustable track bar does the geometry work; this bracket provides the mount.
The key distinction from relocation brackets is the height: this bracket installs at factory height, not at a raised or lowered position for lift geometry correction. For XJ and ZJ builds where the factory mount height is the correct starting point and only the track bar itself needs to be adjustable and aftermarket-grade, this bracket is the correct mount solution.
It is not for the WJ, any Wrangler, or any JK/JL/JT platform. It is not a standalone solution without the Clayton adjustable front track bar it is designed to work with. Confirm the companion track bar before ordering.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, fitment details, and compatibility may vary by specific vehicle configuration and manufacturer updates. Confirm the companion Clayton adjustable front track bar requirement and XJ vs. ZJ specific mounting requirements with Clayton or OFAS before ordering.
Non-Returnable Notice
Chassis components are non-returnable once installed. Confirm vehicle identity (1984–2001 Cherokee XJ or 1993–1998 Grand Cherokee ZJ only), that this is the correct bracket for your lift height (OE-height — not a relocation bracket), and that the companion Clayton adjustable front track bar is sourced before ordering. Text (469) 407-7538 with any fitment questions before your order is placed.
