Clayton Off Road Adjustable Front Track Bar | 5/8" Frame-End Bolt | Heim Joint | Hex Body | Bolt-On | 1997–2006 TJ / 2004–2006 LJ / 1984–2001 XJ / 1993–1998 ZJ | SKU: COR-4500205
Couldn't load pickup availability
Before ordering, verify your vehicle details, current setup, and SKU with OFAS fitment support so your upgrade matches your build.
Shipping & Delivery
Free shipping is available within the lower 48 U.S. states. Large or heavy items may ship by freight, and delivery timing can vary by warehouse, carrier, and product availability.
Fitment, Shipping & Product Support
Source document clean and complete. Executing Blueprint now.
Pre-write flags:
CTA: No SMS CTA → text (469) 407-7538.
Price/UPC: Not in source. Flag and continue.
Prop 65: Not confirmed. Flag.
Warranty: Lifetime — confirmed.
"5/8 Frame Version" is the entire differentiator: This is the same adjustable front track bar as other Clayton front track bars in the session but with a 5/8" frame-end bolt for a specific frame bushing configuration. The standard version uses a different bolt diameter at the frame end. A buyer who orders the wrong bolt diameter version cannot install the bar without sourcing different hardware. This fitment gate must be stated in Fields 1, 2, 3, 4, and 6.
Multi-platform — TJ, LJ, XJ, ZJ: Widest single-bar platform coverage in the Clayton track bar session. All four reference platforms covered in one SKU.
Front track bar: Corrects front axle lateral centering. Same function as COR-4508100 (JK front), COR-4509100 (JL/JT front), and the TJ/LJ and XJ/ZJ complete track bar bundles.
Bolt-on: Confirmed. No welding.
Heim joint: Confirmed. Brand not specified — same gap as all prior non-JL/JT bars.
Hex body: Confirmed. Same right-hand threaded hex body design.
Lift range: Not specified in source for this SKU — will flag.
Sibling differentiation: Primary sibling is the standard-bolt-diameter version (not a separate SKU confirmed in this session — the prior XJ/ZJ and TJ/LJ track bar kits bundled bars with brackets). This is the first standalone adjustable front track bar for TJ/LJ/XJ/ZJ in the Clayton session without a bundle bracket. The 5/8" frame bolt is the sole differentiator from a standard-diameter version.
Executing Blueprint.
1. Product Title

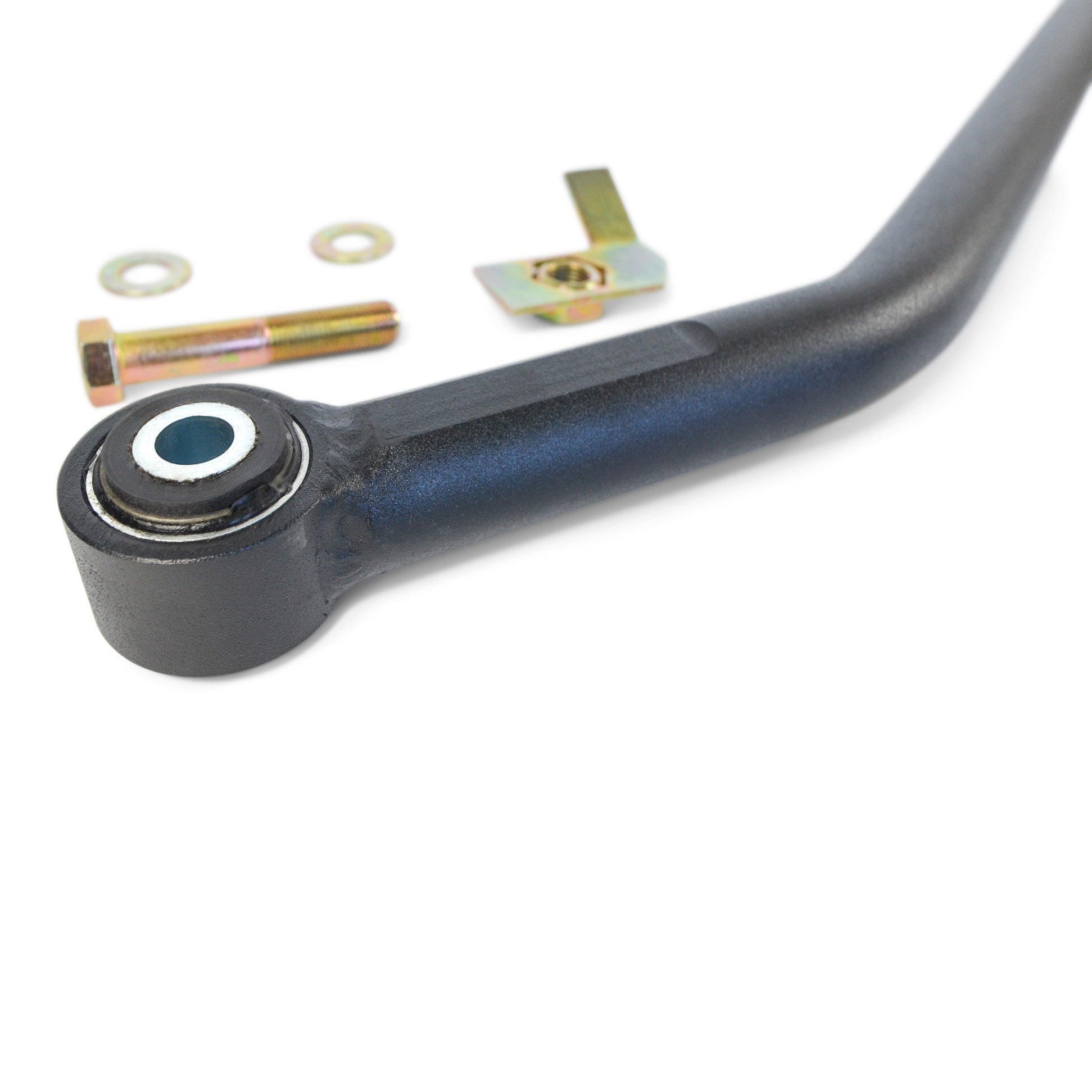

Clayton Off Road Adjustable Front Track Bar | 5/8" Frame-End Bolt | Heim Joint | Hex Body | Bolt-On | 1997–2006 TJ / 2004–2006 LJ / 1984–2001 XJ / 1993–1998 ZJ | SKU: COR-4500205
Verified Fitment
This front track bar fits the 1997–2006 Jeep Wrangler TJ, 2004–2006 LJ Unlimited, 1984–2001 Cherokee XJ, and 1993–1998 Grand Cherokee ZJ. It is the 5/8" frame-end bolt version — designed for the specific frame bushing configuration on these platforms that uses a 5/8" bolt at the frame-side track bar mount. Confirm your frame-end bolt diameter before ordering.
| Year Range | Make | Model | Configuration | Frame Bolt | Notes |
|---|---|---|---|---|---|
| 1997–2006 | Jeep | Wrangler TJ | 2-Door | 5/8" | 100% bolt-on |
| 2004–2006 | Jeep | Wrangler LJ Unlimited | 4-Door | 5/8" | 100% bolt-on |
| 1984–2001 | Jeep | Cherokee XJ | All trims | 5/8" | 100% bolt-on |
| 1993–1998 | Jeep | Grand Cherokee ZJ | All trims | 5/8" | 100% bolt-on |
Before ordering — confirm your frame-end bolt diameter is 5/8". If your frame-side track bar mount uses a different bolt diameter, this bar will not install correctly. Measure before ordering.
Verify fitment by text: (469) 407-7538
3. Does NOT Fit
| Exclusion | Reason |
|---|---|
| Any platform where the frame-side track bar mount uses a bolt diameter other than 5/8" | The frame-end of this bar is configured for a 5/8" bolt. A different diameter bolt cannot be substituted — the frame-end hardware will not fit correctly. Confirm your frame bolt diameter before ordering. |
| Jeep Wrangler JK (2007–2018) | Different frame-end track bar hardware — see COR-4508100 (JK front adjustable track bar) |
| Jeep Wrangler JL (2018–2026) | Different frame-end track bar hardware — see COR-4509100 (JL/JT front adjustable track bar) |
| Jeep Gladiator JT (2020–2026) | Different frame-end track bar hardware — see COR-4509100 |
| Jeep Grand Cherokee WJ (1999–2004) | Different front track bar mount configuration |
| Jeep Grand Cherokee WK / WK2 (2005+) | Different front suspension architecture |
Verify fitment by text: (469) 407-7538
Component Specifications
| Specification | Detail |
|---|---|
| Part number | COR-4500205 |
| Application | Adjustable front track bar — 5/8" frame-end bolt version; TJ (1997–2006), LJ (2004–2006), XJ (1984–2001), ZJ (1993–1998) |
| Frame-end bolt | 5/8" — confirm your frame mount accepts this diameter before ordering |

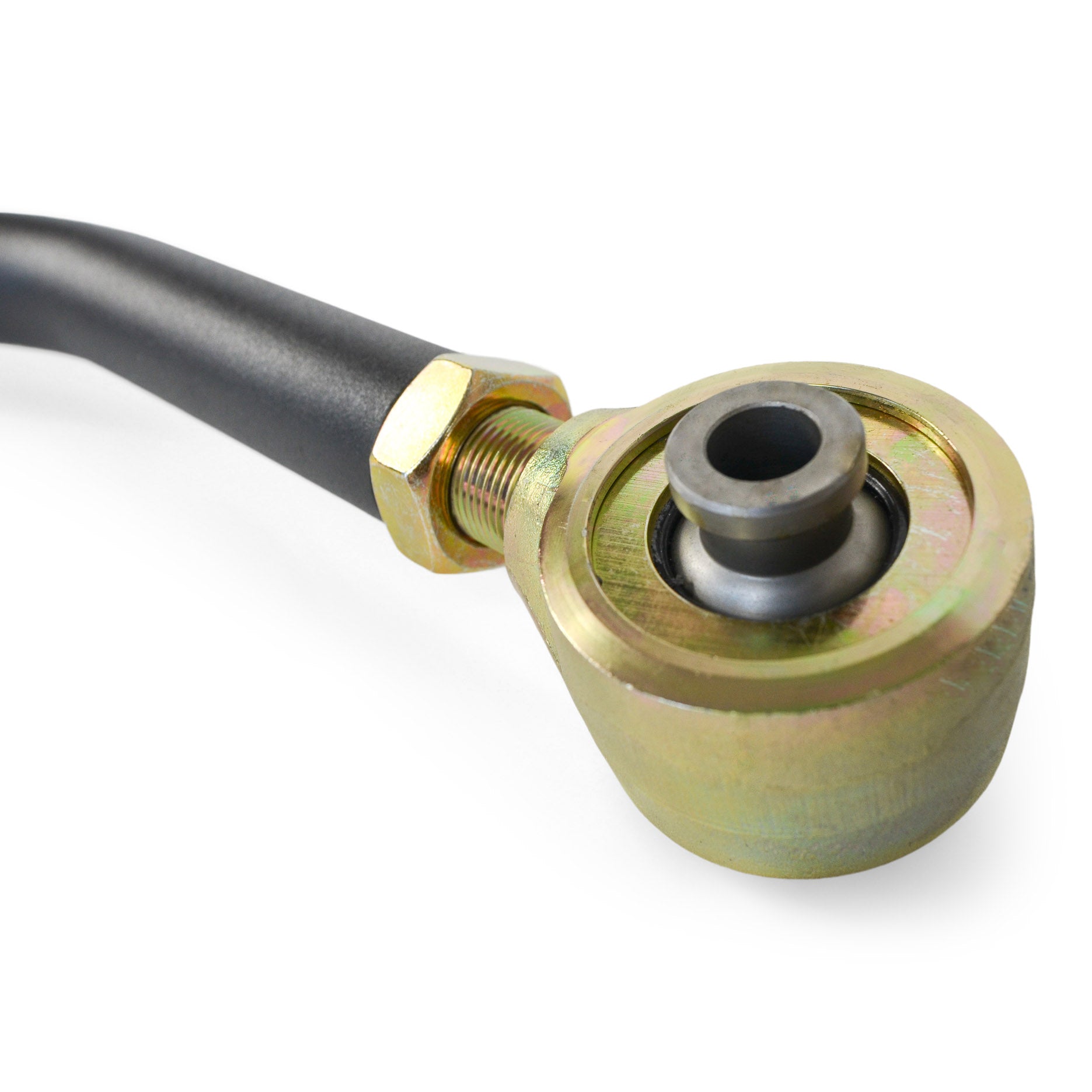

| End joint | Heim joint — angular articulation (brand not confirmed in source) |
| Bar body | Right-hand threaded hex body — wrench access at any flat for in-vehicle length adjustment without bar removal |
| Adjustability | Threaded for length adjustment to match front lift height |
| Adjustment range | Not confirmed in source — text (469) 407-7538 to confirm range for your lift height |
| Installation | 100% bolt-on — no welding, no drilling |
| Function | Corrects front axle lateral centering after front lift |
| Warranty | Lifetime |
| Unit weight | Not confirmed in source |
| Shipping dimensions | Not confirmed in source |
What Is and Is NOT Included

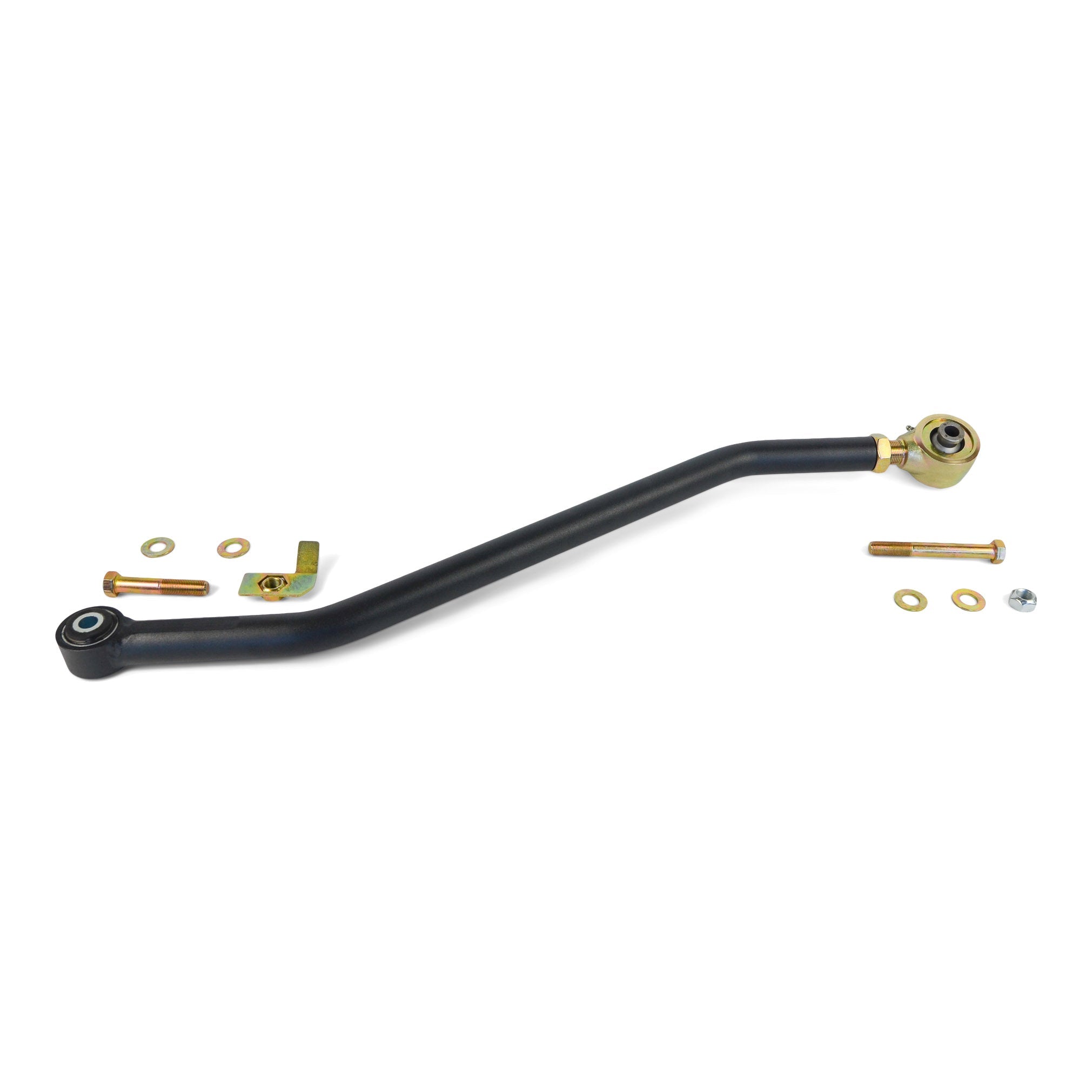

Included:
| Component |
|---|

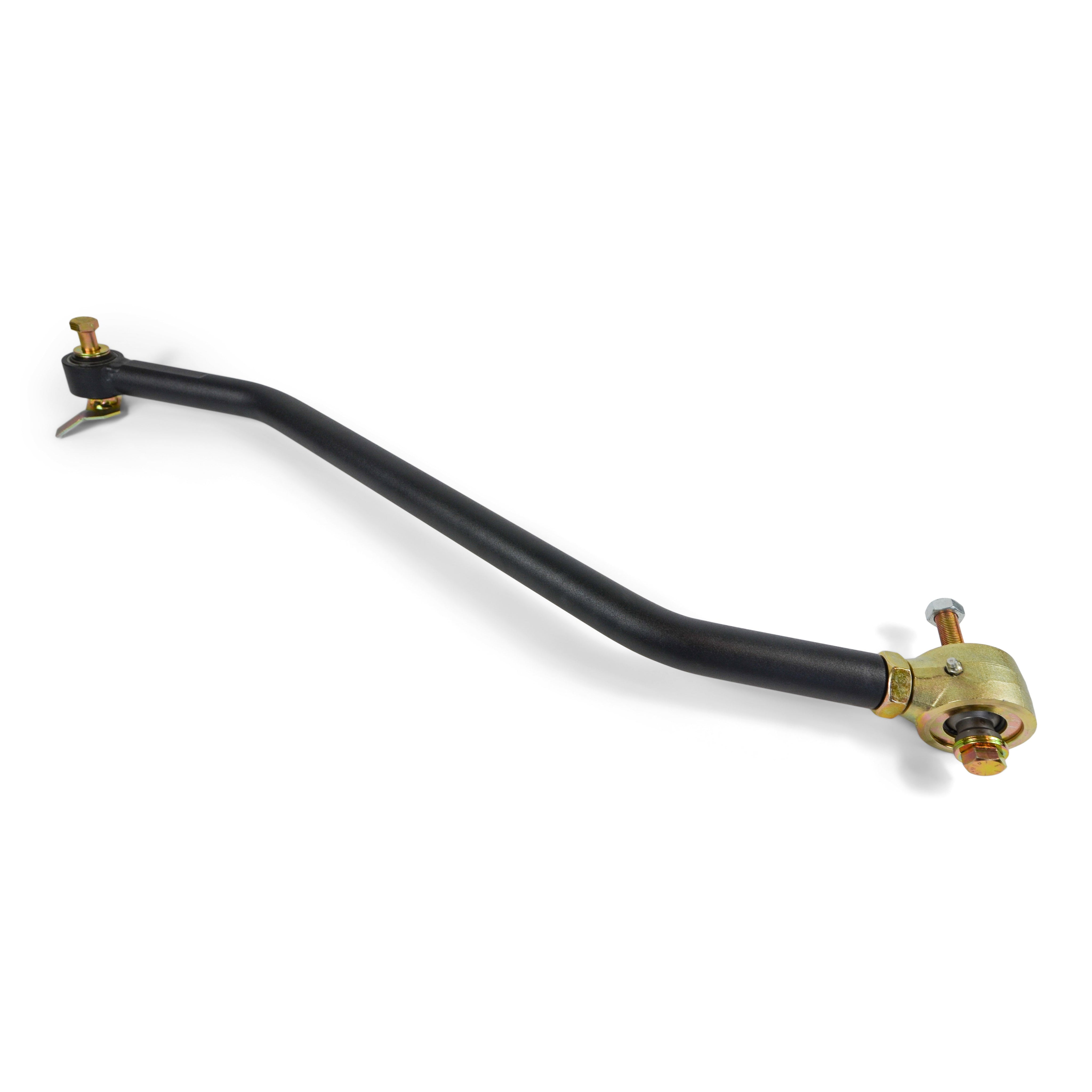

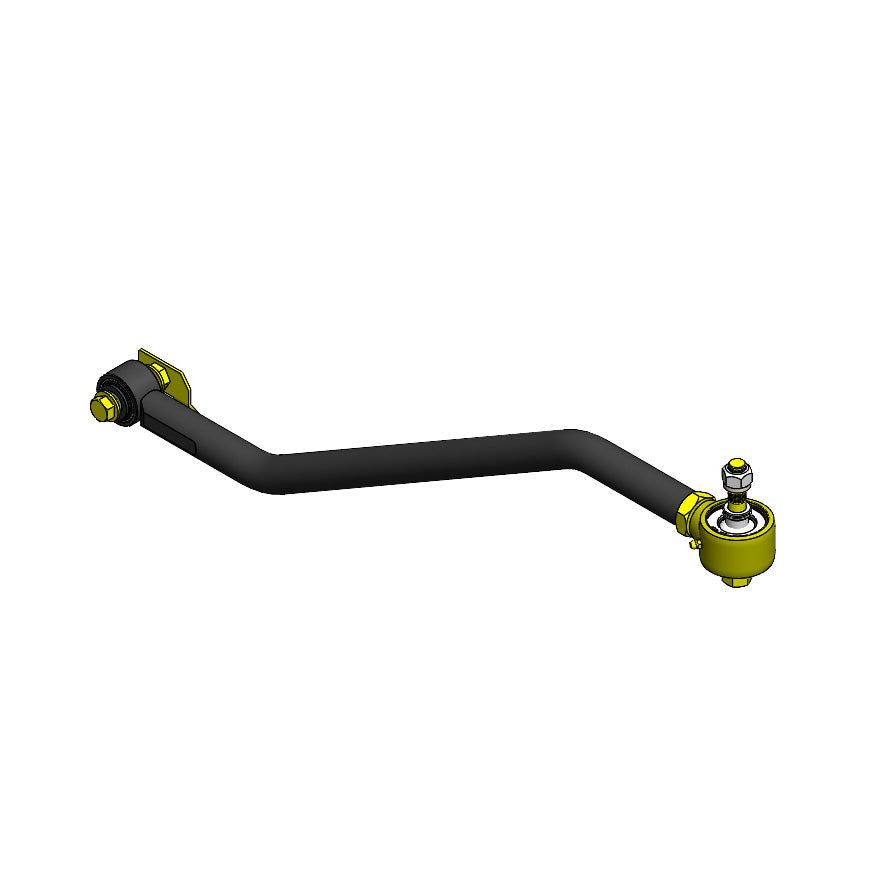

| COR-4500205 adjustable front track bar with heim joint, 5/8" frame-end bolt configuration |
| Right-hand threaded hex body |
| Hardware per Clayton specification |
Not Included:
| Item | Notes |
|---|---|
| Track bar bracket | If your build also needs a track bar bracket (OE-height or drop), source separately. See COR-4500400/COR-4500410 (XJ/ZJ brackets) or COR-4500420 (TJ/LJ drop bracket). Complete kits bundling bar + bracket are available: COR-4500502, COR-4500512, COR-4500522. |
| Professional installation labor | Not included |
| Front alignment service | Recommended after installation — not included |
Critical Compatibility
| Condition | Interaction | Action Required |
|---|---|---|
| 5/8" frame-end bolt — must match frame mount | The frame-end of this bar uses a 5/8" bolt. The frame-side track bar mount on your TJ, LJ, XJ, or ZJ must accept a 5/8" bolt for this bar to install correctly. If your factory or aftermarket mount uses a different bolt diameter, this bar will not fit. | Confirm frame-end bolt diameter before ordering. Measure the bolt at the factory frame-side track bar mount. Text (469) 407-7538 if unsure. |
| Bar length must match front lift height | Bar must be set to the correct length for your front lift height before installation. | Confirm lift height and set bar to correct length. Text (469) 407-7538. |
| Hex body — in-vehicle adjustment | Wrench access at any hex flat allows bar length adjustment without removal. | Apply wrench, rotate to correct length, retorque. |
| Front alignment after installation | Replacing the front track bar changes front axle lateral position. Full front alignment required. | Schedule alignment immediately after installation. |
| Bundle kits available | If you also need a track bar bracket (OE-height or drop), complete kits bundling this bar with the appropriate bracket are available rather than sourcing separately. | See COR-4500502 (XJ/ZJ OE-height bundle), COR-4500512 (XJ/ZJ drop bundle), COR-4500522 (TJ/LJ drop bundle). |
Installation Notes
Skill level: Intermediate. True bolt-on — no welding, drilling, or fabrication.
Step 1 — Confirm hardware:
- Confirm frame-side track bar mount accepts 5/8" bolt.
- Confirm front lift height and set bar to correct length by rotating hex body. Text (469) 407-7538 for correct setting.
Step 2 — Installation:

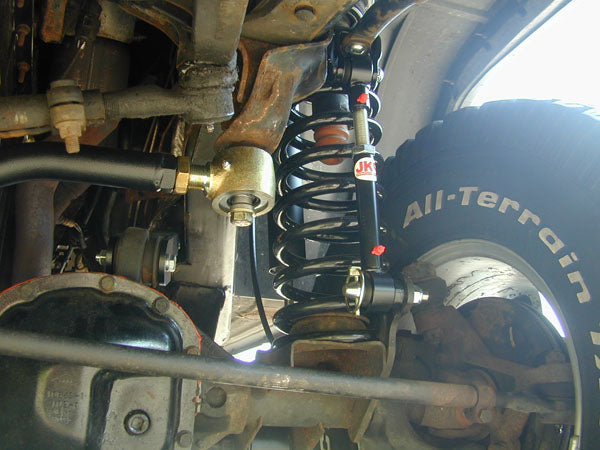

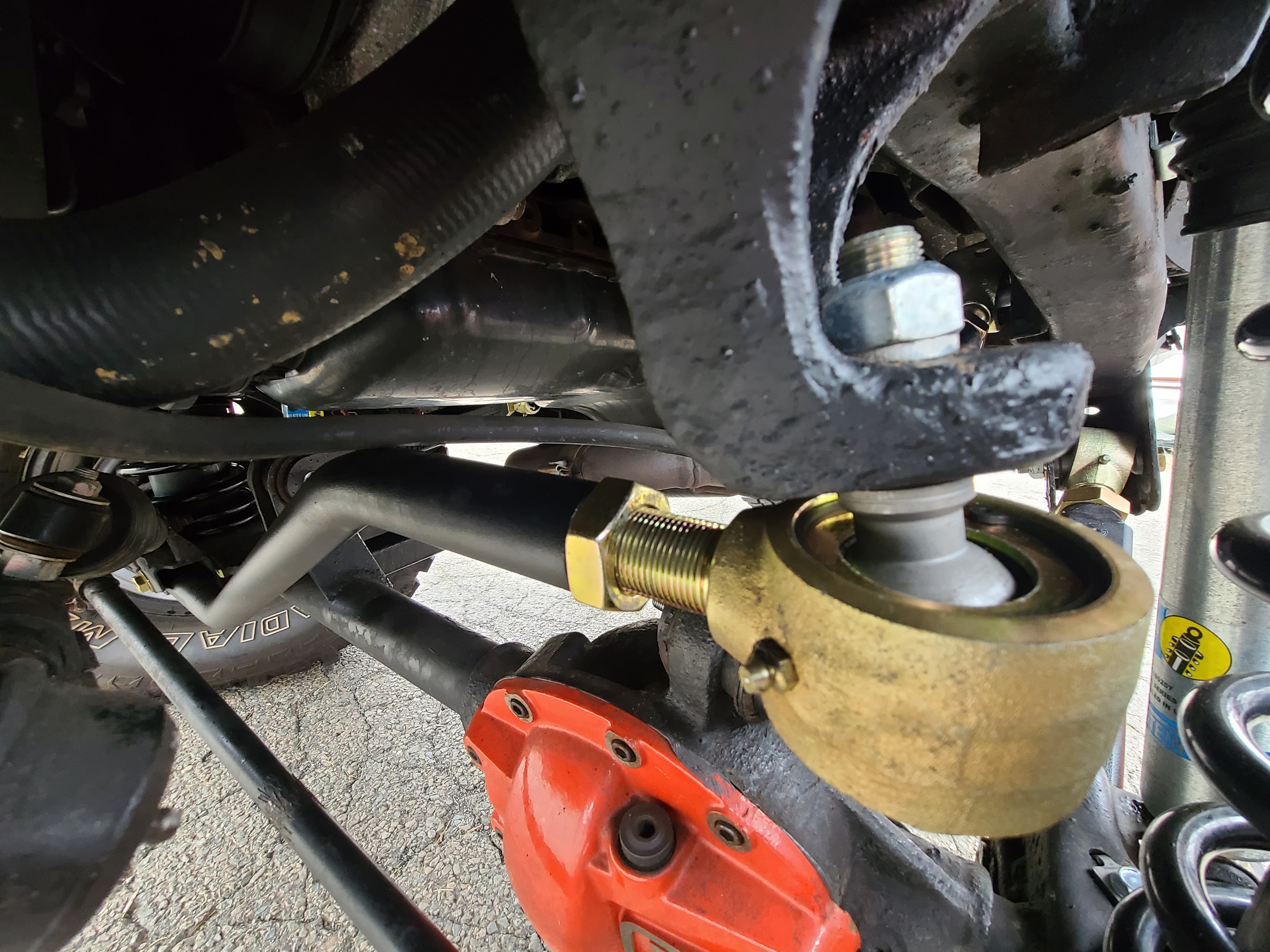

- Remove factory front track bar.
- Install COR-4500205 in factory front track bar mounting positions — bolt-on, no modification required.
- Torque all mounting hardware at ride height.
Step 3 — Verification:
- Verify front axle is centered laterally.
- Complete full front alignment.
Required tools:
| Tool | Required |
|---|---|
| Standard socket and wrench set | Yes |
| Torque wrench | Yes |
| Alignment equipment or appointment | Yes — post-install |
Common Questions
What does "5/8 Frame Version" mean?
The frame-end of an adjustable track bar connects to the frame-side mount with a bolt. Different platforms and aftermarket mount configurations use different bolt diameters at this location. This bar is configured for a 5/8" frame-end bolt — the diameter required at the factory frame-side track bar mount on these TJ, LJ, XJ, and ZJ platforms. If your mount uses a different bolt diameter, this bar will not install correctly. Measure the bolt diameter at your frame-side track bar mount before ordering.
How do I confirm my frame bolt diameter is 5/8"?
Remove the bolt at the frame-side track bar mount and measure the shank diameter. A 5/8" bolt has a shank diameter of 0.625". If unsure, text (469) 407-7538 with your vehicle year and model and OFAS will confirm the correct bar for your frame configuration.
Do I need a track bar bracket with this bar?
Not necessarily. If your factory frame-side mount is intact and in correct position for your lift height, this bar alone provides the geometry correction. If your build requires a drop bracket to lower the frame-side mount for lift height correction, source the appropriate bracket separately (COR-4500410 for XJ/ZJ, COR-4500420 for TJ/LJ). Complete bundled kits (bar + bracket) are also available — see COR-4500502, COR-4500512, COR-4500522.
Does this fit the JK, JL, or JT?
No — those platforms use different frame-end hardware. JK front track bar: COR-4508100. JL/JT front track bar: COR-4509100.
What is the warranty?
Clayton Off Road provides a lifetime warranty on this front track bar. Confirm full terms at claytonoffroad.com/pages/warranty-policy.
9. The Obsidian Take
This bar is for the TJ, LJ, XJ, or ZJ owner who needs a standalone Clayton adjustable front track bar in the 5/8" frame-end bolt configuration — without a bundled bracket. It is the bar component that the complete kits (COR-4500502, COR-4500512, COR-4500522) include, sold separately for builders who already have a bracket or who are sourcing bar and bracket independently.
The 5/8" frame bolt is the specification that determines whether this is the correct bar for a given build. That measurement takes one minute with a tape measure or caliper at the frame-side track bar mount. Get that number right before ordering — the wrong bolt diameter means the bar cannot be installed.
For builds that also need a bracket, the complete bundles are typically more efficient than sourcing bar and bracket separately. For builds where only the bar is needed — factory mount is intact, correct position, serviceable — this is the direct purchase.
It is not for the JK, JL, or JT. And it is not installed correctly without first confirming the 5/8" frame bolt diameter and setting the bar length for the front lift height.
Manufacturer Data Disclaimer
Product specifications and fitment data are sourced from Clayton Off Road product documentation and authorized product information. Actual product dimensions, adjustment range, and frame-end bolt compatibility may vary by specific vehicle configuration, aftermarket modifications, and manufacturer updates. Confirm frame-end bolt diameter and fitment with Clayton or OFAS before ordering.
Non-Returnable Notice
Suspension components are non-returnable once installed. Confirm frame-end bolt diameter is 5/8" at your frame-side track bar mount, vehicle identity (1997–2006 TJ, 2004–2006 LJ, 1984–2001 XJ, or 1993–1998 ZJ — not JK, JL, or JT), and correct bar length setting before ordering. Text (469) 407-7538 with any fitment or configuration questions before your order is placed.
